TOP wall mounted jib crane with electric hoist

Product details
Port:Qingdao Tianjin Shanghai;Application:Port crane , port slewing crane;
Delivery Detail:Within 20 days after receiving depoist and confirming design;Color:Customized;
Weight overload protector:Included;Working class:A3--A5;
Warranty:12 mouths;High quality jib crane:Jib crane with competitive price;
Supply Ability:850 Set/Sets per Year;Brand Name:Ellsen;
Max. Lifting Height:5m;item:TOP wall mounted jib crane with electric hoist;
Span:2.5-5.5m;Feature:Jib Crane;
Feature:TOP wall mounted jib crane with electric hoist;Crane traveling speed:20/30 m/min;
Max. Lifting Load:5t;Model Number:Fixed Column Slewing Jib Crane,Column Slewing Jib Crane, Slewing Jib C;
Packaging Detail:wooden case for electric parts, other naked.;Condition:New;
After-sales Service Provided:Engineers available to service machinery overseas;Certification:CE,SGS,ISO,GOST;
Place of Origin:Henan China;Rated Lifting Moment:20;
Type of electric hoist:CD1/MD1;Delivery:Speedily;
Payment Terms:L/C,T/T,Western Union,MoneyGram;Voltage lower protection:Included;
Rated Loading Capacity:5t;

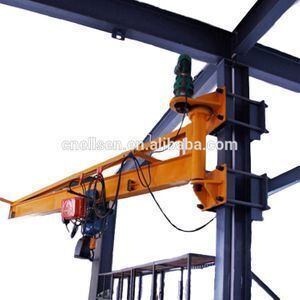

TOP wall mounted jib crane with electric hoist

Product Overviews



Normally,we need you confirm below information before decide to purchase:

(Leave your email and whatsapp or skype or wechat when you send inquiry to us)

1.Loading capacity?(Ton)

2.Lifting height?(m)

3.Jib length?(m)                                                 Click here: "Send enquiry"

4.Power supply?(V-HZ-Phase)

5.Where does it used?

6.QTY?(set)

7.FOB or CIF price?(If CIF price,tell us your nearest destination port.)

8.Any other special demands?



Exhibition of wall mounted jib crane                                Contact us





Technical parameter of wall mounted jib crane              Contact us



+
Loading capacityt0.250.512
Beam lengthmm2000~6000
Lifting heightmm2000~6000
Lifting speedm/min8; 8/0.8
Travelling speedm/min10; 20
Turning speedr/min0.760.690.60.53
Turning degreedegree180°
Working classA3
Power source380V, 50HZ, 3 phase (or other standard)
Working temperature-20~40°C
Control modelPendent pushbutton control or remote control



Product Description



Brief introduction of wall mounted jib crane                  Contact us



+
General description

Wall mounted jib crane is a new generation of hoisting equipment developed to meet the requirement of modernized production in side workshop or house. It is wall mounted type which is suitable for short distance, frequent and intensive hoisting operations, with such features as high efficiency, energy  frugal, labor saving, occupying less space, easy operating and maintenance, etc.

 Specific details
  • Loading capacity: 0.5 ~ 2ton ;
  • Lifting height:3 ~ 20m ;
  • Jib length:2 ~ 10m;
  • Slewing degree:0 ~ 180°;
  • Power supply:220 ~ 690V,50/60HZ,three phase or customized design.
 Application
  • Factory,workshop,warehouse,store;
  • Logistic,dock,port , freight yard ;
  • Construction building,mine,etc.
 Advantage & feature
  • 1.Installation with high strength bolt connection;
  • 2.Convenient in operation,safe and turn to flexible;
  • 3.Low noise,commodious cabin and good looking;
  • 4.High quality and efficiency, competitive price;
  • 5.Reasonable and simple whole structure,Light self-weight, conform to the state standards;
  • 6.Inexpensive handling systems doesn't require modification of the building structure around.



Related Products



Display of different types jib crane                                  Contact us





Different types jib crane for your more choose                         Contact us



+

Column mounted jib crane

  • Loading capacity: 0.5 ~ 20 t ;
  • Lifting height: 3 ~ 10 m;
  • Jib length: 2 ~ 10 m;                        Get Quotation
  • Slewing degree:0 ~ 360°;
  • Power supply: 220 ~ 690V,50/60HZ,3Phase;

Wall mounted jib crane

  • Loading capacity: 0.5 ~ 2 t  ;
  • Lifting height: 3 ~ 20 m;
  • Jib length: 2 ~ 10 m;                        Get Quotation
  • Slewing degree: 0 ~ 180°;
  • Power supply: 220 ~ 690V,50/60HZ,3Phase;

Wall travelling jib crane

  • Loading capacity: 0.5 ~ 5 t;
  • Lifting height: 2 ~ 20 m;
  • Jib length: 2 ~ 10 m;                       Get Quotation
  • Slewing degree: 0 ~ 150°;
  • Power supply: 220 ~ 690V,50/60HZ,3Phase;



Packaging & Shipping



 Packing & Delivery of jib crane                                        Contact us





Company Information



About us                                                                             Contact us



+

Our factory professional manufacture crane equipments and construction building hoist in china with 55 years experienced.We mainly produce overhead crane,gantry crane,port crane,jib crane,electric hoist,kinds of winch:electric winch,marine winch,hydraulic winch,diesel winch,etc.At present,our factory mainly proudce column mounted jib crane,wall mounted jib crane,wall travelling jib crane,our jib crane can be customzied design Max.20t according to our clients' demands.



Production and process of jib crane                               Contact us





FAQ



  FAQ                                                                                   Contact us

1.Q:MOQ?

   A:One set is ok.

2.Q:Can you accept payment terms?

  A:T/T,L/C,Western union,Paypal,Escrow,Trade assurance,Credit card,etc.

3.Q:Delivery time?

    A:If in stock,1~3days;If not in stock,normal 3~10 days ;

4.Q:Can you provide OEM/ODM?

    A:Allowed OEM/ODM;

5.Q:Warranty?

    A:One year for the whole machine .

6.Q:Do your products can be customized?

  A:Yes,our all kinds of jib crane can be customized design according to each client's demands.

7.Q:What kinds of certificates about your products?

   A:Normally,we have CE,BV,SGS,GOST certificates,of course our products make some other certificates according to our clients' specific requirements.

8.Q:What kinds of jib crane you can offer?

   A:We can produce column mounted jib crane,wall mounted jib crane,wall travelling jib crane type.



If you have any question about wall mounted jib crane, you can click here:"Send inquiry".
