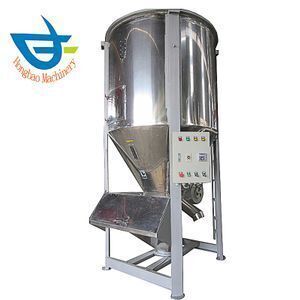

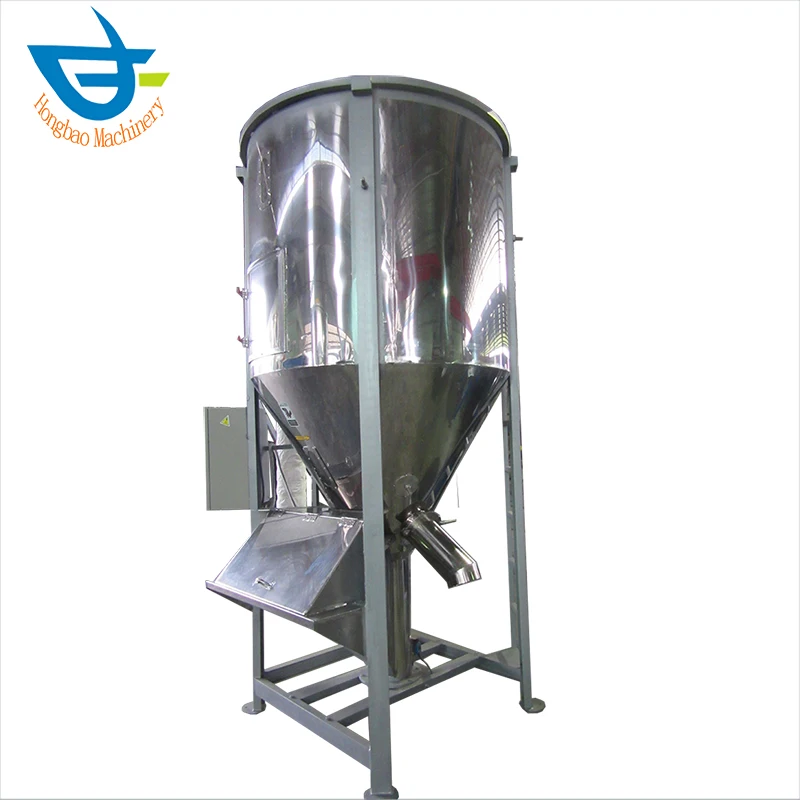

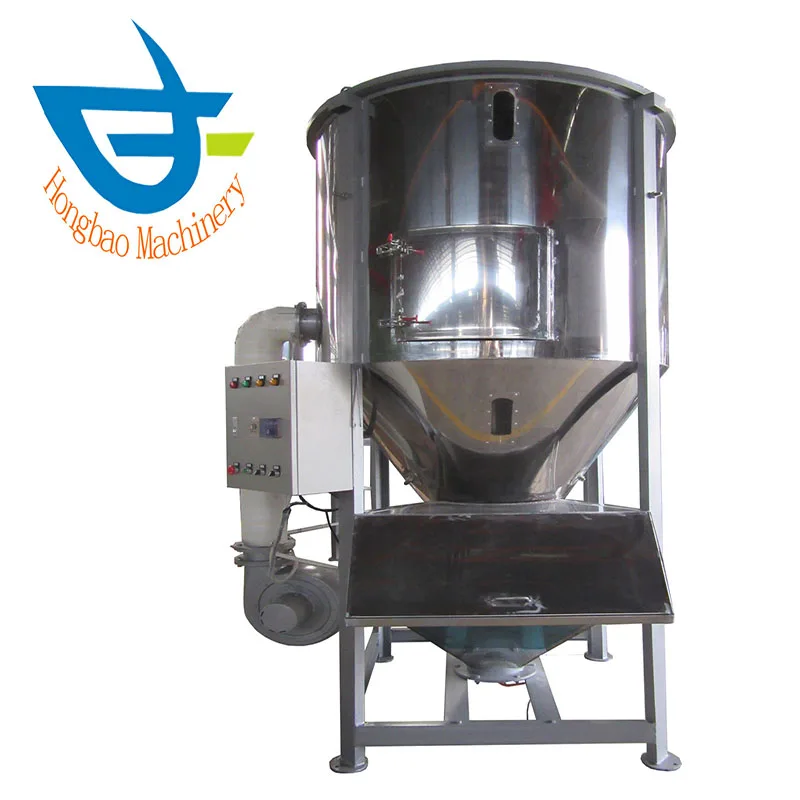

LDPE granule agitator dryer mixer

Product details
Packaging Detail:Wooden splints plywood Stretch film Foam membrane;Condition:New;
PRODUCT NAME:LDPE granule agitator dryer mixer;Capacting:2000kg;
Payment Terms:T/T;Heating power:30kw;
Place of Origin:Guangdong China;Model:HBH--2000;
Brand Name:Hongbao;Suitable material:PVC PE PP;
Dimension(L*W*H):175*175*355;Type:Mixing dry;
Speed:350r/min;The motor power:5.5kw;
Warranty:1 Year;Applicable Industries:Manufacturing Plant,Food & Beverage Factory;
Supply Ability:1 Piece/Pieces per Day;Overall dimensions:175*175*355;
Port:Guangzhou huangpu port;After-sales Service Provided:Video technical support;
Material of blade:Stainless steel;



Model

HBH--500

HBH--1000

HBH--2000

HBH--3000

HBH--5000

Capacting(KG)

500

1000

2000

3000

5000

The motor power(KW)

3

4

5.5

7.5

11

Heating power(KW)

12

20

30

40

50

Speed(r/min)

350

Overall dimensions(CM)

120*120*235

160*160*265

175*175*355

220*220*385

240*240*435





 LDPE plastic mixing dryer is one of the necessary equipment of injection molding machine, granulator, plastic particles from the feed hopper, under the action of helical blade propulsion, along the blade surface upward sliding under the action of centrifugal force of the upper, the barrel scattered around, scattered material continuously moves down, by circulating discharging mouth and circulate in barrel mouth by continual spiral blade in promoting. Such repeated cycle, purpose of mixing, meanwhile the air blower sent to the electric heating box, became hot after heating and automatic control, temperature control table to evenly between hot air from the resin is suitable for all the way through, through the material layer, hot alternating constantly take away moisture, top-down, resin particles decreased continuously in the process of purging dry, efficient drying and mixing process.
