Wood working machinery cyclone dust collector

Product details
Color:Blue/Green/White;Dimension(L*W*H):1760mm*830mm*130mm;
After-sales Service Provided:Engineers available to service machinery overseas;Place of Origin:Jiangsu China (Mainland);
AIr Volume:2000/5000/10000/20000m3/h;Type:Fabric Dust Collector;
Certification:ISO9001:2008;Packaging Detail:plywood or wood pallet, or as per customer request;
Main Function:mine / stone working dust extractor;Structure:advanced;
Material:Carbon Steel;Name:Industrial Cyclone Dust Collector;
Port:Shanghai;Warranty:2 Years;
Minimum Particle Size:5 Micron;Supply Ability:400 Set/Sets per Year industrial dust collector;
Application:mine / stone / cement / chemical / griding / pharmacy;Payment Terms:L/C,T/T,Western Union;
Model:JNEH-2000;Efficiency:70~80%;
Brand Name:JNEH;Condition:New;
Weight:210kgs;Product name:industrial dust collector;
Product Description

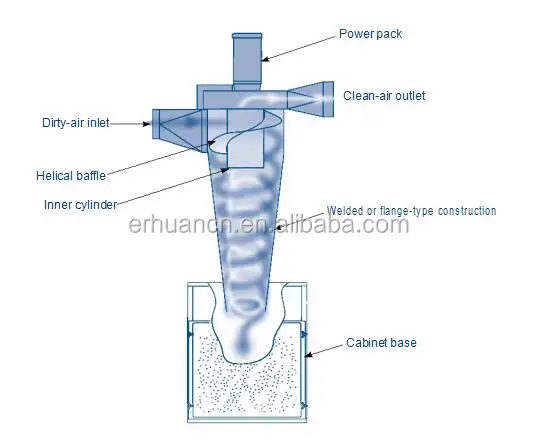

How Cyclone dust collector works:

Cyclone dust collector using centrifugal force to remove large and high-volume dust from industrial applications.Dust-laden air enters the unit through the air inlet and is diverted by a helical baffle. Centrifugal force moves the heavy dust to the interior sidewalls and carries them to the base of the unit. Clean air is carried through the inner cylinder and discharges to atmosphere or optional afterfilters.


Cyclone dust collector structure:


Model No.
Air volume  M2 /H
Supply Voltage
Seismic Rating
EH-CY2000
2000-3000
220/380/440-Volt, 50HZ/60HZ
Zone 4
EH-CY3000
3001-5000
220/380/440-Volt, 50HZ/60HZ
Zone 4
EH-CY5000
5001-8000
220/380/440-Volt, 50HZ/60HZ
Zone 4
EH-CY7000
8001-12000
220/380/440-Volt, 50HZ/60HZ
Zone 4
EH-CY12000
12001-15000
220/380/440-Volt, 50HZ/60HZ
Zone 4
EH-CY15000
15001-20000
220/380/440-Volt, 50HZ/60HZ
Zone 4
EH-CY20000
20001-25000
220/380/440-Volt, 50HZ/60HZ
Zone 4
EH-CY25000
25001-32000
220/380/440-Volt, 50HZ/60HZ
Zone 4
....................

Save cost

The most economical solution to a wide range of dust collection problems.

Good performance

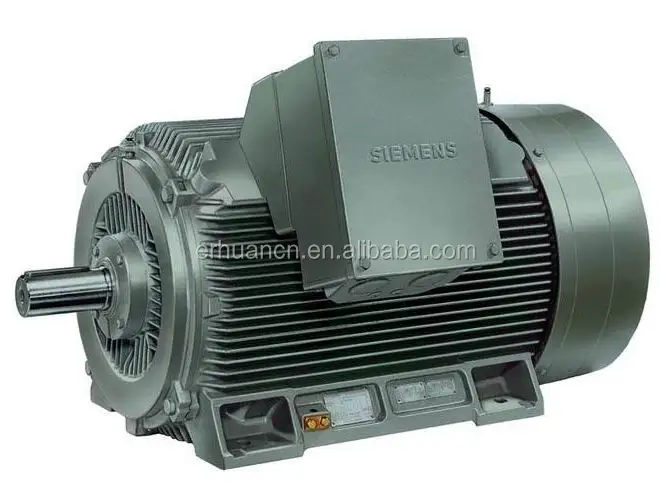

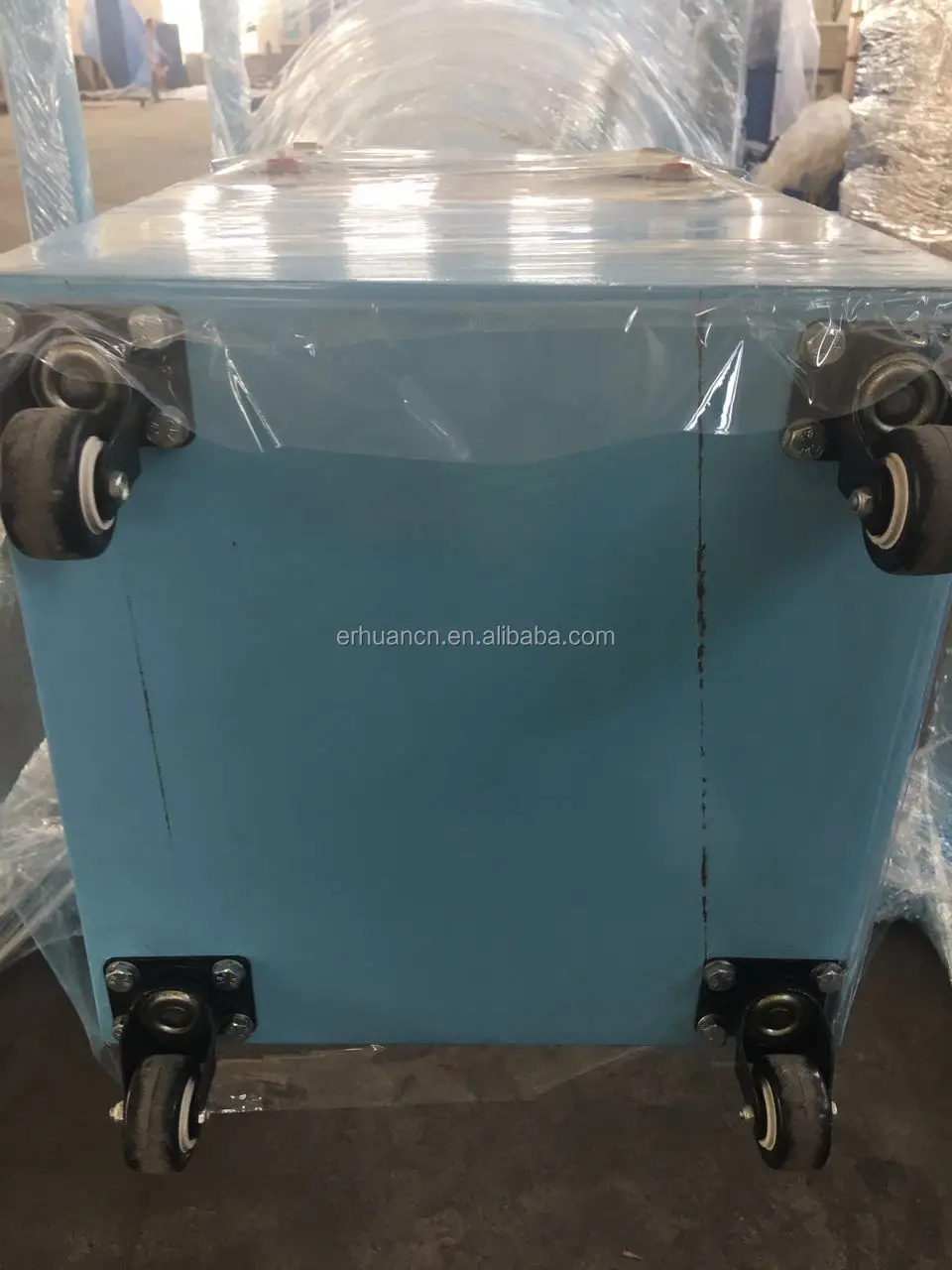

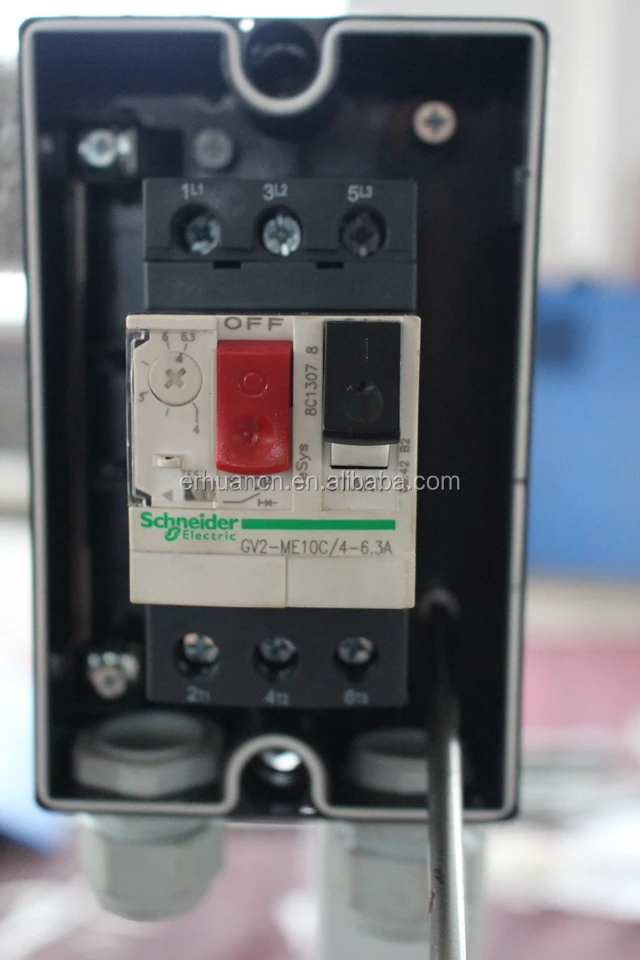

Simence Motor, Schnider electric used. Excellent for high dust load, high temperature, and product recovery applications.And with wheels, easy to move where you need.

Advanced accessories

Applications from 1000 to 10,0000m3/h,

Main Features

1) Simple structure  ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Removable cone section for easy replacement.

4)55-gallon drum base for each model.

5) 10-year warranty for dust collector body.

Certifications

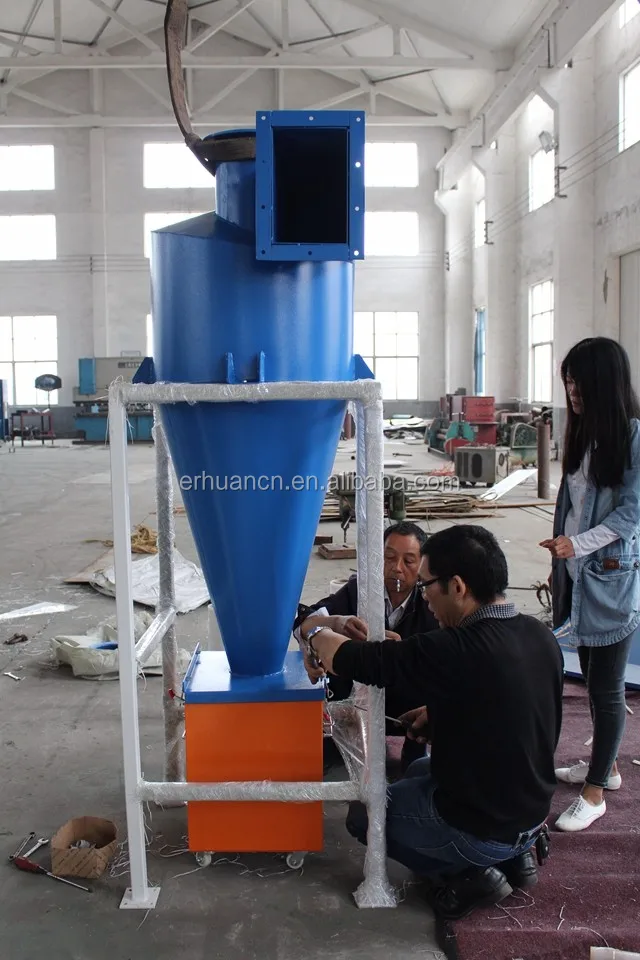

Detailed Images

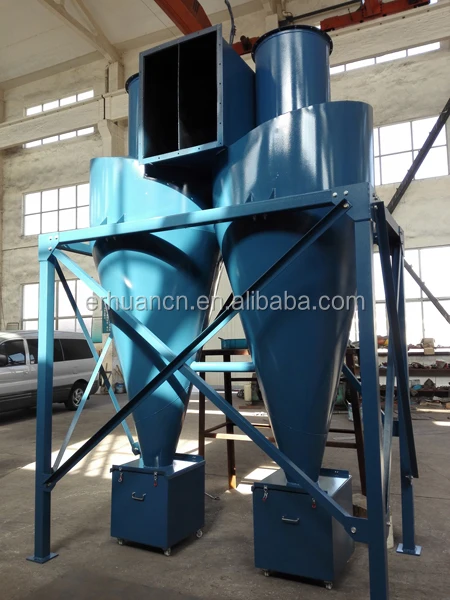

EH-CY4000 Model

Name: 4000m3/h Double Cyclone dust collector

Brand: JNEH

Original: China

4-5mm thickness carbon steel material, double Cabinet, 10 years dust collector body warranty, 85% efficiency against 5um dust particle.

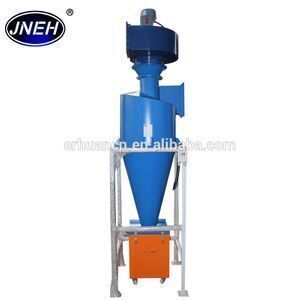

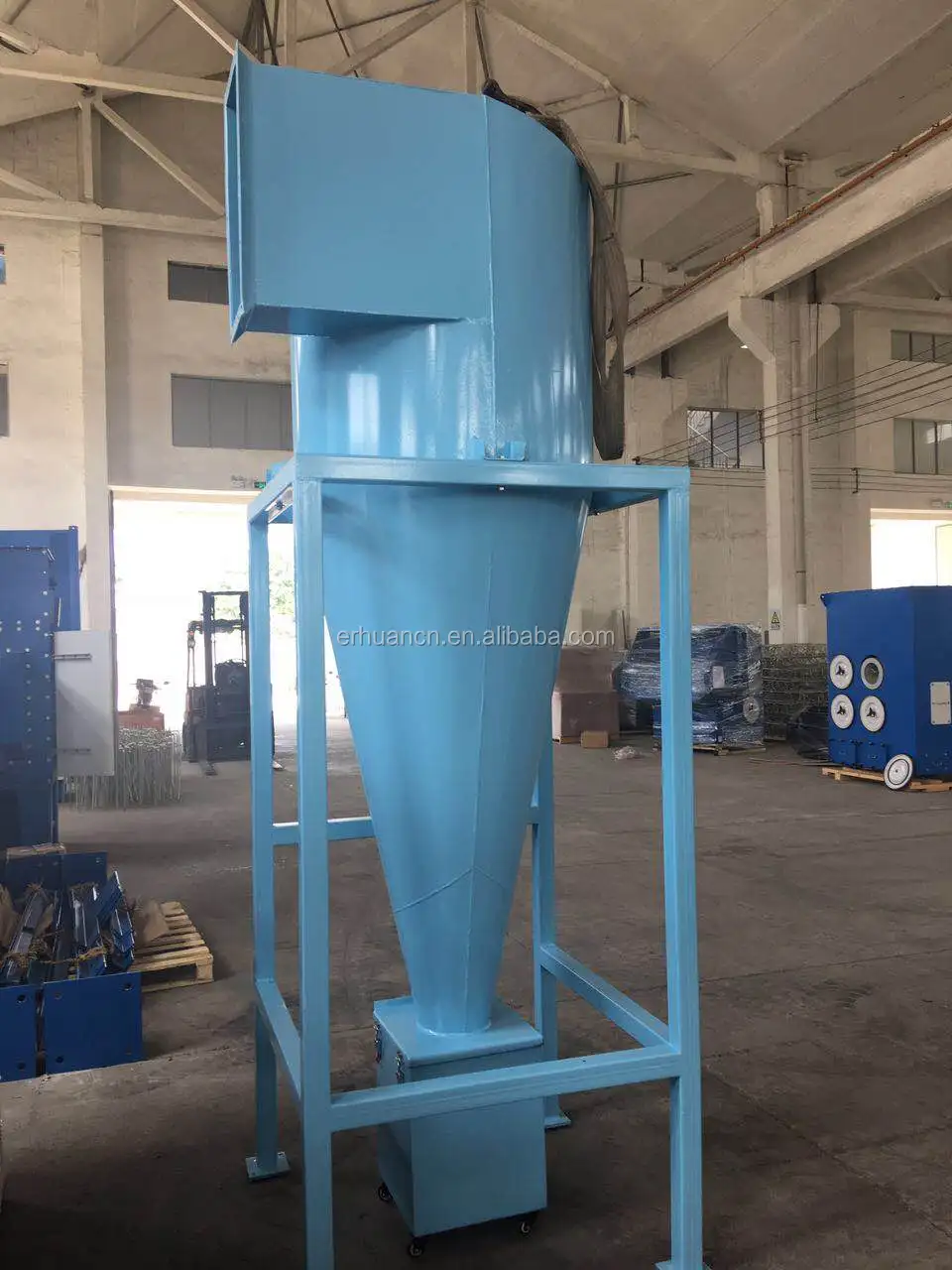

EH-CY2000 Model

Name: EH-2000 Cyclone dust collector
Brand: JNEH
Original: China
Exported to USA, Brazil, 2000m3/h, used in mineral/mine process, with Simence motor, domestic famous material, strong dust collecting performance, protect your workers health.

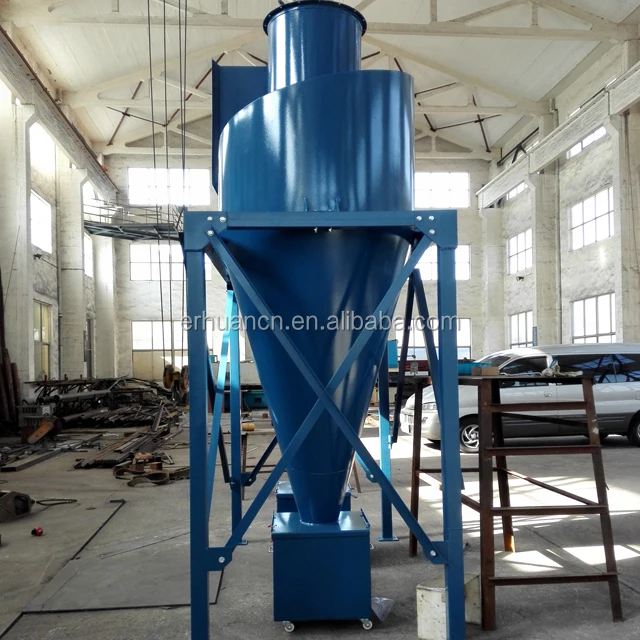

EH-CY3000 Model

Name: EH-3000 Cyclone dust collector
Brand: JNEH
Original: China
55-gallon drum base enough and easy for duct collecting, muti-color can be choosed, installed in factory, occupy small area, Excellent for high dust load, high temperature, and product recovery applications.

application in first filter grade for grain process.

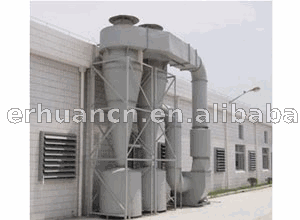

EH-CY5000 Model

Name: EH-5000 Cyclone dust collector
Brand: JNEH
Original: China
Installed outside for a cement factory,

double drum for choosing, white color,

save cost and very economical solution.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

*Technical data confirmation with 3D.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

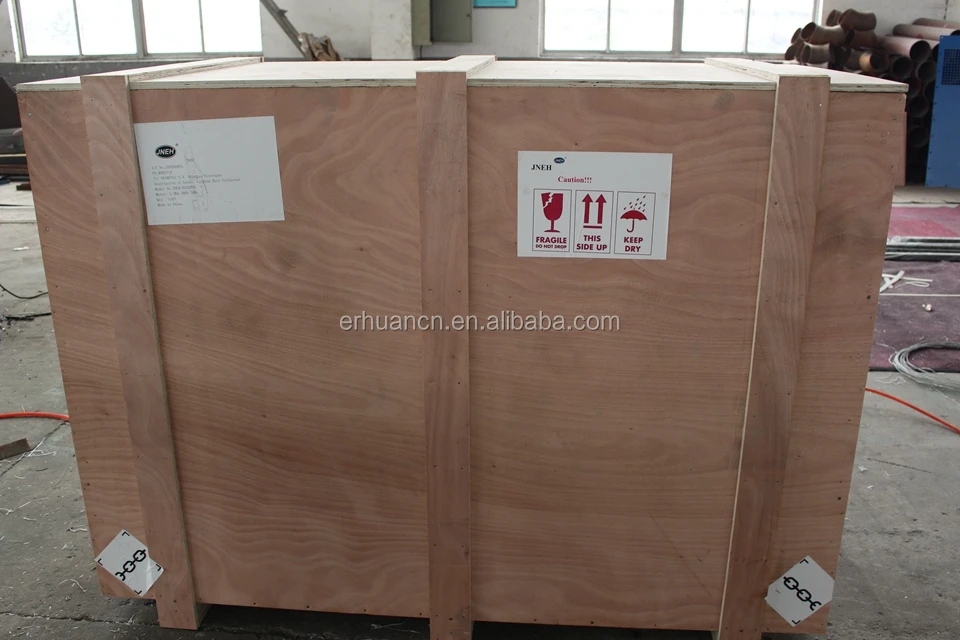

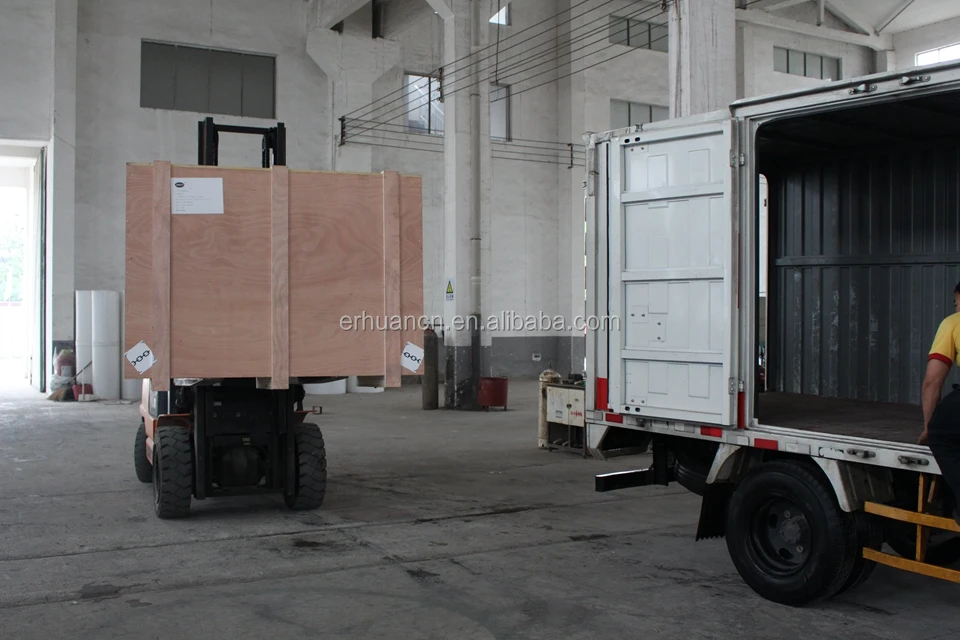

Packing & Delivery

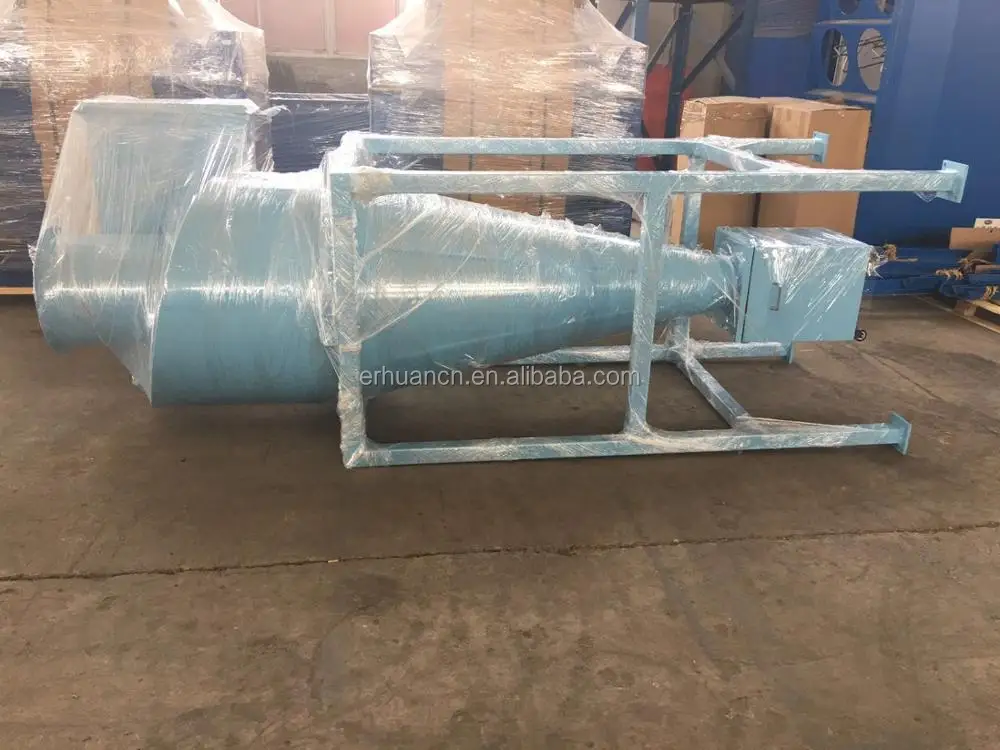

Packaging
Size
L1760mm*W830mm*H130mm
Weight
330kgs



Packaging Details
The normal package is Plywood (Size: L*W*H).If the cyclone volume is big, we will use container,we will choose the right way for packing or pack it according to customers special request.
Application Photos

Releated products


EH-DFT 2-2 dust collector

Special for small laser cutting machine, model design, block shipment, save labor cost and shipping cost.

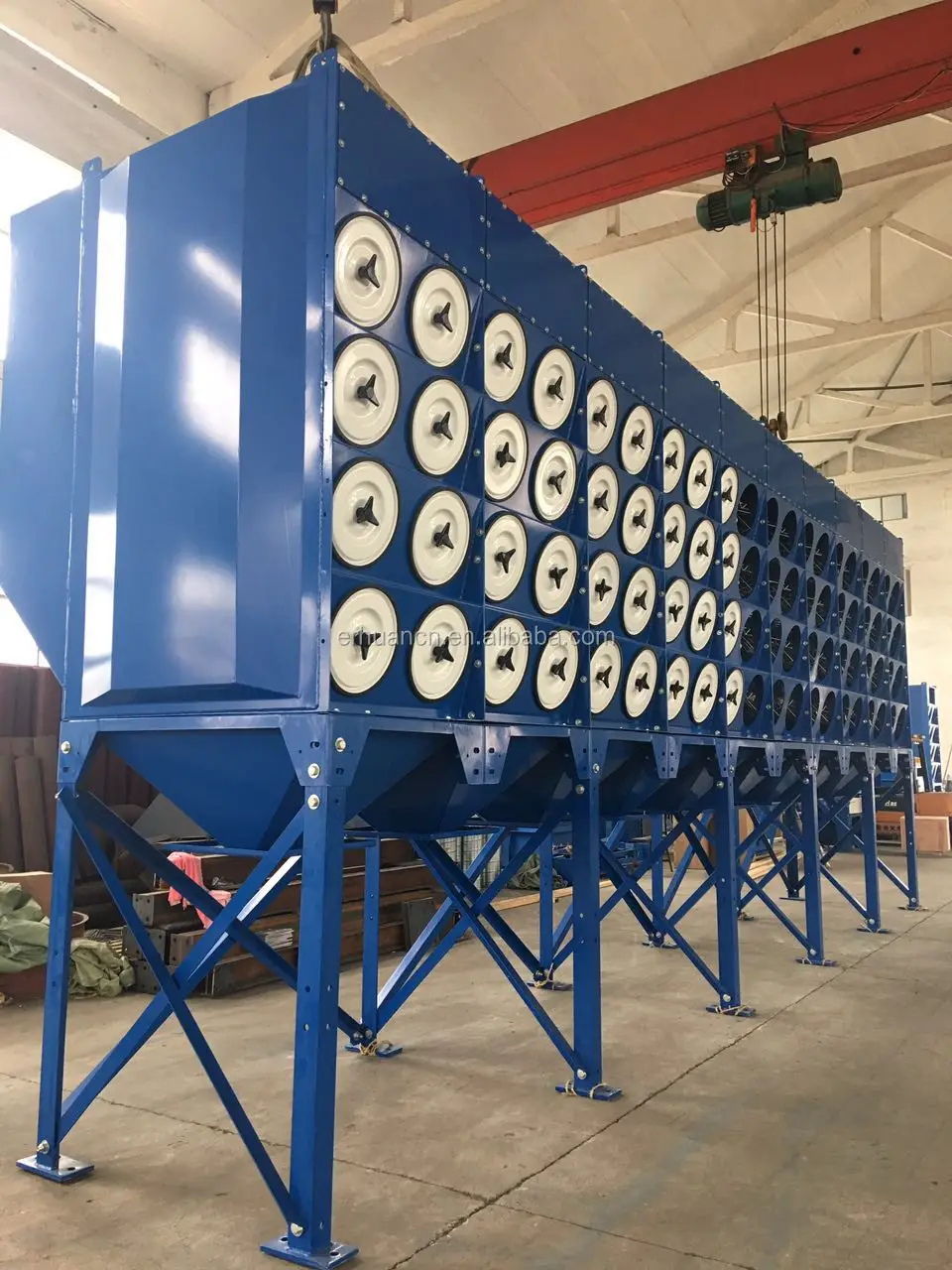

EH-DFT Series dust collector

Downflow dust collector, with Donaldson/BHA cartridge fitler, Goyen valves, Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

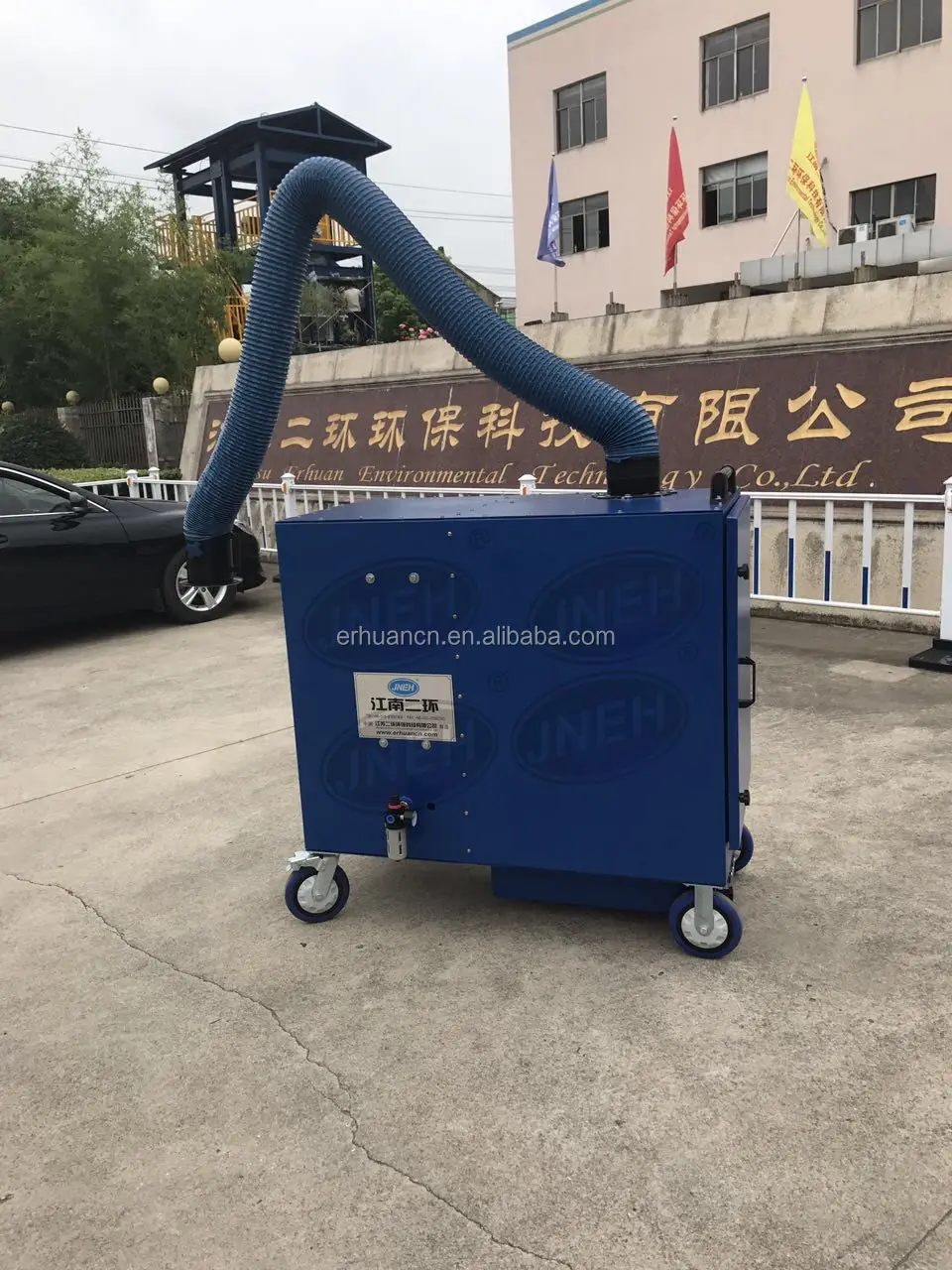

EH-WL dust collector

Welding machine accessories, welding fume extractor/dust collector, protect worker's health and your factory environment

About us

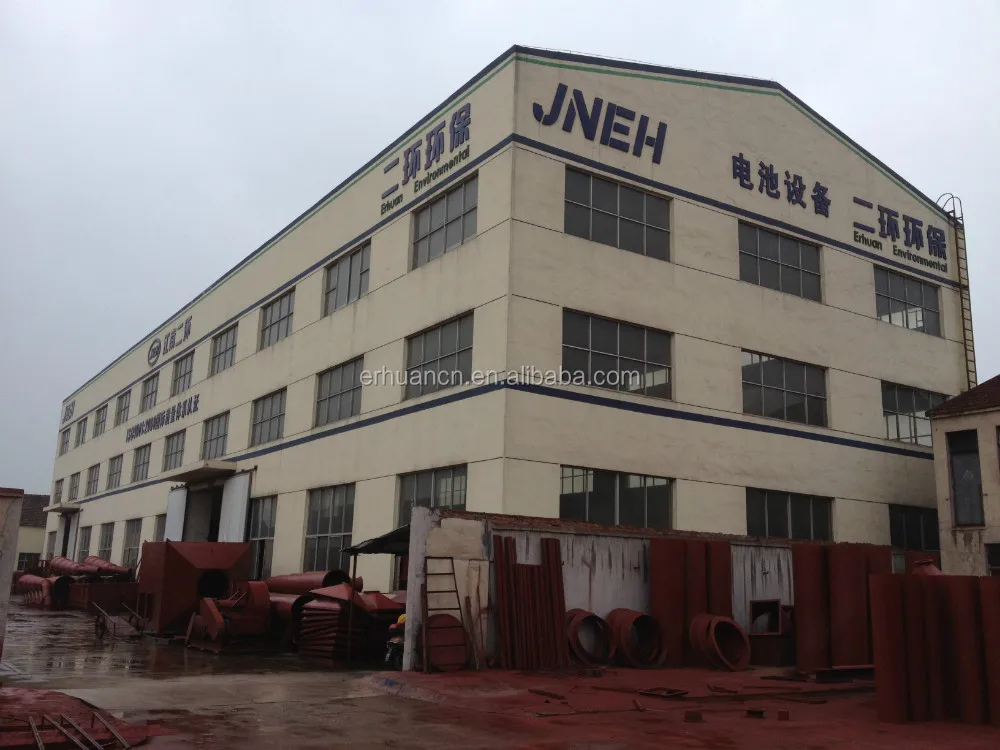

Real own Factory                                   3D SW draing engineers                          Various exhibitions

Not like other dust collector manufacter, we have our own 2 factories, 8,000 m2 factory with 35 skilled and experienced engineer.welcome visit at your convience. we will pay for your air ticket charge.

Each of our dust collector engineers at least have more than 15 years experience in dust cocllector field. solve your problem efficiently.

Every year, our factory attend various dust collector exhibitions over the world.

FAQ

Q What is the price?

A The price is based on your request technical data, such as the air volume, application, configuration etc, different model has different price, so if you need the price, please send me your detail technical data or photos

Q What payment methods your company accept?

A We accept most of the payment methods,but mainly accept T/T,L/C,Western Union etc.

Q How long is the warranty time for your products?

A Our officially promised warranty time is one whole year after delivery at best.

Q I haven't done business with your factory before,how can i trust your company?

A We are the golden supplier on Alibaba for 2 years, and we can get a lot authority certificates,for example,CE, RoHS, ISO9001, BV, Alibaba onsite check certificate etc. We can also accept Trade Assurance payment, i hope this will be persuasive enough.

Q What's the delivery time of your company?

A Honest speaking, they depends on the quantity and the difficult of your order.As you know , but mostly ,the shipment time is 4-8 weeks after deposit.

Q Do you give any discount ?

A We will surely try my best to help you get those by the best price and good service at the same time.

Q I would like to ask you if it's possible to have my logo on the dust collector machine

A We hope you know that our company Erhuan supports customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.
