A to z automatic liquid water pet bottle filling machine for bottling line

Product details
Packaging Material:Wood;Brand Name:Beyond;
Cap type:Plastic Screw Cap;Packaging Type:Case;
Type:Filling Machine;Certification:SGS,CE;
Dimension(L*W*H):customized;Port:Shanghai;
Production capacity:3000-20000bph or customize in accordance with customers' requirements;Weight:according machine model;
Material:SUS304;Automatic Grade:Automatic;
Warranty:1 Year;Supply Ability:200 Set/Sets per Year;
Voltage:220/380v;Driven Type:Electric;
After-sales Service Provided:Engineers available to service machinery overseas;Packaging Detail:automatic filling machine Wooden Packages, Suitable For Long Way Distance , And Ocean Railway Transportation;
After-sales Service Provided:Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;Application:Beverage;
PET Bottle Height Range:170-320mm;Condition:New;
Payment Terms:L/C,T/T;PET Bottle Diameter Range:50- 100mm;
Place of Origin:Jiangsu China;Control:PLC;
Product Description

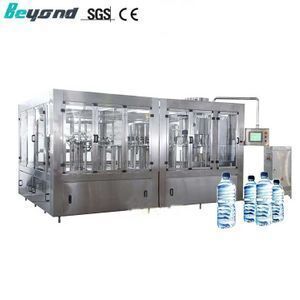

A to z automatic liquid water pet bottle filling machine for bottling linet



  • Introduction:
  • Non-carbonated water filling machine: is a mechanical gravity filling machine, for PET bottle, glass bottle. Made for cold filling with mineral water, pure water and non-carbonated products.

  • Application:

    Mineral water, pure water

    Non-carbonated beverage.

  • Main feature:

    1. Central tank

    2. Entirely sus304

    3. Reliable,simple and easily sanitized valve.

    4. Reduce changer over down-times.

    5. Pneumatic filling valve opening/closing control,no electronic er, Mitsubishi ,....

    Main Features.

    1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
    2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
    3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
    4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
    5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
    6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

  • Main Technical Data:
    ModelRinsing headsFilling headsCapping headsProduction Capability(b/h)Power of main motor(kw)
    CY8-8-4C88430004.1
    CY12-12-6C1212650004.23
    CY18-18-6C1818680005.03
    CY24-24-8C24248120006.57
    CY32-32-10C323210150007.5
    CY40-40-10C404010180008.63
    CY50-50-12C5050122000011


 Filling valve:

Extremely fast, simple and reliable patented mechanical valve.

It is operated by a pneumatic control located inside the movement carriage, so allowing control of the opening and closing phases.

The control is not in contact with the product so as to prevent  any possibility of contamination.







Filling Optional

 Click the picture.You will know more!

Company Information

ZHANGJIAGANG BEYOND MACHINERY CO., LTD. is a group company located in Sanxing Industrial Park, Zhangjiagang City, Jiangsu Province, China.

For beverage machine, our main products including:

              *The capacity of 2000-- 30000 BPH for juice and tea hot filling producing line.

              *The capacity of 2000 -- 30000 BPH for mineral water and purified water producing line.

              *The capacity of 2000 -- 30000 BPH for carbonated beverage and cold filling producing line.

              *The capacity of 1000 – 8000 BPH for vinegar and alcohol and oil producing line.

              *The capacity of 100 -- 2000 BPH for 1 and 3 and 5 gallon barrel producing line.

              *The capacity of 2000 -- 10000 BPH for soybean milk and peanut milk and other plants protein drink producing line.

              *2~20T/H water treatment equipment(mineral water and pure water).

              *PET perform inject and blowing-stretching machine.

 Relevant equipments: Bottle unscrambler/Full bottle overturn sterilizer/Concentrating equipment/Plate and tube UHT device/CIP system/Labeling machine/Auto film shrinking packing machine.

 We carry a strict quality management system in accordance with ISO9001 requirements. We have established a complete processing line including design and manufacture and sale and after sale service. Our products are well sold around the world.

Please be free to contact us for more information and we are ready for making business relations with you in the near future.



Packaging & Shipping



FAQ

Q:What are you main products?

A:The products include: beverage filling machiner,hot filling production line, Pure water filling machine, pure water production equipment, oil filling machine; beer can(bottle) filling machine;milk filling production line, 5 gallon filling production line , carbonated soft drink production line , big bottle water filling production line , three-in-one filling machine, beverage equipment, etc.

Similiar equipments contain water treatment plant ,PET bottle blowing machine,bottle unscramber machine,labeling machine,packing machine,sterilizer,date printer,etc.

Q:How can I install my machine when it arrives?
A:We will send the engineers to install and test the machines and have training lessons abroad, but the Visa fee, round tickets, accommodation, eating, and the allowance of 80USD per day per person will be on customer's side.

Or the customer can send the engineer to our company to complete the inspection of the goods, as well as the installation and training lessons ,but the Visa fee, round tickets, accommodation, eating, and the allowance will be paid by customers .

Q: Do you provide customized service
A: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

Q:What about Products material and configuration use?

A:304 stainless steel, the machine frame material is iron. According to customer requirements, 316 stainless steel is available , complete machine stainless steel, and customers demand specified configuration.
