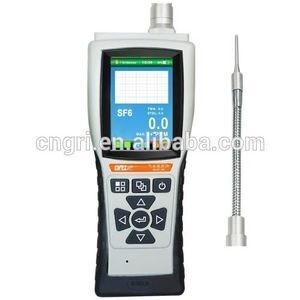

sulfur hexafluoride SF6 portable gas detector 0-1000 PPM analyzer, infrared sensor

Product details
Sampling method:Internal Pump;Place of Origin:Hunan China (Mainland);
Payment Terms:L/C,D/A,T/T,Western Union,MoneyGram;Detecting Gas:SF6;
Supply Ability:1000 Set/Sets per Month;Product name:Gas Detector;
Port:Shang Hai/Shengzhen;Measure Range:0-1000ppm;
Resolution:1ppm;Warranty:12 Months;
Color:Light Gray;Power supply:Rechargeable Lithium Battery;
Packaging Detail:one set per aluminum box standard international package;sensor theory:infrared (NDIR) sensor;
Model Number:WASP-XM-R-SF6;Brand Name:GRI;
Weight:570g;



Company Information

GRI Instrument, the professional manufature of gas sensor and gas detector since 2009.

Our office and factory are both located in Hunan Changsha, China, Welcome to China, and welcome to our company.

We aim at suppy the Excellent quality, best service products.



We will have more cooperation once you learn us more.



GRI TEAM.


Product Description



Proudct Outview

WASP-XM Series Pump-priming Portable Gas  Detector Is a continuous monitoring of a variety of single gas detection equipment. This product is suitable for environmental monitoring, industrial production and other harmful gases working environment, which can effectively protect the health and safety of staff is not compromised



Main Feature

 Intelligent Probe design;convenient calibration and maintenance;
 Fault, Warning, operator error, alarm will be smart tips;
 Built-in CF calibration coefficients (VOC measurements only valid);
 With audible alarm, visual alarm function, the status bar also displays alarm status;
 Full-color 3.5-inch TFT screen, color LCD display and intuitive;
 Can be both digital and curve display of gas concentration in two ways;
 With USB communication port, you can speed 9600 bytes to communicate directly with the computer;
 With test record function, can store a month's measurement data and instrument or computer can view the data;
 With alarm recording function, you can record the last four times the alarm time and type;
 With calibration record; can record the last four times the size of the calibration time span;
High-capacity lithium battery-powered, rechargeable, low battery automatic shutdown;
Can be set high reported, underreporting, TWA, STEL, shutdown time, pump speed, etc.;


Technical Parameter

Sensor type

infrared (NDIR) sensor

 Sampling way pump
 Test range 0-1000/3000 PPM or customize
 resolution1 PPM
 pricision  + 5%FS
 response time  <20s
 Indicate way  LCD display real-time concentration ,LED ,buzzer alarm
  Data storage  Can store multiple sets of data
  Pressure rangeAtmospheric pressure ± 10%
  Operating Current: normal current   ≤ 150mA; Alarm current: ≤ 200mA
 power supply  Lithium battery (4.2V/3000mAh
  Operating Temperature  -40 °C - 70 °C
  Relative Humidity  15% - 95%, non-condensing
  Storage Temperature   -20 °C - 60 °C
  Storage humidity    ≤ 90%, no condensation
  Sensor life 1 year
  Continuous work hours  30 hours above
  Charge time   6-8 hours
  Housing material: PC
  Dimensions  228* 84 * 50.5mm
  Installation  Handheld / Stand-in
Weight: 0.55KG
 Protection IP65
CertificationCE
Warranty12 months


Applications

Petroleum, petrochemical, chemical, environmental, paper, paints, coatings, mining, electroplating, textile, coking plants, indoor air quality monitoring, environmental monitoring systems, health monitoring systems.
Can be measured gas species: CH2O, TVOC, CO, H2S, NO2, NO, SO2, CL2, NH3, H2, PH3, O3, F2, HF, HCL, HBR, C2H4O, COCL2, SIH4, CLO2, HCN, C2H4, SF6 and combustible gases.


Packaging & Shipping





Gas Detection Instrument

1Set









Standard Configuration



Lithium Battery

1Piece

Battery charger and USB line

1Set

             Package box

1Set

Lithium battery

1Set

Operational Manual

1Piece

Product inspection report

1Piece

Products packing

1Set

Metal ventilation pipe  [straight pipe / Curved pipe ]

1Set





Application

Petroleum, petrochemical, chemical, environmental, paper, paints, coatings, mining, electroplating, textile, coking plants, indoor air quality monitoring, environmental monitoring systems, health monitoring systems. Can be measured gas species: CH2O, TVOC, CO, H2S, NO2, NO, SO2, CL2, NH3, H2, PH3, O3, F2, HF, HCL, HBR, C2H4O, COCL2, SIH4, CLO2, HCN, C2H4, SF6 and combustible gases.



Packaging & Shipping

1. Standard neutral packing.

2, Inner OPP Bubble bags to protect the sensor.

3, Package Size: Approx 36cm*28cm*15cm, for your refference only.

4, Will with the Shipping Mark.

Accessories



Gas Detection Instrument

1Set









Standard Configuration



         Lithium Battery(inside)

1Piece

Battery charger and USB line

1Set

             Package box

1Set

Operational Manual

1Piece

Product inspection report

1Piece

Products packing

1Set

Metal ventilation pipe  [straight pipe / Curved pipe ]

1Set
