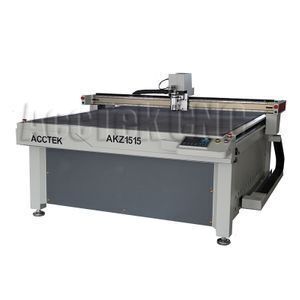

AKZ1515 automatic cnc round knife straight knife oscillating knife cutting machine for cloth, shoe, sofa, car seat

Product details
Condition:New;Packaging Detail:Standard plywood package.;
Work Table:Aviation aluminum vacuum countertop and felt;Packing Size:2200*2100*1350mm;
Application:Almost all fabrics;Cutting Thickness:Maximum 50mm (set according to different materials;
Power(W):11KW;Brand Name:ACCTEK;
Place of Origin:Shandong China;Production Capacity:As your requirements;
Machine Type:oscillating knife cutting machine;Control Software:Trocen TC-6828;
Certification:CE;Driving Mode:Taiwan Delta servo motor and driver;
Port:Qingdao;Applicable Industries:Garment Shops,Manufacturing Plant;
After-sales Service Provided:Free spare parts,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;Materials Fixed Mode:9.0kw air vacuum pump adsorption;
Features:cnc;Gross Weight:800kg;
Guide Rail:Taiwan Hiwin/PMI linear rail;Warranty:18 months;
Weight:800kg;Supply Ability:200 Set/Sets per Month AKZ1515 oscillating knife cutting machine;
Dimension(L*W*H):2100*2000*1250mm;Voltage:220V/380V;
Automatic Grade:Automatic;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Tool Configuration:Multiple cutting knives;

AKZ1515 automatic cnc round knife straight knife oscillating knife cutting machine for cloth, shoe, sofa, car seat

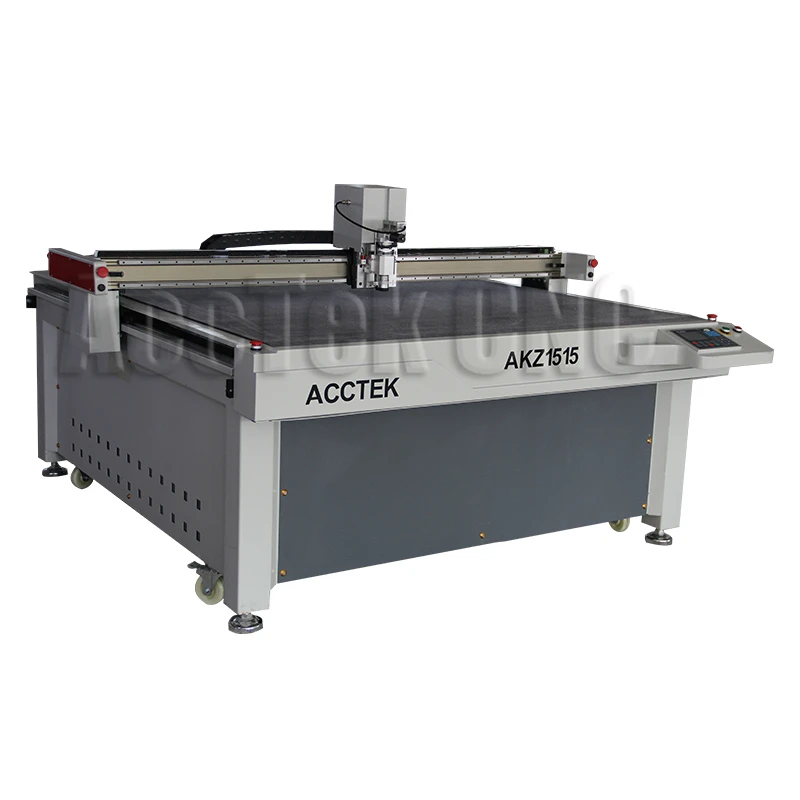

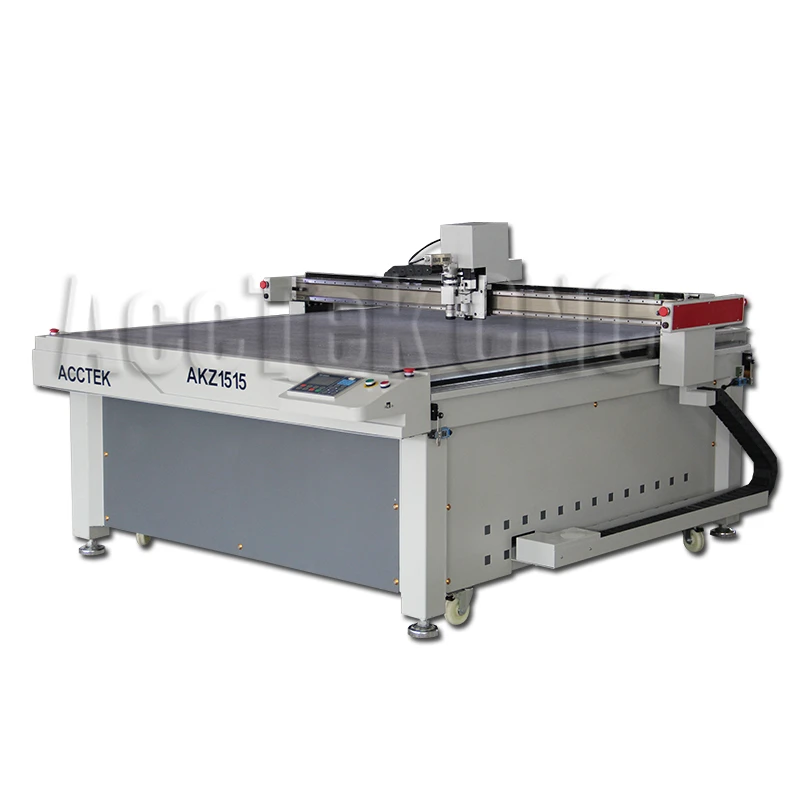

Product Display

Product Description


Technical Parameters of oscillating knife cutting machine

ModelAKZ1515AKZ1625AKZ2030
Max. Cutting size1500*1500mm1600*2500mm2000*3000
Power11KW12KW14KW
Multi-functional Tool HeadThorough cutting/Kiss cutting/Creasing/Plotting/Lasor Locating/Automatic Table-level measuring
Security configurationHigh sensitive infrared induction (optional)
Travelling speedMax. 1200mm/s
Cutting speed Max. 800mm/s (Depending on different material type)
Movement speed1200mm/s Maximum 1200mm/s
Cutting speedMaximum 800mm/s (set according to different cutting materials)
Cutting materialCorrugated paper, PVC expansion sheet, kt sheet, thick foam, grey board, paperboard, car sticker, adhesive Sticker, etc.
Cutting thicknessMaximum 5-mm (set according to different materials)
Material fixing methodHigh power vacuum absorption and intellectual partition
Repeated positioning accuracyMaximum 0.01mm
Mechanical PrecisionMaximum 0.02mm
Drive systemSteel wire synchronous belt , AC servo motor, linear guideway
Control systemChina TROCEN 6828 + large scale programmable logic array
Operating modeoperation platform + data output control software (operation platform can be divided into connected and separated parts)
Display modeChinese and English liquid crystal touch screen
Data transmission methodEthernet
Instruction systemHPGL compatible format
Buffer capacityStandard 4GB




Product Uses



Application of oscillating knife cutting machine

Osciliting knife cutting machine can cut can cut fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It's widely used for packaging protection, advertising display, termal insulation, model & mock up making, puzzle and pattern cutting, etc.



Working samples of oscillating knife cutting machine



Packaging & Shipping



Machine Package



+
1. Net weight: 700kg
2. Gross weight: 800kg
3. Package No.: 1-1
4. Packing size: 2200*2100*1350mm
5. Packing details:
The normal package is wooden box(Size:     L*W*H). If export to european countries, the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request.





Delivery Time

10-20 working days, depends on detailed configurations of machine. We must ensure everything is ok, then can send you it.



After-Sales Service

1.18 months quality guaranty (laser tube is 6 months), the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.   2. Free training course at our plant.

3. We will provide the consumable parts at an agency price when you need replacement.
4. 24 hours on line service each day, free technical support.
5. Our staff can be sent to your company to install or adjust if necessary.

About Us



FAQ

1, How long is the delivery time of this oscillating knife cutting machine?

    For standard machines, it would be 7-14 working days;

    For non-standard machine and customized machines

    according to client s specific requirements, it would be 15 to 30 days.



2, Do you arrange shipment for this oscillating knife cutting machine?

    Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.

    For EXW price, clients need to arrange shipment by themselves or their agents.



3, Do you provide trade assurance for this oscillating knife cutting machine?

    --We are member of trade assurance.

    You will get

    • Order quality and on-time shipment safeguards

    • 100% payment refund up to Trade Assurance Amount: US $718,000



4, I did not imported before, how should I do?

    You only need pay to us, we will arrange all the things to you and teach you how to do we will        prepare all the documents for you, you don't need worry, because we know what you need.



5, How about the documents after shipment?

    We'll send all original documents to you by DHL, for example: the Packing List, Commercial            Invoice, B/L, and other certificates as required by clients.



6, How about the packing?

    Free fumigation wooden box



7, MOQ?

    Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name.

    There will be best shipping freight and machine price send to you.



8, If some problems happened to this oscillating knife cutting machine during warranty            period, what should I do?

    We will supply free parts in machine warranty period if machine have some problem.

    While we also supply free after service forever, so any doubts, just let us know, we will give you      solutions in 24 hours.
