High Precision Automatic Aluminium Foil Food Box Making Machine

Product details
Port:Qingdao;Warranty:1 year after installation;
Raw material:Aluminium foil;Packaging Detail:Standard export package High Precision Automatic Aluminium Foil Food Box Making Machine Aluminium Foil Food Box Making Machine;
Place of Origin:Shandong China;Weight:6.5T;
Automatic Grade:Automatic;Condition:New;
After-sales Service Provided:Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;Payment Terms:L/C,T/T,Western Union;
Finished Products:Tray,bowl,plate,food box,cake cup;Application:Food Package;
Certification:ISO9001:2008;Brand Name:Changyuan;
Function:Food Package;Applicable Industries:Hotels,Food & Beverage Factory,Restaurant,Home Use,Retail,Food & Beverage Shops;
Warranty:One year;Voltage:customer requirment;
Mould material:imported mould steel;Usage:Metal Forming Machine;
After-sales Service Provided:Engineers available to service machinery overseas;Power supply:3 Phases 4 lines 380V 50HZ;
Supply Ability:80 Set/Sets per Year;Certification:ISO9001:2008;
Color:Gray White;Key Selling Points:Aluminium Foil Food Container Making Machine;
Dimension(L*W*H):7x3m;

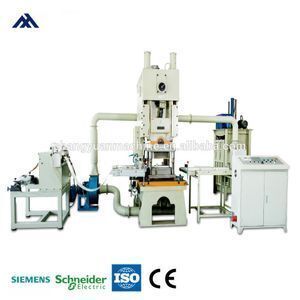

High Precision Automatic Aluminium Foil Food Box Making Machine is Fully Automatic machine, Adopt imported Seimens motor & PLC and Schneider electronic componets to make sure the machine's top quality, the whole line include:

Auto-lubricated feeder -- control panel -- length controller-- 45T pneumatic press --mould-- full-automatic stacker—Scrap Presser



1).     We are desinging & making mould by ourself for 8 years,after finishing the mould,we testing on machine

time by time to make sure the good quality and high precision,also can according to customer sample to make

 one cavity, 2 cavities and mulit cavities moulds.



2).     Compared with the plastic food container machine, the aluminum foil container line’s investment is low, and easy to control.



3).     Aluminium Foil Container Making Machine adopt a lot of imported brand eletronic components, like SEIMENS PLC and servo motor to make sure the machine work accurate and steady.



Our company:



Changyuan Machinery Co., Ltd.has been specialized in studying & developing &  producing Aluminium Foil Container Production Line,

Aluminium Foil Container Mould and other relatives machines more than 15 years.

Under ISO9001:2008,we continuously provide good quality,high effciency and high technic machine and mould to our customer,

we can according to customer's requirment to give customer their own project plan,basis on our customer's support and trust,

with our machine's good quality and our good after sales services,our machine has been export to more than 20 countries all over the world.

We continuously offer technical support and consulting service to our customers, also we never stop improving  our technology & quality to

make sure the machine which we send to customer in best quality and condition.

Our advantage:

1) Turnkey project. We have technical support for our customers. We can handle a project from A to Z. Including al. foil food container machine, mould and al. foil raw material.

2) We can according to your target price and requirment to make the right model for you.





Main technical data:



ITEM

CYAL-45T

CYAL-63T

Strokes

40-75times/min

30-70times/min

Motor Capacity

6.5KW

8KW

Voltage

3-380V 50HZ

4wires

3-380V 50HZ

4wires

Total Weight

6500KGS

(approximate)

7500KGS

(approximate)

Area

7mx3m

7mx3m

Press Dimension

1620x1050x2960

1820x1250x3080

Core Coil Head Dia

3min/6inch

3min/6inch

Max. Foil Roll Outer Dia

700mm

800mm

Max. Foil Width

550mm

670mm



Machine parts:



Auto feeding part:





Pneumatic press:





Mould:





Auto Stacker:





Finished Products:





Paper lid:







Container  Photo:





FAQ:



1. Do you also provide the Auto Feeder & Auto Stacker?

Yes, we have. Our auto production line is with auto feeder & auto stacker.



2. Do we also need to buy the Slitting & Re-winding machine?

No need. our al. foil is by roll.



3. What is the standard thickness of Aluminium Foil you suggest for the Containers?

The thichness of al. foil is about 0.06m-0.07mm.



4. What is the life of the Mould?

The life of the mould is about 300000 times.









Welcome you to visit our company!!
