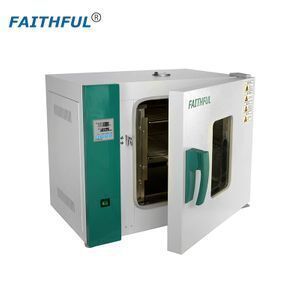

High quality forced air horizontal drying oven

Supplier: Faithful Instrument (Hebei) Co.,Ltd
Region: Hebei, China
Contact: Mr Peter Yang
Price: $426.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Temp.:	RT+5~300°;	Color:	Green;
Model Number:	101-3AB;	Place of Origin:	Hebei China (Mainland);
Type:	Drying Oven Heating;	Brand Name:	FAITHFUL;
Port:	Tianjin Port;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Application:	Lab Dry Equipment;	Supply Ability:	4000 Piece/Pieces per Month;
Packaging Detail:	Our products are packed by Standard Export Carton, or according to customers' requirement.;	Chamber:	Stainless steel;
Voltage:	220V/50HZ;	Exterior Size:	8706701030mm;
Service:	Guide the maintenance;	Delivery Detail:	15~25 days after the payment;
Machine name:	Horizontal drying oven;	Classification:	Lab Drying Equipment;
Sample:	Pay for sample;

High quality forced air horizontal drying oven

Product Despription

Horizontal Forced Air Drying Oven

Uses:

This new device is widely used for drying, baking, soluble wax, solidification and thermal treatment in the school laboratory, industrial and mining, food processing, biochemistry, agriculture, and pharmaceuticals industry for the samples.

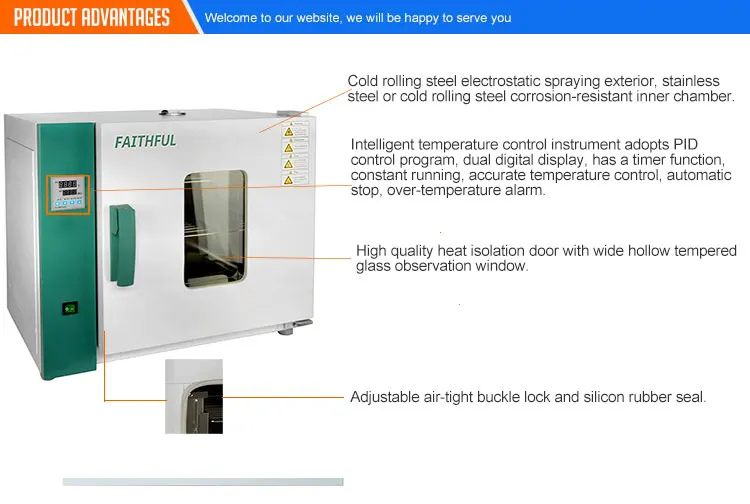

Characteristics:

Cold rolling steel electrostatic spraying exterior, stainless steel or cold rolling steel corrosion-resistant inner chamber.

Intelligent temperature control instrument adopts PID control program, dual digital display, has a timer function (0-9999min), constant running, accurate temperature control, automatic stop, over-temperature alarm.

High quality heat isolation door with wide hollow tempered glass observation window.

Adjustable air-tight buckle lock and silicon rubber seal.

101 model with the low noise fan, the two sides heating air passage ensure high temperature evenness, suitable for high moisture samples of fast drying, forced air blower inlet structure of heat radiation, make the maximum working temperature is less than 50℃, the forced-draught fan can run long time.

Optional accessories: Shelves, RS485 interface, printer, recorder, external communication, remote control, program temperature control device, wireless SMS alarm, USB data storage.

Main parameters:

Model	202-0A/ 202-0AB	101-0A/ 101-0AB	202-1A/ 202-1AB	101-1A/ 101-1AB	202-2A/ 202-2AB	101-2A/ 101-2AB	202-3A/ 202-3AB	101-3A/ 101-3AB
Voltage	200-240V/100-120V				220V/50Hz
Tem. range(℃)	RT+5~300℃
Tem. Motion (℃)	±1
Chamber Size (mm)	350×350×350		450×450×350		550×550×450		750×600×500
Product Size (mm)	660×530×580	660×530×580	760×530×680	760×530×680	860×630×780	860×630×780	870×670×1030	870×670×1030
Packing size (mm)	760×620×660	760×620×660	820×620×760	820×620×760	960×720×860	960×720×860	1030×720×1120
Power(Kw)	1.2		1.6		2		4
Shelf load (Kg)	15
N.W.(Kg)	45	44	55	54	60	58	110	110
G.W.(Kg)	57	56	67	66	78	79	140	140

Note:A means intellectual temperature controller (point-meter control without A)
B representing working room made of stainless steel(fine cold rolling steel without B)
202 representing thermostatic drier

101 representing forced air drying oven

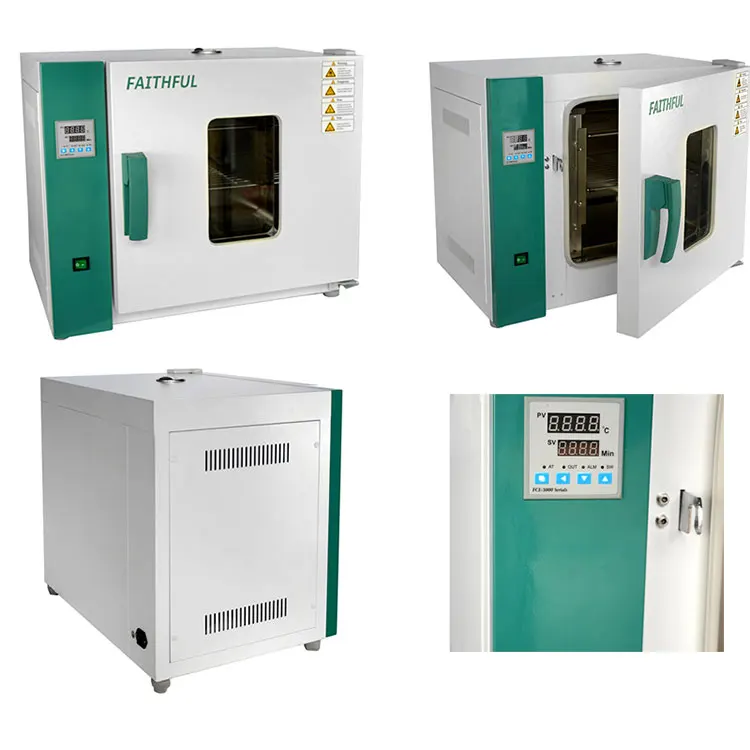

Product Show

Product Application

Product is designed for drying and heating powder articles, as well as disinfecting and sterilizing of glass containers, widely used in the field of medicine, food, light industry chemistry, agriculture, environmental protection and experiment ect.
