The Crown Wheel and pinion gear

Product details
Pressure Angle:Average 22.5 Degree;Local Service Location:None;
Applicable Industries:Manufacturing Plant;Standard or Nonstandard:Standard;
Port:Shanghai/Ningbo;After Warranty Service:No service;
Color:Standard;Brand Name:ym;
Supply Ability:200 Set/Sets per Day;Packaging Detail:2 Sets per 1 carton box;
Material:20CrMnTiH;Place of Origin:Zhejiang China;
Tooth Profile:Bevel Gear;Processing:Hobbing;
Shape:Pinion;Payment Terms:T/T;
Showroom Location:None;

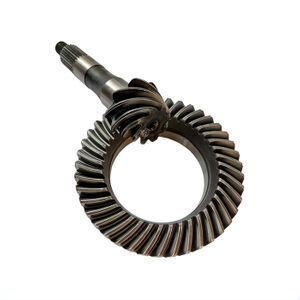

The Crown Wheel and pinion gear

What is the Details of our Sprial bevel gear?

Shape

SPIRAL BEVEL GEAR

Material

20CrMnTiH or customer's requirements

Direction

Right Hand

Machining Process

Designing drawing, Opening mould/tooling, Precision machining (forging, Machining, Hobbing, Milling, Shaping, Shaving, Grinding, Heat treatment.) Inspection, Packing and shipping

Machining Equipments

Gleason gear grinding machine , Gleason gear milling machine etc.

Inspection Equipment

Gleason 350 GMS test center , CMM, Projection , Calipers , Micro caliper , Thread Micro caliper , Pin gauge , Caliper gauge , Pass meter , Pass meter etc .

OEM & ODM Service

Available

Modules

1.0~14.0

Tolerance Control



Outer Diameter : ±0.005 mm

Length Dimension :  ±0.05 mm

Teeth AccuracyClass 5
Heat TreatmentQuenching & Tempering , Carburizing & Quenching , High-frequency Hardening , Carbonitriding ......
Surface TreatmentBlacking , Polishing , Anodization , Chrome Plating , Zinc Plating , Nickel Plating......
StandardAmerican ,German or Chinese Standard .
Design SoftwareAuto CAD, Solid Works and Gleason gear design software
Trade TermsFOB
Payment TermsT/T, L/C
PackingCarton, Wooden boxes
Capacity400000 sets per year
Delivery 45 days after receiving deposit
AdvantageQuality first Service superior , Advanced equipment,Experienced workers, Perfect testing equipment ,OEM service , Preferential price ,etc
ApplicationCar rear axle

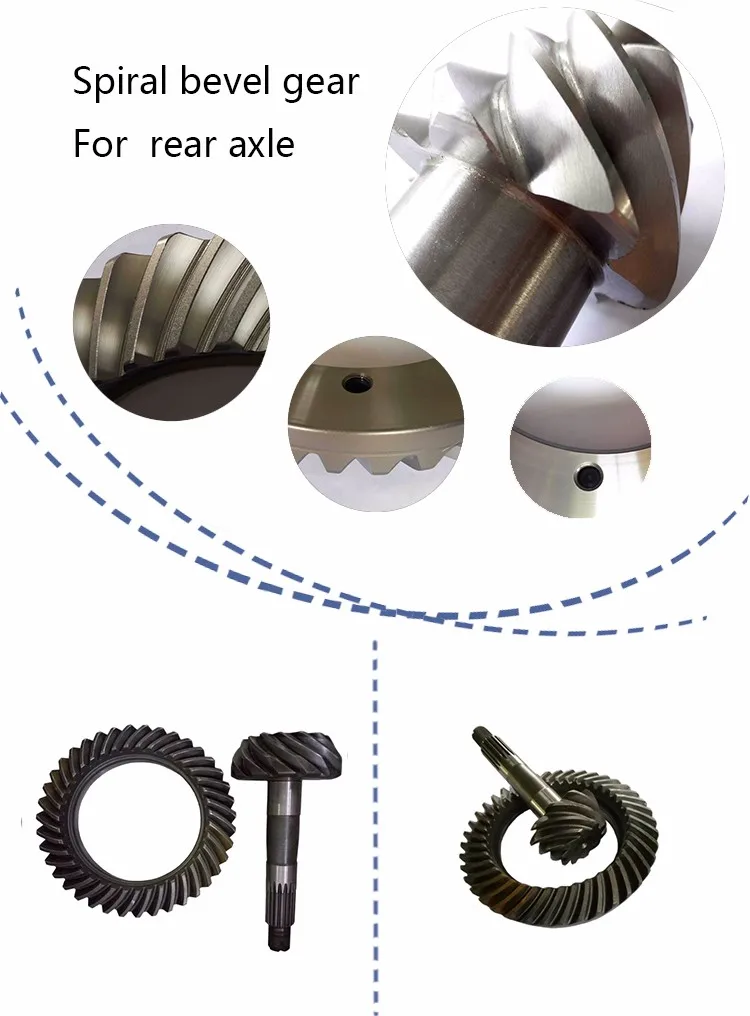

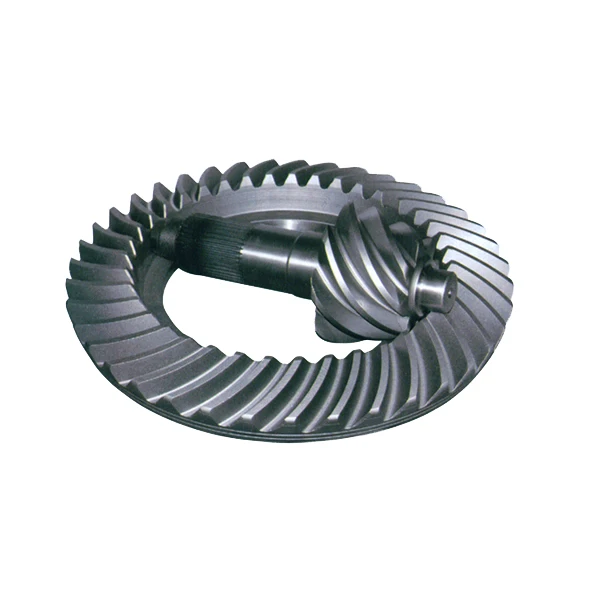

Product Picture

Product Pictures


Product Features

What is The PRODUCT FEATURES of Our Sprial bevel gear?





Standard Set
Material20CrMnTiH
DirectionRight Hand
ProcessHobbing
Tooth shapeHelical Gear
OEM/ODMAccepted
Why Choose Us

Why Choose Us?







RELATED ITEMS?





INSPECTION PROCESS?

PACKING AND SHIPPING


PackagingCarton;Wooden box;Customized box
Carton SizeCustomized box , 1~2 sets / carton
ContainerCustomized container (Less than 1 ton per Wooden box)
MOQ100 sets / design for stocked size

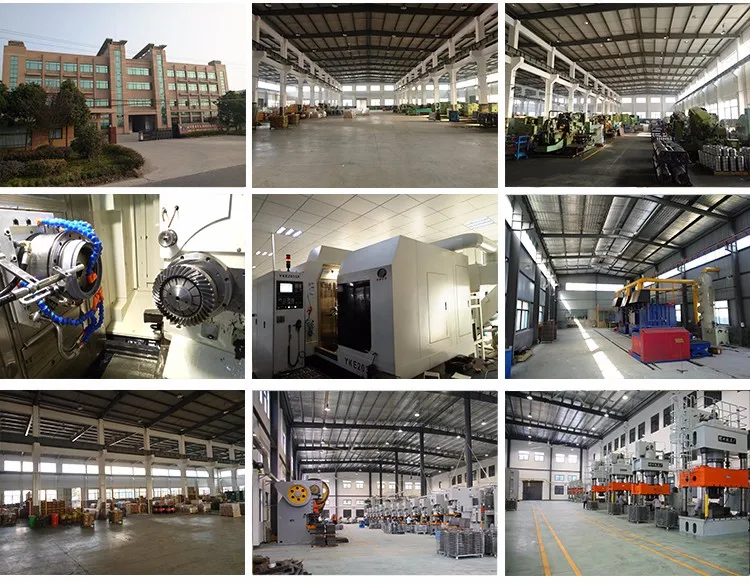

Factory Show

Factory Show



FAQ

FAQ


  • QAre these gear can be customized?
  • AYes. All kinds of gears could be customized. It is including Teeth, module and materials.
  • QHow to ensure the quality?
  • AWe can provide material single, metallographic report, the accuracy of detection.
  • QWhat about the transportation?
  • A1. we have cooperated with some transportation companies.
    2. If you got Transportation Company, it also could send them to our company to pick up them.
  •
  • QHow about the after-sale service?e my mind ?
  • AOf course. We have excellent after-sale services, if you have got any problem, you can contact us
    timely.(Tel: 0086-571-82250919)
  • QWhat about OEM?
  • AOf course. If you need, we can do them as your requirement.
  • QWhat about package?
  • A1. Standard export package: Boxes, Cartons, and Wooden Pallets.
    2. Customized package.
