1000kg/day fresh water flake ice machine for fishing zone 1Ton Flake Ice Maker

Product details
Warranty:1year;Model Number:GH-1.0T;
Supply Ability:500 Piece/Pieces per Month;Payment Terms:L/C,T/T,Western Union;
Certification:CE;Voltage:380V;
Total Power:4.5kw;Ref. Capacity:5603kcal/h;
Weight:253KGS;Brand Name:GREENHEALTH;
Power(W):4.5;Cooling Mode:Air Cooling;
Weight:253kgs;Dimension(L*W*H):1240*1120*1150;
Ice Shape:Flake Ice;Evaporating Temp:-22deg C;
Refrigerant:R22/R404a;Capacity:1000kgs/24h;
Delivery Detail:15~25days;Bin Size:1270*1220*1150mm;
Size:1240*920*810mm;Condition:New;
Bin Capacity:300kgs;Place of Origin:Guangdong China;
Packaging Detail:Export Wooden Package;Port:Huangpu;
After-sales Service Provided:Overseas third-party support available;Name:Flake Ice Machine 500kgs;

1000kg/day fresh water flake ice machine for fishing zone



Greenhealth flake ice machines has adopt the newest international ice machine making technology. We use and only useworld famous components like Bitzer, Danfoss, and so on. Equipment structure is designed for resistance to high load and long time use. According to our test, Snowell flake ice machine can produce quality ice and stand over 29,515 hours of contant operation with breakdown.



 Application fields

 Commercial flake ice system is widely used in supermarket preservation, seafood restaurant, food processing, fruit and vegetable preservation, makes the seafood, fresh meat and meat products more fresh.



 Design, Technology, Material

  Greenhealth Commercial flake ice system is designed with intelligent PLC control system, stable running, high-efficiency and simple maintenance.

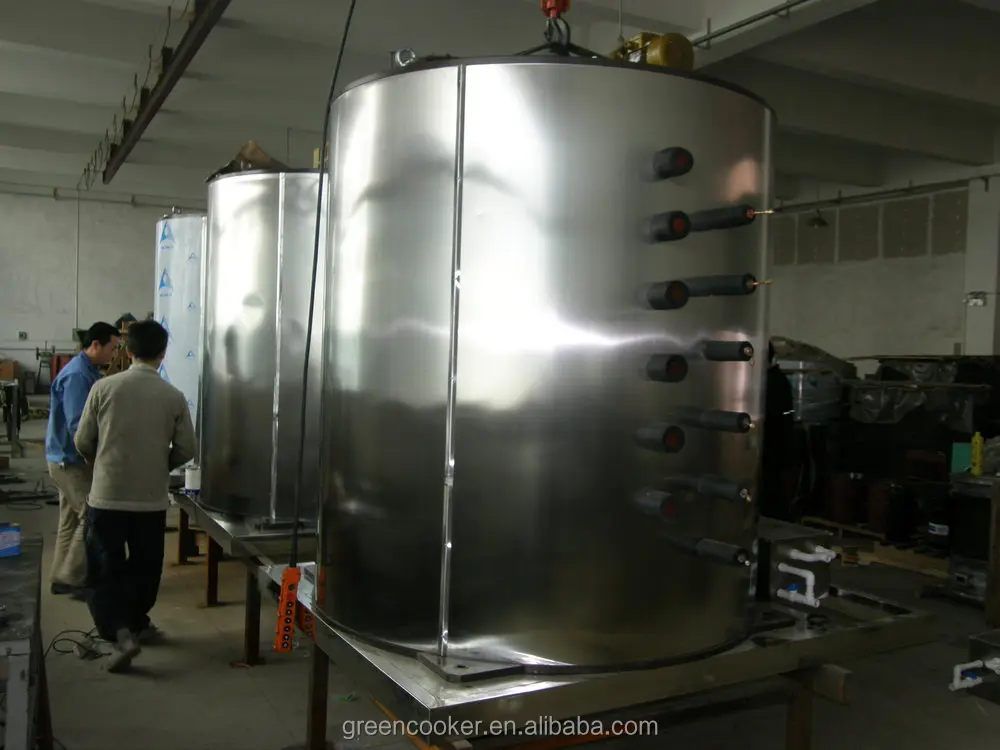

Our evaporators are makde up of stainless steel SUS304 or carton steel. Its evaporator area is greatly expanded and the ice is more beautiful and dryer by its inner working in low temperature and low pressure, which greatly increase the working life of the flake ice machine system.



* The intellectualized PLC touch-screen control system, user-friendly designed, which is very convenient for operator.



* The intellectualized historical failure record



* Function and guidance of trouble shooting makes easier and simple operation and maintenance.



* Running time setting function convenienced operator,



* Saving energy and reduce cost.







3.Sub-cooled ice, excellent fast cooling



 Super cold, dry, crisp,100% subcooled ice with greater surface area and exceptional cooling power.



4.Low maintenance and operation cost



 Super performance offerstrouble-free operation, with much less maintenance probability than otherbrands of ice flakers.



5.Energy-efficient and cost saving







Details of 3T/day fresh water flake ice machine







NO.

Description

Specs.

1

Design capacity

1000kg/24h

2

Refrigeration capacity

4.5kw

3

Refrigerant

R404A

4

Total input

4.8kW

10

Power supply

380V/50Hz/3P or else

11

Nominal current

13A

12

Cooling mode

Air cooling

13

Evaporator structure

Spiral groove

14

Evaporating temp.

-22°C

15

Condensing temp.

45°C

16

Flake ice temp.

-5°C

17

Thickness of flake ice

1.5-2.2mm

18

Water feeding pressure

0.1Mpa-0.5Mpa

20

Design ambient temp.

25°C

21

Design water inlet temp.

18°C

23

Unit weight

253 kg

24

Unit dimension (mm)

1240*920*810
