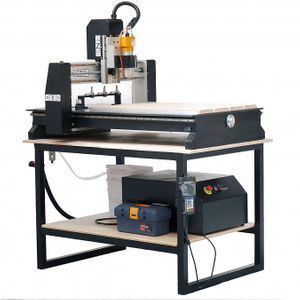

mini cnc router K6090T ATC

Product details
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Motor:Stepper;
color:Black;CNC or Not:CNC;
Certification:CE;Port:QINGDAO;
Power(W):6KW;control system:DSP B57;
Table structure:Vacuum Table+ Aluminum T-slot;Applicable Industries:Advertising Company;
After-sales Service Provided:Online support;Condition:New;
Place of Origin:Shandong China;Voltage:AC220V/50-60HZ;
Brand Name:QUICK;Inverter:Taiwan Delta Inverter;
Product name:Woodworking Cnc Router Machine;Working area:600X900X150mm;
Spindle:2.2kw Water Cooling Spindle;Weight:200KG;
Packaging Detail:wooden box;Guide rail:Taiwan Hiwin Square Guide Rail;
Dimension(L*W*H):600 x 900x 150mm;Warranty:1 year;
Supply Ability:100 Set/Sets per Month;
Product Description

Product Application

1).Whole machine is welded with Cast iron structure , the stability is excellent, not easy to be deformed.

2).Three axis adopted ball screw and linear orbit, stable working, high precision and long using life.

3).High precision, the curving and linear speeds are consistent. Adopting excellent parts makes the fault rate to be the lowest one.

4).2.2kw ATC water cooling spindle(top brand in China),with high precision and strong power.There is a cover to protect spindle,Extended service life,keep clean and protect the operator's safety.

5).It is equipped with the international DSP B57 control system , which could memorize the breakpoint. If it happens accident so that to guarantee to process in the other day.

                                                                   Standard configurations of Mini CNC
X-Y-Z axis working area
600 x 900x 150mm
Repositioning resolution
0.02mm
X-Y-movement xy
Ball screw drive
Max. speed
8m/min
Max. cutting speed
5m/min
Spindle power
2.2kw water cooling  ER20
Spindle speed
24,000 RPM
Inverter power
2.2kw Delta
Drive motors
Stepper Motor
Command code
G code
Computer interface
USB 2.0
Table
MDF T slot
Control system
DSP B57
Control type
Handheld
Dust system
dust hood for spindle
Advantage of K6090T

The advantage of the K6090T ATC machine is that it can, in most cases, fully machine the complete job without it being removed from the table so that you have finished parts of high accuracy that are totally repeatable. It can, with the purchase of the relevant software, also produce intricate carvings. Nesting is also a valuable feature of IQ machining that saves on waste and cost. It is possible to reduce the number of different machines in the shop, as the K6090T ATC  will perform multiple functions and is a must for serious woodworkers.

Detailed Images

Ball screw on all axis

There are three ball screws, one for each axis.Each ball screw is driven by a stepper motor and moves the router spindle in the X,Y and Z directions.

Linear Guide way  15mm

 Precision N class liner guide way with precision less then 0.02mm .
 liner guide way's special dust prove design,makes the guide way still moving smoothly in worst environment.

DSP handheld controller Model :DSP B57

Automatic tool change process, rapid, accurate, safe

Support drive, frequency converter fault alarm.

T" order recognize mode, support more numbers of tools.

 allows for tool path previewing and 4 axis function

spindle

2.2kw water cooling spindle 2.2kw,

Automatic tool changers ,

made in china,

24000RPM
