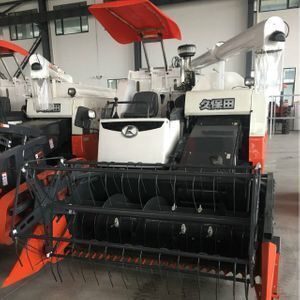

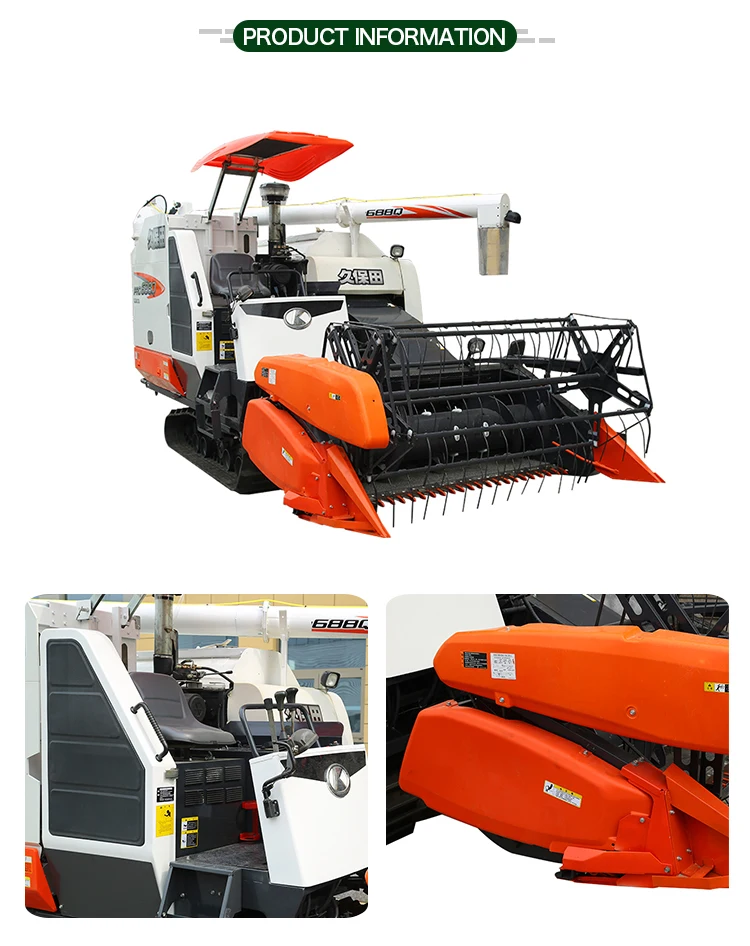

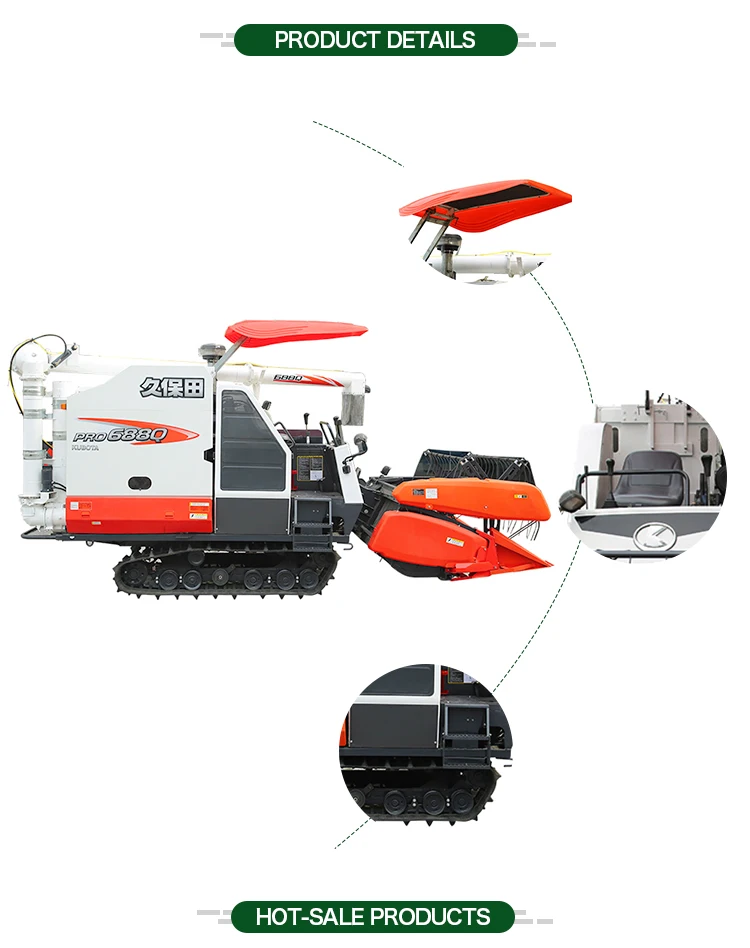

High Quality Kubota Second-hand harvester 688Q

Supplier: Yancheng Harriston Int'l Co.,ltd.
Region: Jiangsu, China
Contact: Ms Aimee Li
Price: $23500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Warranty:	1 year;	MOQ:	1Unit;
Certificate:	Other;	Weight:	2815KG;
Application:	Rice;	After-sales Service Provided:	No overseas service provided;
Condition:	Used;	Product Name:	Kubota Rice Combine Harvester 688Q;
Place of Origin:	China;	Supply Ability:	100 Unit/Units per Month;
Dimension(LWH):	486022952765MM;	After-sales Service Provided:	Online support;
Usage:	Grain Harvester;	Type:	Combine Harvester;
Port:	China main port;	Brand Name:	KUBOTA;
Packaging Detail:	According to your requirements;	Drive Type:	Gear Drive;
Payment Terms:	L/C,T/T,Western Union;	Applicable Industries:	Farms;

Project			Specification
Product number			4LZ-2.5(PRO688Q)
Classification			Big tank
Dimensions	Length (mm) (transport status / working status)		4950/5010
	Width (mm) (transport status / working status)		2440/2650
	Height (mm) (transport status / working status)		2800/2815
Structure quality (kg) / quality of use (kg)			2790/2905
Matching engine	Model (China second stage)		V2403-M-DI-T-ES04
	Structure type		Vertical water cooled 4 - cylinder turbocharged diesel engine
	Total Displacement (L)		2.434
	Calibration power (kW)		49.2
	Calibration speed (r / min)		2700
	Fuel		High quality diesel (0 #)
	Fuel tank capacity (L)		60
Walking part	Crawler	Grounding length(mm)	1680
		Gauge(mm)	1150
		Specifications [pitch (mm) × section (section) × width (mm)]	90×51×450
		Ground pressure(kPa)	18.1
	Minimum ground clearance (mm)		275
	Gearbox type		Mechanical speed change + hydraulic stepless speed change (HST)
	Variable speed series		Forward stepless·Back stealth Vice shift of the three gears
Cutting table	Cutting table width (mm)		2000
	Minimum cutting height (mm)		40 (cutter tip)
	Lodging adaptability		Cutting: below 85 degrees· Reverse cutting: below 70 degrees

Threshing part	Threshing method		Sprue axial flow
	Threshing drum	Size(mm)(outer diameter×length)	Φ620×1790
		Speed(r/min)	560
Grain processing department	Capacity (L)		1000
	Collecting box	Grain intake (unit)	-
	Unloading grain	Dump truck lift range (degrees)	77 manual operation /80 - hydraulic operation

		Unloading grain unloading height range (mm) (working state)	650 ~ 2000 (unloading grain manual type) 540 ~ 2240 (unloading cylinder hydraulic type)
		Unloading mouth out of the distance range (mm) (working state)	950 to 1600 (manual unloading tube) 990 ~ 1840 (unloading cylinder hydraulic type)
Adapt to crops			Rice, wheat
Operating hours productivity (hm² / h)			0.2 to 0.4 (upright dry crop)
