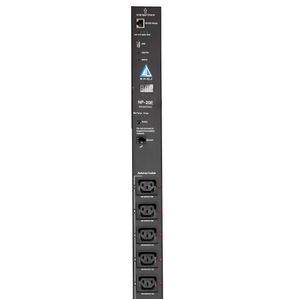

High Quality NP-20E Smart Distribution Unit Remote Power Switched PDU With Smart Socket

Product details
Supply Ability:10000 Unit/Units per Month Remote Power Switched PDU;Rated Voltage:100-240 VAC;
Humidity:10-90% RH;Payment Terms:L/C,T/T,Western Union,paypal;
Brand Name:SQ;Enter Plug:1-2;
Model Number:NP-20E;Supply Plug:CEE7/7 IEC60309;
Maker:SQ-Electronics;Input Current:16~32 Amp;
Output:(20)IEC60320-C13;Product Name:Remote Power Switched PDU;
Packaging Detail:Switched PDU PE+CARTON box;Port:FOB SHANGHAI;
Display:26LEDs;Place of Origin:Jiangsu China;
Equipment end:IEC60320-C14;





NP-20E PDU provides secured remote power source management operation and AC current monitoring (optional) via TCP/IP networks or local direct connection. Accessing the system is password protected at Administration level or user privilege levels. Network security includes user name and password (64-bit encrypted) authentication for Web access or sending emails. 20E offers the most versatile access control methods in the industry for easy, quick and reliable operations.



Product NameHigh Quality Smart Distribution Unit Remote Power Switched PDU
ItemNP- 20E
Enter Plug1-2
Supply PlugCEE7/7   IEC60309
Equipment endIEC60320-C14
Outlets(20)IEC60320-C13
Input Current16~32 Amp
Input Voltage100-240 VAC
ChassisW:2.0" (50mm)
D: 2.75" (70mm)
H: 55" (1400mm)
Console PortBaud rate:115200; 8 data bits ; No parity;1 stop bit, no hardware handshaking
Ethernet10/100 Base-T, support AUTO-MDIX
Network ProtocolICMP, IP, TCP/UDP, DHCP, Telnet, DNS, POP3/SMTP, SNMP, HTTP
Operating Temperature0°C – 50°C
Storage Temperature29°C – 60°C
Humidity10-90% RH
Display26LEDs









*One RS232 service port & one 10M/100M-T RJ45 Ethernet port, support AUTO-MDIX.

*Support safe Ethernet connection.

*Support DHCP or static IP configure.

*Support simple internet firewall, forbid remote access illegally.

*Autonomous AutoPing for each power outlet by ICMP ping package, and be reboot.

*Integrated SNMP agent and Trap notification message capability.

*POP3/SMTP for sending and receiving control commands or user data.

*Support RS232,IE,Telnet,Email, SNMP Management access for users to easily view or change settings.

*Support password protecting user management,8 user at most, and the port owner and access permission could be set

*Local and remote temperature checking and display

*Local and remote current checking and display

*Support temperature, current alarm by locale, email, trap methods

*Event timers/Clock for each power outlet

*Dial-up modem connection via local serial port..

*Handles large current equipment up to 16-32A,100-240V

*Support 20 ports control,and could be customized

*Support port name, power on status and owner setting

*User’s software upgrading is available

*Scheduling AC outlet power cycling periodically or weekly scheduling.

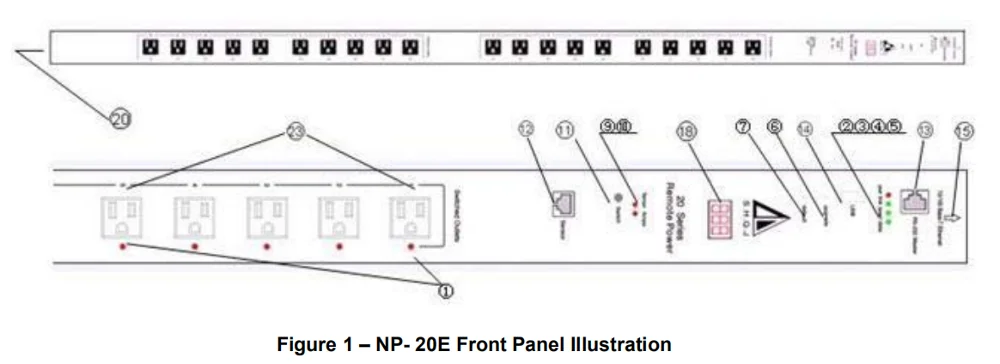

Front Panel:



1) Power Outlet status LED: Visual indication of user power outlet On/Off status. 2) System power On/Off status LED: Indication of system power On/Off status.
3)Ethernet Link status LED: When the LED is illuminated, Ethernet port and a LAN connection are established.
4)Ethernet speed status LED: Ethernet port have 100M status.
5)Ethernet Active data status LED: When there is data traffic on the LAN, the LED is illuminated.
6)Factory Upgrade switch: Allow the user to upgrade the system. The switch is located behind the small front panel opening.
7)Factory Default Reset switch: Allow a user to reset the system to factory default settings.
The switch is located behind the small front panel opening.
8)A and B Selection LED: When the LED is illuminated, For Circuits A or B Amps which measurement will appear on the Digital Displays.
9)Display Selection Amps Indicators: When the LED is illuminated, Amps which measurement will appear on the Digital Displays.
10 ) Display Selection Temperature Indicators: When the LED is illuminated, Temperature which measurement will appear on the Digital Displays.
11)Display Selection Button : Each time the Display Selection Button is pressed, the Digital Displays will toggle Between Amps and Temperature, and the LED indicators light and show which measurement is currently selected.
12)Sensor Port: Temperature and humidity port (Optional, e.g. PT100).
13)Local Master Port (female, or RJ-45 socket): This is also a service port for the user to configure and change the operation setting of system .
14)USB Port for software upgrading.
15)Ethernet Port (RJ45, 10/100 Base-T): 10/100 Based-T Ethernet port for connection to LAN. 18)Digital Displays: Digital Displays toggle between Amps and Temperature, and the LED indicators light
and show which measurement is currently selected.
20)Power Circuit A - Power Inlet: An NEMA5-15P/IEC320-C14 AC inlet which supplies power (1-10 outlets).

21)Power Circuit B - Power Inlet: An NEMA5-15P/IEC320-C14 AC inlet which supplies power (11-20 outlets).
22)Power Breaker: System turn on/off the power supply.
23)Power Circuit A - Switched Outlets: AC Outlets that can be switched On, Off or rebooted in response.
24)Power Circuit B - Switched Outlets: AC Outlets that can be switched On, Off or rebooted in response.
