Digital Welding Mask CE en175 en379 Air Purifying Respirator Filter 4 Sensors Solar Auto Darkening Welding Helmet

Product details
Certifications:CE/ANSI/CSA/AS/NZS;Cartridge Size:300x230x200mm;
Package Type:Brown Box;Brand Name:TywelMaster;
Helmet Material:Nylon;Power Supply:Solar Cells +Lithium Battery;
Model Number:Tywel9B;Auto-Darkening:Yes;
Delivery Detail:0 days after payment;View Area:100x65mm;
Single package size:36X25X38 cm;Sensors:4;
Switch Time:1/30000s;Package Preview:https://sc02.alicdn.com/kf/HTB193tsXovrK1RjSspcq6zzSXXaB.jpg_640x640.jpg;
Place of Origin:Anhui China (Mainland);Solar Powered:Yes;
Sensitivity:Stepless Variable(Internal);Color:Black;
Single gross weight:10 KG;Delay Time, Dark to Light (sec):0.1-1.0 fully adjustable;
Optical Class:1/1/1/1;Selling Units:Single item;
Product Description

Welding Mask Powered Air Purifying Respirator Auto Darkening Welding Helmet Personal Protective Equipment Industry PAPR Kit

Powered Air Purifying Respirator (PAPR) Kit with Solar Auto Darkening Welding Helmet Set for Heavy Industrial Welding Application.
Suggested industries include automotive, food and beverage manufacturing, manufacturing, metal production and fabrication, military maintenance, repair and operation (MRO), transportation.
Kits Includes: PAPR System and Professional Welding Helmet.
Universal Charger: 100-240V AC with Changeable Universal Plugs.

Detailed Images

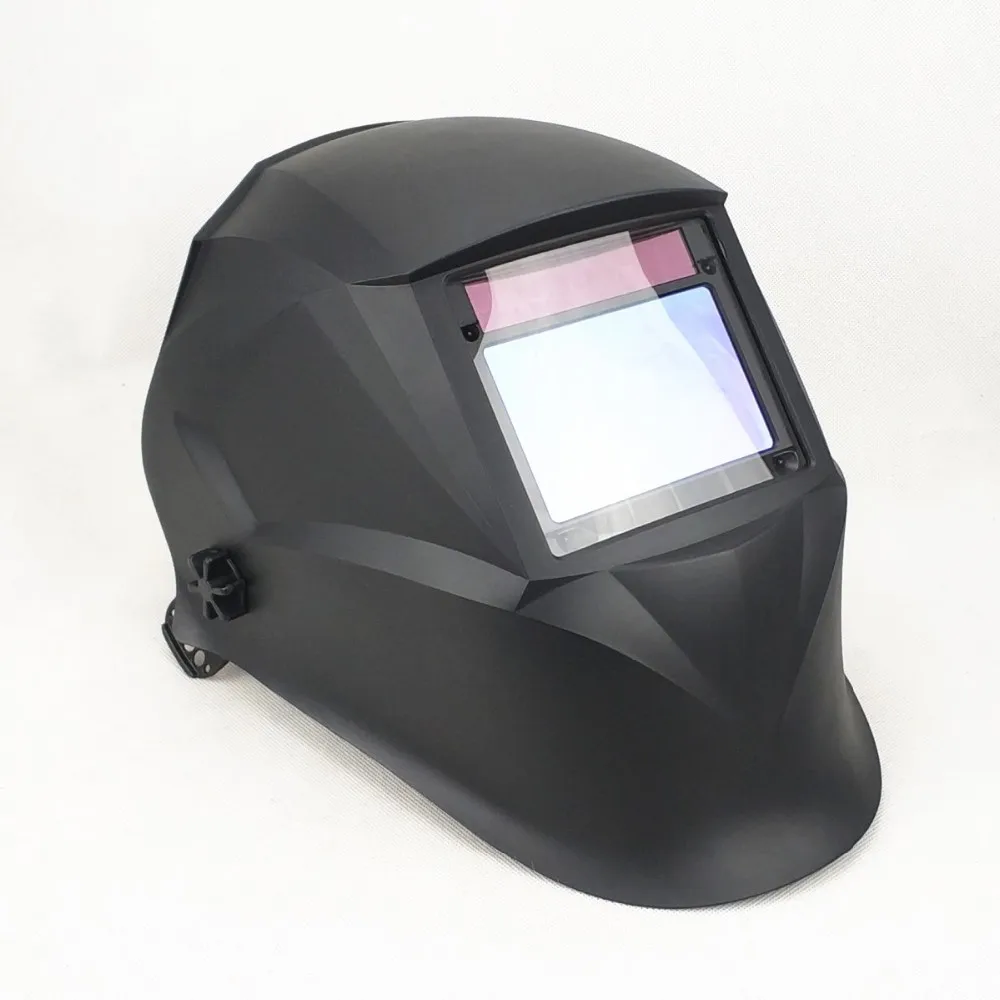

Professional Welding Helmet

The TywelMaster®9B is an outstanding helmet for the professional welder working in any situation. It has a big and wide viewing area 3.94×2.56 in (100×65 mm) with the best available optical quality (1/1/1/1), the widest range of shade level (DIN 4-8, 9-13), and the lowest light shade (DIN 3), on the market–at a very affordable price for such a feature-rich helmet

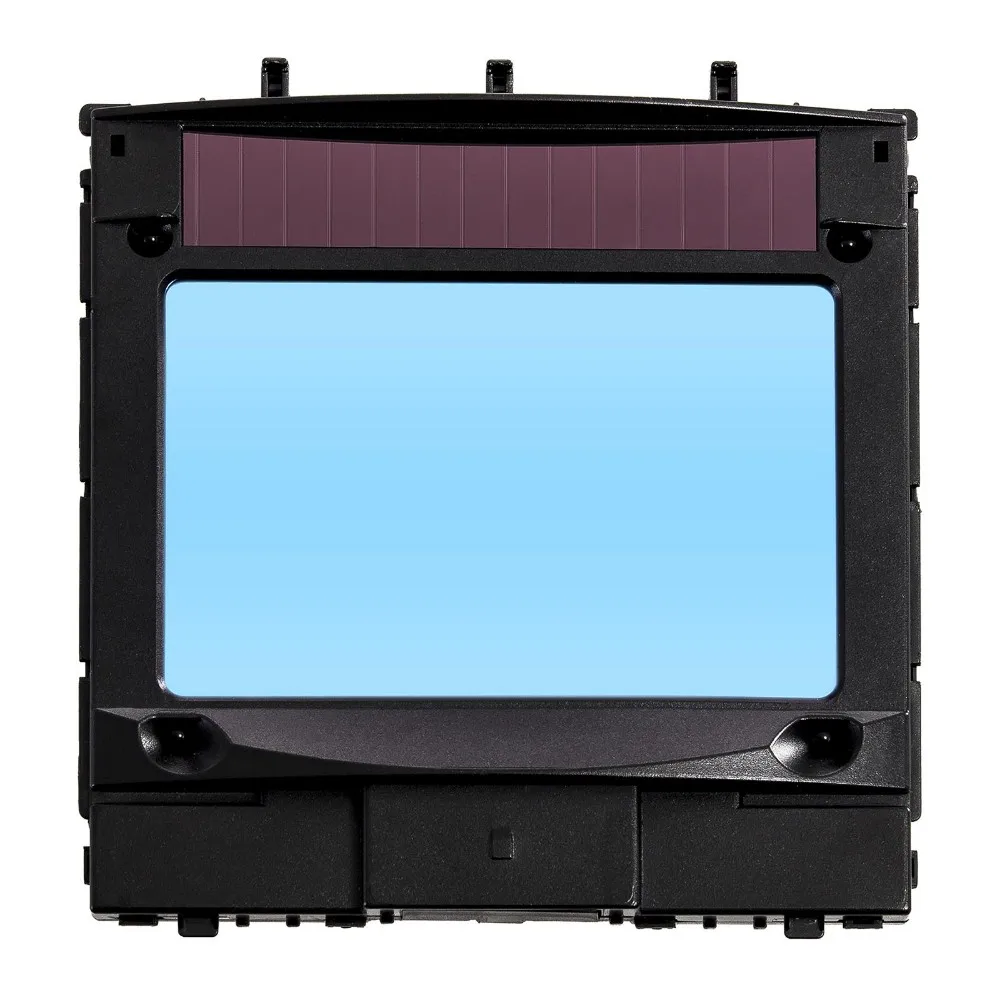

Unique optical technology
An independently certified 1/1/1/1 filter with the sharpness of high definition and tinted to minimize eye strain. There is no more clear or comfortable viewing screen on the market. More clarity, more satisfaction, more comfort generates better results.
Brightest light shade
When the helmet is being used for grinding or preparing for welding, welders need to be able to see clearly to work efficiently and accurately. With light shade level DIN 3, the filter in this helmet is closer to true clarity than is available anywhere else.
4 sensors
The Tywel9B has four sensors, which provide the best lens response.
Lens switching speed
The filter switches from light state to dark state as soon as it senses an arc. At just 1/30,000 of a second, the change is virtually instantaneous to ensure that the welder is fully protected.

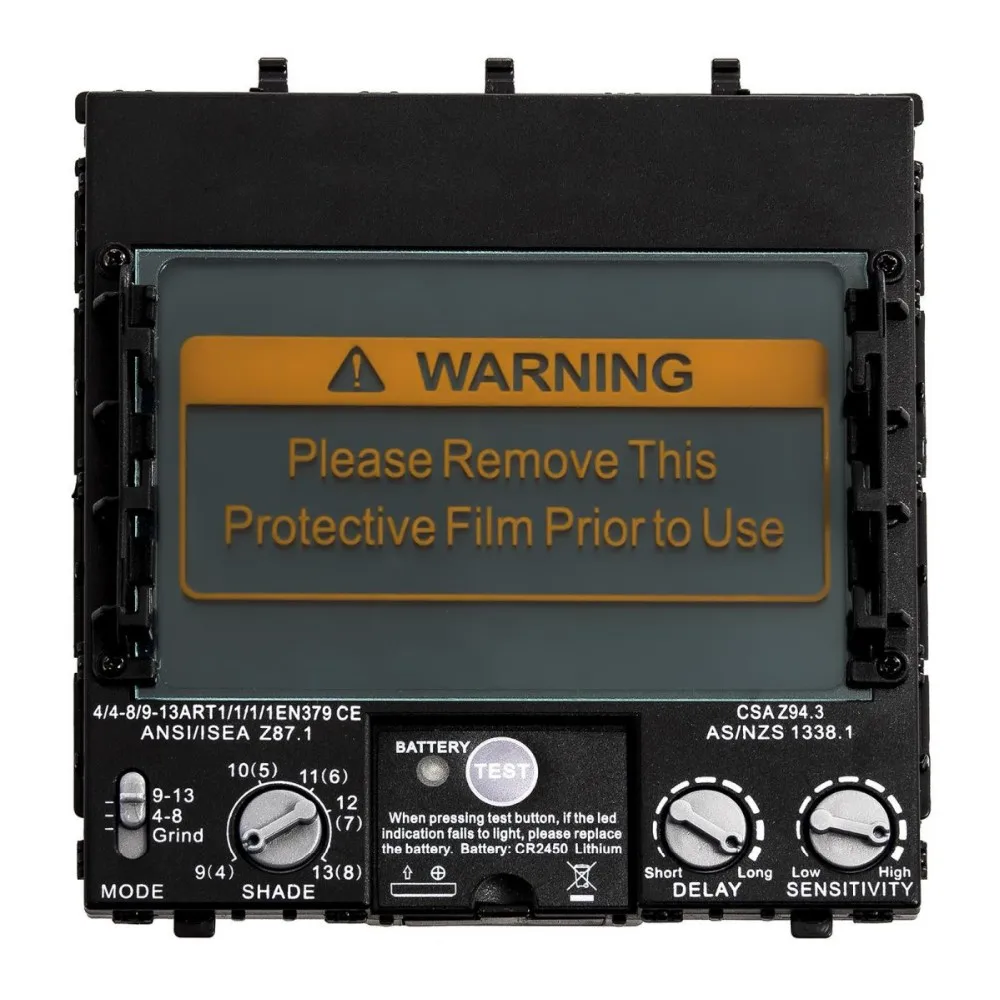

Widest shade level adjustment
The internal radial dial control allows welders to quickly adjust their shade level continuously from 4 to 8 and 9 to 13 and without worry of damaging a control on the outside of their helmet.

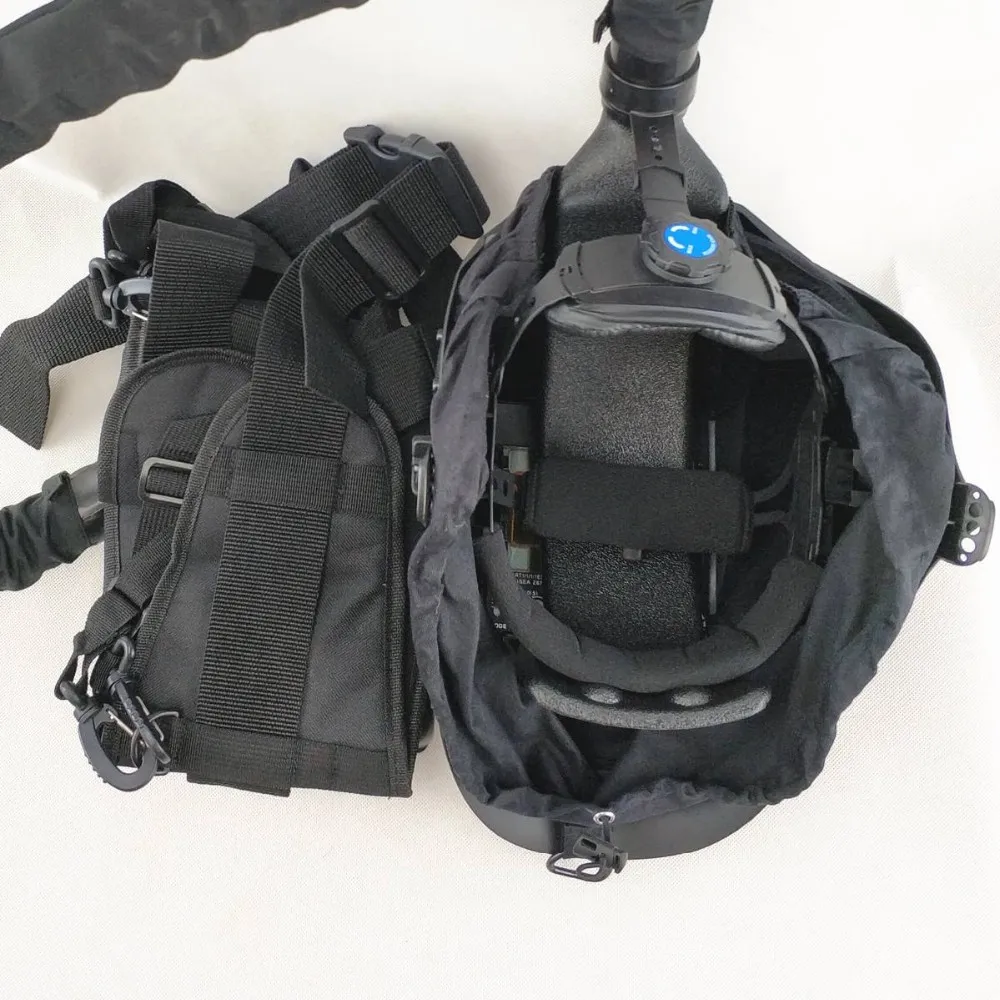

More comfortable Headgear
The human scale headgear is redesigned to be more ergonomically comfortable. Multiple control points support three adjustments to fit different head shapes and personal habits, thereby reducing fatigue over long hours of use.

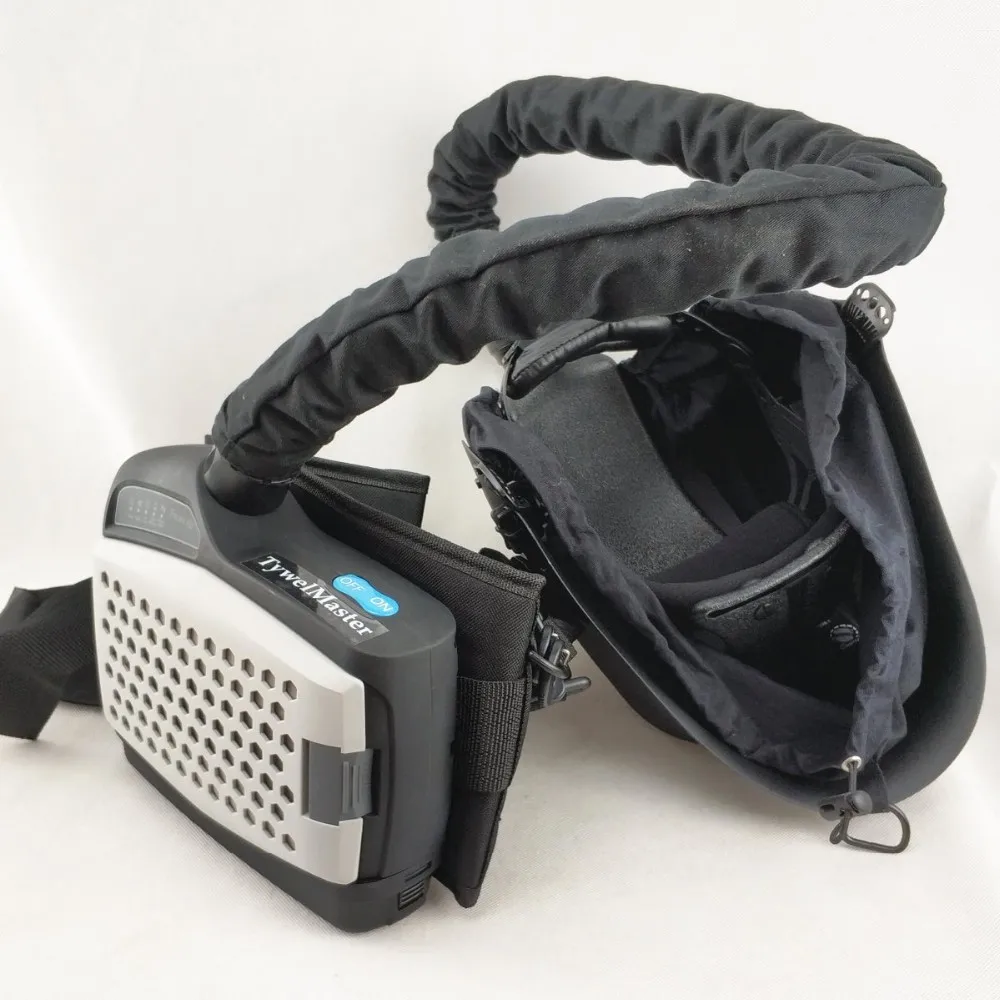

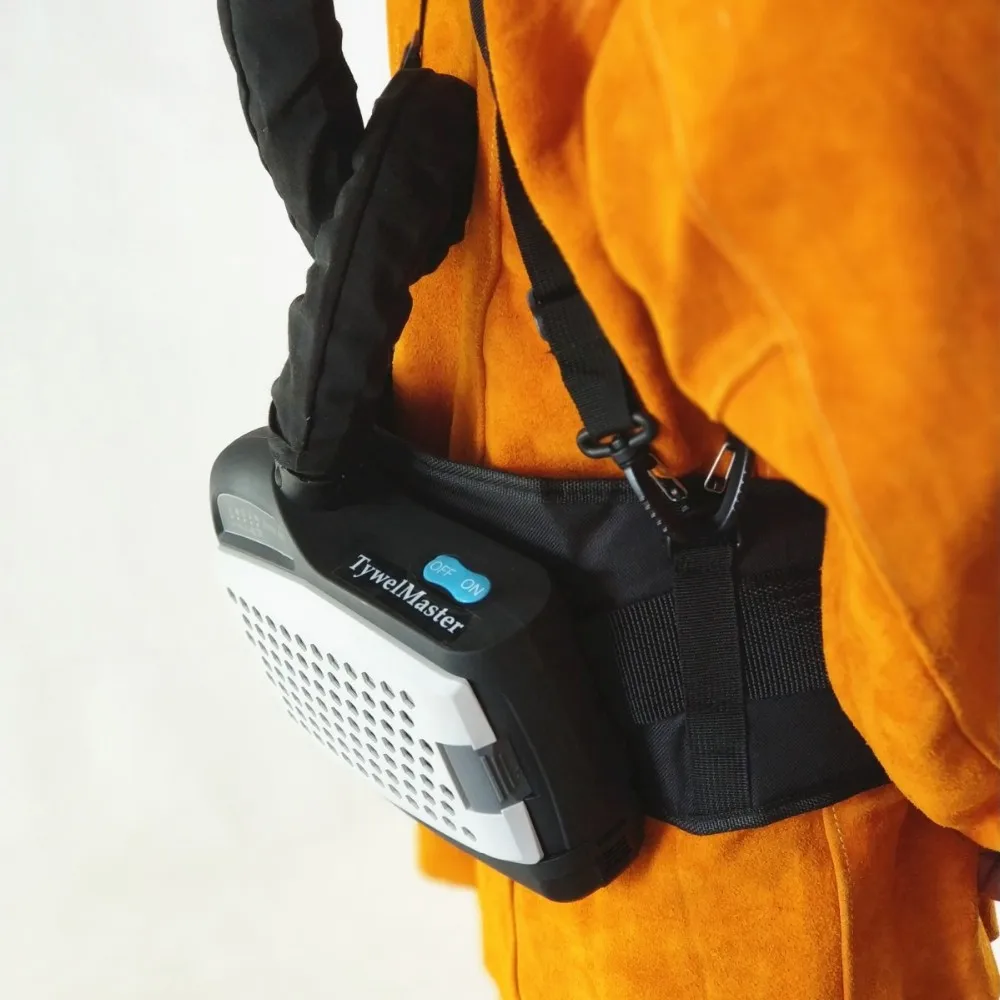

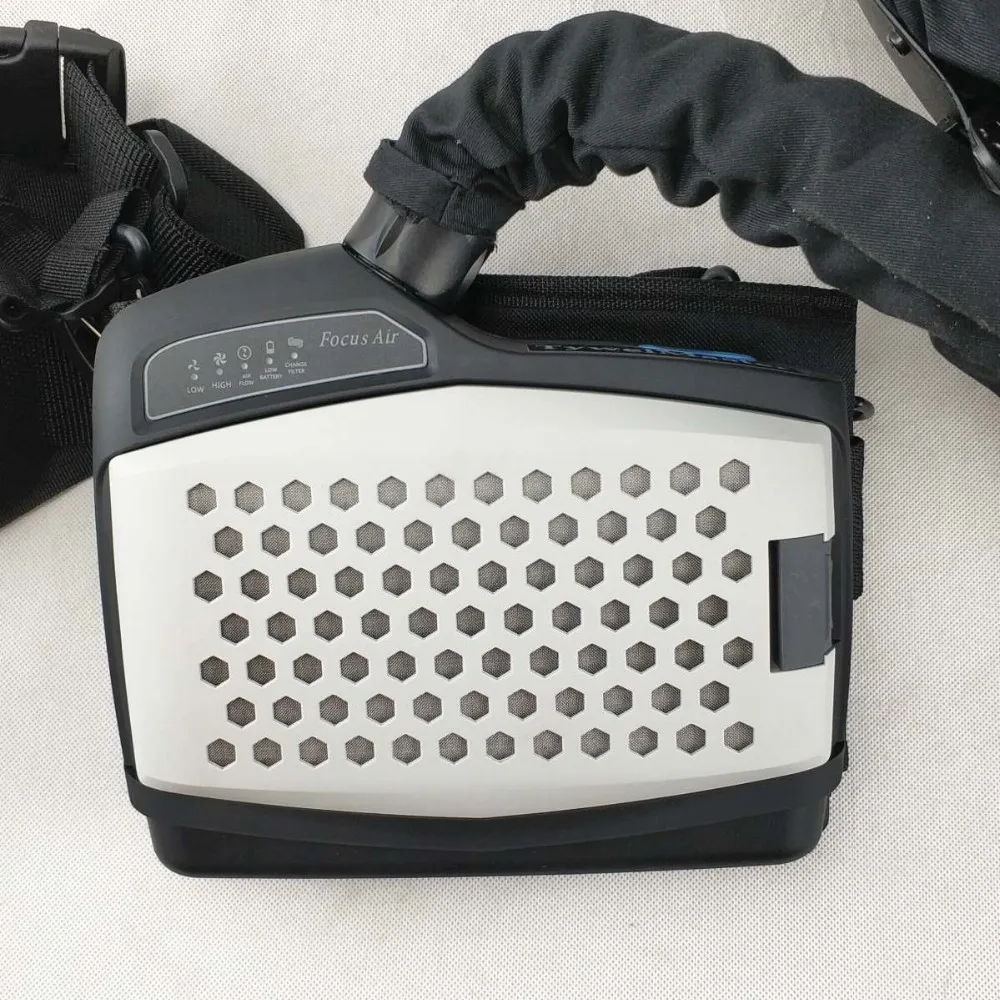

Advanced welding Respirator System--Powered Air Purifying Respirator(PAPR)

High Efficiency particulate respiratory protection system for welders.
Lightweight, compact design with TywelMaster® Welding Helmet 9B series, can provide overhead protection, increased peripheral vision and excellent optical quality and function.

Helmet Specification
Respirator Specification
• Light Shade
3
·      Blower Unit Flow Rates
Level 1 >+170nl/min, Level 2 >=220nl/min.
• Optics Quality
1/1/1/1
·      Operation Time
Level 1 10h, Level 2 9h; (condition: full charged new battery room temperature).
• Variable Shade Range
(3)/4 – 13 (note: we printed 4 on the filter because the lowest value on EN standard is 4 though our filter is 3).
·      Battery Type
Li-Ion Rechargeable, Cycles>500, Voltage/Capacity: 14.8V/2.6Ah, Charging Time: approx. 2.5h.
• ADF Viewing Area
3.94×2.56" 100x65mm
·      Air Hose Length
850mm (900mm including connectors) with protective sleeve. Diameter: 31mm(inside).
• Sensors
4
·      Master Filter Type
P3 TH3P R SL for TH3P system (Europe).
• UV/IR Protection
Up to DIN 16
·      Standard
EN12941:1988/A1:2003/A2:2008 TH3P R SL.
• Cartridge Size
4.9×4.2" 12.4x10.7cm
·      Noise Level
<=60dB(A).
• Power Solar
1x replaceable lithium battery CR2450
·      Material
PC+ABS, Blower high quality ball bearing long life brushless motor.
• Sensitivity Control
Continuously variable
·      Weight
1097g (including Filter and Battery).
• Function Select
welding, cutting, or grinding
·      Dimension
224x190x70mm (outside max).
• Lens Switching Speed (sec)
1/30,000
·      Color
Black/Grey
• Delay Time, Dark to Light (sec)
0.1-1.0 fully adjustable
·      Maintenance (replace below items regularly)

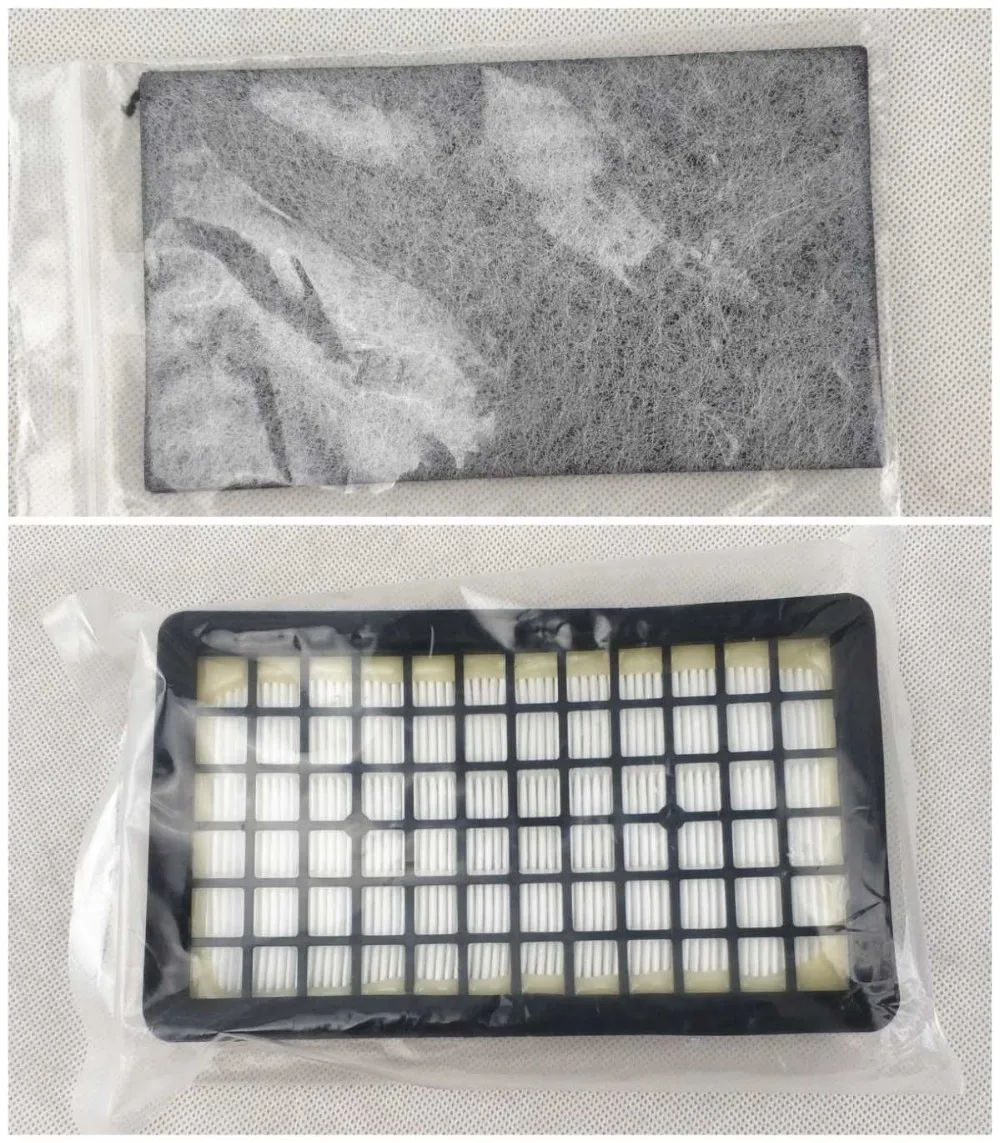

Activated Carbon Pre Filter: once a week if you use it 24hrs a week; H3HEPA Filter: once 2 weeks if you use it 24hrs a week.
• Helmet Material
PA
• Weight
17.28oz 480g
• Low TIG Amps Rated
> 3 amps
• Temperature Range (F) Operating
14-131, Storage -4-158
• Magnifying Lens Capable
Yes
• Certifications
CE/ANSI/CSA/AS/NZS
• Warranty
3 years
Packing & Delivery

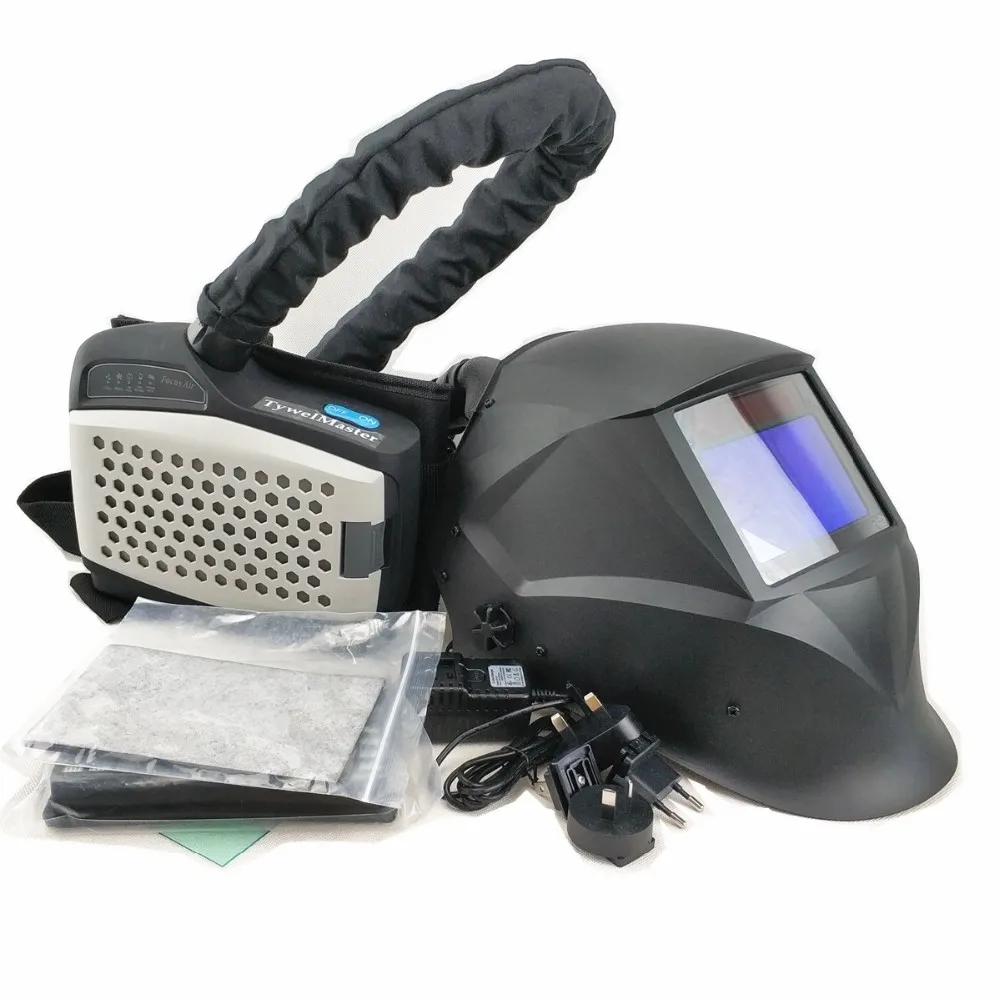

Package:

Helmet & PAPR Kit:
1pcs PAPR System.
1pcs Additional Air Filter.
1pcs Completely Helmet.
1pcs Standard Manual.
1pcs Additional Front Protection Lens.
1pcs Magnify Lens Frame.
(the frame is installed on the filter, there is no magnify lens, if you need magnify lens please buy from our shop).
