QN high efficient factory price apple juice concentrate vacuum industrial juice machine

Supplier: Wenzhou Aowei Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Tina Zhang
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty of core components:	1 YEAR;	Core Components:	engine;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Food & Beverage Factory;	After-sales Service Provided:	Engineers available to service machinery overseas,Online support;
Showroom Location:	none;	Supply Ability:	11 Set/Sets per Month industrial juice machine;
Processing:	VACUUM EVAPORATOR,Concentrator;	Voltage:	TBD;
Port:	Shanghai/Ningbo;	Brand Name:	onway;
Packaging Detail:	plastic film and cotton cloth and wooden cases-industrial juice machine.;	Certification:	TBD;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Marketing Type:	Hot Product 2019;
Processing Types:	juice;	Place of Origin:	Zhejiang China;
Video outgoing-inspection:	Provided;	Power(W):	TBD;
Weight:	TBD;	Material:	Stainless Steel 304/316L;
Dimension(LWH):	TBD;	Condition:	New;
Payment Terms:	L/C,T/T;	Machinery Test Report:	Provided;
Local Service Location:	none;	Application:	industrial juice machine;
Warranty:	1 YEAR;

QN series industrial juice machine (concentration tank)serves to Chinese herbal medicine, western medicine, food, glucose, juice, candy, chemical engineering etc. The vacuum of the liquid concentrated, crystallize, recyle, distil, alcohol recovery etc.

Function- apple juice concentrate machine

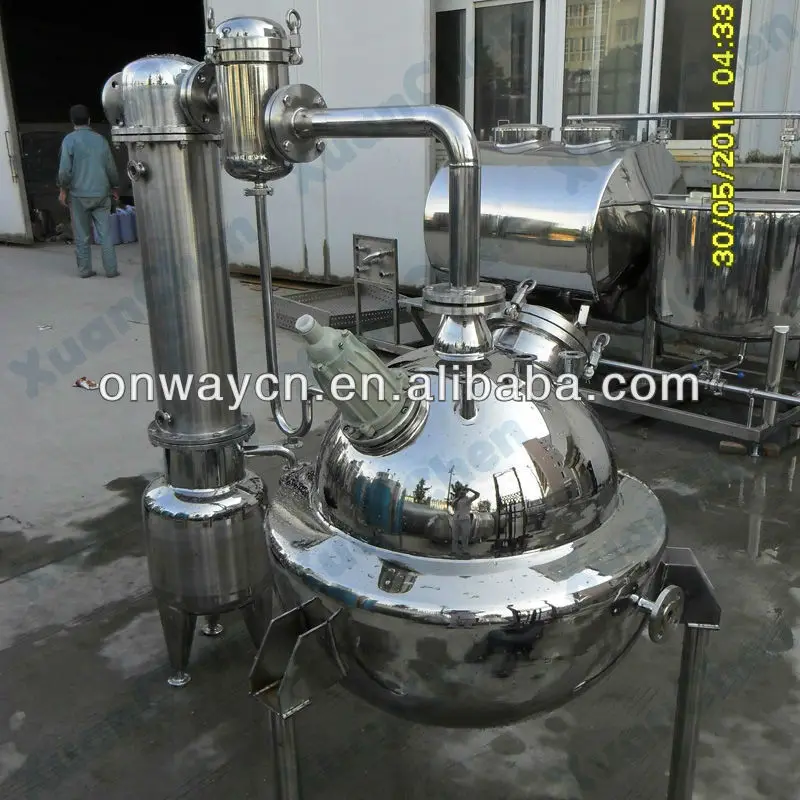

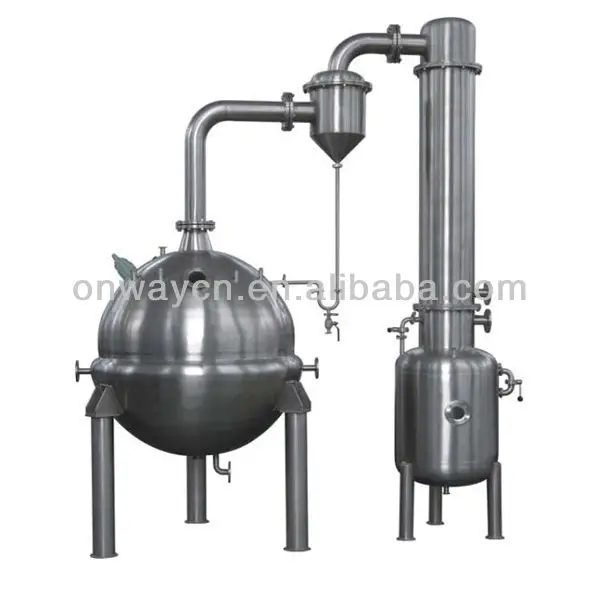

This equipments primarily contain concentration tank, condensator and gas-liquid separator. The concentration under reduced pressure brings short time of concentration and prevent the destruction of effective content in the thermal sensitive material. The fact that the part in contact with the material is made with stainless steel brings qualified anti-corrosion performance, meeting with the GMP standard.

Technology parmeter- industrial juice machine

	QN-300	QN-500	QN-700	QN-1000
amount of evaporationkg/h	70	120	145	195
nominal capacity(L)	300L	500L	700L	1000L
Steam pressure(Mpa)	0.09
Vacuum degree(Mpa)	-0.08
Heat area(m²)	1.3	1.5	2	2.8
Condensator area (m²)	2.4	3	3.5	4
Size Length×width×heigh	1900×1100×2300	2030×1200×2500	2100×1200×2600	2335×1520×2760
