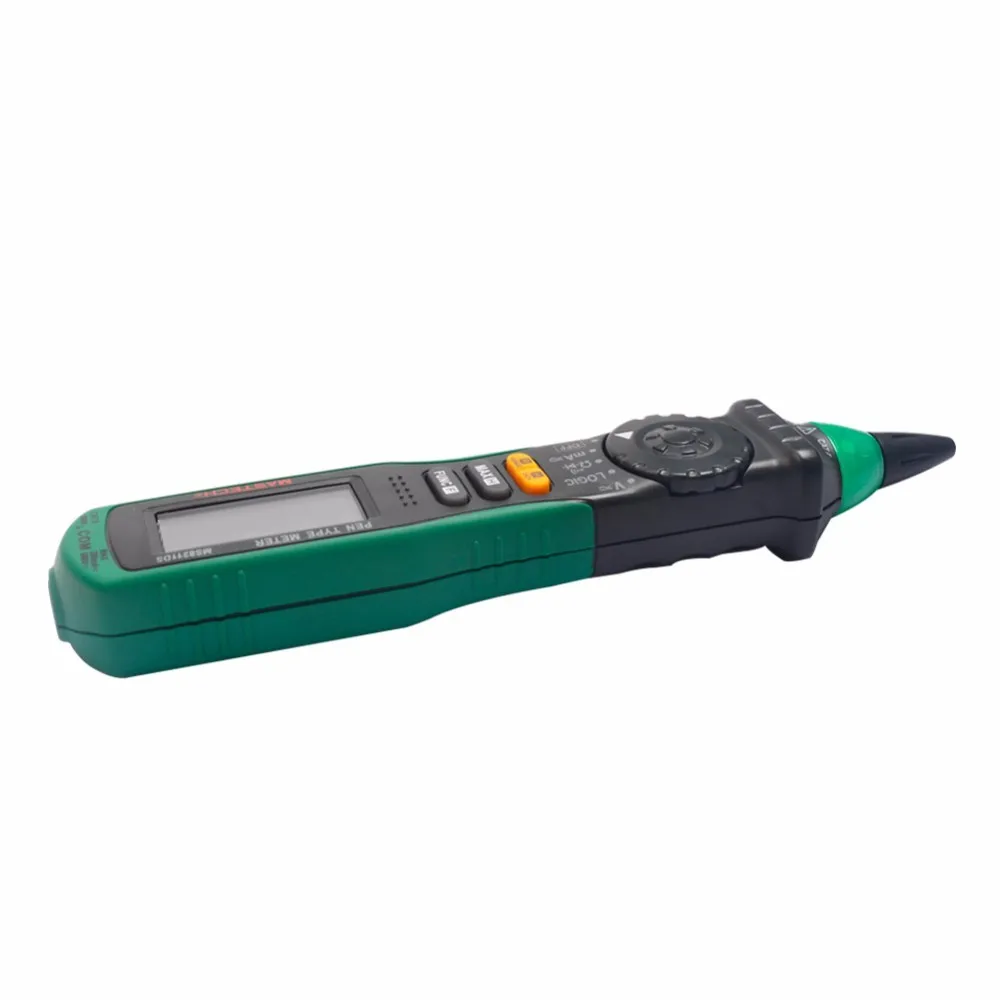

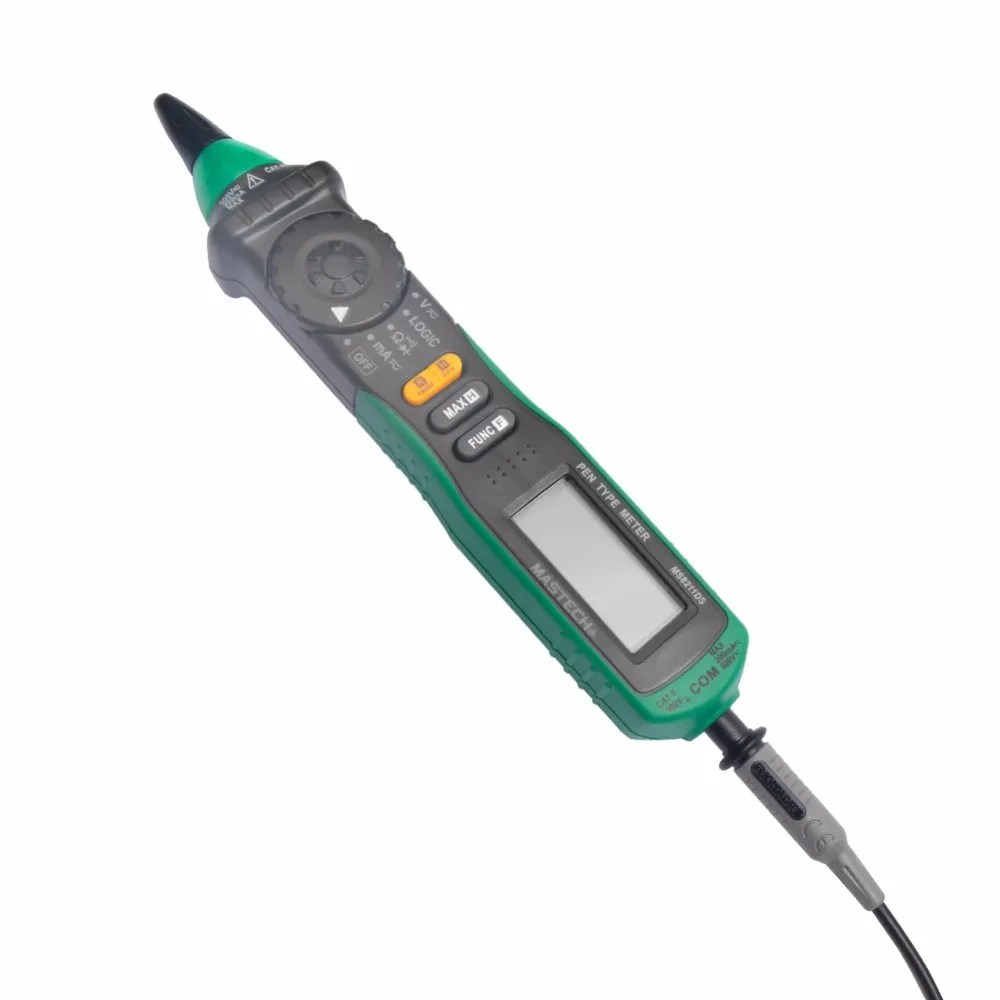

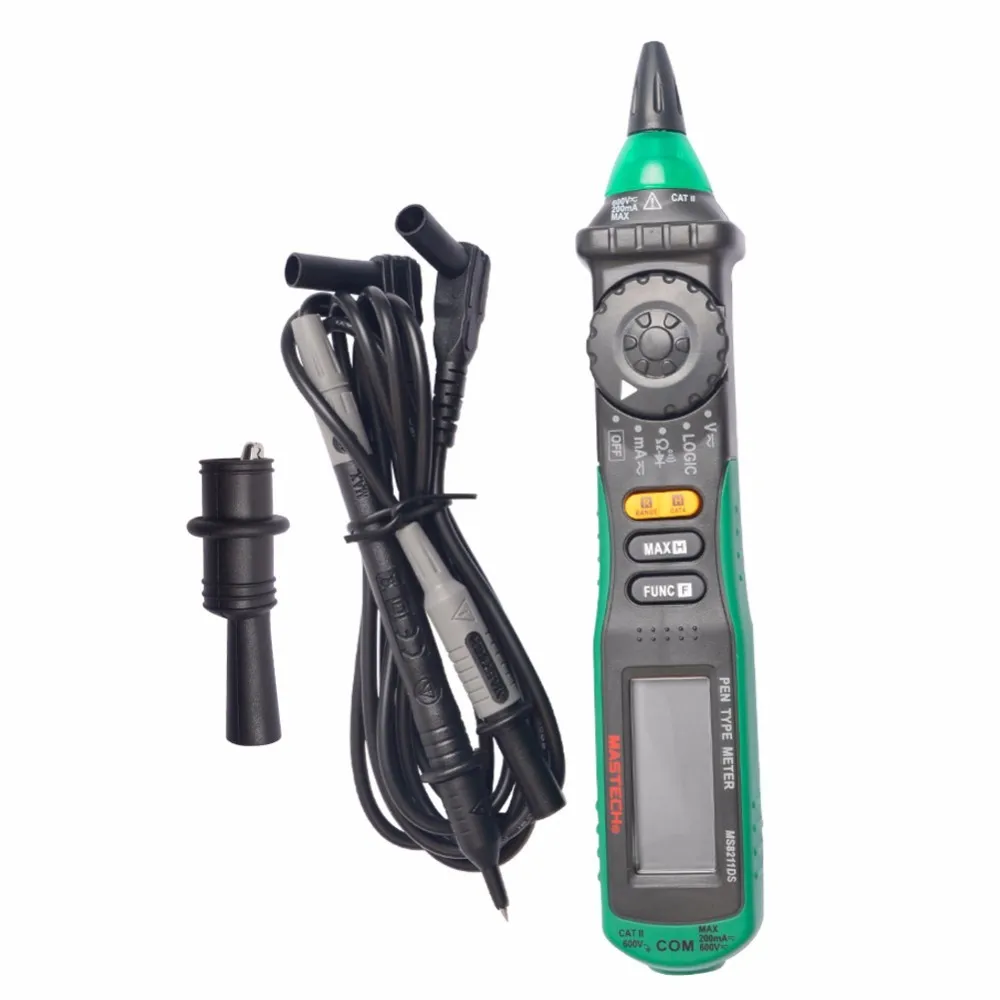

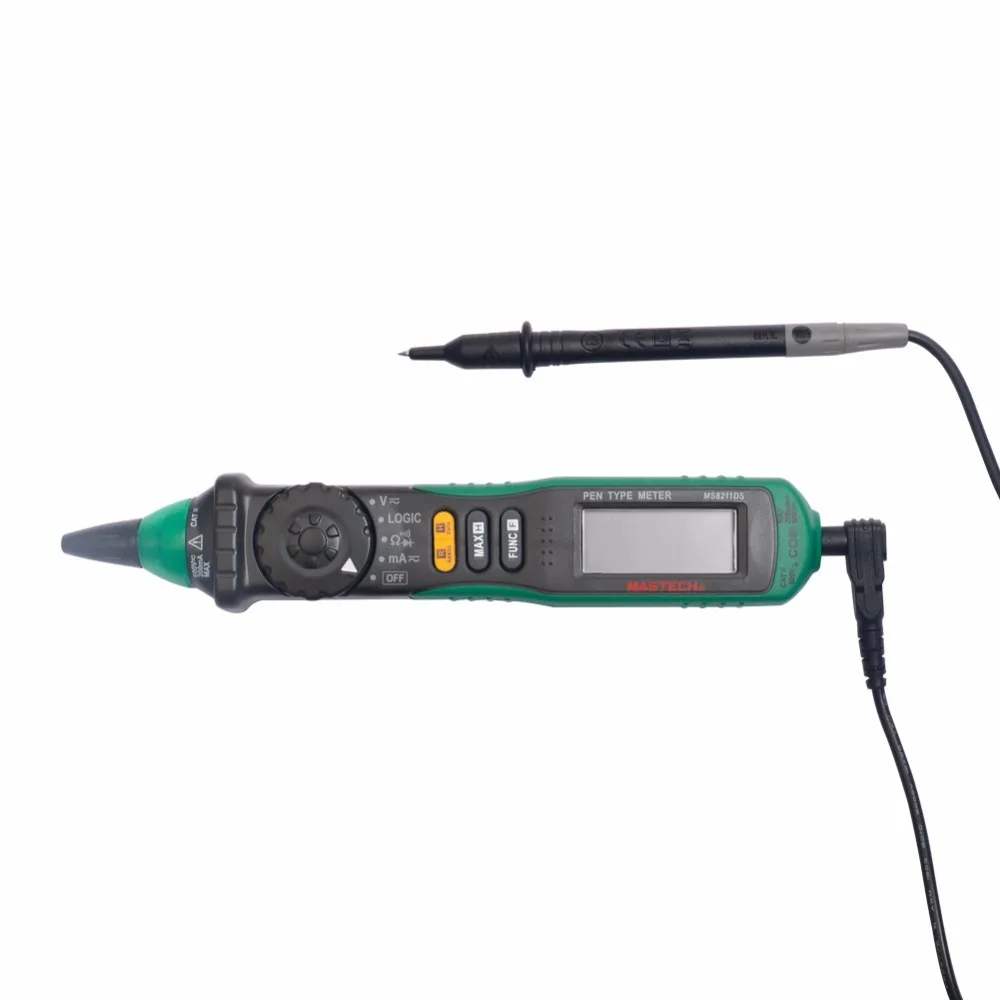

MS8211D Pen Type Digital Pen-Type Meter Auto Range Multitester Voltage Current Tester

Accuracy is specified for a period of year after calibration and at 18C to 28C(64F to 82F) with relative humidity to 75%.

Environment conditions: 600V CAT II

Pollution degree: 2

Altitude < 2000m

Operating temperature: 0C to 40C (32F to 122F) (<80%RH,<10C non-condensing)

Storage temperature: -10C to 50C (10F to 122F) (<70%RH,battery removed)

Max. Voltage Between Terminals And Earth Ground: 600V DC or AC

Auto range and manual range.

Display: 20 mm LCD

Max. Show Value: 1999 (3 1/2)

Polarity indication: " - " indicates negative polarity.

Over range Indication: Display "OL"

Sampling time approx. 0.4 second

Unit showing: showing of function and electrical capacity.

Low battery indication

Automatic power off time: 15 min.

Power supply: 1.5Vx2 AAA Battery ( No included )

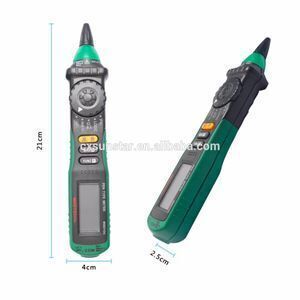

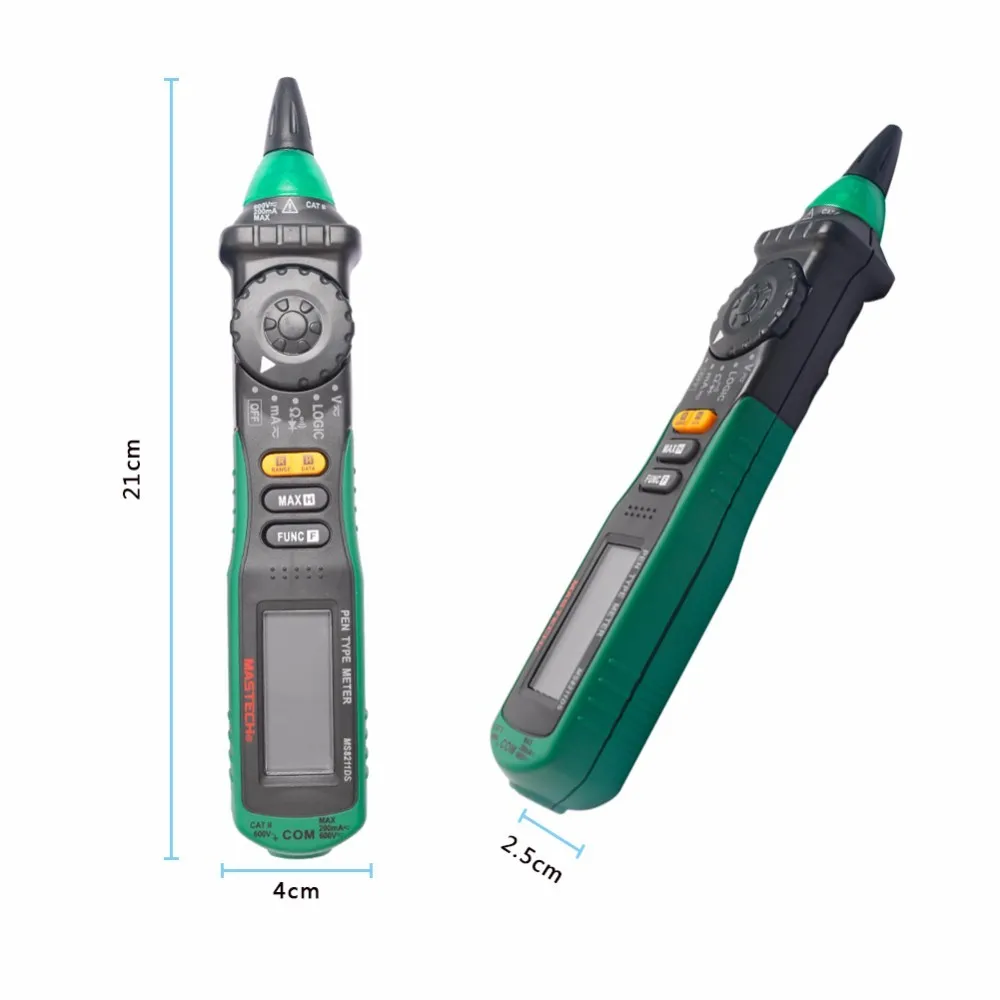

Dimension (LxWxH): 208x38x29mm

Weight: approx. 110g

Order Ref. Number: MS8211DE08

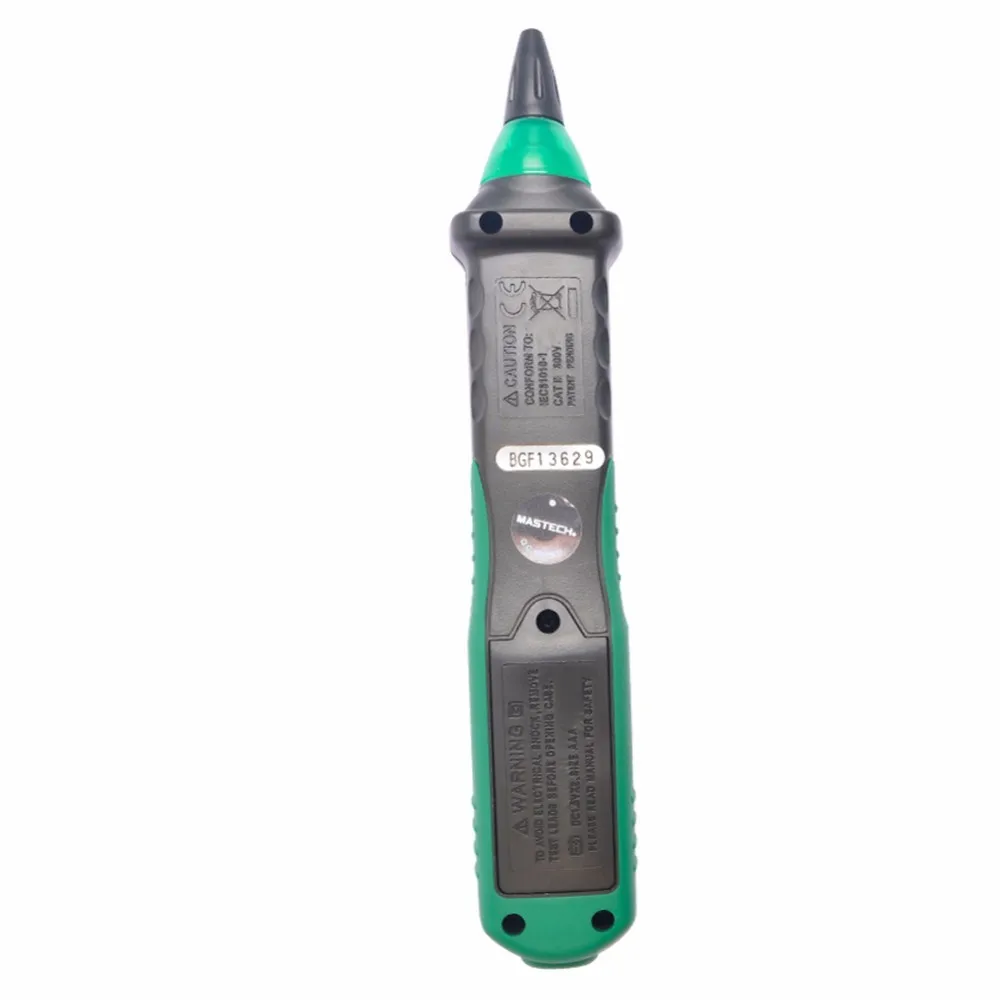

Safety rating: ETL CAT II 600V RoHS

Feature

Display: 2000 counts

Auto Ranging

Auto Power Off

Logic Level Test: >3.5V: High Level ; <3.5V: Low Level

Diode: 2.7V

Continuity Buzzer: <50Ω

MaxImum Volue Hold

Data Hold

Low Battery Display

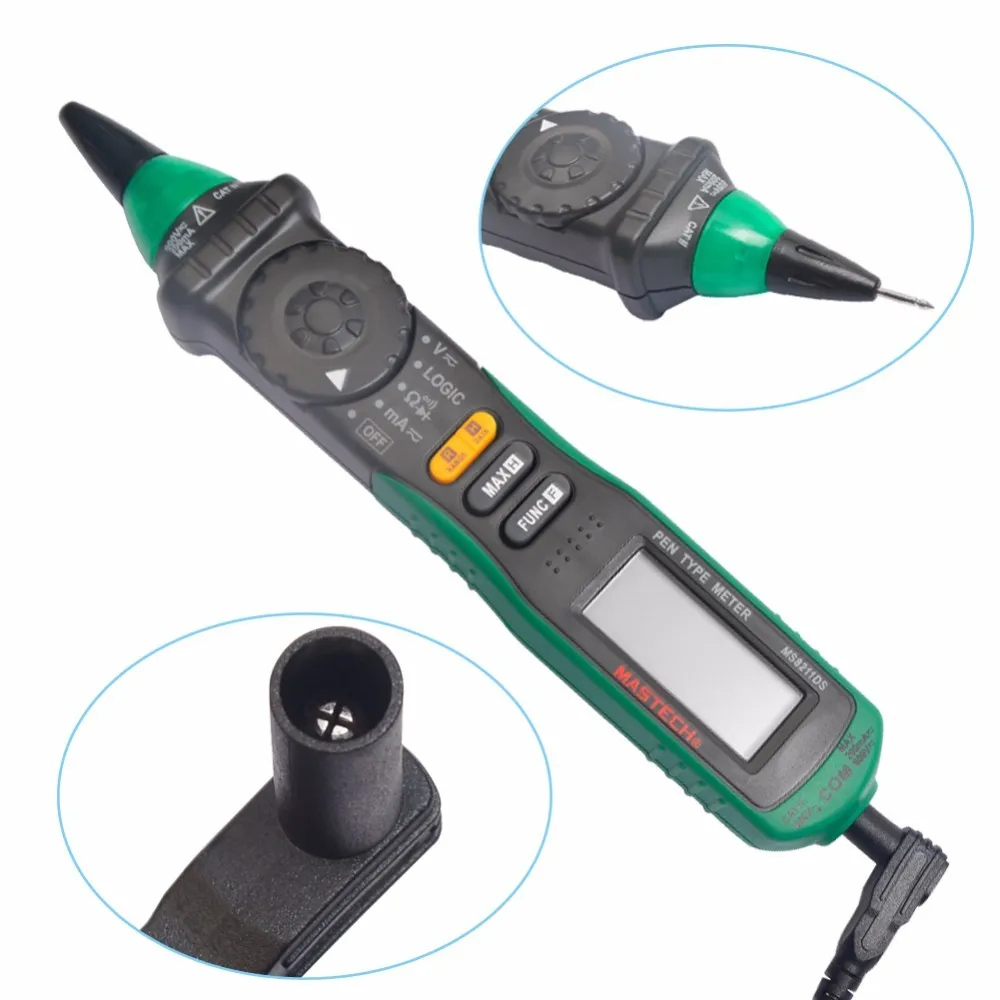

Retractable Tip for Safe Storage
