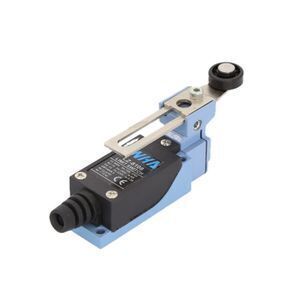

TNHA Rocker Arm Lever 5A 250VAC Roller Type Mini 8108 limit switch

Product details
Humidity:<95% RH;Operating Temperature:-5℃ to +65℃;
Max. Current:5A;Model Number:LZ-8108;
Packaging Detail:Packed in the cartons;Max. Voltage:250VAC;
Protection Level:IP65;Supply Ability:200000 Piece/Pieces per Week;
Brand Name:TNHA;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Place of Origin:Zhejiang China;Name:Limit Switch;
Port:NINGBO /SHANGHAI PORT;

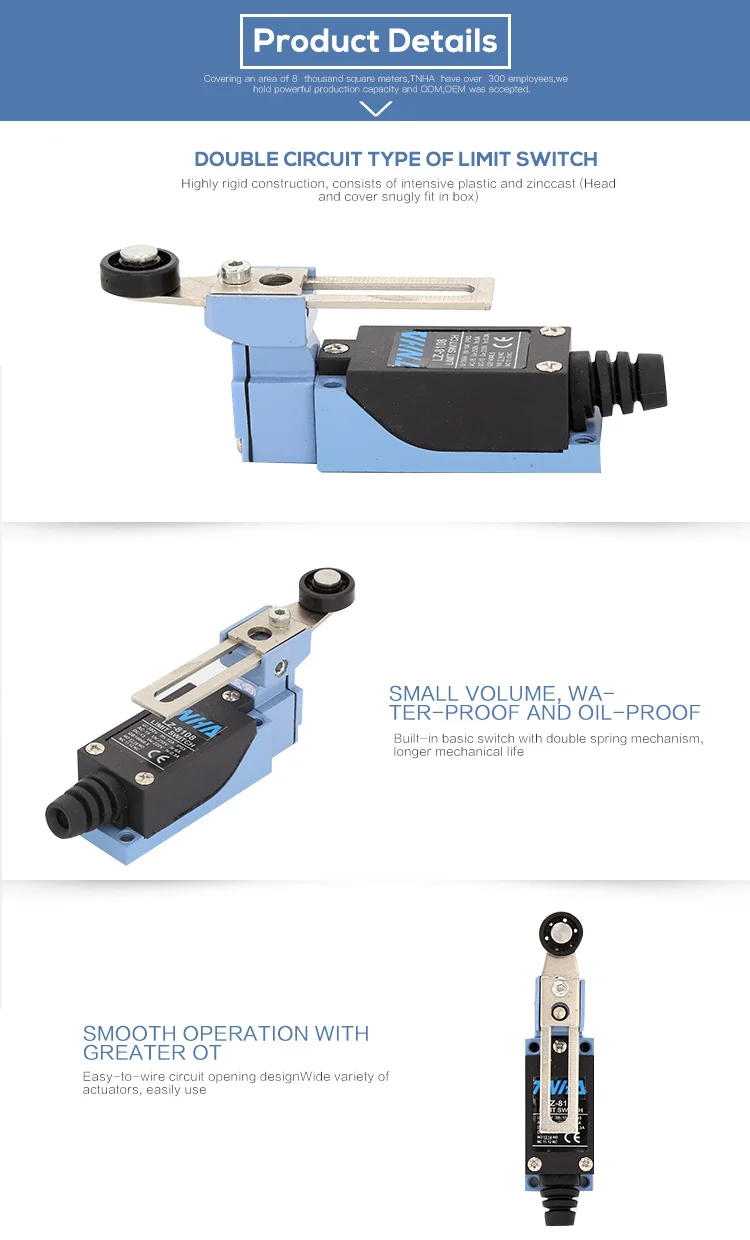

Product Pictures

Product Description
Model No. LZ-8108
Name Limit switch
Operation speed 0. 5mm-50cm/sec
Operating frequency Mechanical:120 operations/minute Electical; 30 operations/minute
Contact resistance 25mΩmax.(initial value)
Insulation resistance 100mΩmin. (below 500VDC)
Dielectric strength 1000VAC,50/60Hz for 1 minute between terminals of the same polarity
1500VAC,50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts
1500VAC. 50/60Hz for 1 minute between each terminal and ground
Vibration 10-55HZ, 1. 5mm double amplitude
Shock Mechanical durable:1,000m/Sec²(about 100G'S)
Malfunction:m/Sec²(about 30G'S)
Life Mechanical: 10,000,000 operations above
Electrical:5,000,000 operations above
Weight About 130 to 190g
Degree of protection IP65
