SANOU lathe chuck 4 jaw self-centering 160 from DIJIN

Supplier: Shenzhen Dijin Machine Equipment Co., Ltd.
Region: Guangdong, China
Contact: Mr Thomas Ban
Price: $65.80 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	SANOU;	Material:	Steel;
Number of Jaws:	4;	Single gross weight:	9.2 KG;
four jaw chuck diameter:	160mm;	Packaging Detail:	Carton;
material:	hardened steel;	Model Number:	K12160;
Power:	Manual;	Place of Origin:	Guangdong China;
Customized support:	OEM;	Selling Units:	Single item;
feature:	self-centering;	Single package size:	22X22X20 cm;
Certification:	CE;	Package Preview:	;

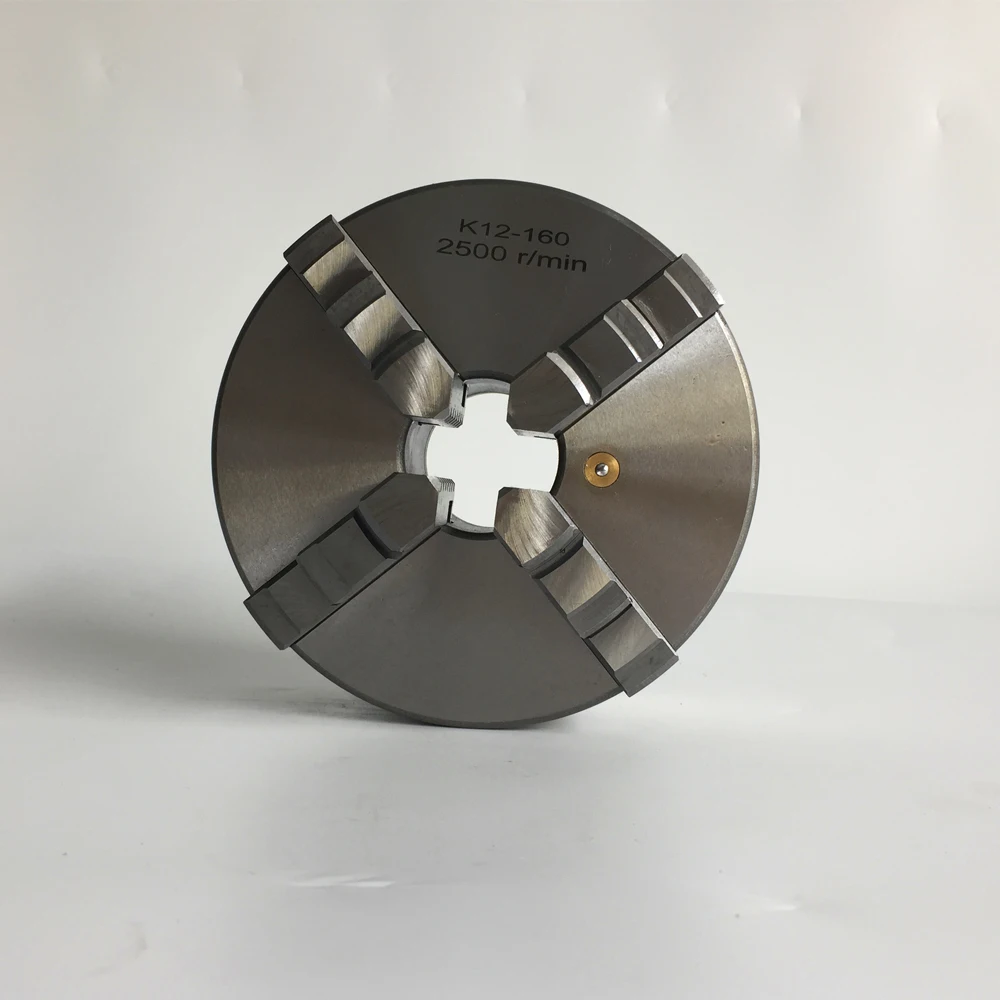

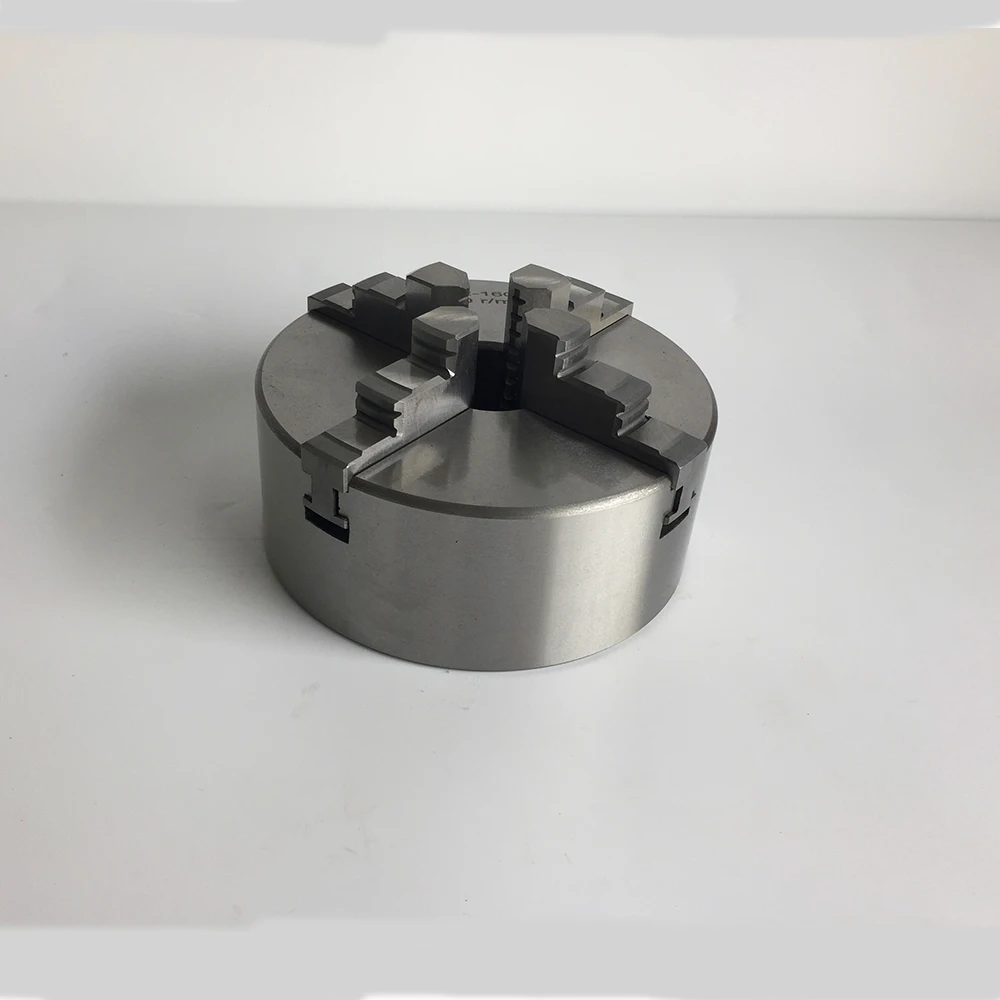

160mm 4 jaw chuck for lathe

Specifications:
Jaws material: Hardened Steel
Model: K12-160
Max RPM: 2500 r/min
Jaw: 4 Jaw
Power: Manual

Features:
1. Short cylindrical center mounting .
2. Model K12 chucks are provided with one- piece jaws(which include a set of internal jaws and a set of external ones ).
3 .Model K12 chucks are supplied with traditional two-piece jaws.

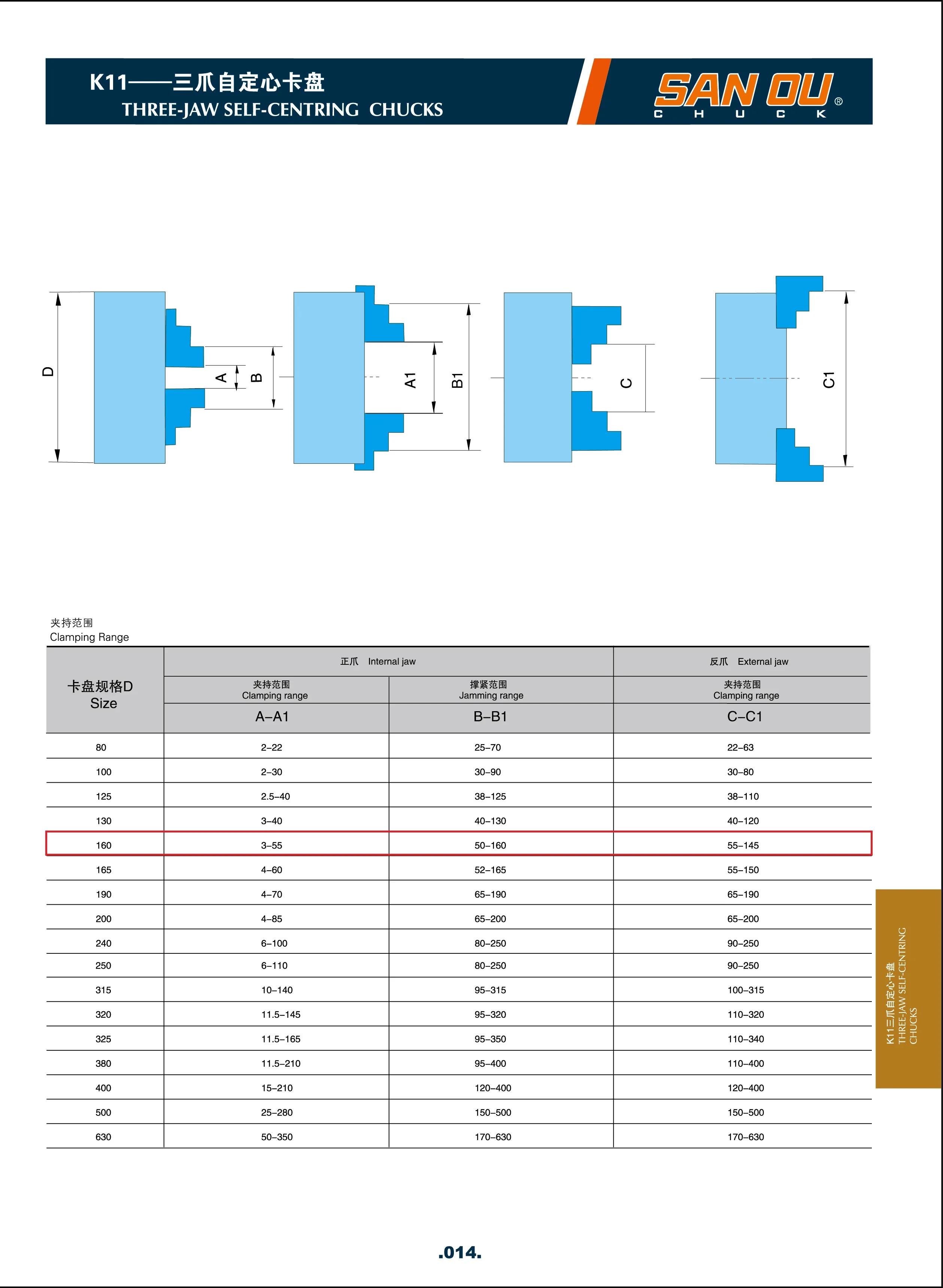

Internal Jaw:
Clamping Range A-A1: 3- 55mm
Jamming Range B-B1: 50- 160mm
External Jaw
Clamping Range C-C1: 55- 145mm

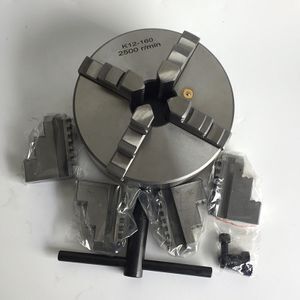

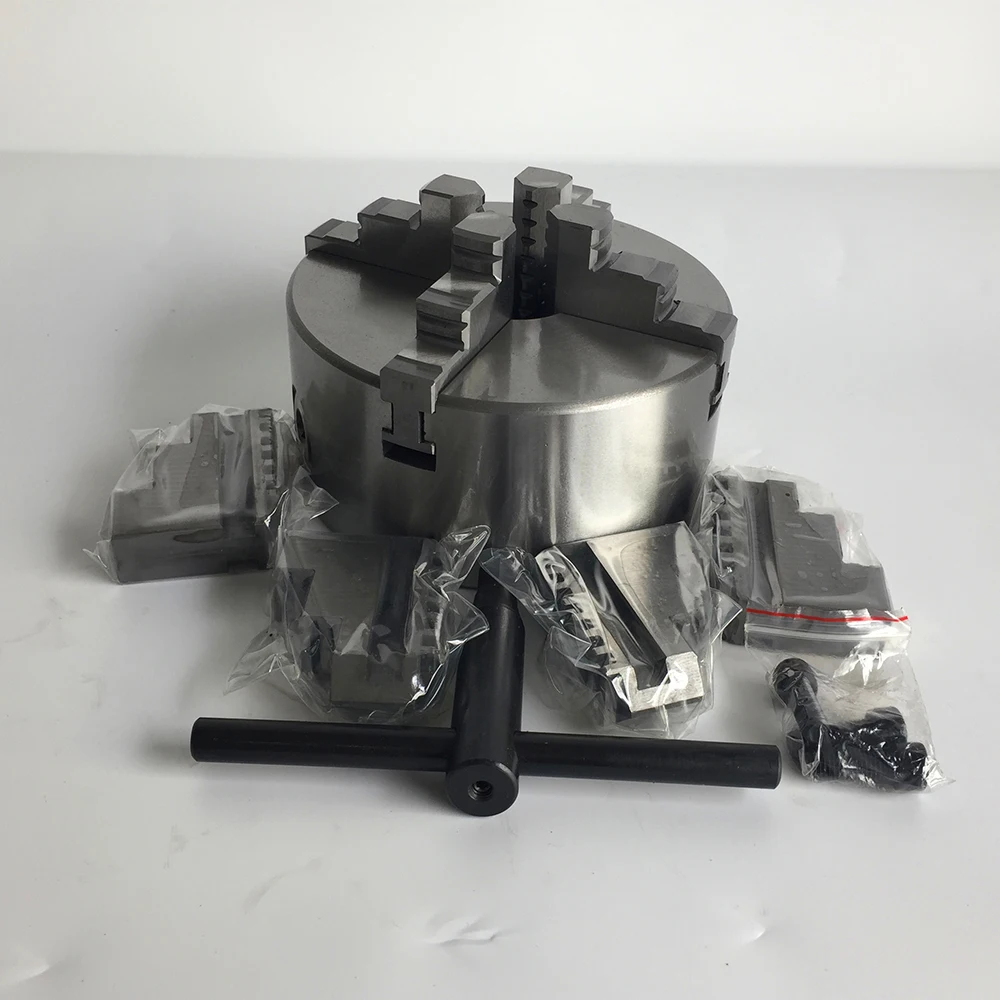

Packaged included :
Self-Centering chuck body x1
Inside jaws x 4
Outside jaws large x 4
Safety chuck key x 1
Mounting bolts x 3
