Super Promotion Alloy Wheel Rim Repair Taiwan diamond cutting CNC Lathe Machine Price AWR28H

Product details
Keyword:diamond cutting cnc machine;Selling Units:Single item;
Warranty:2 years;Single gross weight:2,250 KG;
Application:repair car alloy rims;Control system:SYNTEC;
Certification:CE ISO SGS;Function:repair rim;
Place of Origin:Shandong China (Mainland);Delivery Detail:0 days after payment;
Name:Alloy Wheel Repair Cnc Lathe;Package Preview:https://sc01.alicdn.com/kf/HTB13KYgl4tnkeRjSZSgq6xAuXXaK.jpg_640x640.jpg;
Warranty:2 Years;Color:Customized Option;
Single package size:229X162X223 cm;Material:Cast iron;
Model:AWR28H;Brand Name:CRYSTAL;
Package Type:standard package;

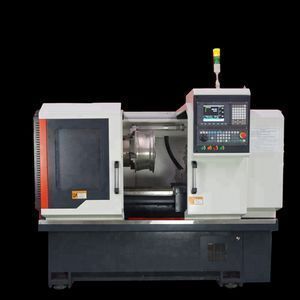

Alloy Rim Repair CNC Lathe Machine AWR28H

CNC alloy wheel lathe machines are designed for repair and refurbish alloy wheel, be applied to the full face and lip of the wheel. The machine is very easy to operate. Operator don’t need to learn complicated programme. The machine can do higher efficiency and spectacular finishes automatically.



Wheel Repair Lathe Advantages

1. Cuts wheel up to 28’’.

2. With CE, SGS, ISO, BV certificates.

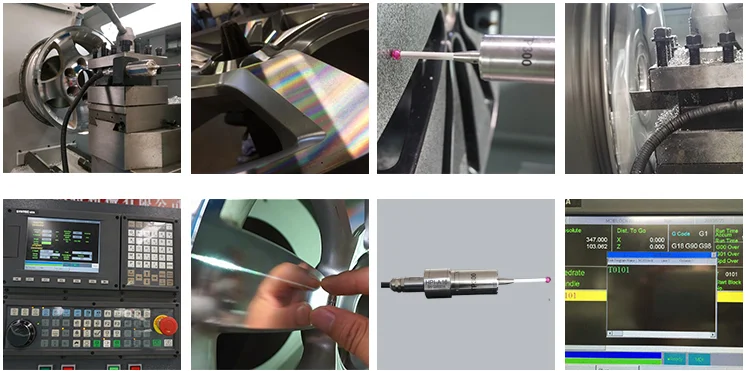

3. Automatic ruby probe system.

4. Easy Operation.

5. Self-developed optimization software.

6. Free Training video and manual instructions.

7. 7x24 hours technology support.

8. 2 USB interface.

9. High efficiency and economic.

10. Two-year warranty.

11. Free factory hand-to-hand training.



AWR28H specification:

ITEMS

AWR28H

Max. swig over bed (mm) (inch)

Φ770 (30'')

Max. Size of alloy wheel (mm) (inch)

                 Φ720 (28'')

Adjustable stroke of carrier in X direction (mm)

100

Cross slide travel (mm)

390

Width of the rail (mm)

300

Length of the rail (mm)

1300

Size of the three-jaw chuck (inch)

12’

Range of spindle speed (rpm)

50~2000

Spindle speed control

Automatic

Spindle bore  (mm)

Φ82

Taper of spindle bore

1:20(Φ90)

Max. size of tool post

25×25mm

Stations of tool carrier

4 position

Min. setting unit of motor

(Z) long 0.001mm,

(X) cross 0.001mm

Moving speed of post

(Z) long   8m/min,

(X) cross  6m/min

Motor power

7.5KW

Machine base (cast iron base)

Whole

Machine size (L×W×H) (mm³)

2140 ×1600×1860

Net weight

2600kgs





Standard configuration

+

Diamond Cutter 1 set

 3-Jaws Chuck(With Special Soft Jaws)

high precision prob system 1 set

SYNTEC CNC Controller

Manual Quick Change Toolpost,Four-station

Work Lighting System

Automatic Lubrication System

Cooling System

Full Enclose(Security Guard Door)

Tools&Tool Box

Self developed professional wheel repair software

Training Video CD

1.Q:The machine can repair wheel edge?

   A:Yes, that’s no problem to repair wheel edge.

2.Q:The machine is easy to learn?

   A:Yes, it is very easy to learn. The detailed manual and training video will be supplied

     with machine together .

3.Q:Do I need any special software for my PC?

   A:We will provide optimization software (It is specifically aimed at wheel repair and

     we have independent intellectual property rights).

4.Q:What kind of tool that wheel repair machine use?

   A: It is diamond cutting tools.

5.Q:How many time it takes to repair a wheel ?

   A:For same model wheels, the first one needs about 10 minutes, because

     probing wheel curve will take some time. After first one, the curve will be saved, so

     when you repair other wheels as same model, it just takes about 3 minutes.

6.Q:Can we go to your factory and learn how to use the machine?

   A:We sincerely welcome you come to our beautiful city. The training is free. It would

     be great honor to us.

7.Q:Can you arrange training in our place after we bought your machine?

   A:We can arrange oversea training. Buyers will be responsible to the costs.

Make you satisfied is our business!

1. The first batch of supplier joined Alibaba Trade Assurance.

    Amount up to the top of Machinery Industry. Zero-risk Purchase service.

2. Over 400 clients from more than 80 countries could tell you we are your reliable

    partner.

3. Professional in cnc machine.

    Our price could beat any competitors in China market.

4. We supply professional solution based on your own process one by one.

5. Customer-made configurations available. Provide you more choices.

6. 7*24 hours before and after sale service.

7. 2 years guarantee for whole machine, 3 years warranty for CNC system, servo

    motor, guide-rail.
