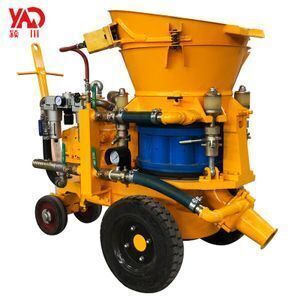

Pneumatic Reinforced Shotcrete Machine/PZ-5 Air Rotor Motor Dry Mix Shotcrete Gunite Concrete Spraying Machine

Product details
UNIQUE SELLING POINT:Long lifetime;Condition:New;
Product name:Pneumatic Shotcrete Machine;Warranty:1 Year;
Packaging Detail:fumigation-free wooden case Pneumatic Reinforced Shotcrete Machine/PZ-5 Air Rotor Motor Dry Mix Shotcrete Gunite Concrete Spraying Machine;Package Preview:;
Hose Inner Diameter:51;Max Aggregate Size:15mm;
Dimension(L*W*H):1280x700x1280mm;Power:300;
Port:SHANGHAI,QINGDAO;Supply Ability:1000 Set/Sets per Month concrete spraying machine;
Applicable Industries:Construction works ,Energy & Mining;Conveying Pressure:0.2-0.4MPa;
After-sales Service Provided:Video technical support,Free spare parts,Online support;Air Motor Type:Air Motor Type;
Certification:ISO9001:2008,ISO9001:2008;Brand Name:YINGCHUAN;
Keywords:Concrete Spraying Machine;Application:Gunite;
Color:Change as you demand;Name:Dry Mix Shotcrete Machine;
Voltage:380V or as your request;Package:Fumigation-free wooden case;
Air Consumption:7-8m3/min;Material Charging Height:1.1m;
Place of Origin:China;Weight:720kg;

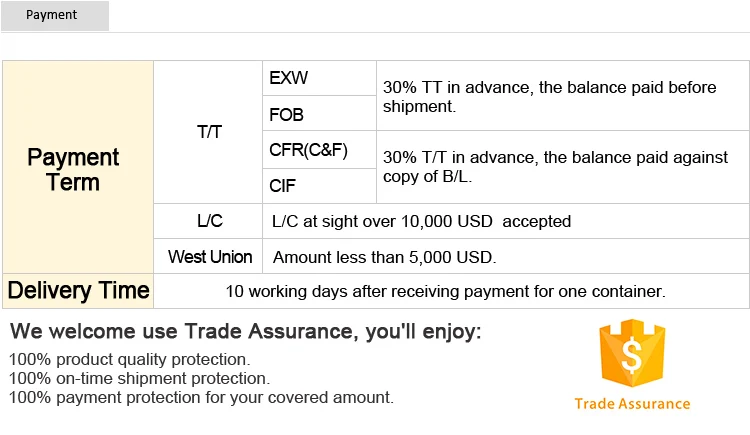

Max. Conveying Distance:Horizontal:200m Vertical: 20m;Payment Terms:L/C,T/T,Western Union,Trade Assurance;

Pneumatic Reinforced Shotcrete Machine/PZ-5 Air Rotor Motor Dry Mix Shotcrete Gunite Concrete Spraying Machine

Product Description

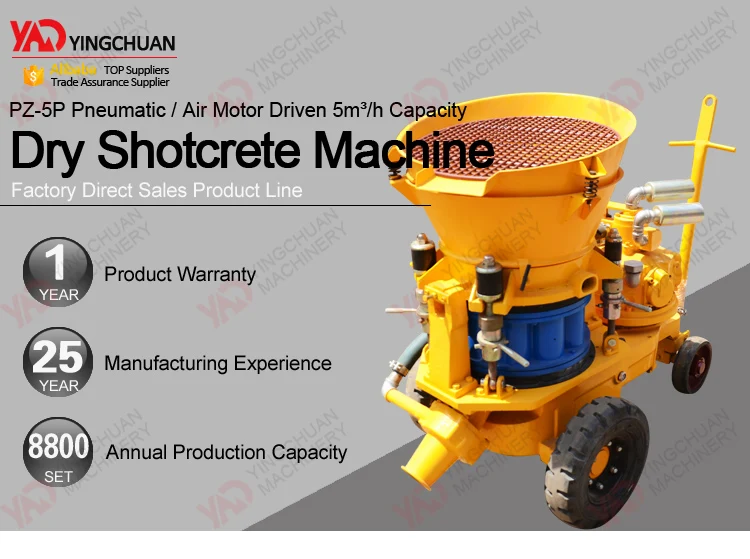

Main Technical Parameter of 5CBM Per Hour Capacity Pneumatic Reinforced Shotcrete Machine/PZ-5 Air Motor Dry Mix Shotcrete Gunite Concrete Spraying Machine:

Model

PZ-5 Air Motor

Output Capacity

5m3/h

Max. Convey Distance

Horizontal:200m Vertical: 20m

Suitable Mix Ratio(Cement/Sand)

≤1:3~5

Max. Aggregate Size

Φ15 mm

Conveying Hose Inner Diameter

Φ51 mm

Conveying Pressure

0.2-0.4MPa

Air Consumption

7~8m3/min

Air Motor Air Pressure

0.5MPa

Material Charging Height

1.1m

Rotor Speed

11rpm

Air Motor Type

GMH6A

Air Motor Air Consumption

7.5m3/min

Overall Dimension

1350×750×1200mm

Net Weight

720kg

Characteristics:

1. We can change the color according to your actual requirements.
2. Customized the voltage motor based on your country.
3. Choose the different wheel according to your needs.

Production capacity:1000 sets/month.





The main advantage of this technology of Shotcrete concrete is, in particular,

its top rate of discharge from the jet (up to 30 m/s) which enables perfect consolidation of the concrete mixture and high strength of the sprayed concrete. Another important feature is the long distance transfer which enables the application of concrete mixture at hard to access places (up to 200 m horizontally and 20 m vertically).



Warm tips: Shotcrete machine wearing parts, please prepare more original accessories when purchasing machine.





Shotcrete machine are mainly used for railway and highway, subterranean basement walls, Seismic reinforcing/retrofitting of buildings, channels, shear Walls, retaining Walls, bridge retrofits, architectural concrete, mining, tunnel, culvert, subway, hydropower engineering(such as tunnels,dams and pools) and underground excavation engineering etc.

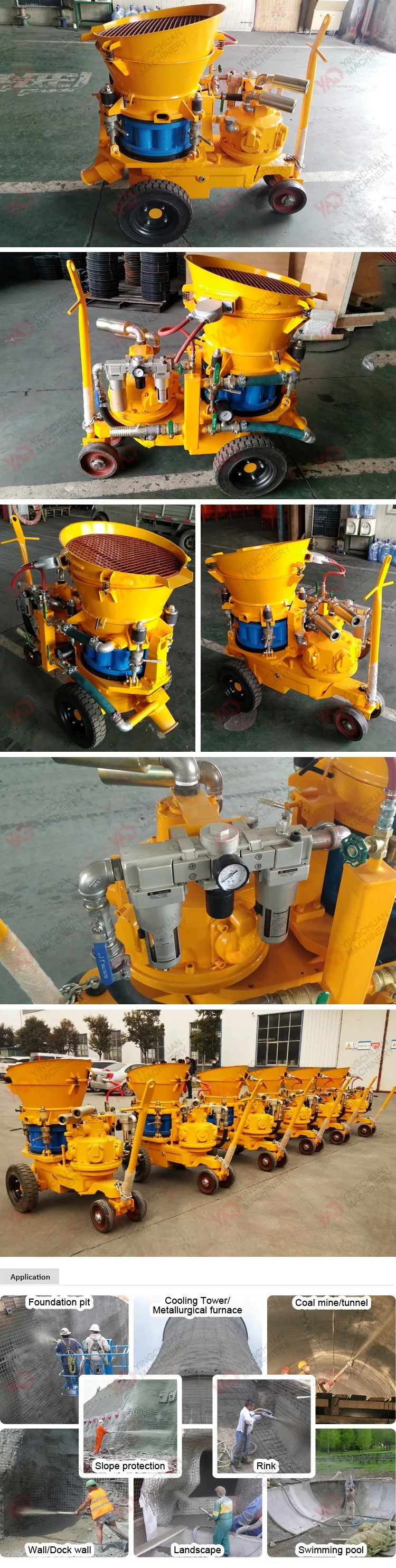

Product Photo



Feedback

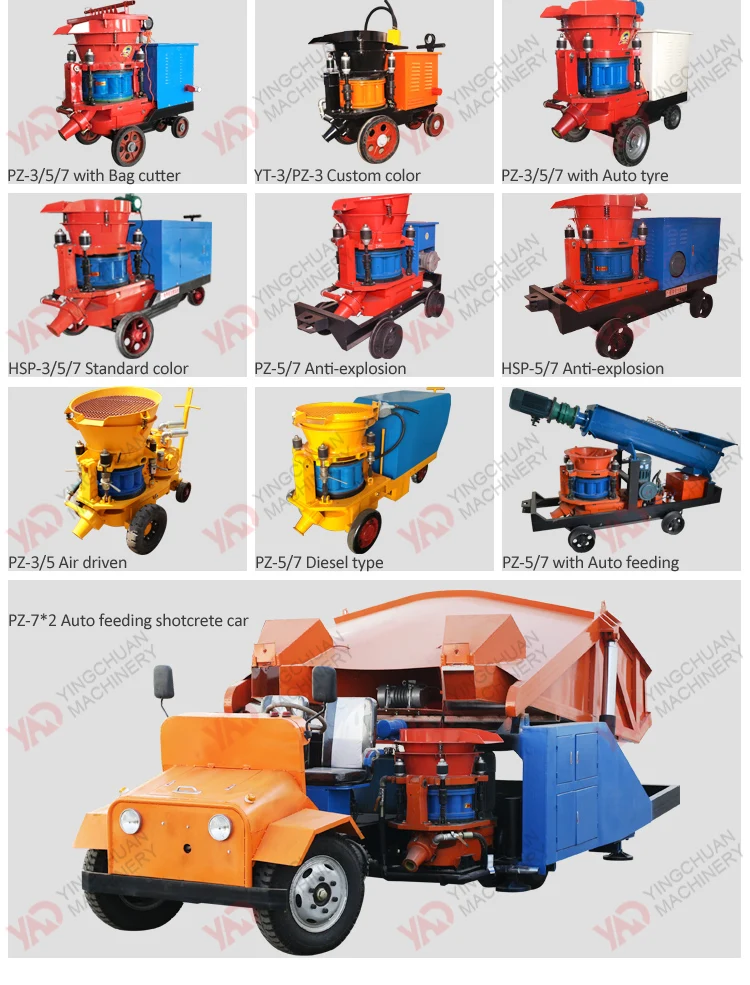

Optional model



Advantages

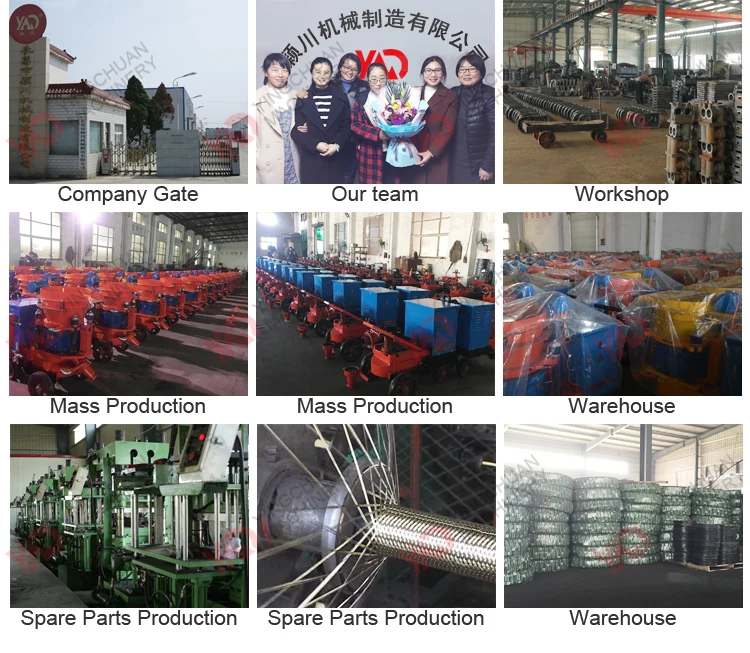

Factory Show



Professional production team, production line, experienced technical experts who engaged in this industry for more than 10 years.



Professional sales and after sale service team, timely and efficiently to solve your problem.



Our company go through the international BV certification authority, and we have the ability to provide you the products with reliable quality, competitive price and timely service.

Business Partners

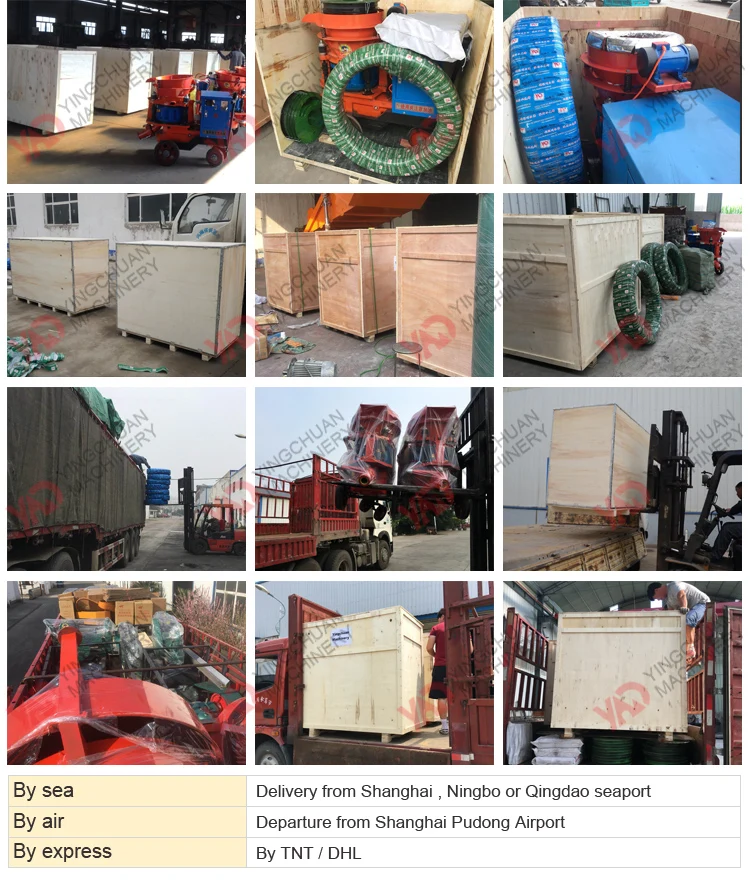

Packing





Standard export package, fumigation-free wooden case to protect the machine from long-distance delivery.

Sincerely welcome you to visit, consult and negotiate business.

...
