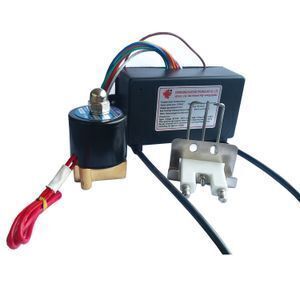

Oven gas burner stove automatic ignition system include Igniter, Solenoid valve, Ignition electrode

Supplier: Chongqing Haodong Technology Co., Ltd.
Region: Chongqing, China
Contact: Ms Nancy He
Price: $20.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Voltage:	220-240V/110-127V;	Duration of rekindling:	10s;
Discharge energy:	≥4J;	Warranty:	1.5 years;
Place of Origin:	Chongqing China;	Video outgoing-inspection:	Provided;
Machinery Test Report:	Not Available;	Local Service Location:	None;
Marketing Type:	Hot Product 2019;	Deferent high pressure:	≥15KV;
Showroom Location:	None;	Supply Ability:	10000 Piece/Pieces per Week depond on customer;
Condition:	New;	Discharge cycle:	≤400ms;
Packaging Detail:	Outer packing: carton;	Payment Terms:	L/C,Western Union,T/T,paypal, trade assurance;
Type:	igniter;	Brand Name:	THD;
After Warranty Service:	Video technical support,Online support,Spare parts;	Port:	any port of China;
Weight:	1KG;	Arcing distance:	≥6mm;
Duration of ignition:	10s;	Product name:	automatic ignition parts;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Oven gas burner, stove;	Function:	Automatic ignition and gas control;

Oven gas burner stove automatic ignition system include Igniter, Solenoid valve, Ignition electrode

Company Information

Product Description

Purpose of Gas furnace electric pulse igniter

This product is mainly used for the ignition and control of industrial equipment with the energy of liquefied petroleum gas, natural gas and coal gas.

Features of Gas furnace electric pulse igniter

Electric ignition or switching control ignition

Ignite the gas again automatically if the fire went out accidentally.

Automatic monitoring or photoelectric control. If the fire went out, it can give warning automatically.

If it failed to ignite the gas or the fire went out accidentally, it can cut off the gas supply immediately.

Technology of Single-chip and digital microcomputer

lightning proof

Technical Parameter of Gas furnace electric pulse igniter

No	Items	Quotas	Remarks
1	Rated operational voltage	VAC
2	Discharge frequency	50HZ
3	Arcing distance	≥6mm
4	Duration of ignition	10s	It can be adjusted according to your requirements
5	Duration of rekindling	10s
6	Discharge energy	≥4J
7	Discharge cycle	≤400ms
8	Width	≥12μs
9	Deferent high pressure	≥15KV
