Brake Shoe Riveting and Grinding Machine

Product details
Position:brake shoes/pad/lining;MOQ:1 Set;
Size:OEM Standard Size;OEM:Avaiable;
Color:Blue;Type:Brake Shoes;
Quality:100% Tested;Car Make:Truck;
OE NO.:OEM;Model Number:ZM-280II;
Packaging Detail:plywood case(export standard packing);Product name:Brake Shoe Riveting and Grinding Machine;
Application:brake shoe rivet and grind machine;Certification:ISO9001:2015;
Place of Origin:Shandong China;Material:Steel;
Supply Ability:100 Set/Sets per Month;Port:Qingdao/Shanghai/Guangzhou;
Brand Name:Haolida;Payment Terms:L/C,T/T,Western Union;
Delivery Detail:20days;Package:Standard Wooden Pallet Packing;

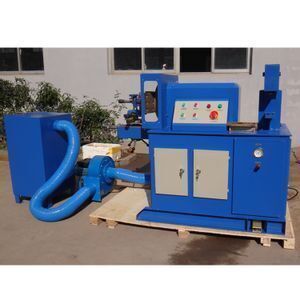

                           ZM-280II Model Brake shoe rivet and grindmachine



General introduction

It is used for riveting rivets of all kinds of brake shoes\brake disc\brake drum\brake lining \ brake pad and other auto parts.

It can grind brake shoes to proper size.



Advantages:

1.      It uses air source as power.

2.      It is suitable for heavy duty truck brake lingings,etc.

3.      Pressure can be adjusted according to size and material of the rivets.

4.      Pedal room is big.

5.      It can be matched with dust collecting system, to collect dust, it is environment friendly.

6.      Good discount based on order quantity



Technical parameter:



Model no

ZM-280II

Material

Metal plate

Painting

High quality paint

Color

Blue&black

Max rivet force

60KN(6T)

Suitable rivet diameter

3-10mm

Power

1.5KW

RPM of grinding wheel spindle

1500r/min

Max grinding width

280mm

Accessories:

Riveters: 6pcs, used for working on Φ3, Φ4,Φ5,Φ6,Φ8,Φ10 rivets

Puncher: 2pcs, used to remove old rivets 3mm-10mm

Others you may want to know:

MOQ

1set

Warranty period

12 months

Payment term

T/T 100% in advance

Delivery time

10days after receiving downpayment

HS code

8463900090

Packing sizes

Export plywood case

1300*780*146mm=1.48CBM

N.W: 90kgs

G.W: 120kgs

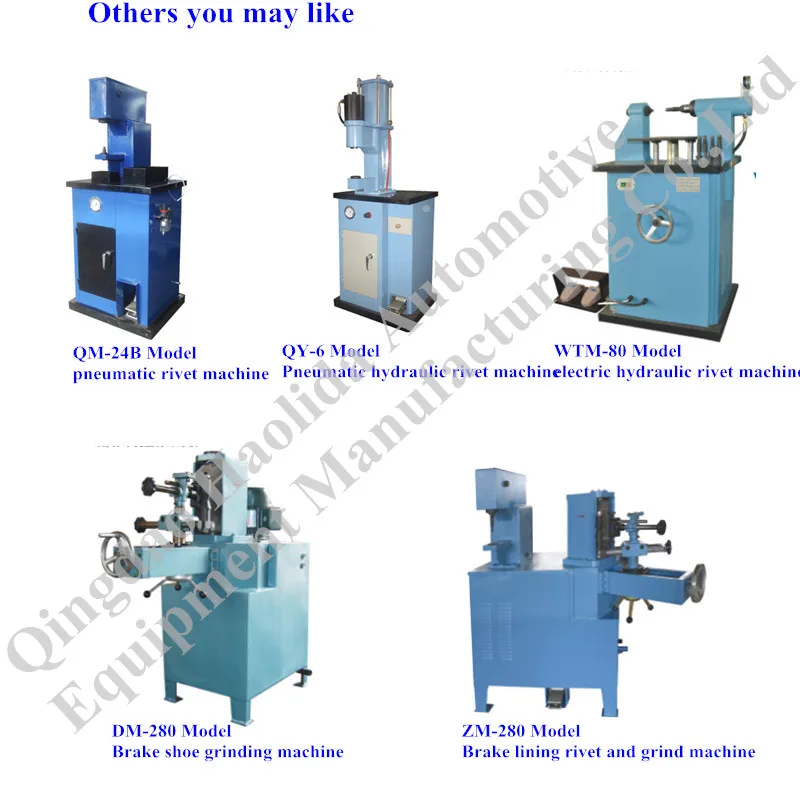

Some similar products

Why Choose us:

1.      32 years’ design,development and produce experience

2.      Professional R&D team

3.      Strict QC

4.      A good pre-sale and after-sale service

5.      Can design and make according to customer’s requests
