API Oil Well Drilling Rig Price Solid Control System Mud Circulation

Supplier: Shandong Beyond Petroleum Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Alex Zhao
Price: $60000.00 / 1 - 1 sets
$58000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Packaging Details:	Packing in Nude;	After-sales Service Provided:	Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;
Company:	Shandong Beyond Petroleum Equipment CO.,LTD;	Showroom Location:	Egypt,United States,Kazakhstan;
Include:	Desaner, Desilter, Degasser,Centrifugal Sand Pump;	Local Service Location:	Egypt,United States,Kazakhstan;
Voltage:	220V~380V;	Payment Terms:	L/C,T/T;
Lead Time:	Within 35 Days;	Machinery Test Report:	Provided;
Certification:	API, ISO9001;	Dimension(LWH):	21050X3800X3120 cm;
Features:	solid control;	key words:	oilfield solid control system;
Video outgoing-inspection:	Provided;	Product name:	Control System Mud Tank;
Supply Ability:	1000 Box/Boxes per Year;	Type:	Oil Drilling Rig;
Port:	QINGDAO/NINGBO/SHANGHAI;	Condition:	New;
Core Components:	Engine,Motor;	Package Preview:	;
Applicable Industries:	Energy & Mining;	Marketing Type:	Ordinary Product;
Warranty of core components:	1 Year;	MOQ:	1 set;
Brand Name:	BEYOND;	Production Capacity:	100%;
Application:	Oil Field;	Model Number:	F;
Packaging Detail:	Packing in Nude;	Certificate:	API , ISO9001;
Weight:	8000 kg;	Place of Origin:	Shandong China;
Warranty:	1 Year;

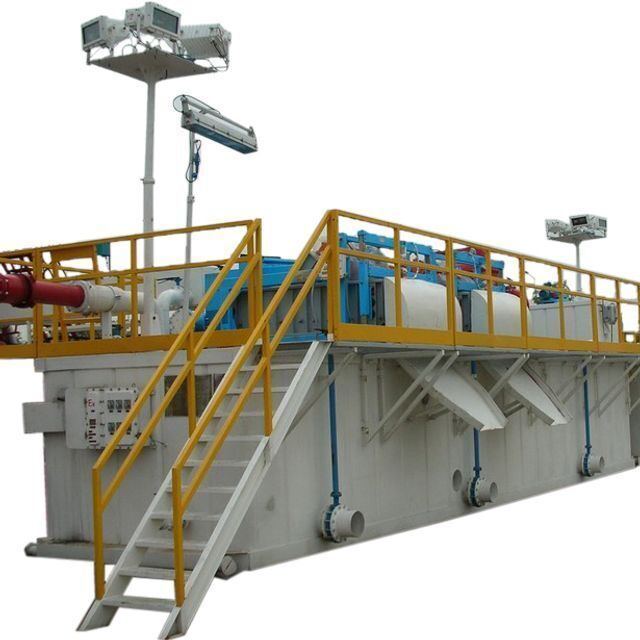

Product Description of Oil Drilling Rig Solid Control System:

Drilling solid control system is a part of drilling rig, mainly used for purification and storage of mud during drilling service. The system plays an important role of decreasing sand content in the mud, reducing mud specific density and viscosity, increasing drilling speed, diminishing wear of mud pump sets and preventing environmental pollution.

Solid Control Equipments:

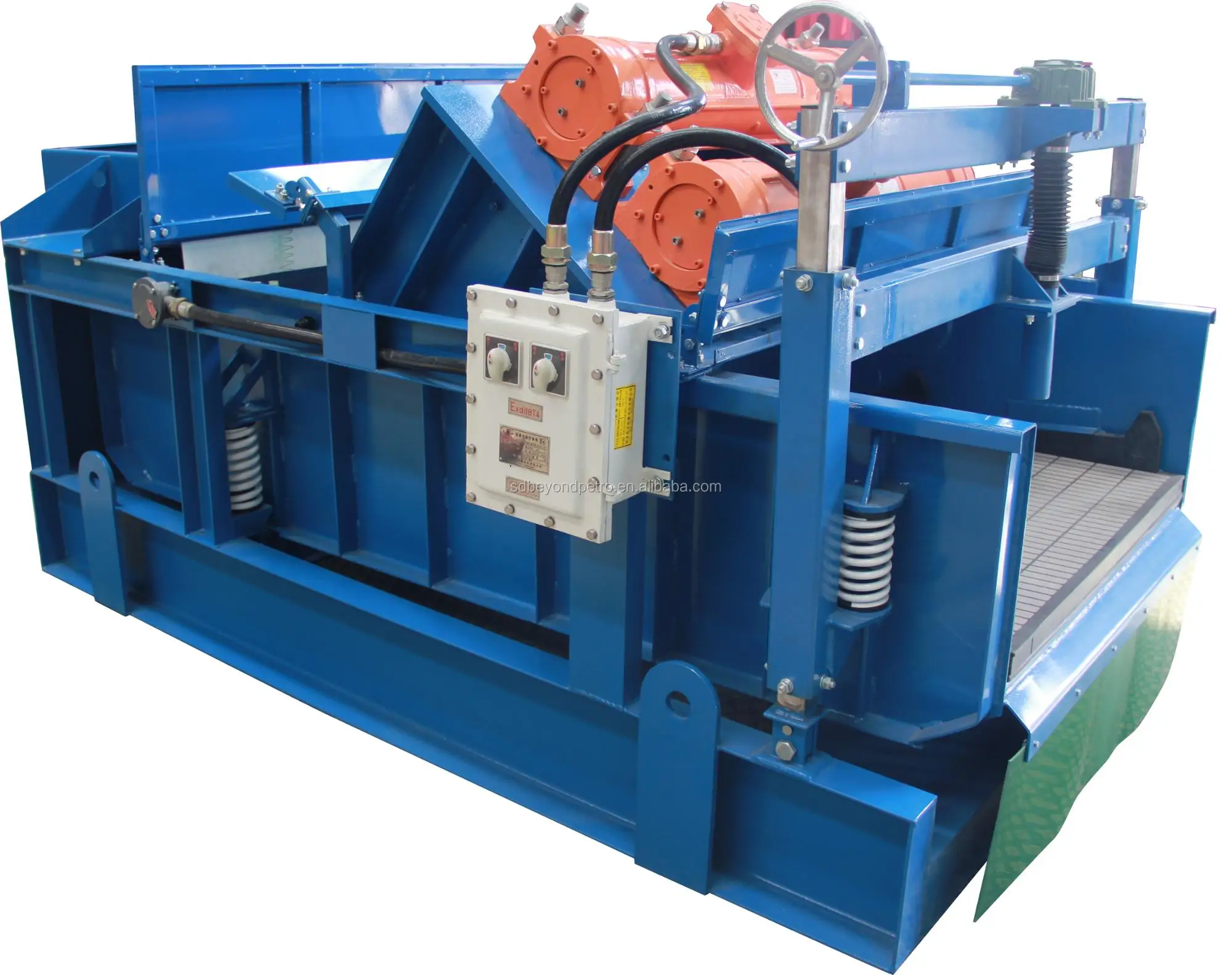

1. JZS Series Linear Motion Shale Shaker

Technical Parameters:

Model	JZS280-3P	JZS270-4P	JZS240-3P	JZS220-3P	JZS180-2P
Motor power	2×2.2 kW	2×2.2 kW	2×2.2 kW	2×2.2 kW	2×1.3 kW
Screen area(m²)	3×0.833×1.15	4×0.585×1.165	3×0.7×1.15	3×0.7×1.05	2×0.833×1.15
Shaking intensity(g)	7.2 g	7.2 g	7.2 g	7.2 g	7.2 g
Discharge capacity	42 l/s	40 l/s	35 l/s	30 l/s	26 l/s
Adjustable range	-2°~+6°	-2°~+6°	-2°~+6°	--2°~+6°	-2°~+6°
Overall dimension,mm	3140×1980×1540	2970×1980×1530	2700×1980×1540	2700×1900×1540	2300×1940×1300
Weight	2000 kg	2000kg	1900kg	1700 kg	1200kg

2. JZQ Series Drilling Liquid Cleaner

Technical Parameters:

Model	JZQ300×2 /100×12	JZQ300×2 /100×14	JZQ300×2 /100×16	JZQ250×2 /100×12	JZQ250×2 /100×16	JZQ250×2 /100×16
Desander parameters
Hydrocyclone	12″×2			10″×2
Working pressure	0.2~0.45 MPa
Capacity	240 m³/h			200 m³/h
Seperation size	44~74 μm
Desilter parameters
Hydrocyclone	4″×12	4″×14	4″×16	4″×12	4″×14	4″×16
Working pressure	0.2~0.45 MPa
Capacity	200 m³/h	220 m³/h	240 m³/h	200 m³/h	220 m³/h	240 m³/h
Seperation size	20~44 μm
Inlet diameter	6″ (150mm)
Outlet diameter	8″ (200mm)
Supporting shaker	JZS220-3P / JZS240-3P / JZS280-3P
Weight	2600kg / 2750kg / 2950 kg
Overall dimension	2700×2550×2600/2700×2550×2600/3140×2550×2600mm

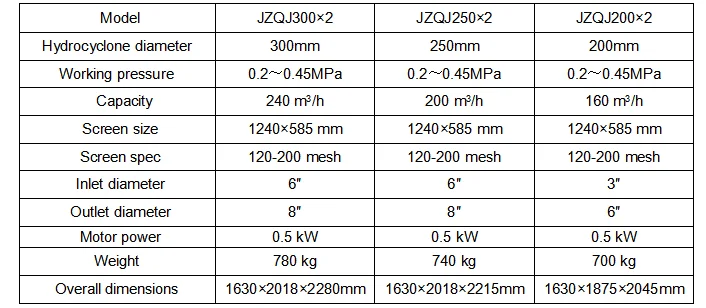

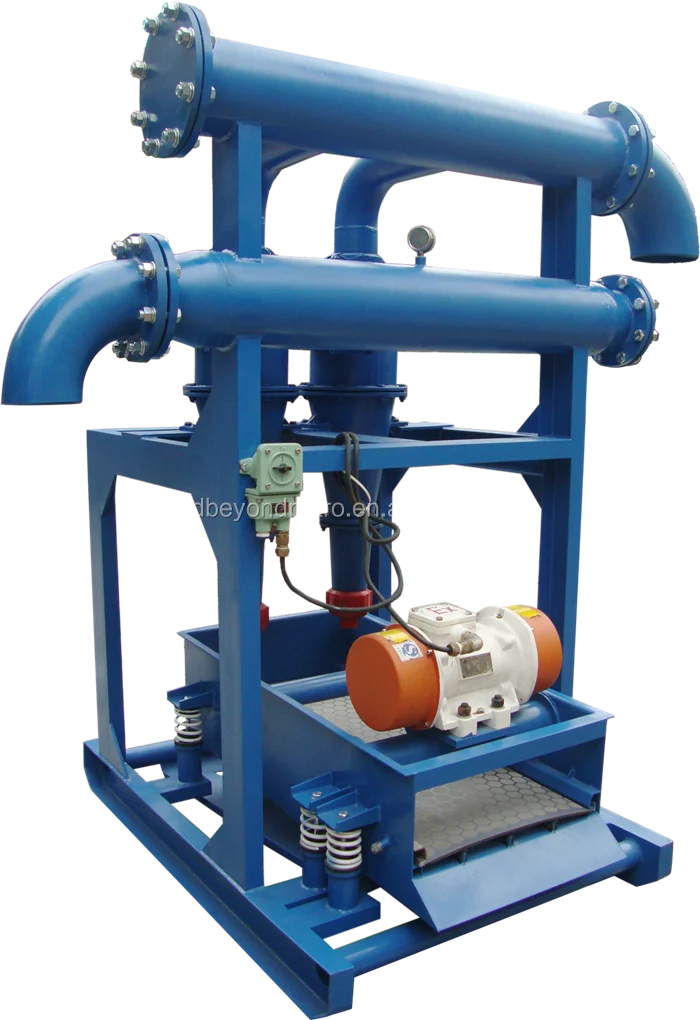

3. JZQJ Double Hydrocyclone Desander

Technical Parameters:

About us :

BEYOND is established on request of customer and aimed to supply best product and service for the customer. It focuses on to supply best solutions for the overseas oilfield customer on equipment & spares maintenance and supply.

China has become main equipment supplier for oil production countries, but Chinese equipment has some special features different with European and American countries, also there exits big language and cultural difference between China and other countries, so it has become one big challenge for the overseas customer to get the exact equipment and parts they need in a short time.

However, BEYOND takes root in China, and has very good cooperation relationship with most of famous factories, plus strong technical support and good advantage in language. Therefore, BEYOND is quite capable to help the customer to solve this challenge.

BEYOND products cover but not limited to: China-make oil drilling rigs, workover rigs, wellhead and downhole tools, drilling tools, OCTG and other related equipment and parts. Meanwhile, BEYOND can offer technical services, personnel training and maintenance guide towards China-made drilling rigs. Only if it is what you need, BEYOND can get it for you: from best factories, with most competitive price and within shortest lead time.

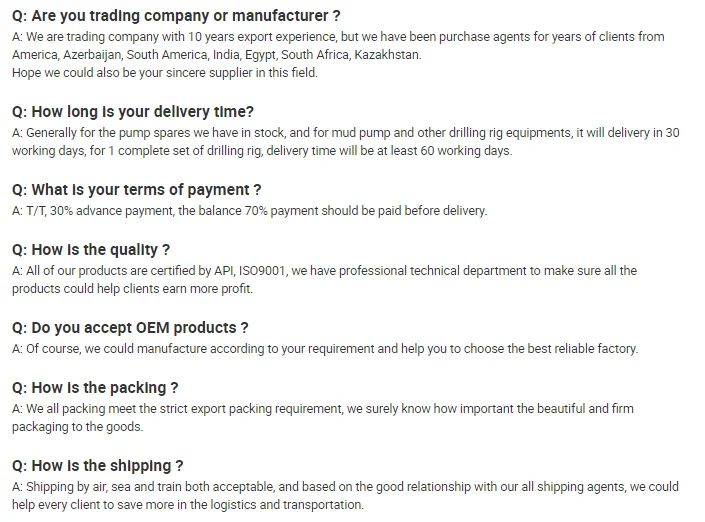

FAQ:
