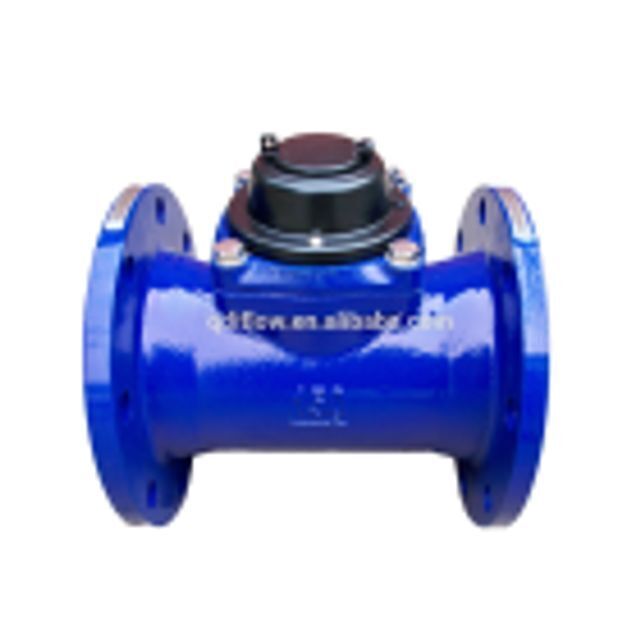

Removable element woltman cold (hot) water meter with turbine

Supplier: Qingdao I-Flow Co., Ltd.
Region: Shandong, China
Contact: Mr Zack Zhang
Price: $46.85 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Brand Name:	OEM;	Packaging Detail:	Carton with pallet/Carton with sea worthy plywood case;
Certificate:	ISO4064 ISO9001:2008;	Warranty:	2 years;
Size:	DN15mm~200mm;	Name:	Turbine meters;
Keyword:	Water Flow Meter Types;	Type:	Removable element woltman cold (hot) water meter with turbine,Turbine meters;
Place of Origin:	Shandong China;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Supply Ability:	20000 Piece/Pieces per Month;	Product name:	Water Flow Meter;
Certification:	ce;	Material:	Bronze;
Port:	qingdao/tianjin;	Model Number:	LXLC50~500;

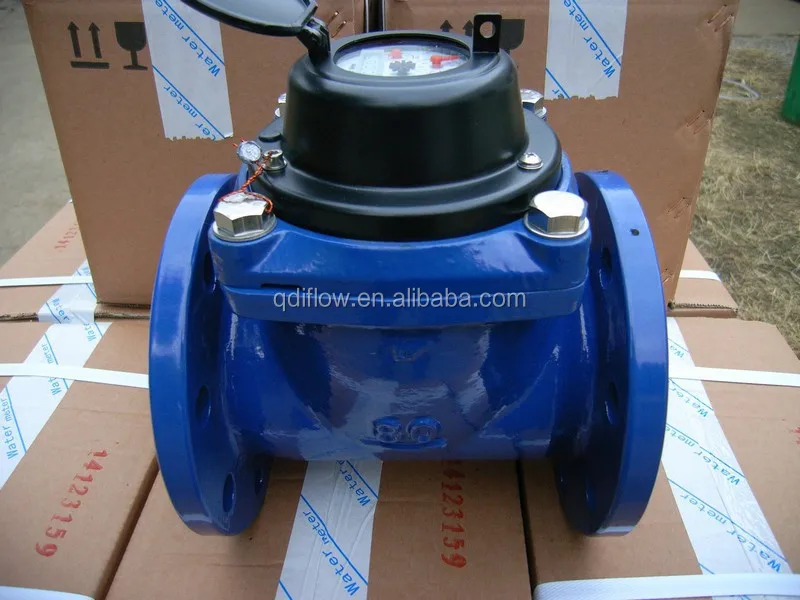

Removable element woltman cold (hot) water meter with turbine

Product Description

This type of water meter can be used for a remote reading transmission system as equipped with a built-in sensor.

Application

--Measuring the volume of cold (hot) water passing through the pipeline

Feature:

--Removable element structure, easy installation and maintenance, register for universal use within this range detachable without Removing the meter from the pipeline;

--Dry-dial, Magnetic drive sensitive action, small pressure loss;

--Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service;

--Selected high quality materials for steady & reliable characteristic;

--Technical data conform to international standard ISO 4064.

Working condition

Water temperature: 0.1℃~50℃ ( 0.1℃~90℃ for hot water meter)

Water pressure: ≤1Mpa (1.6MPa for special requirement)

Maximum permissible errors

(1) in the lower zone from q_mininclusive up to but excluding q_t is ±5%

(2) in the upper zone from q_tinclusive up to and including q_s is ±2% (±3% for hot water meter)

MAIN TECHNICAL SPECIFICATIONS

Type	Size (mm)	Class	q_s Overload Flow	q_p Permanent Flow	q_t Transitional Flow	q_min Min. Flow	Min. Reading	Max. Reading
			m³/h				m³
LXLC-50	50	A	30	15	4.5	1.2	0.0002	999,999
		B			3.0	0.45
LXLC-65	65	A	50	25	7.5	2.0	0.0002	999,999
		B			5	0.75
LXLC-80	80	A	80	40	12	3.2	0.002	999,999
		B			8.0	1.2
LXLC-100	100	A	120	60	18	4.8	0.002	999,999
		B			12	1.8
LXLC-125	125	A	200	100	30	8	0.002	999,999
		B			20	3
LXLC-150	150	A	300	150	45	12	0.002	999,999
		B			30	4.5
LXLC-200	200	A	500	250	75	20	0.002	999,999
		B			50	7.5
LXLC-250	250	A	800	400	120	32	0.002	9,999,999
		B			80	12
LXLC-300	300	A	1200	600	180	48	0.02	9,999,999
		B			120	18
LXLC-350	350	B	1750	800	160	22	0.0	99,999,999
LXLC-400	400	B	2000	1000	200	30	0.1	99,999,999
LXLC-500	500	B	3000	1500	300	45	0.1	99,999,999
