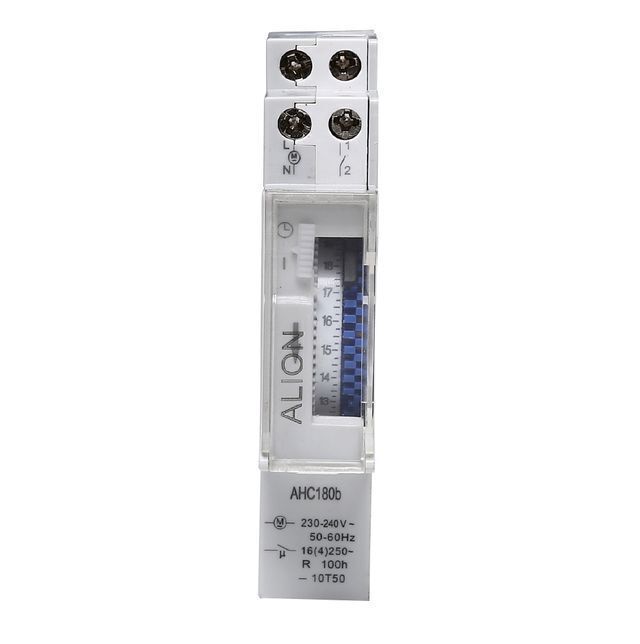

ALION AHC180b 220V-240V 50-60 Hz 24 Hours DIN Rail Daily Program Mechanical Timer Switch

Product details
Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,paypal;Max. Current:16A;
Type of protection:IP 20;Port:NINGBO or SHANGHAI;
Program:Daily program;Minimum Setting Unit:15 Minutes;
Item:Analogue Timer Switch;Model Number:AHC180b;
Whether the smart:Yes;Max. Voltage:240V;
Certification:CE;Operating Voltage:230-240 VAC,110VAC,24VDC,12VDC;
Frequency:50-60 Hz;Supply Ability:15000 Piece/Pieces per Month;
Packaging Detail:1pcs/box, 200pcs/cartons, G.W.: 18Kgs/CTN, VOL:0.0342CBM/CTN Mechanical Programmable 15min Minimum Setting Unit DIN Rail Analogue Timer, Time Switch;Number of Switching Segments:96 Times;
Brand Name:ALION;Width:1 module;
Place of Origin:Zhejiang China;Installation Type:DIN-rail;
Test approvals:CE;

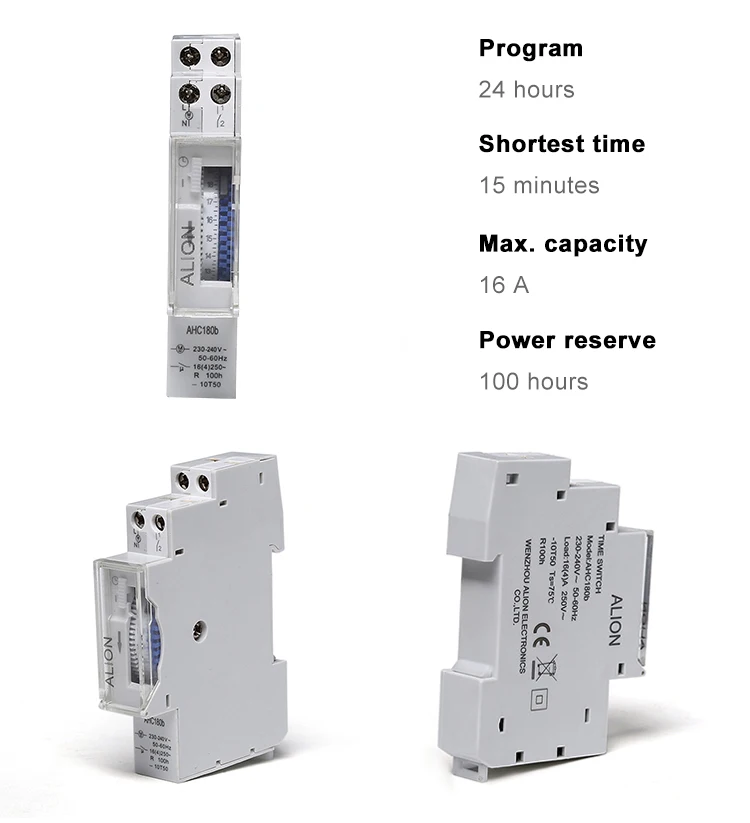

ALION AHC180b 220V-240V 50-60 Hz 24 Hours DIN Rail Daily Program Mechanical Timer Switch

Product Description

Focus On Time Control For 24 Years

The AHC180b  mechanical time switch is a simple and low cost alternative for applications that do not require more than 16Amp. It is designed for 24-hour control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security, or pump system.



Description
- Analogue time switch
- 1 channel
- Daily program
- Quartz controlled
- Shortest switching time: 15 minutes
- 96 switching segments
- Screw terminals
- Manual switch with 2 positions: Permanent ON/AUTO



Applications

- Billboard or Showcase lighting
- Air-condition
- Pumps/Motor/Geyser/Fan Control
- Boilers / Heater Control
- General Electrical Circuits
- Hydroponic Systems
- Wastewater Treatment Systems
- Generator Exercising



Technical Data

Type AHC180b
Operating voltage 230-240 VAC / 110VAC / 24VDC / 12VDC
Frequency  50-60 Hz
Number of channels 1
Width  1 module
Installation type  DIN-rail
Type of connection Screw terminals
Drive Quartz-controlled stepper motor
Program Daily program
Power reserve  100 hours
Max. switching capacity at 250 V AC, cos φ = 1  16 A
Max. switching capacity at 250 V AC, cos φ = 0.6  4 A
Incandescent/halogen lamp load 1000W
Energy saving lamps 150W
LED lamp < 2 W 30W
LED lamp 2-8 W 90W
LED lamp > 8 W 100W
Shortest switching time  15 min
Programmable every  15 min
Number of switching segments 96
Time accuracy at 25 °C ≤ ± 2 s/day(Quartz)
Type of contact NO contact
Switching output Potential-free and phase-independent
Power consumption  1 VA
Test approvals  CE
Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
Type of protection  IP 20
Protection class  II in accordance with EN 60730-1
Ambient temperature –10 °C … +50 °C

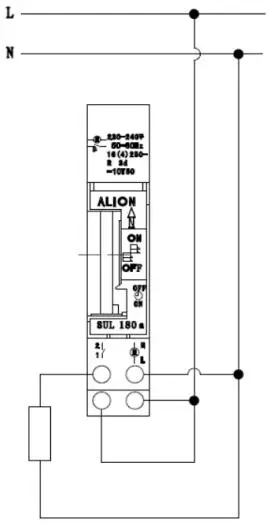

Connection Example

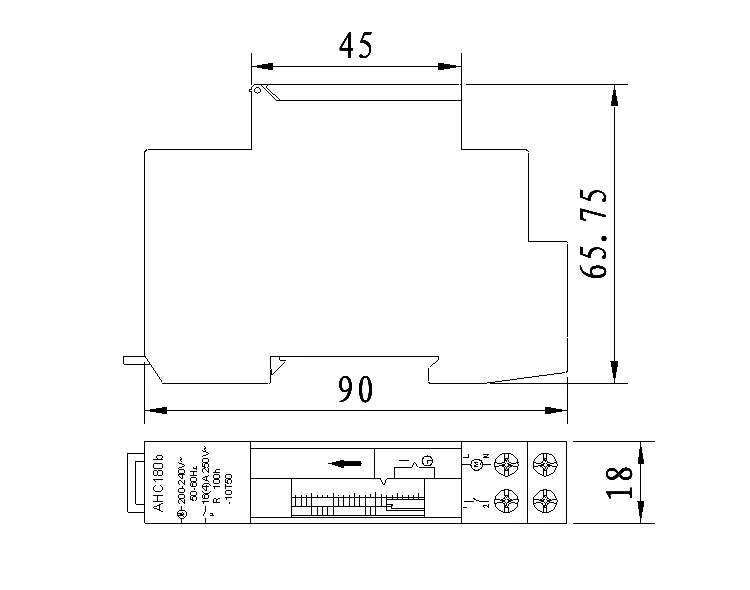

Scale Drawings
