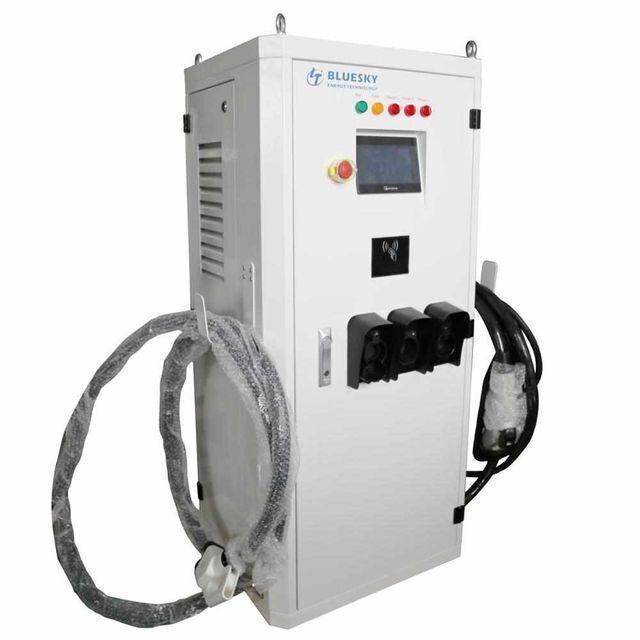

163KW DC fast ev charger charging station for electric car three connectors for Car Charging Station

Product details
Model Number:Bluesky;Payment Terms:L/C,T/T;
Color:Customized Color;Charger Style:Quick Charger;
Product name:EV Charging Station;Packaging Detail:carton/wooden;
Input Voltage Range:3 Phase, 400Vac±10%;Charger Type:Electric Charger;
Warranty:12 Months;Certificate:CE;
Place of Origin:Zhejiang, China;Supply Ability:1000 Pieces per Month;
Charger Application:Car;Port:Ningbo;
Product Description

2020 Hot Sale DC EV Charger Piles for Electric Car

The electric vehicle charging system is a high-performance integrated DC charging system designed by the company. The system uses the world's leading high-frequency switching power supply module, monitors the use of industrial-grade CPU chips, human-machine interface using industrial color touch screen.The product has the advantages of high reliability, high efficiency, high security,high availability, beautiful appearance, and excellent technology.

Main feature:

Charging module:

1.Using active power factor compensation technology, rated power factor value of 0.99.

2.With comprehensive soft-switching technology, the rated efficiency is up to 94%.

3.Ultra-low radiation. Advanced electromagnetic compatibility design.

4.The safety specification design complies with UL, CE, NEBS standards.

5.High power density.

6.With output overvoltage hardware protection and output overvoltage software

7.Protection. There are two options for software overvoltage protection: one overvoltage lockout mode and two overvoltage lockout modes.

System:

1.The AC input voltage has a normal operating range of 260Vac to 530Vac.

2.Perfect battery management. With battery low voltage protection, it can realize temperature compensation, automatic voltage regulation, stepless current limiting and other functions.

3.Convenient and simple operation interface, fast maintenance interface

4.Perfect AC side lightning protection design.
5.Complete fault protection and fault alarm function.

6.The system has an insulation fault ground alarm function.

7.Conforms to GBT18487.1-2015, GBT20234.1/2/3-2015, GBT27930-2015

Applications:

This product integrates charger, charging interface, human-computer interaction interface,

communication, billing, etc., for the rapid charging of electric vehicles. Its use of small area,

fast charging time and other characteristics,generally used in various large charging stations,

shopping malls, office buildings and other "instant charge" places.

Technical Paraments








Structure

appearance
Shell material
Galvanized sheet








Electrical

indicators
Input voltage

Output voltage
400Vac±10%

DC150-750V

Size
650*1600*800(Wide * high * thick)

Input Current

Output Current
0~368A

0~268A

Installation method
Floor-mounted installation

Steady flow accuracy
≤±0.5%

Route way
Under the line, under the qualifying

Rated power
60kw+60kw +43kw

Charging interface
3 piece(CCS,CHAdeMO and Type 2)

Current
imbalance
≤±3.0%

Cable length
5m

Steady flow
accuracy
≤±1.0%








Environmental

indicators
Applicable scene
Indoor / outdoor









Features
Safety indicators
Short circuit, over voltage, over current, leakage, over temperature,lightning protection.Ground insulation monitoring

Operating temperature
-20ºC~+50ºC
  Protective
measures
Moisture, mold, salt spray, dust, water, sun, wind,
anti-theft and so on

Storage temperature
-40ºC~+70ºC

Fractional fees
Peak sub-billing and charging service charges, consumer transparency

Operating
5~95%





Functional

indicators
Human-computer interaction:
LED indicator + touch screen

Altitude
<2000m
    Payment method: credit card payment
Communication Interface:Etherbet/RS485

Degree of protection
IP54

Single shot uniform charge, double nozzle quick charge

Cooling method
Strong exhaust air cooling

Other: Emergency stop button, remote upgrade,
background monitoring
