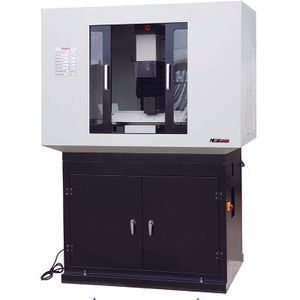

4 axis vertical cnc milling machine MACH3 controlled TM30CNC

Supplier: Chizhou New Dragon Machinery Co., Ltd.
Region: Anhui, China
Contact: Mr GUANGQING XU
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	NEW DRAGON;	Table Travel (mm):	550x160mm;
Weight:	250KG;	Certification:	CE;
Repeatability (X/Y/Z) (mm):	0.015;	Range of Spindle Speed(r.p.m):	6000rpm;
Condition:	New;	Port:	SHANGHAI;
Packaging Detail:	plywood case;	Warranty:	2 Years;
Dimension(LWH):	9889001740;	Type:	Universal;
After-sales Service Provided:	Free spare parts;	After-sales Service Provided:	Engineers available to service machinery overseas;
Model Number:	TM-30CNC;	Spindle Taper:	MT3/R8;
Place of Origin:	Anhui China (Mainland);	CNC or Not:	CNC;
Voltage:	220v/380v;	Payment Terms:	L/C,D/P,T/T;
Color:	Customer appoint;	Power(W):	1.1KW;
Supply Ability:	30 Set/Sets per Month;	Positioning Accuracy (mm):	0.02;

Product Description

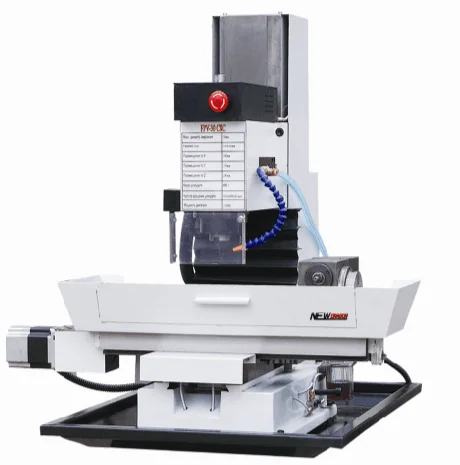

metal 4 axis vertical cnc milling machine MACH3 control

Feature

USB-MOTION-CARD-PLUGIN

The machine is an economic CNC milling machine controlled by a PC and driven by step motors (or servo motor). It is suitable for turning turning cylindrical and taper faces, boring, grooving and cutting.

The 4^th Axis rotarty table is a good choice for milling machine

TM-30CNC PC-BASE CONTROLLEED BY MACH3 SYSTEM

Technical data

Model No.	TM-30CNC
Table effective-size	550×160mm
X-axis travel	300mm
Y-axis travel	150mm
Z-axis travel	290mm
Motor of X axis	4N
Motor of Y axis	4N
Motor of Z axis	6N
Throat	230mm
T-slot size	12mm
No.of T-slot	3
Oriented precision	0.02mm
Repetition oriented precision	0.015mm
Spindle taper	MT3 / R8
Speed of spindle	610-6000rpm
Max.Spindle motor torque	5.5N.M.
Motor power	1100W
Machine dimension	988×900×1740mm
Packing size	1048×960×1820mm
Net weight	250KG
Shipping weight	300KG

Optional accessories:

1.Clamping kits, 2. Cooling system,3.hand wheel controller, 4. Milling chuck set, 5. The 4^th axis rotary table, 6.machine vice, 7. Full guard for total machine, 8. 2fluts or 4fluts HSS end mills 9. Taper collects
