Honey Tubular Bowl Centrifuge Separator

Product details

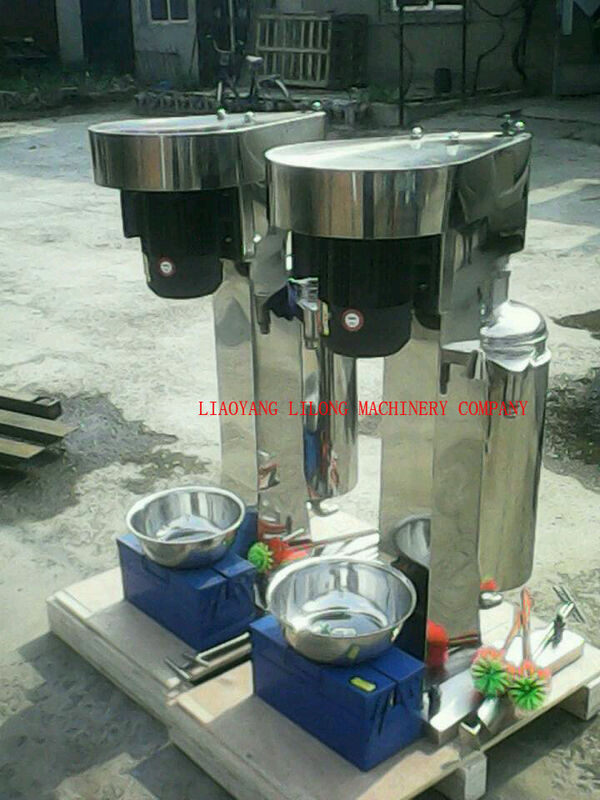

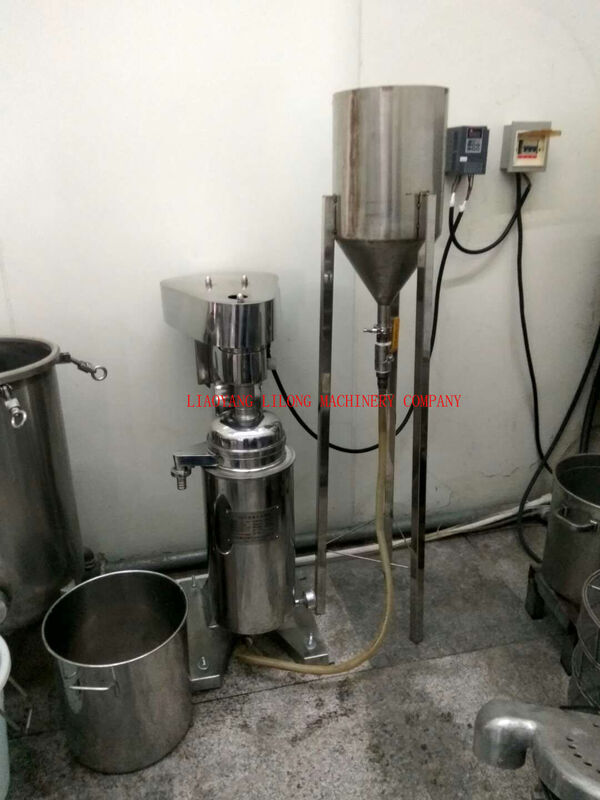

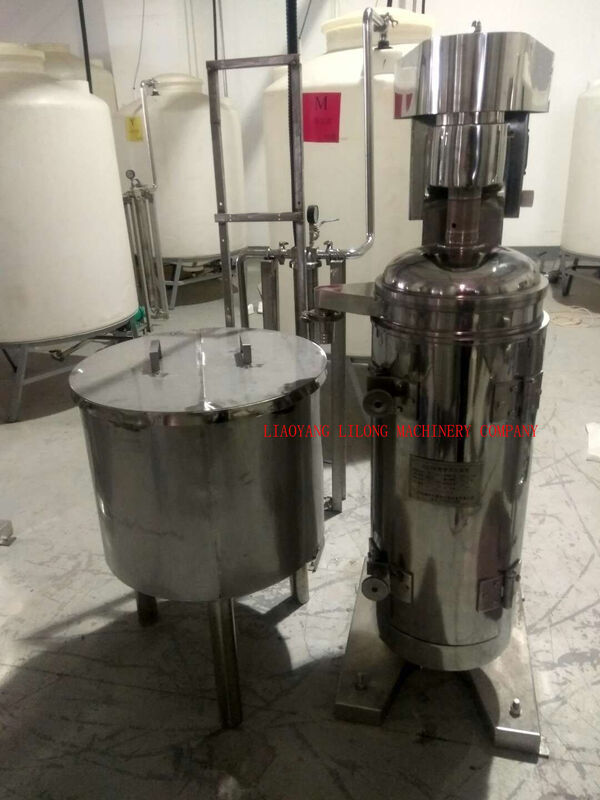

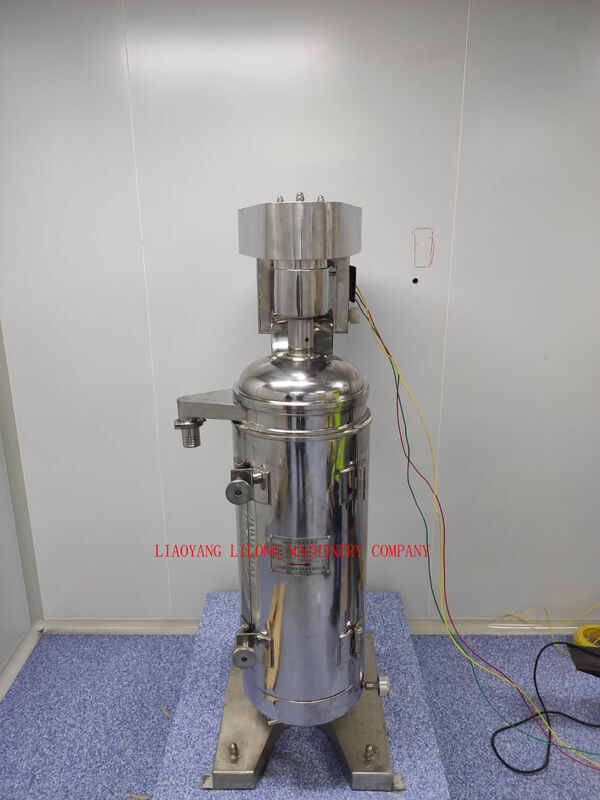

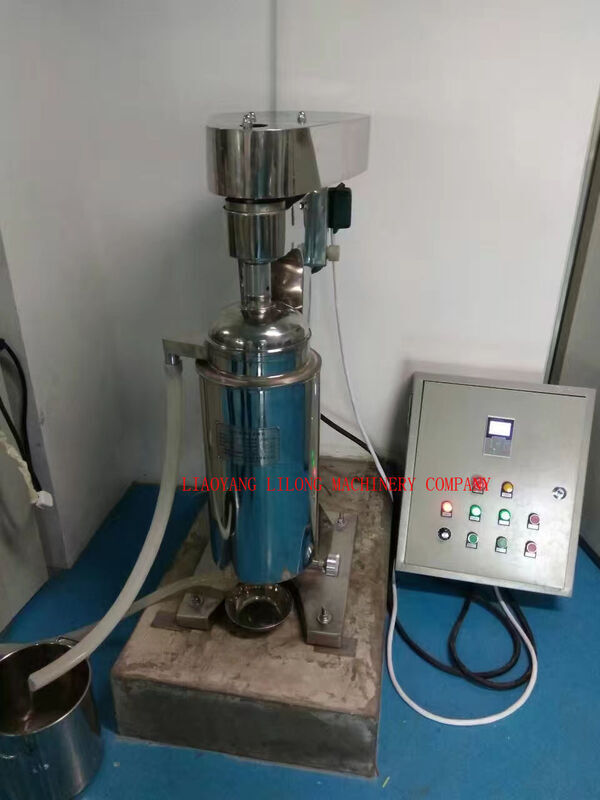

Tubular Bowl Centrifuge Separator for Sugar and Honey

Tubular separator is a precise separation machinery which fit for the lower solid content suspension liquid and lower small proportion dissolve liquid.

It was the key machinery for the pharmaceutical,food,chemical,bio-products and beverage etc.
Based on the separation function,

There are two type separator:Clarify GQ and Separation GF.GQ series tubular separator is mainly used for liquid and solid separation and GF series works on the three phase separation including the light liquid,heavy liquid and solid.

For various application and machinery operation,the tubular separator is categorized:General purpose,special type(Laboratory model,Chinese Medicine Clarification,Blood separator,Bacteria type,Biodiesel type),Explosion-proof type,Fully sealing explosion-proof type,Cooling type,Swing type,Front open type.

Tubular Bowl Centrifuge Separator for Sugar and Honey




parameter
model GQ(F)45A GQ75A GF(Q)105A GQY125A GQ150A
item GQ(F)45J GQ75J GF(Q)105J GQY125J GQ150J
bowl diameter(mm) 45 75 105 125 142
effective height in mm(mm) 280 430 730 735 700
settling volume L(L) 0.45 2 5.5 7.4 10
speed(r/min) 0-28000 20000 16000 15000 14000
max separation factors 0-19800 16770 15025 15500 15570
nozzle diameter(mm) 2.3 2.3.5 4.6.8.10 6.8.10 8.10.12
inlet pressure(Mpa) >0.05 >0.05 >0.05 >0.05 >0.05
capacity(kg/h) ≈100 ≈500 ≈1200 ≈2000 ≈3000
motor type  universal motor Y90S-2 Y90S-2 Y90L-2 Y100L-2
power(kw) 0.6 1.5 2.2 3 3
speed(r/min) 0~4500 2840 2880 2880 2880
size(mm) 580×650×750 800×400×1200 800×700×1400 850×500×1600 800×700×1600
weight(kg) 120 300 400 610 520
