30mm, 32mm, 34mm, 36mm, 38mm, 40mm and 41mm Premium Conical Drill Bits

Product details
Type of machine:drilling toolProcessing type:forging
Warranty:5+ yearsMechanical test report:Not available
port:QingdaoMaterial:Alloy Steel and Carbide
Packaging Preview:place of origin; place of origin:Shandong China
payment terms:L/C,Western Union,T/TPackaging Details:Plywood boxes
Head Drill Diameter:32mm 34mm 36mm 38mm 41mm 43mmShowroom location:not any
Applicable industries:Energy and MiningVideo external inspection:if
Health status:newLocal service location:not any
type:drillSupply capacity:50,000 pieces per month
Marketing Type:normal productTaper:7, 11, 12
use:rock drillingbrand:JZ
product description

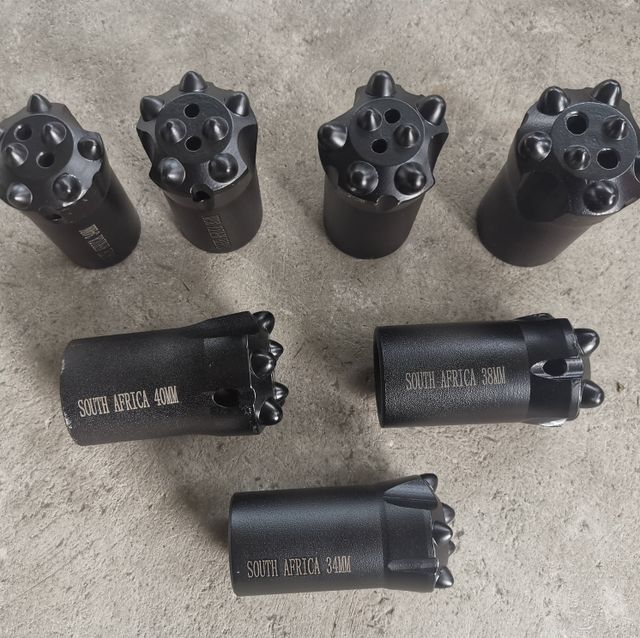

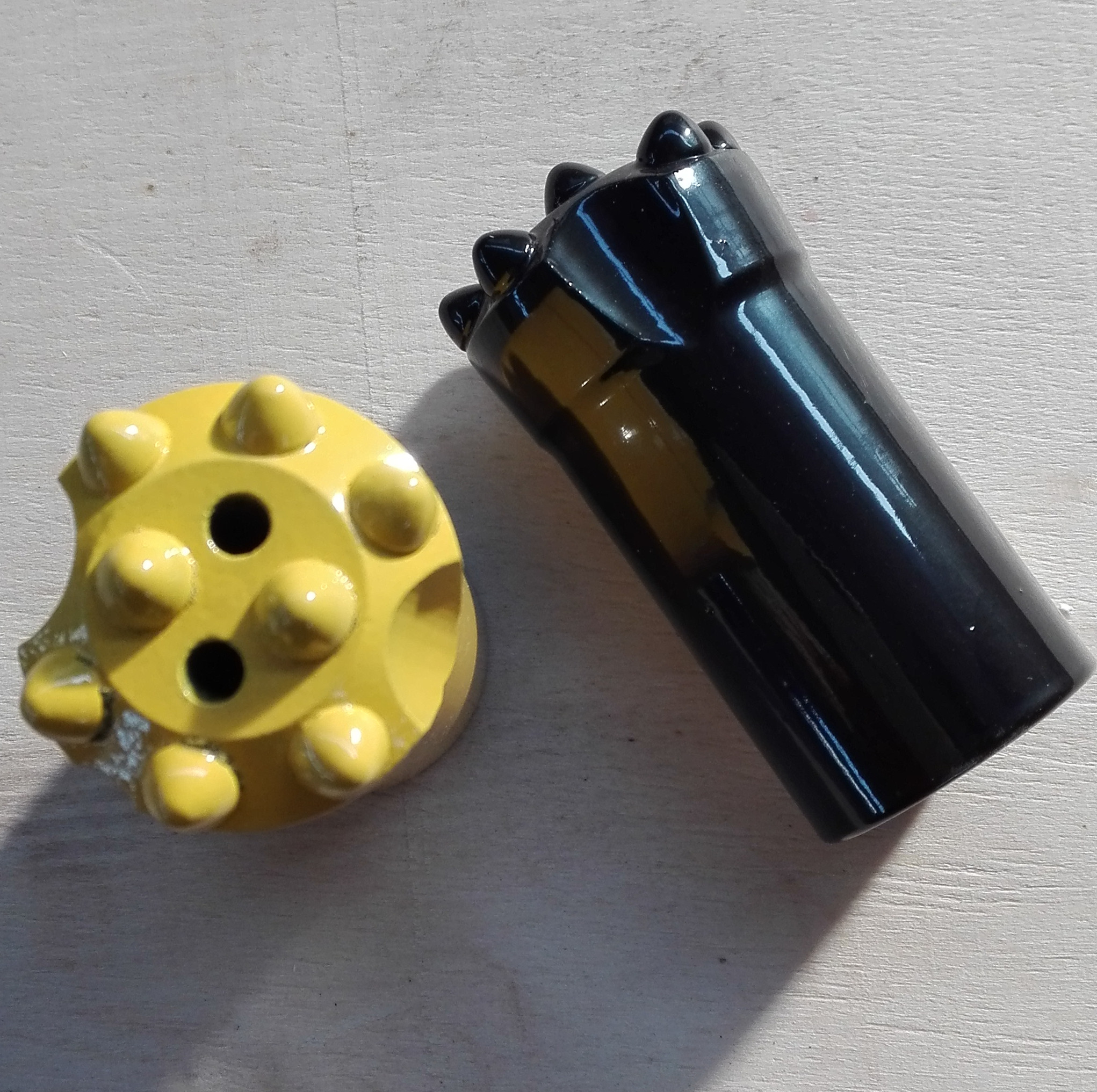

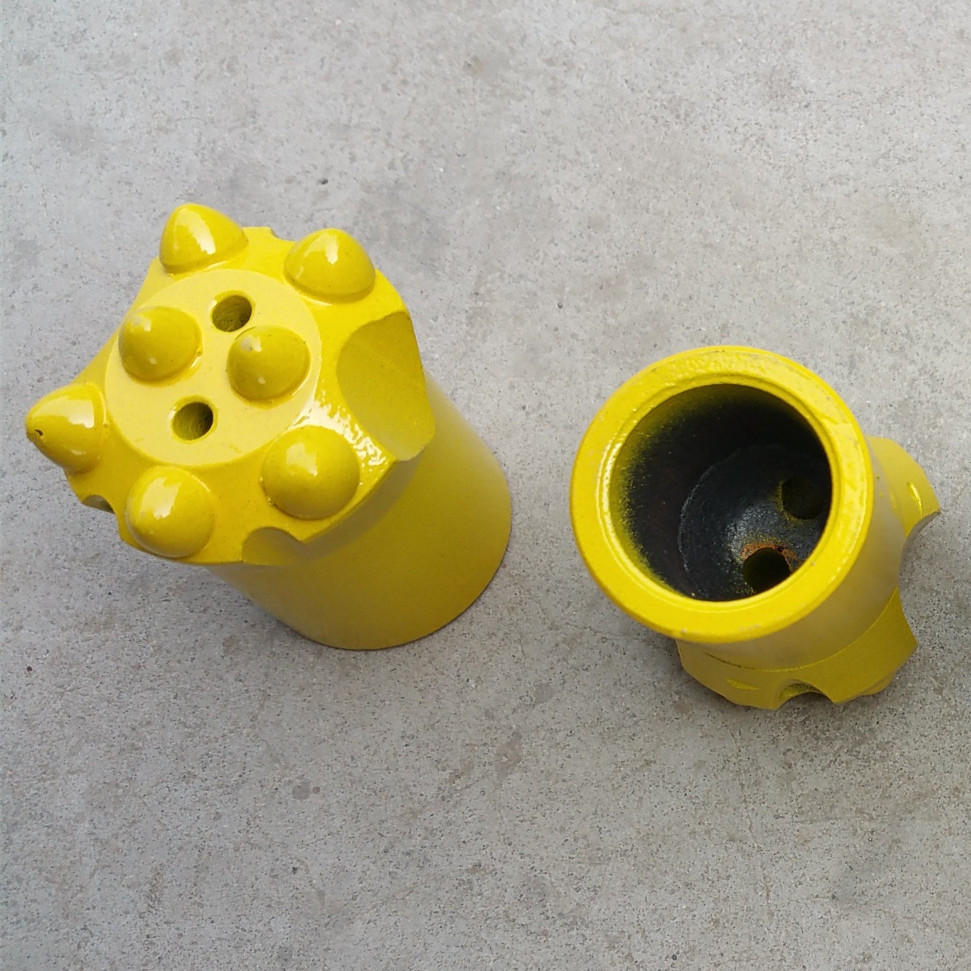

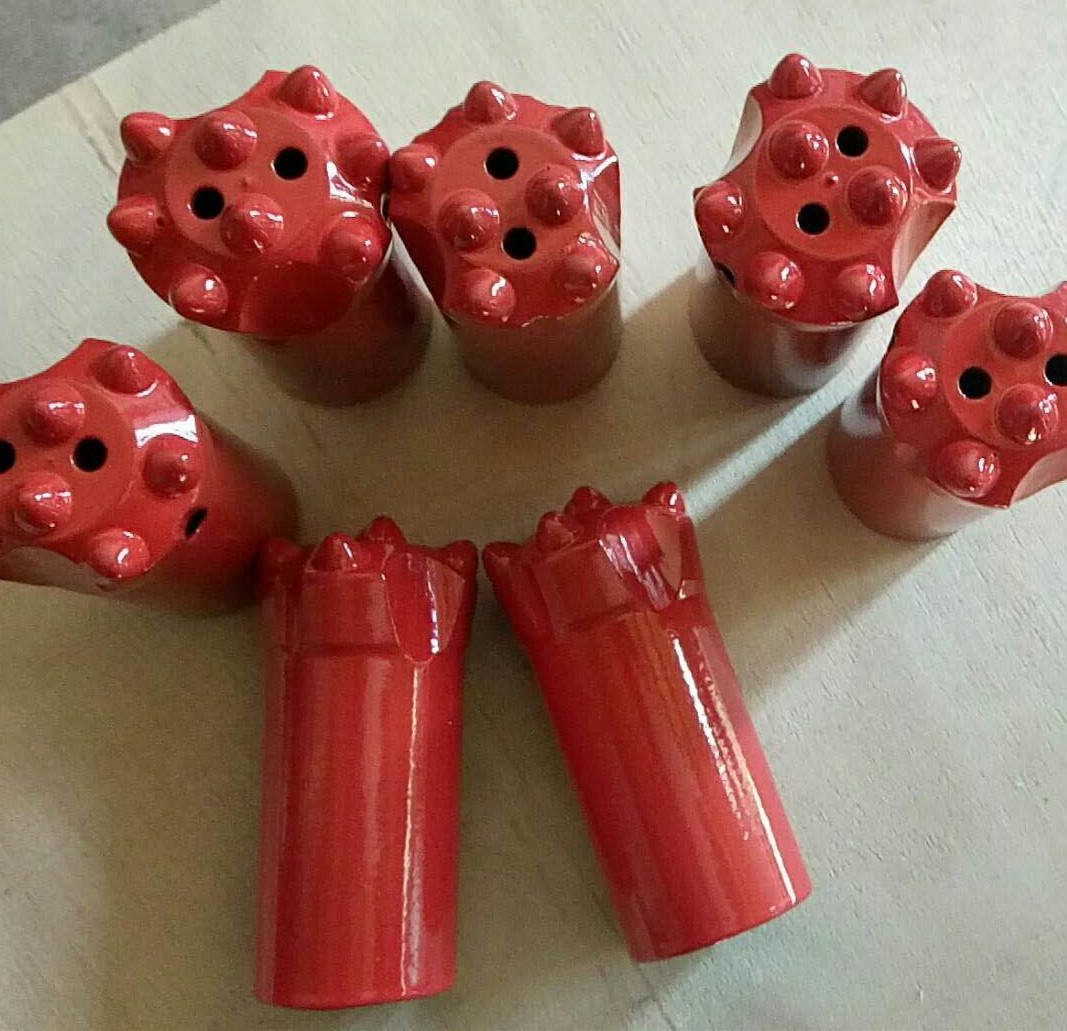

Conical Rock Tool
Cone drills are different from thread drills as small hole drills in that they use tapered matching drills with stems for air legs or hand jack hammer drills in quarrying and mining. Description: (1) Connection handle size: Φ19, Φ22, Φ25 Maximum (2) Drill diameter: 32mm, 34mm, 36mm, 38mm, 40mm in diameter (3) Tapered connection: 6 degrees, 7 degrees, 11 degrees, 12 degrees, etc. . (4)Material: Alloy steel bar 45CrNiMoV, carbide tip YK05 or T6, KK06, KK06H
(5) Button Shape: Ballistic Surface Type: Flat; Bit Body: Standard (6) Button Quantity: 5, 7, 8 pcs (7) Main Market: India, Saudi Arabia, Chile, South Africa, Peru
Function list
High quality design and steel and high quality tungsten carbide inserts grade T6 from Boart Longyear, tungsten carbide code YK05, KK06 and KK06H carbide from Zhuzhou 601 factory. Offers industry-leading strength and penetration for increased productivity. Excellent straightness and hole cleaning quality.

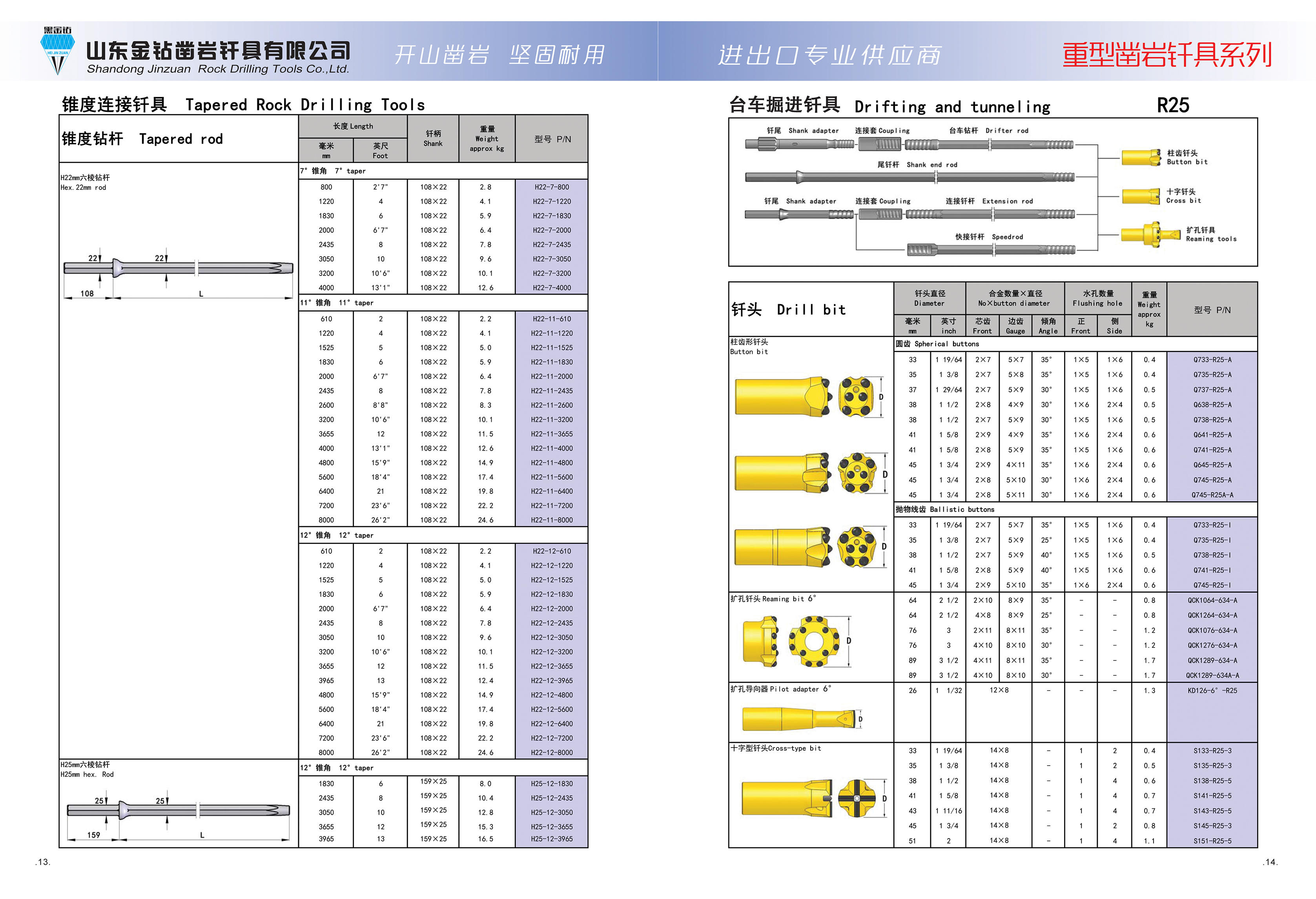

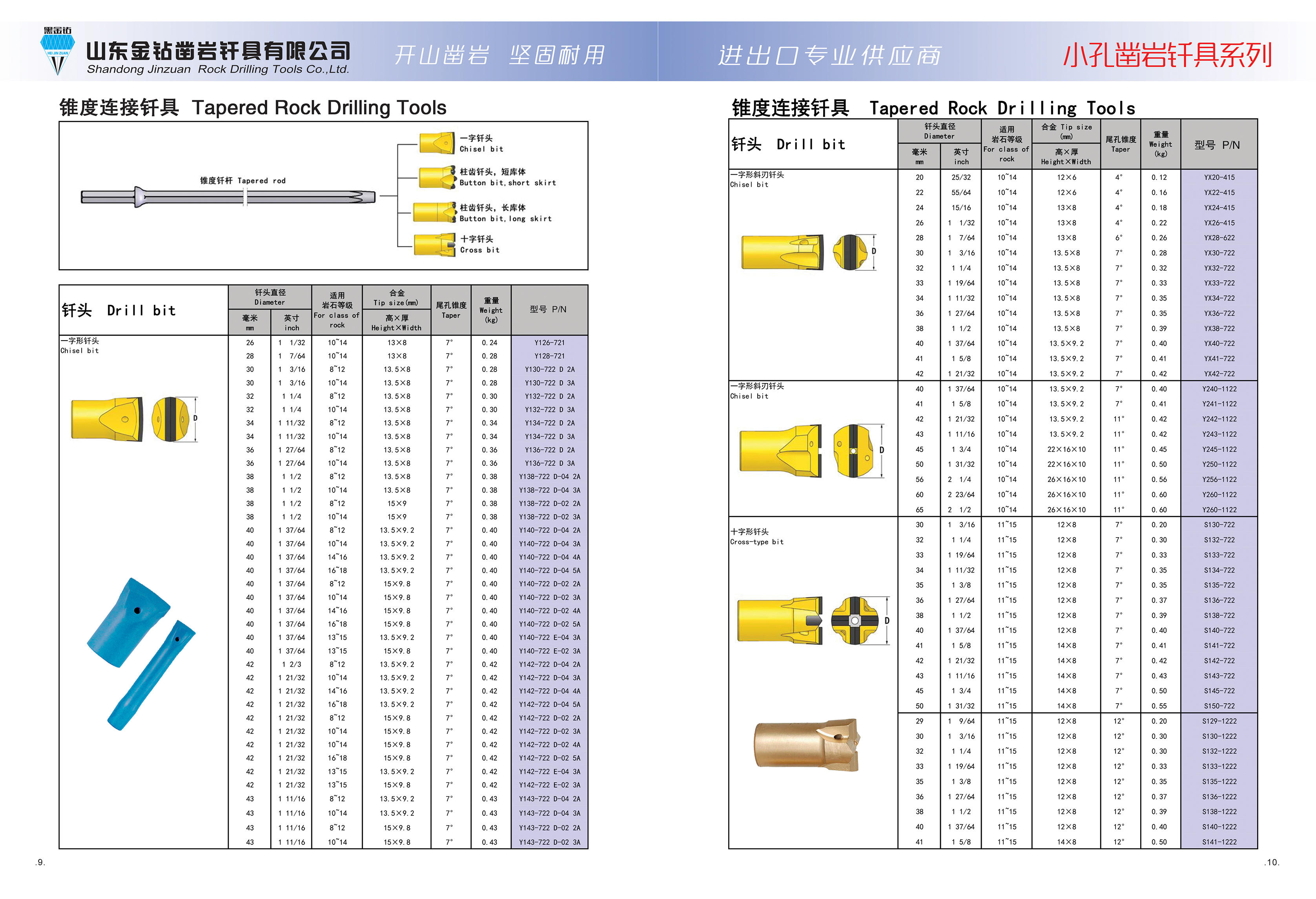

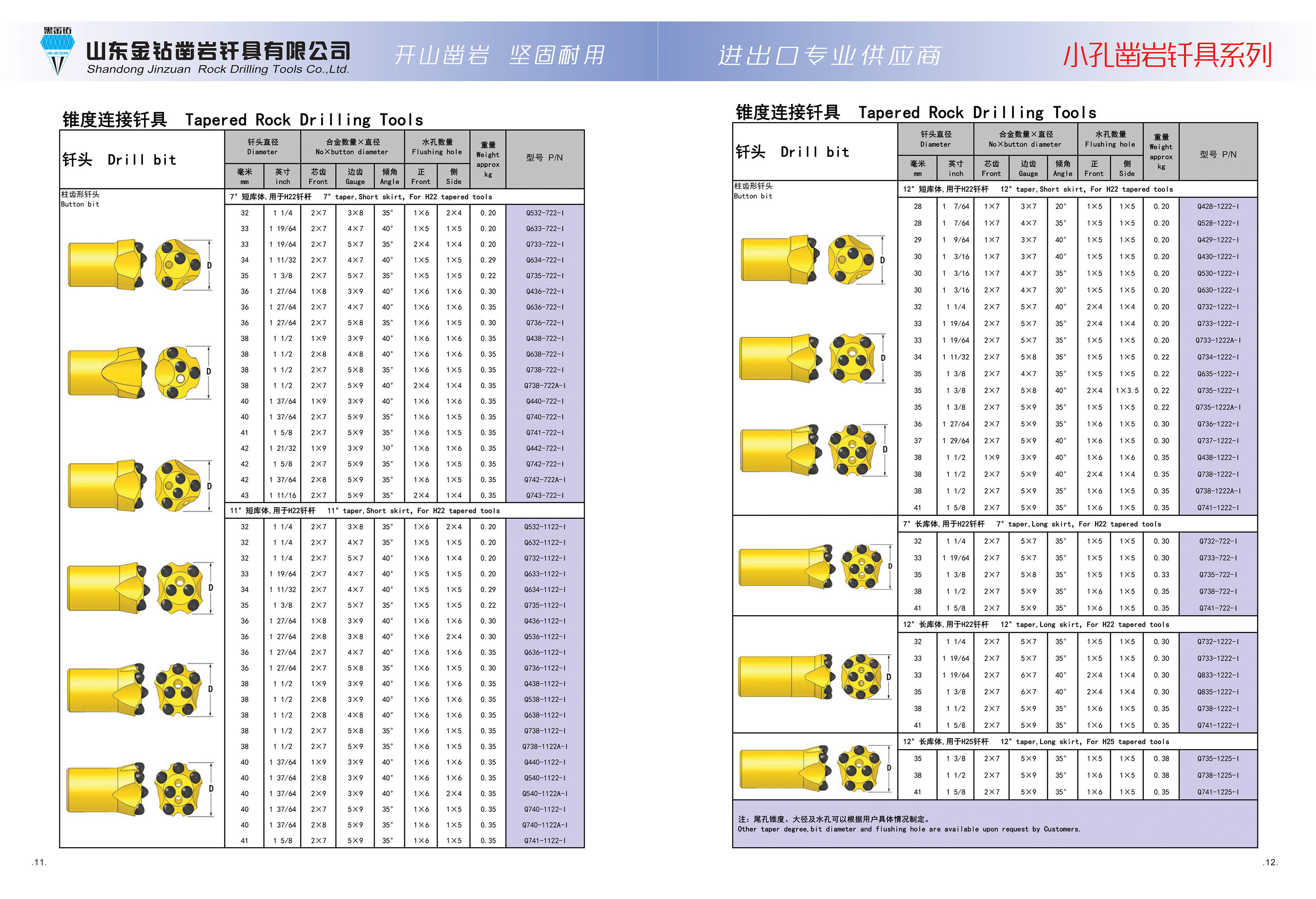

Product Specifications
Do not
thing
data
1
type
button bit
2
size
19mm, 22mm, 25mm
3
diameter
30-50mm
4
taper
4°6°7°11°12°
5
pack
wooden or carton
