Original Yokogawa EJA110E Differential Pressure Transmitter

Product details
output:4 to 20 mA DCMeasurement span:0.5 to 10 KPa , 1 to 100 KPa , 5 to 500
Supply capacity:1000 pieces per monthmedia:liquid, gas or vapour flow
Packaging Details:Yokogawa Standred Package for eja11oe Pressure TransmitterMWP:16Mpa
capsule:DL, DM, DH, DV, EL, EM, EH, EVDelivery Details:28 working days
payment terms:Letter of Credit, T/T, Western Union, MoneyGrammodel:EJA110E
supply:10.5 to 42V DCaccuracy:0.065% of span
protocol:brain or hartbrand:Yokogawa
place of origin; place of origin:Chinaport:Shanghai



Product Description

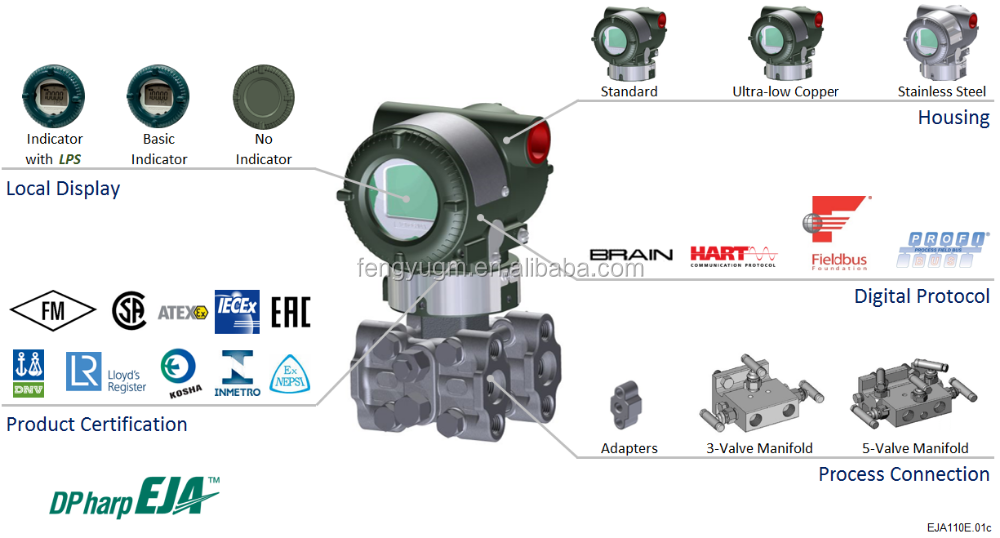

The EJA-E series transmitters are Yokogawa's latest DPharp series pressure transmitters. Released in 2012, it combines the ruggedness and success of the workhorse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of Yokogawa product you've come to expect.

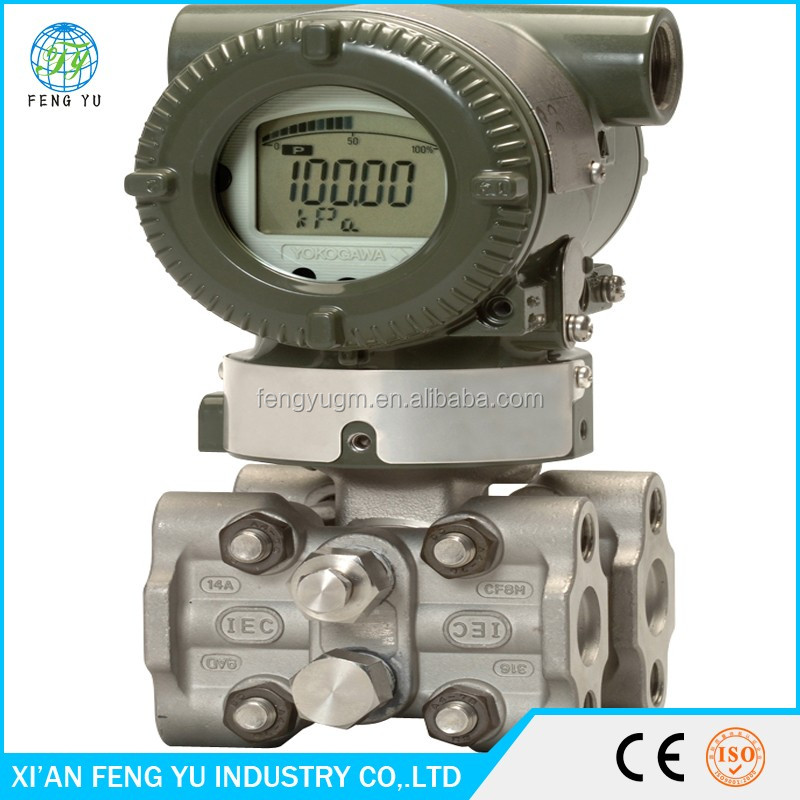

The EJA110E is our standard traditional mount differential pressure transmitter in the series.

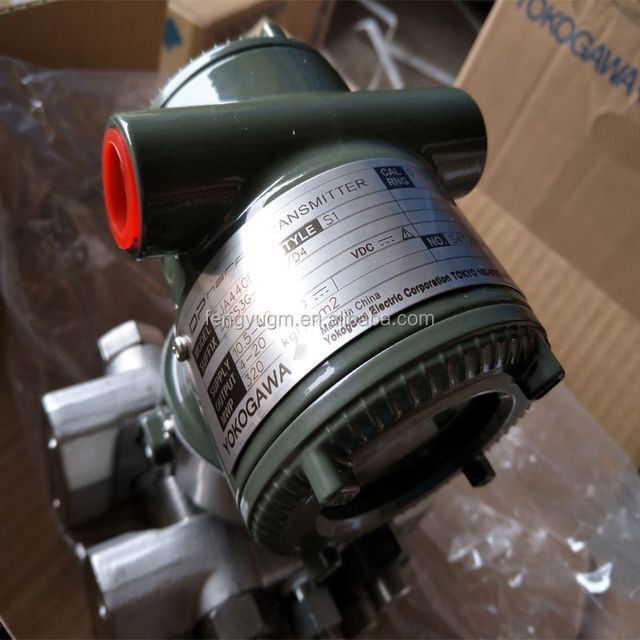

Japanese original EJA110E differential pressure transmitter

EJA110E features include:

  • 0.055% accuracy (0.04% accuracyOptions)
  • 0.1% stability for 7 years
  • Exida and TUV SIL 2 / SIL3 certified
  • 90 ms response time
  • MWP 2,300 psi (MWP 3,600 psiOptions)
  • Local Parameter Setting (LPS)

Discover how the EJA110E can help youImprove your bottom line.

Specification:



EJA110E Pressure Transmitter

L capsules

M Capsules

H capsules

V capsules

Differential pressure span

0.5 to 10 kPa {50 to 1000 mmH2O} {2 to 40 inH2O} {5 to 100 mbar}

1 to 100 kPa {100 to 10000 mmH2O} {4 to 400 inH2O} {10 to 1000 mbar}

5 to 500 kPa { 0.05 to 5 kgf/cm2} {20 to 2000 inH2O} {50 to 5000 mbar}

0.14 to 14 MPa

{ 1.4 to 140 kgf/cm2}*1 {20 to 2000 psi} {1.4 to 140 bar}

accuracy

±0.065 %

±0.065 %

±0.065 %

±0.065 %

Protection class

IP67, NEMA 4X and JIS C0920 immersion protection

Certificate

FM, CENELEC ATEX, CSA, TIIS, IECEx

output

4 to 20 mA DC or FOUNDATION fieldbus or PROFIBUS PA 2-wire system with digital communication

voltage

BRAIN and HART: 10.5 to 42 V DC (10.5 to 30 V DC for intrinsically safe models) Fieldbus: 9 to 32 V DC (9 to 24 V DC for Entity models, 9 to 17.5 V DC for FISCO models)

ambient temperature

-40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit) (universal) -30 to 80 degrees Celsius (-22 to 176 degrees Fahrenheit) (with integrated indicator)

Process temperature

-40 to 120 degrees Celsius (-40 to 248 degrees Fahrenheit) (universal)

maximum working pressure

3.5 MPa (500 psi)

16 MPa (2300 psi)

Install

2 inch pipe installation

Wetted parts material

capsule

Hastelloy C-276, Monel, Tantalum

Bolt and Nut Materials

SCM435,SUS630,SUH660

Mounting brackets

SECC carbon steel, SUS304, SUS316,

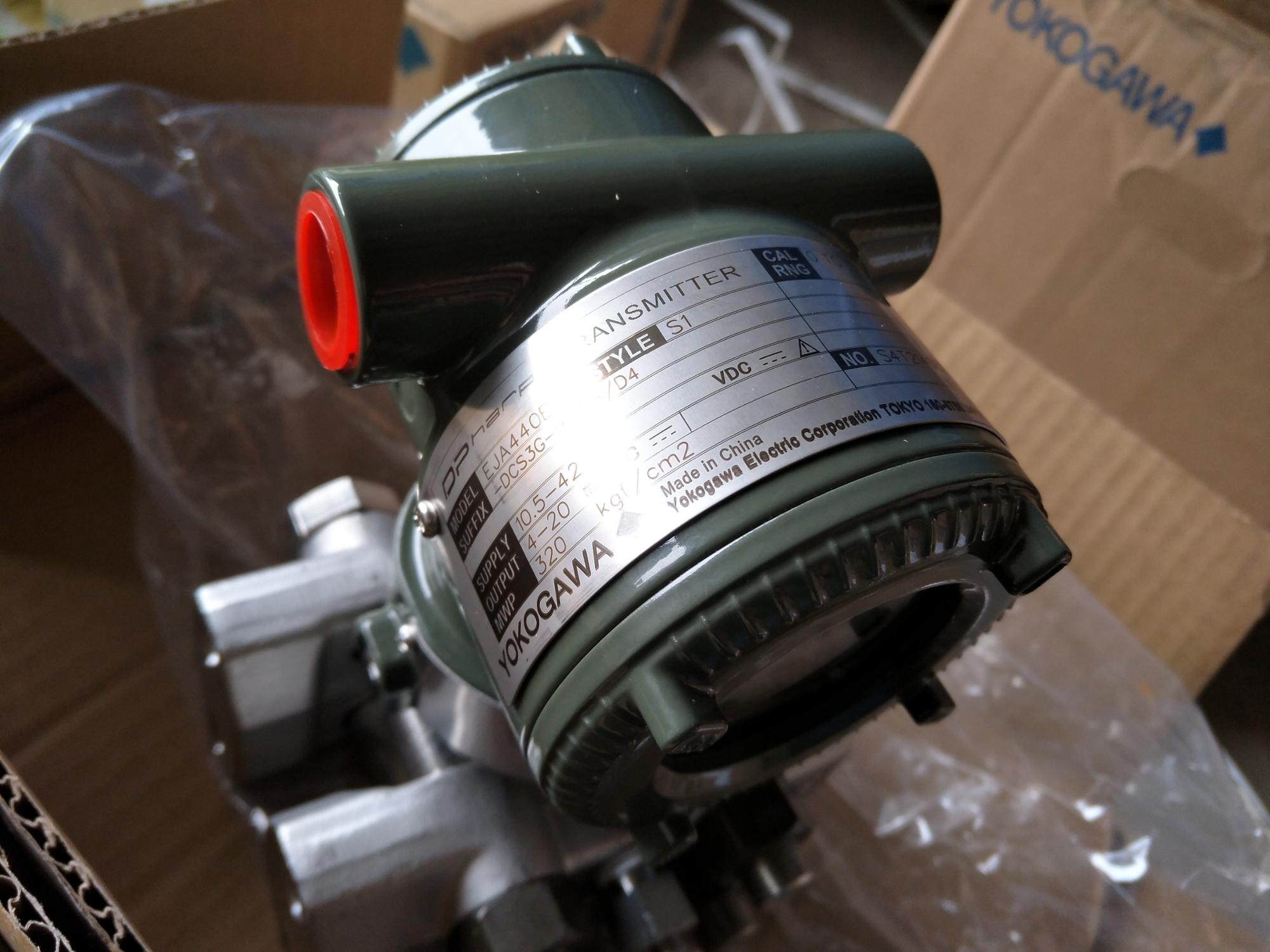

Japanese original EJA110E differential pressure transmitter
