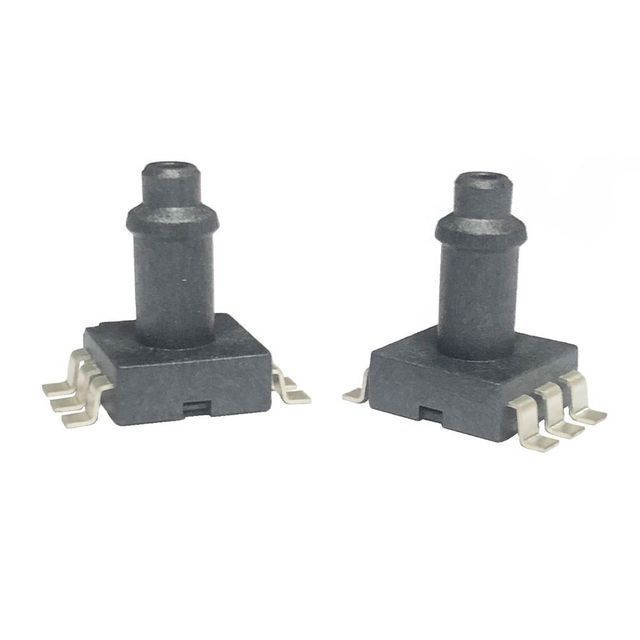

XGZP6877A Medical barometric pressure sensor

  • Supplier: WuHu CFSensor Co.,Ltd
  • Region: Anhui, China
  • Contact: Ms Aling Huang
  • Price: $1.95 / >=10 pieces
  • Min. Order: 10 pieces
Product details
Pressure Type:Gauge/VacuumCompensation temperature:0-60'C
Storage temperature:-40 ~ 125'Cbrand:CF sensor
accuracy:2.0% spanmodel:XGZP6877A
output signal:0.5-4.5Vdc(Analog)&12COverload pressure:2X
Packaging Details:CTN vacuum packagingproduct name:Pressure Sensor
payment terms:Western Union, Wire Transfer, Paypalport:Wuhu, Shanghai, Shenzhen, etc.
place of origin; place of origin:ChinaMeasuring medium:Air and non-corrosive gases
Supply capacity:30000 pieces per monthPressure range:-100~0kPa...200kPa
power supply:5V/3.3V
Product Description

feature

  • Range: -100kPa~0kPa…1kPa~200
  • Optional 5V or 3.3V power supply

  • count, vacuum type
  • forncorrosive gas orAir
  • Amplified, calibrated analog output(i2c available)
  • temperature. compensate:0°C~+60°C(32°F~+140°F)
  • Low cost for high volume applications

application

  • Used in the field of medical and health equipment such as blood pressure tests and monitors, patient monitors, infusion and syringe pumps, anesthesia machines, respirator and ventilators, NPWT, DVT, COPD therapy, catheters, kidney dialysis, cupping and cosmetology, massage equipment, etc.

  • Suitable for home appliances, such as refrigerators, printers, humidifiers, washing machines/dryers, coffee machines, vacuum cleaners, robots, emergency lights, sports equipment, etc.

  • Suitable for other fields such as air pumps, emergency lights, dust collectors, HVAC and pneumatics, automotive applications, etc.

Performance parameters

Unless otherwise stated, measurements are made at a supply voltage of 5 Vdc

Temperature 25±1℃, humidity 25%~85%.

thing data unit
power supply 5 (or custom 3.3) five
maximum. Excitation current 3 Well
output signal 0.5-4.5 (or customized) five
accuracy ±2.0 (or ±1) %span
TCO (Temperature Offset Coefficient) ±0.03 %FS/℃
TCS (Temp. Coefficient of Span) ±0.03 %FS/℃
Long-term stability (1 year) ±0.5 %span

overvoltage

2X
Compensated temperature 0 ~ 60/32 ~ 140 °C/°F
ambient temperature. -10 ~85/14 ~ 176 °C/°F
Storage temperature -40 ~ 125/-40 ~ 257 °C/°F

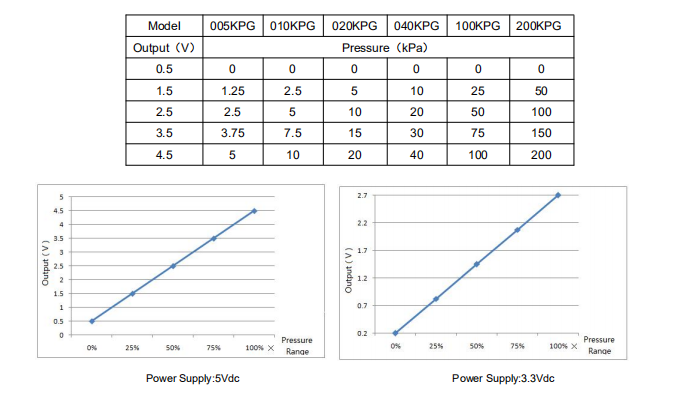

pressure range(100kPa=0.1MPa=1bar≈14.5PSI≈750mmHg)



Pressure range (kPa) Model
0 ~ 1 XGZP6877A010HPG
0~2.5 XGZP6877A025HPG
0~5 XGZP6877A005KPG
0~10 XGZP6877A010KPG
0 ~ 20 XGZP6877A020KPG
0~40 XGZP6877A040KPG
0 ~ 100 XGZP6877A100KPG
0 ~ 200 XGZP6877A200KPG

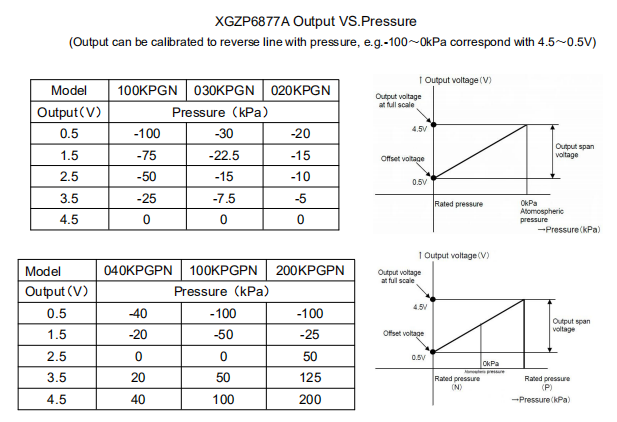

-100 ~ 0 XGZP6877A100KPGN
-30~ 0 XGZP6877A030KPGN
-20 ~ 0 XGZP6877A020KPGN
-1 ~ 1

XGZP6877001KPGPN

-5 ~ 5

XGZP6877A005KPGPN

-40~ 40 XGZP6877A040KPGPN
-100~ 100 XGZP6877A100KPGPN
-100~ 200 XGZP6877A200KPGPN

Available for more custom pressure ranges, such as -2.5~2.5kPa, 0~60kPa, etc.

Please contact the factory for custom parameters

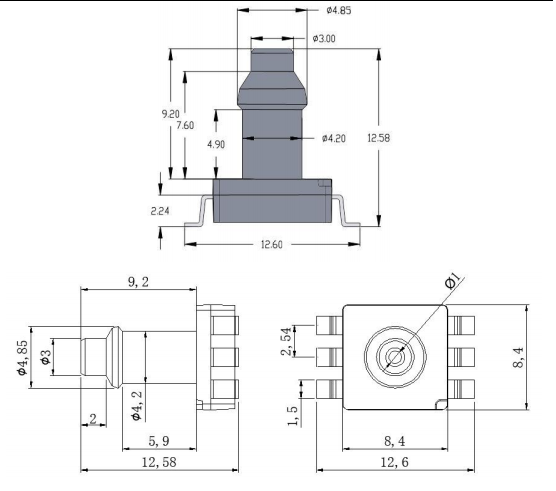

aspect&Recommended footprint(unit: mm)





 Electrical connections



1

2

3

4

5

6

Normally closed

VDD

go out

Normally closed

Normally closed

ground









notes:

1, N/C pin must be left floating

2. Pin soldering: 250'C for 5 seconds max.

3. Please add a 0.1uf capacitor between VDD and GND

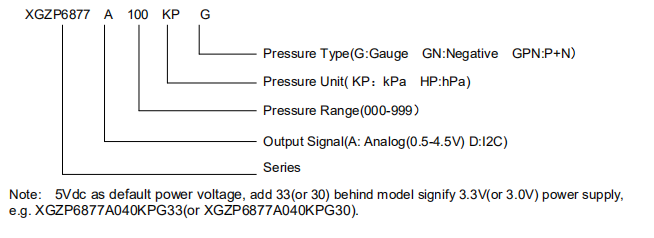

Ordering Guide



notes

1. Implement ESD protection during soldering and assembly.
2. Overvoltage (6.5Vdc) or current (5mA) may burn the ASIC.
3. The medium must be compatible with the pressurized parts.
4. For special requirements on parameters and applications, please contact us.
