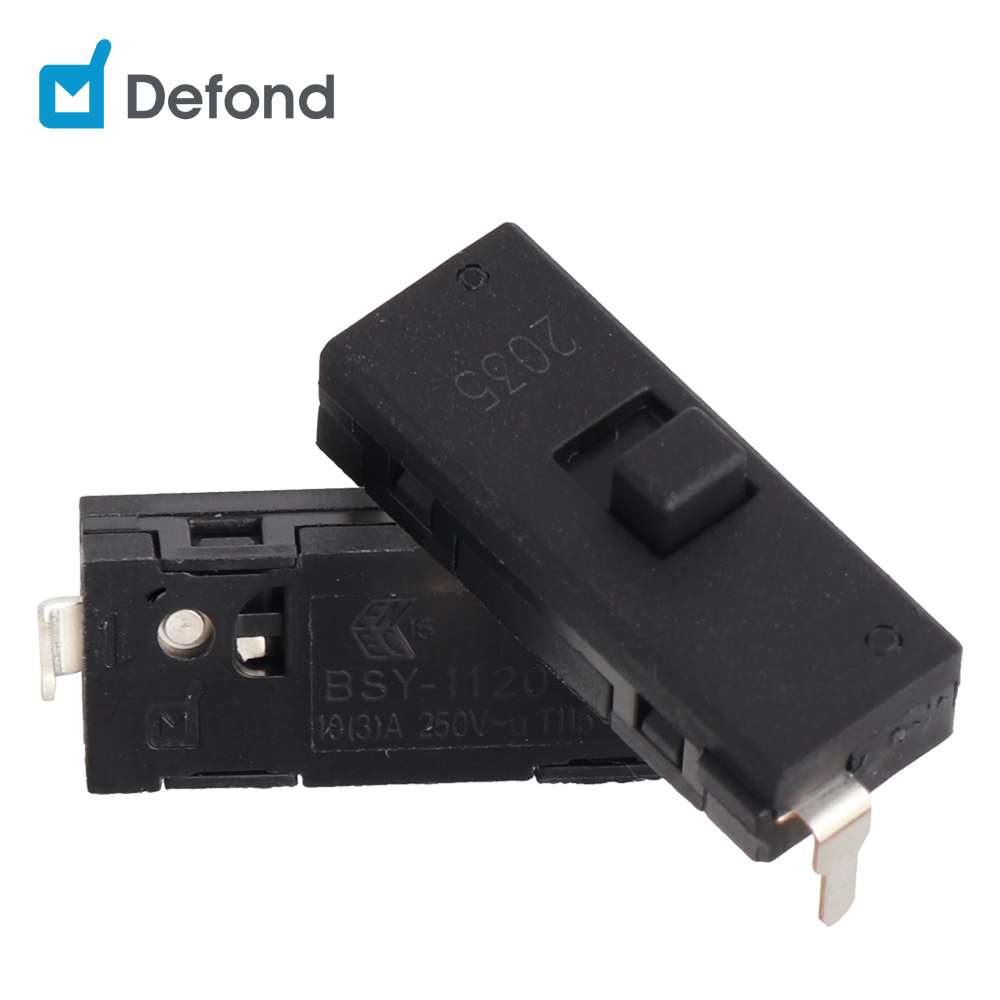

Single-pole single-throw micro slide switch Defond BSY-1120-01-BBP21-01R

Supplier: DEFOND ELECTRICAL INDUSTRIES LIMITED
Region: Hong Kong S.A.R., China
Contact: Mr Defond Electech
Price: $0.67 / 10 - 999 units
$0.45 / 1000 - 4999 units
$0.32 / >=5000 units
Min. Order: 10 units

Click here to contact

Product details

Throw:	3	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,paypal
brand:	Defeng	Supply capacity:	50,000 units per month
Certification:	CQC,ENEC	Mechanical life:	UL1504: 6,000 cycles; ENEC: 10,000 cycles
pole:	2	place of origin; place of origin:	Guangdong, China
Packaging Details:	Single PE bag, packed in carton, then packed in carton 2400pcs/carton GW:10.8kgs	model:	BSY-1120-01-BBP21-01R
maximum. Voltage:	250VAC	maximum. current:	10(3)A
Conductive material:	silver alloy	Protection class:	IP00
port:	Shenzhen, Guangzhou, Hong Kong	Ambient temperature:	UL1504: 0~85°C; ENEC/CQC: 0~85°C
Before the trip (scope):	6.0mm	Contact resistance:	50m ohm max.
size:	27.8mmx13mmx8.0mm	Is it smart:	Do not
Insulation resistance:	50M ohm	Operating force (range):	800 +400/-200 gf

Product Description

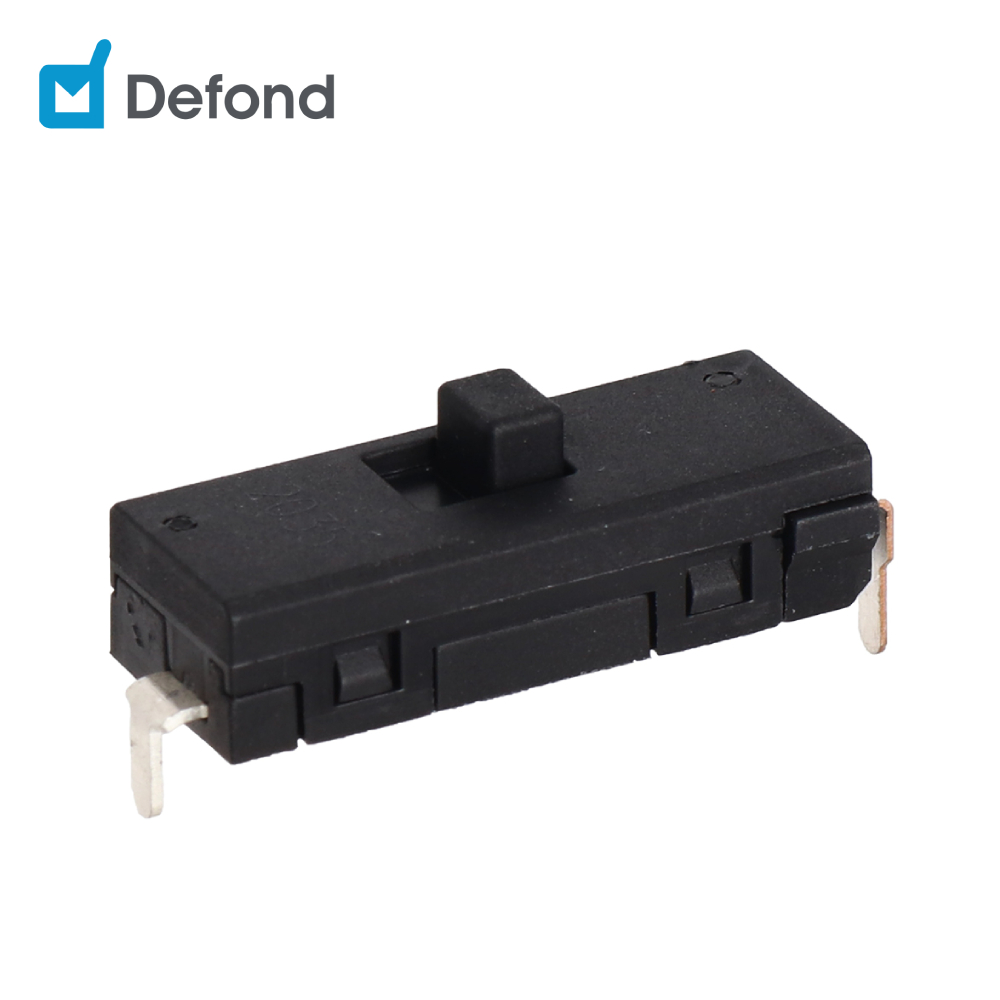

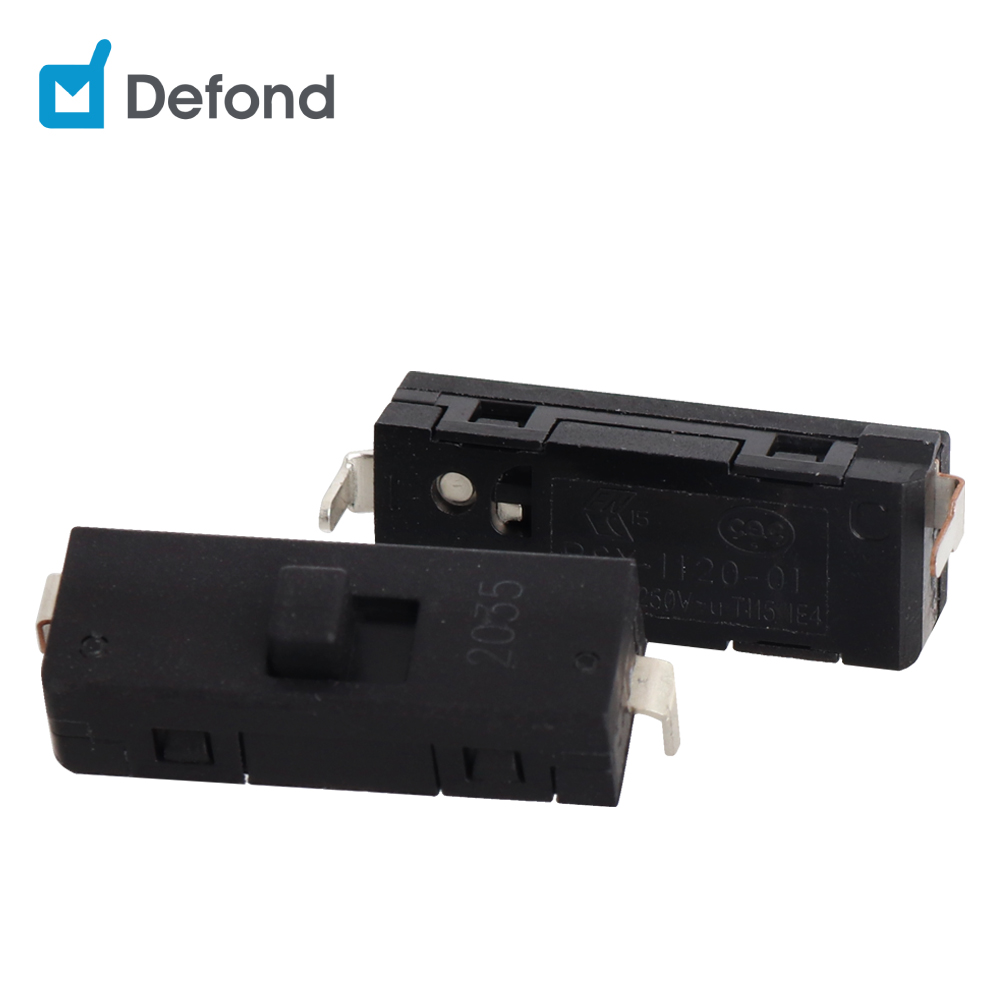

Single-pole single-throw micro slide switch Defond BSY-1120-01-BBP21-01R

Slide switches are turned on/off by moving the slider from one position to another or multiple positions. Defeng slide switches are available in three main contact types and in plastic and metal housing options in all configurations of single pole single throw (SPST), single pole double throw (SPDT), double pole single throw (DPST) and double pole double throw (Double Pole, Double Throw).

feature

-Single pole switch slide switch
-Small size, suitable for small space structure installation

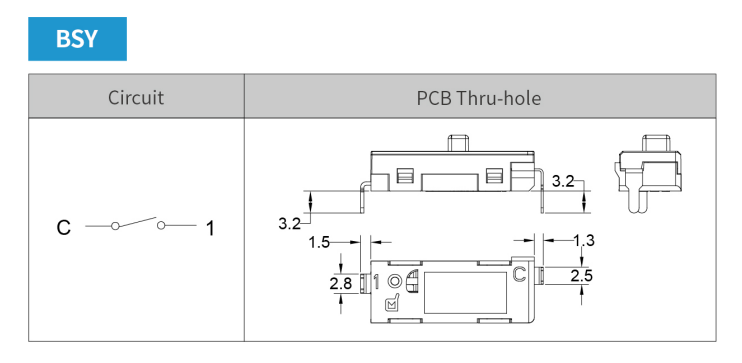

- Two terminal options: PCB and Solder

application

-Beauty equipment: hair dryer

thing	value
Certification	CQC,ENEC
place of origin; place of origin	China
brand	Defeng
model	BSY-1120-01-BBP21-01R
maximum. current	10(3)A
maximum. Voltage	250VAC
Mechanical life	UL1504: 6,000 cycles; ENEC: 10,000 cycles
Protection class	IP00
ambient temperature	UL1504: 0~85°C; ENEC/CQC: 0~85°C
Conductive material	silver alloy
size	27.8mmx13mmx8.0mm
Operating force (range)	800 +400/-200 gf
Before travel (range)	6.0mm
Insulation resistance	50M ohm
Contact resistance	50m ohm max.
pole	2
Throw	3
