HR-150A Rockwell Hardness Tester, Rockwell Hardness Testing Equipment

Product details
type:newport:Shenzhen
Supply capacity:200 pieces per monthpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
brand:LangroyPackaging Details:Plywood boxes
Customization support:OEM,ODM,OBMWarranty:1 year
place of origin; place of origin:Chinamodel:HR-150A
Certification:CE certification

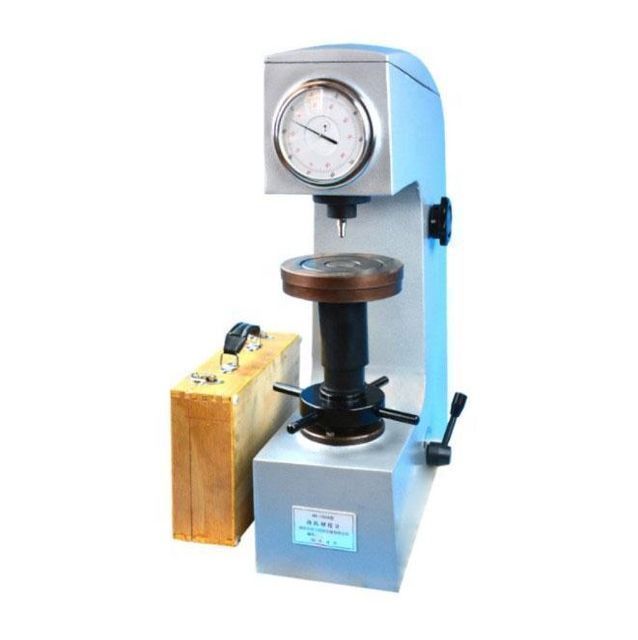

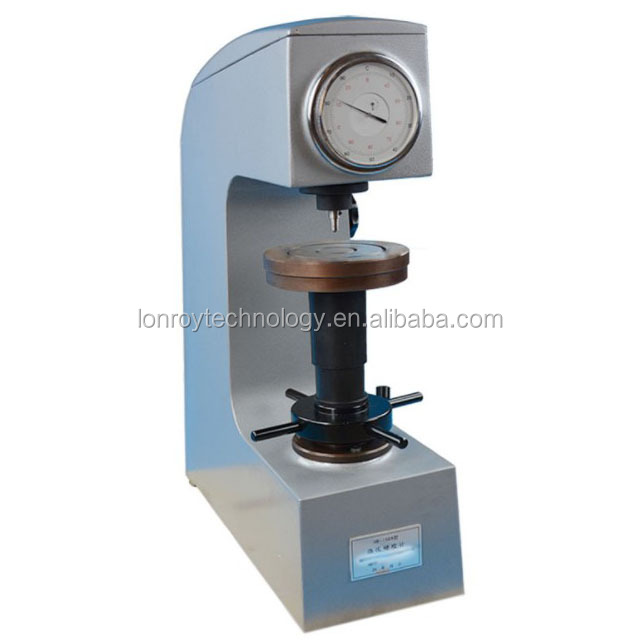

HR-150A Rockwell hardness tester, Rockwell hardness testing equipment

main feature:

Lever loading, manual operation, reliable and durable; frictionless spindle, high test force accuracy;

Dial direct reading, HRA, HRB, HRC, other lake lights are optional;

Precision hydraulic buffer, stable loading, adjustable speed;

The precision complies with GB/T230.2, iso6508-2 and ASTM E18.



HR-150A Rockwell hardness tester, Rockwell hardness testing equipment

Applicable and scope:

Determination of Rockwell hardness of ferrous metals, non-ferrous metals and non-metallic materials;

It is suitable for hardness measurement of heat-treated materials such as quenching and tempering.



HR-150A Rockwell hardness tester, Rockwell hardness testing equipment

Specifications:

rockwell

20-88HRA, 20-100HRB, 20-70HRC

initial strength

10kg (98.07N)

full test force

60Kg (588N), 100Kg (980N), 150Kg (1471N)

Hardness value indicates

dial

Maximum height of specimen

170mm

Dimensions

520*240*700mm

net weight

80 kg

carry standard

GB/T230.2 Chinese standard and JJG112 inspection rules

Standard accessories

Diamond Rockwell indenter, 1.5875mm diameter carbide steel ball indenter, large test bench, medium test bench and V-type test bench, HRC and HRB hardness blocks

application

Hardened steel, tempered steel, annealed steel, chilled castings, forgeables, castings, aluminum alloys
