High efficiency coal consumption Coal burner for brick kiln

Supplier: Zhengzhou Double Birds Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Jason Du
Price: $12000.00 / 1 - 4 sets
$11000.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

main power:	22kw	Video shipment inspection:	if
Applicable industries:	Building material stores, manufacturing plants, farms, retail stores, food stores, construction projects	Voltage:	220V 380V 450V 600V
Main selling points:	long lasting	Dimensions (LWH):	260025002200mm
place of origin; place of origin:	Henan, China	Mechanical test report:	if
Core component warranty:	1 year	usage:	Asphalt plant, boiler, brick kiln and other industries
Name:	coal burner	Health status:	new, new
Coal pipe:	4 meters	Certification:	International Organization for Standardization
Showroom location:	not any	Core components:	Haifu
Marketing Type:	New Products 2022	Supply capacity:	30 sets per month
port:	Qingdao port or other Chinese ports	After-sales service provided:	Engineers available to service machinery overseas
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	product name:	coal burner
Coal particle size:	25mm	Warranty:	12 months
Packaging Details:	container	Coal consumption:	550 kg/h
weight:	1500 kg

High-efficiency coal consumption coal-fired burner for brick kiln

Principle of coal burner:

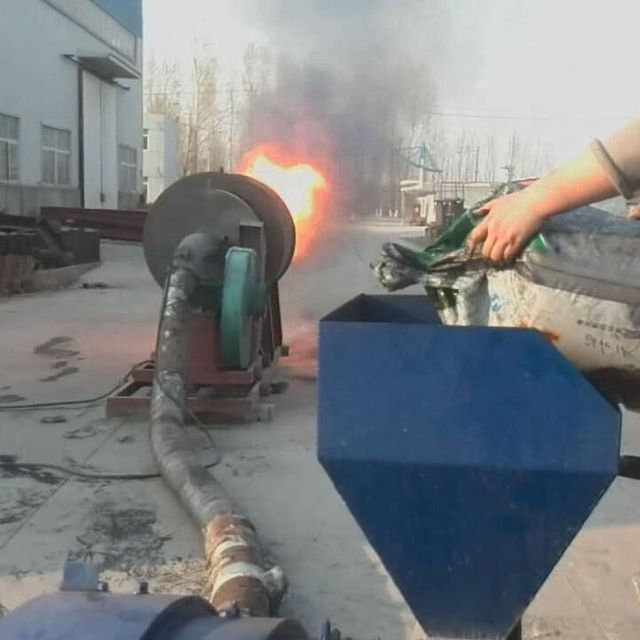

Coal with a diameter of less than 20mm is first crushed by a pulverized coal crusher, and then the pulverized coal is transported to the main combustion chamber through a hose, and then ignited with an oil gun. At the same time, the blower supplies air to the main combustion chamber through the circular rotary air duct in the rear cover, and the wind advances along the inner wall of the combustion chamber. The high-temperature airflow mixes with the coal powder and burns strongly, and the high-temperature flame is ejected from the fire outlet into the drying drum to heat the cold aggregate. .

Coal burner application:

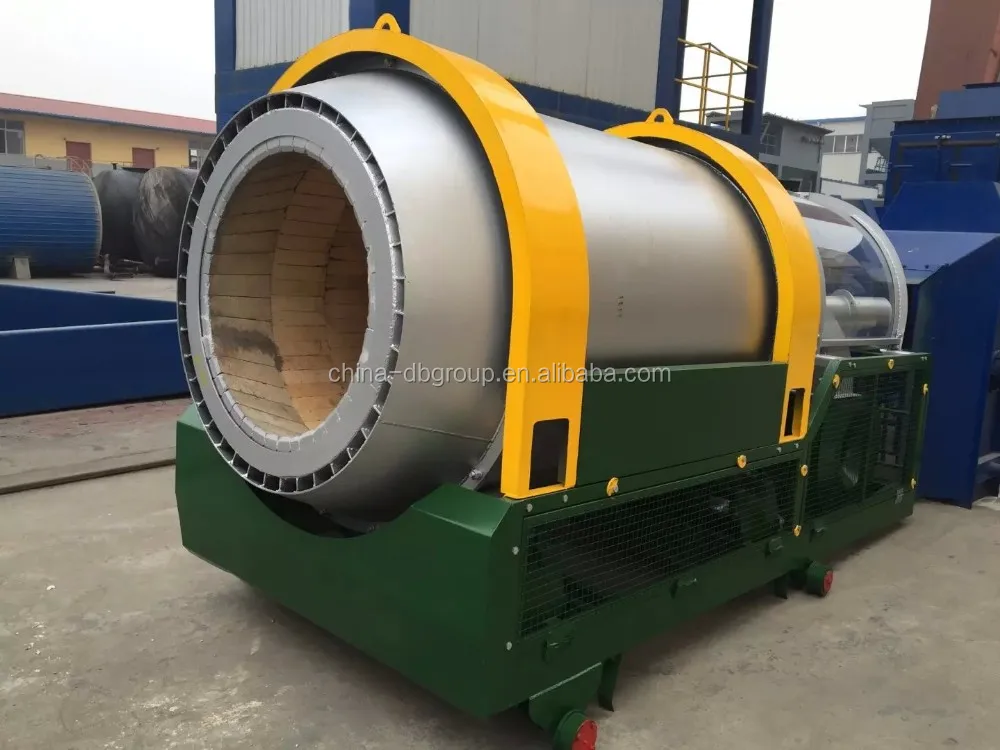

The rotary pulverized coal burner is an updated heating equipment based on the advantages of other equipment. Its characteristics are as follows:

A. The use of a unique rotary combustion chamber solves the problems of agglomeration of relics and incomplete combustion in traditional combustion.

B. The flame temperature is high, the combustion is complete, and the energy is saved.

C. Equipped with special refractory bricks to prolong the service life.

D. Continuous work, no need to clean the clinker every day.

E. Low fuel cost, only 1/2 of oil cost.

F. The whole burner can be controlled automatically.

Coal burner application range:

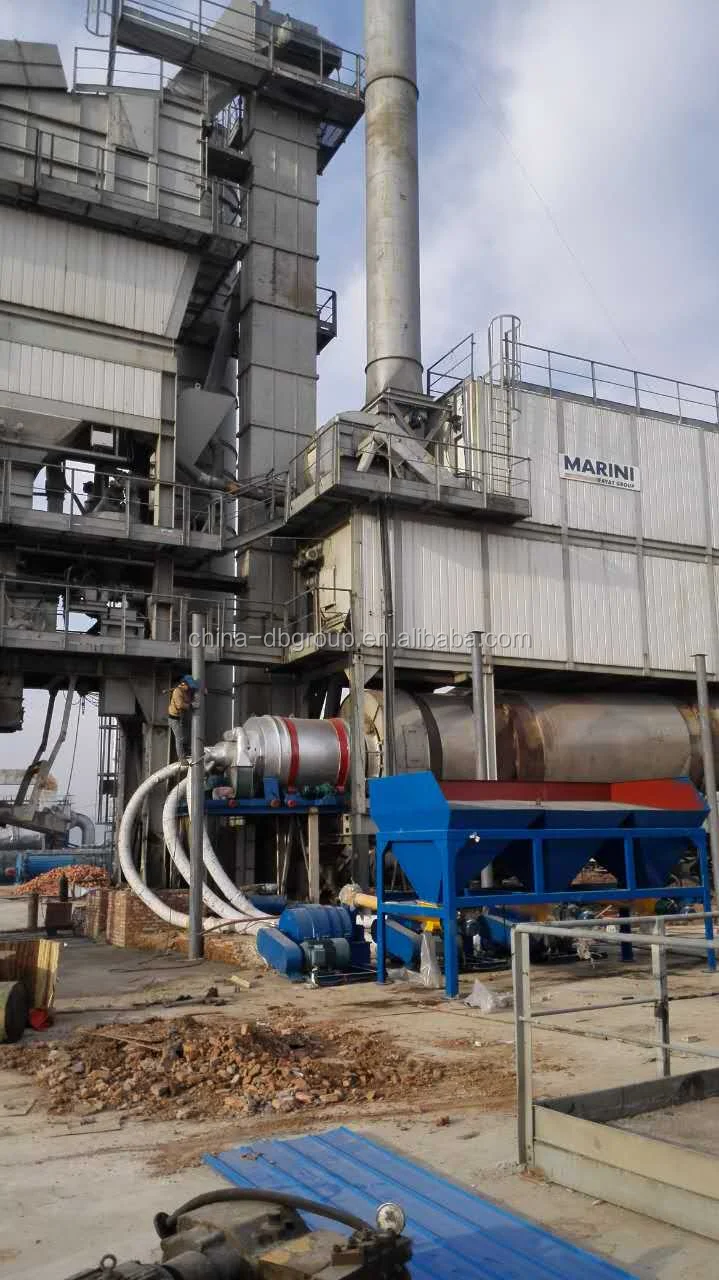

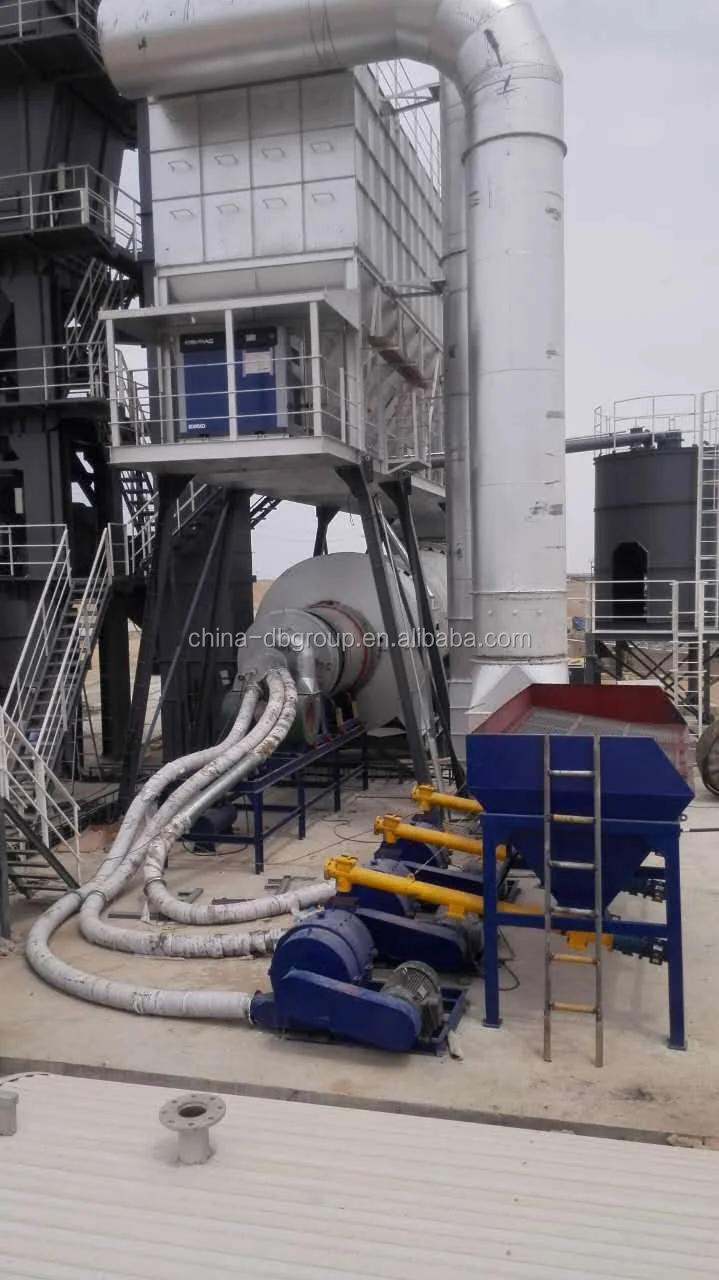

This rotary pulverized coal burner can be used forasphalt mixing plant.Boiler, brick kiln, rotary kiln and other industries.

Coal-burning machine technical parameters:

Model	main power	Rated coal consumption	coal particle size	total power
MF50	7.5kw	100 kg/h	25mm	10 kW
MF200	11 kW	200 kg/h		13kw
MF350	18.5kw	350 kg/h		26 kW
MF500	22kw	550 kg/h		29.5kw
MF1000	37 kW	960 kg/h		48 kW
MF1500	45kw	1440 kg/h		59 kW
MF2000	37kw*2	1920 kg/h		95 kW
MF3000	45kw*2	2880 kg/h		112kw
MF4000	45kw*3	3840 kg/h		167 kW
MF5000	55KW*3	4800 kg/h		197 kW
