G3/4-G3/4 thread pump adjustable flow sensor pressure automatic control switch 220V

  • Supplier: Shenzhen Lanqi Technology Co., Ltd.
  • Region: Guangdong, China
  • Contact: Ms Nian Miyuki
  • Price: $5.74 / 1 - 4 sets
    $5.52 / 5 - 9 sets
    $5.35 / >=10 sets
  • Min. Order: 1 set
Product details
model:GS09508payment terms:L/C, T/T, PayPal
Overload current:1.5Aweight:194 g / 6.8 oz (approx.)
Certification:otherLiquid pressure:<0.6Mpa
Liquid temperature:<70℃place of origin; place of origin:Guangdong, China
brand:blue flagConnection thread:G3/4-G3/4
Model:HT-200Rated voltage:220V
port:Shenzhen
detailed drawing
Product Description
describe
Turn on the water device and water will flow in the pipes. The water pulse induction door rotates in the direction of the water, and the magnetic control device rotates together, and when it reaches a certain position, the induction element is triggered,
Turn on the household plumbing booster pump. When the water flow is closed, the induction door drives the magnetic control device to a certain position under the action of the return spring to close the water pump.
feature
* Stable performance; the induction chamber, magnetic control chamber and electronic components are designed separately to avoid the switch failure caused by the iron in the pipeline being magnetically adsorbed.

* High temperature resistant material enables the product to be used in hot water (up to 70°C) and cold water.

* Start with low water pressure; the return spring is made of high-quality stainless steel; the water pump can be started when the water pressure is >0.03KG.

* The electronic components used as the control device will not generate sparks when working, which is very safe.

* This product is widely used in households in low-pressure areas, especially for low-pressure ignition of water heaters and automatic water circulation of solar water heaters.

* The sensitivity of this flow switch is adjustable.
Specification
Model: HT-200

Rated voltage: 220V

Overload current: 1.5A

Connection thread: G3/4-G3/4

Applicable liquid: water or other liquids with similar physical and chemical properties

Liquid pressure: <0.6Mpa

Liquid temperature: <70°C

Weight: 194g/6.8oz (approx.)
package list

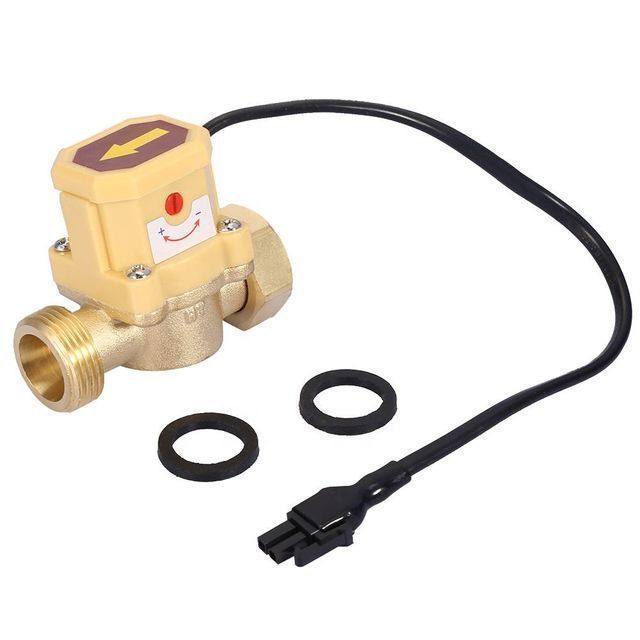

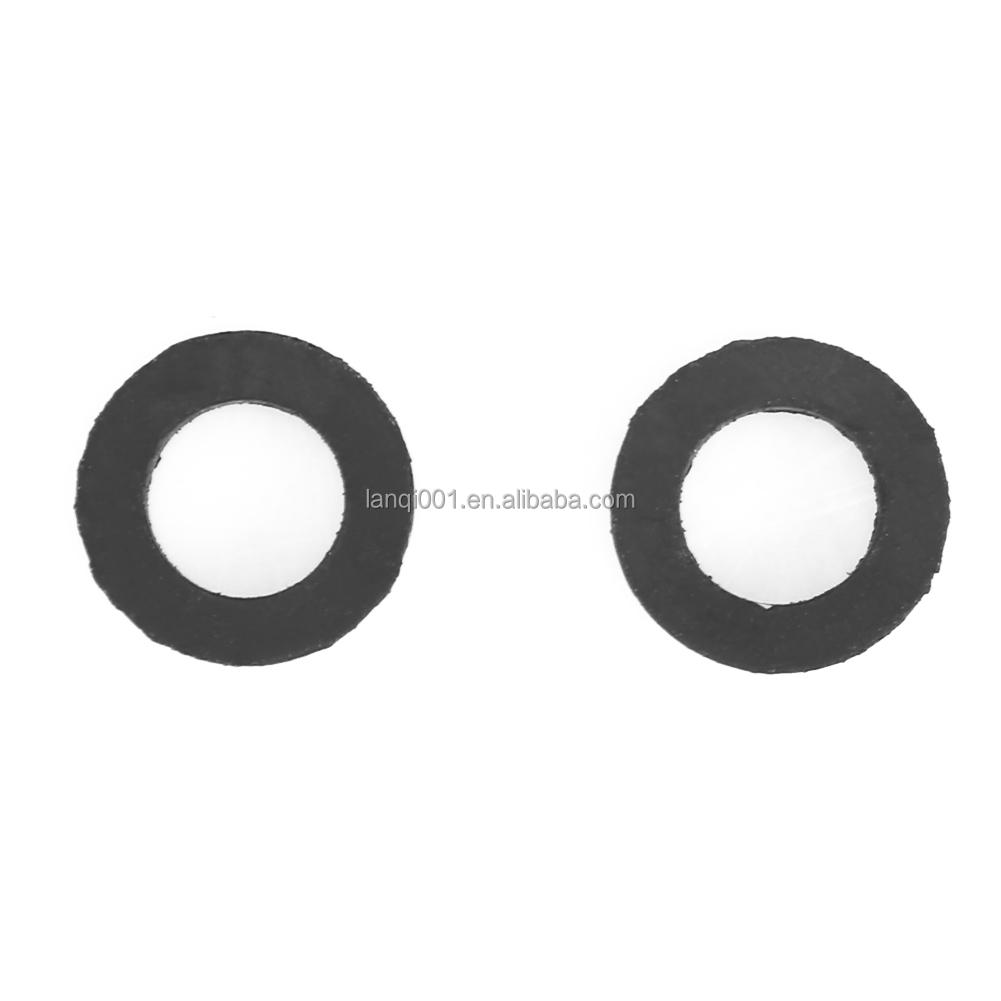

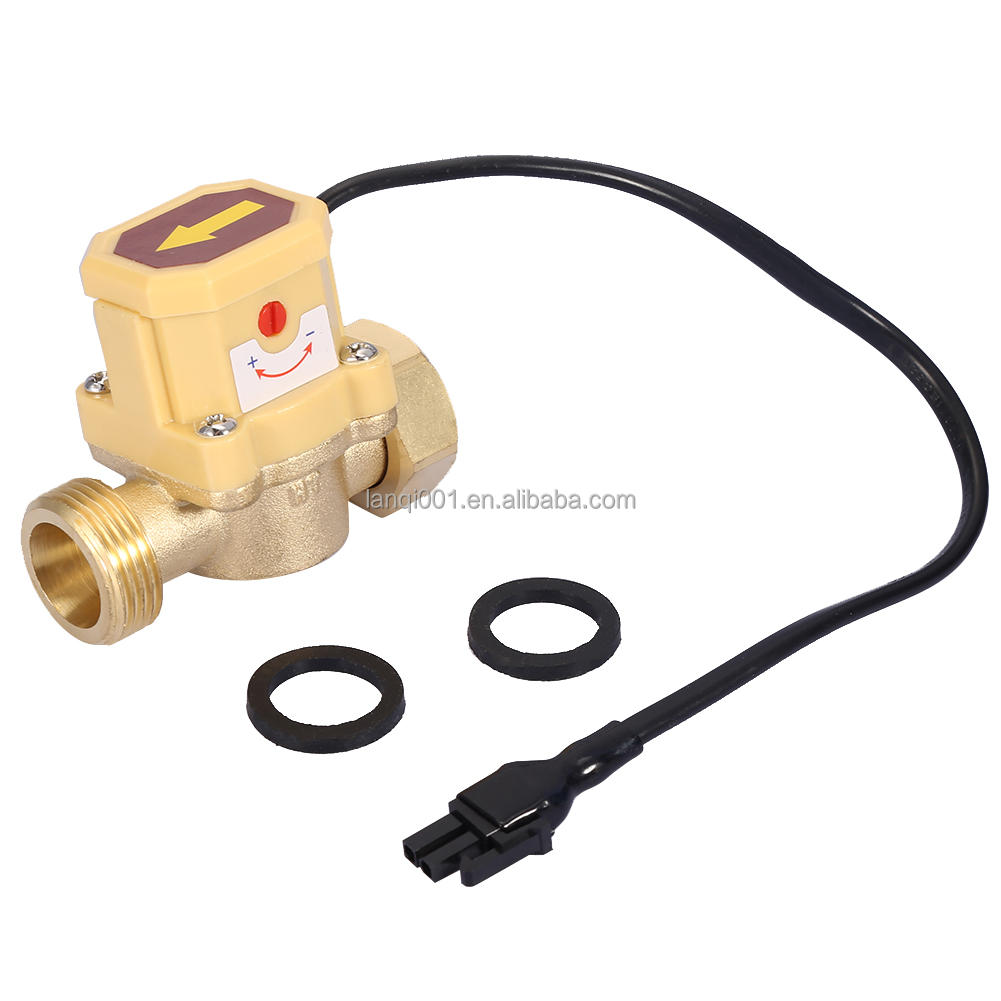

1 * Flow switch (with gasket)
