Snow blower

Product details
After-sales service provided:Video technical support, free spare parts, online supportMaterial:steel, plastic
After warranty service:Video technical support, online support, spare partsShowroom location:not any
Supply capacity:15000 pieces per monthFuel tank capacity:3.6, 6L
port:ShanghaiHealth status:new
Shift:163, 196, 252, 375ccplace of origin; place of origin:Zhejiang, China
payment terms:L/C, Western Union, D/P, T/TMarketing Type:2019 Hot Products
strength:1.6,4.1,4.4,4.8,5.2,7.8kwThrowing distance:≤8,11,15m
Video shipment inspection:ifClear Width:21, 28, 34 inches / 560, 710, 868 mm
weight:24, 25, 46, 49, 105, 140kgApplicable industries:farm, home use, retail
Intake height:16,20,21 inches / 400,510,540 mmDrive type:hand push
product name:snow plowFuel tank capacity:0.6, 1.1L
Dimensions (L*W*H):52*52*75cmCore component warranty:1 year
brand:pinkPackaging Details:Carton
Local service location:not anyCertification:CE certification
Mechanical test report:ifWarranty:1 year
Core components:engine
Product Description

Features of snow blower:

1. Displacement: 163, 196, 252, 375cc

2. Power: 1.6, 4.1, 4.4, 4.8, 5.2, 7.8kw

3. Fuel tank capacity: 3.6, 6L;

4. Fuel tank capacity: 0.6, 1.1L

5. Cleaning width: 21, 28, 34inch / 560, 710, 868mm

6. Air intake height: 16, 20, 21inch / 400, 510, 540mm

7. Throwing distance: ≤8, 11, 15m

8. Weight: 24, 25, 46, 49, 105, 140kg

9. CE, GS, EMC, EPA certificates



Snow Plow Details and Features:



1. The snow blower is a professional equipment that can quickly remove snow on highways and urban roads.
2. Integrating snow pushing and snow throwing functions, the snow removal efficiency is high, and the work is stable and reliable.
3. The types of ski trails are divided into spiral ski trails and shovel ski trails.
4. The use of snowmobiles, whether it is a large area of ​​snow or snow accumulation, can effectively complete the snow removal operation. Can be used alone or in combination with a snow blower. It is suitable for snow removal operations on high-speed and urban roads. This unit mounts to the pegboard on the front of the loader or on the front of the truck and clears snow while the loader is running.



How Snow Plows Work
1. The snow throwing direction can be adjusted arbitrarily.
2. By adjusting the angle of the snow throwing baffle, the height of the snow can be adjusted to meet different requirements.
3. Special rubber blade, wear-resistant, good toughness, avoiding damage to the road surface.
4. The machine has the function of forced pressure drop, which is suitable for clearing compacted snow. The machine is equipped with a large-diameter propeller, which can quickly and effectively send snow to the central snow throwing hole, with high snow removal efficiency.
5. The end of the propeller adopts a unique zigzag structure, which can crush the compacted snow.
6. This machine is suitable for snow removal operations on high-grade highways, urban roads, squares, and scenic roads.



Model product name Specification Package size(cm) gross/net weight
(Kilogram)
20´GP(pcs)

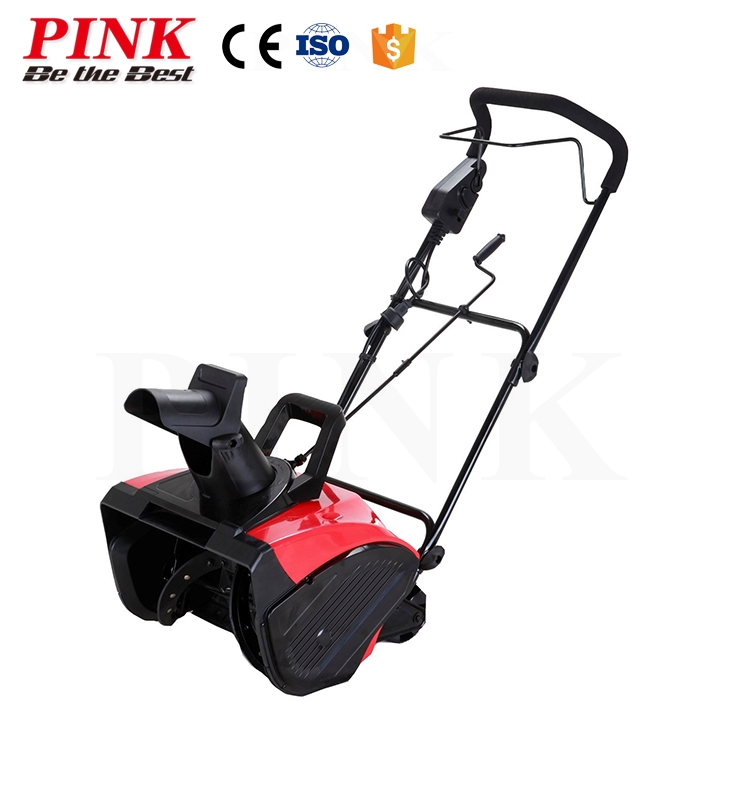

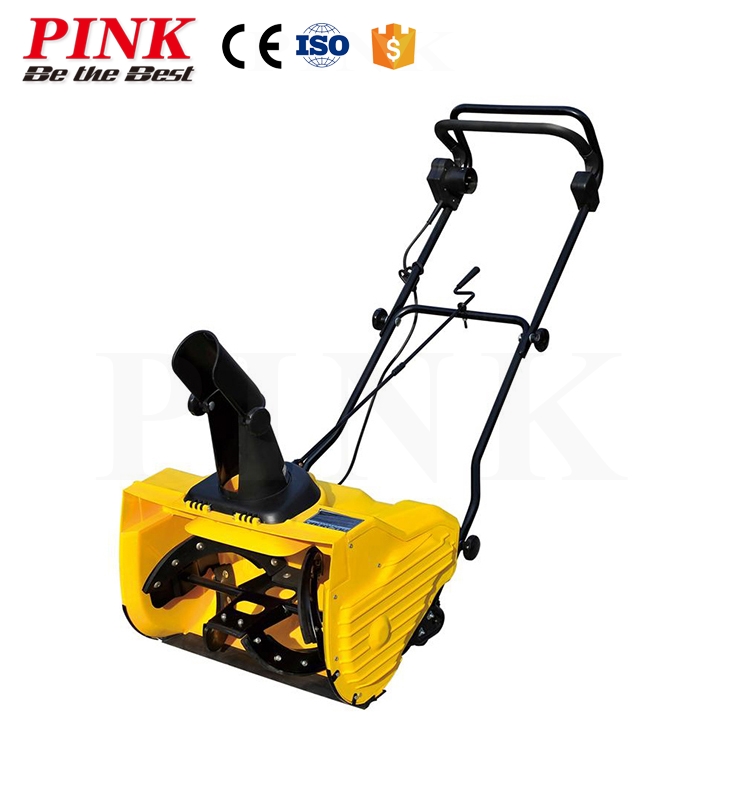

NESWT-01
(Chief Executive)
snowplow Rated voltage: 230V/110V; 50Hz/60Hz
Power: 1600W/1800W
Motor idle speed: 1700RPM
Screw diameter: 260MM
Working depth: 33CM
Chute material: plastic
Maximum stirring speed: 2000RPM
Working width: 50CM
Throwing distance: 3-5M
52*52*58 18/16 165
NESWT-02
(Chief Executive)
snowplow Start method: electric start; manufacturer Loncin
Engine: LC154FDS; Displacement: 87cc
maximum. Power: 1.65KW/3600rpm
Fuel tank capacity: 1.6L; Fuel tank capacity: 0.35L
Transmission mode: belt; Speed: hand push
Cleaning width: 18inch / 457mm
Intake height: 300mm
Throwing distance: ≤8m
Wheel Type: 6" Plastic Wheels
51*75*52 26.5/24.5 130
NESWT-03
(Chief Executive)
snowplow Starting method: recoil start; manufacturer Loncin
Engine: LC154FS; Displacement: 87cc
maximum. Power: 1.65KW/3600rpm
Fuel tank capacity: 1.6L; Fuel tank capacity: 0.35L
Transmission mode: belt; Speed: hand push
Cleaning width: 18inch / 457mm
Intake height: 300mm
Throwing distance: ≤8m
Wheel Type: 6" Plastic Wheels
51*75*52 25.5/23.5 130
NESWT-04
(Chief Executive)
snowplow Starting method: Recoil start; Manufacturer: Loncin
Engine: G200F; Displacement: 196cc
maximum. Power: 4.1KW/3600rpm
Fuel tank capacity: 3.6L; Fuel tank capacity: 0.6L
Transmission mode: friction disc;
Speed: one forward; Clearance width: 22inch/560mm; Intake height: 400mm
Throwing distance: ≤11m
Wheel Type: 4.10-4
80.5*59*51 51/46 107
NESWT-05
(Chief Executive)
snowplow Starting method: recoil start; manufacturer Loncin
Engine: G160F; Displacement: 163cc
maximum. Power: 3.6KW/3600rpm
Fuel tank capacity: 3.6L; Fuel tank capacity: 0.6L
Transmission mode: friction disc
Speed: 4 forward, 1 backward
Cleaning width: 21inch / 530mm; Intake height: 510mm; Throwing distance: ≤11m
Wheel Type: 13x4.10-6
76.5*59*63 52/47 91
NESWT-06
(Chief Executive)
snowplow Start method: electric start; manufacturer Loncin
Engine: G200FD; Displacement: 196cc
maximum. Power: 4.1KW/3600rpm
Fuel tank capacity: 3.6L; Fuel tank capacity: 0.6L
Transmission mode: friction disc
Speed: 4 forward, 1 backward
Cleaning width: 24inch / 610mm; Intake height: 510mm; Throwing distance: ≤11m
Wheel Type: 13x4.10-6
Optional features: LED light +5USD
76.5*66*63 56/51 81
NESWT-07
(Chief Executive)
snowplow Starting method: recoil start; manufacturer Loncin
Engine: G200F; Displacement: 196cc
maximum. Power: 4.1KW/3600rpm
Fuel tank capacity: 3.6L; Fuel tank capacity: 0.6L
Transmission mode: friction disc
Speed: 4 forward, 1 backward
Cleaning width: 24inch / 610mm; Intake height: 510mm; Throwing distance: ≤11m
Wheel Type: 13x4.10-6
76.5*66*63 54/49 81

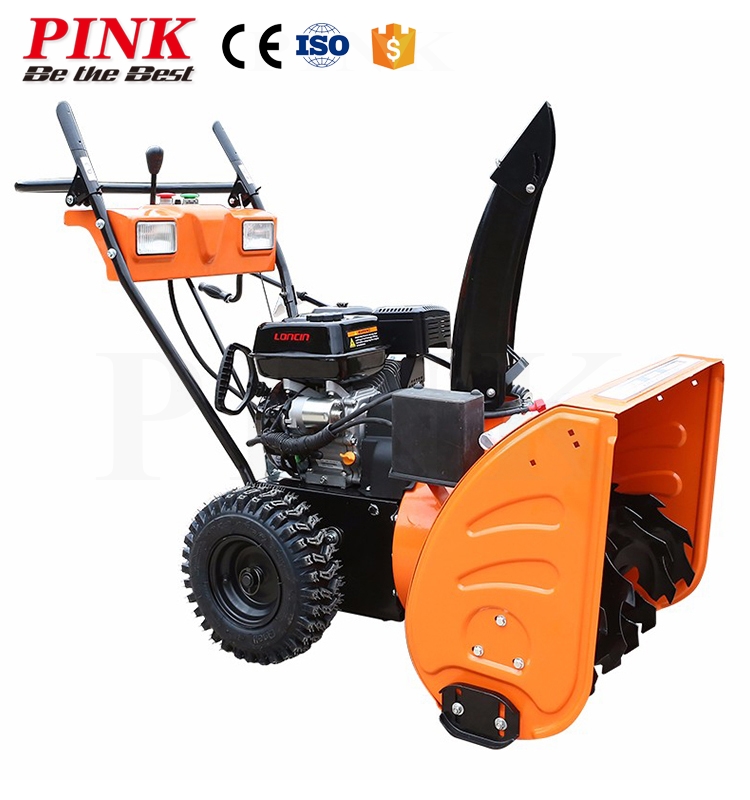

NESWT-08
(Chief Executive)
snowplow Maximum Working Load: 2000 lbs/min. (theory)
maximum. Throwing distance: 10-15 meters (theoretical value)
Working Width: 28" (71 cm); Fuel Capacity: 6.5 L
Working Thickness: 22" (56cm)
Chute rotation angle: 190 degrees
Engine model: famous brand Zongshen or Loncin
Operating capacity per tank (approximately): 3.5 hours
Power supply: maximum 11.0HP (8.1Kw).
Transmission type: friction disc
Stage gear: 4 forward gears and 2 reverse gears
Starting method: Recoil and battery starter
Wheel type: 15X5.5-6 inch tires
99*76*80 115/105 34
