HR-45 150D Digital Rockwell and Superficial Rockwell Hardness Tester/Rockwell Diamond Hardness Tester Indenter

Product details
The hardness value means:Large LCD displayweight:about 70kg
port:Qingdaopower supply:AC220V+5%,50-60Hz
payment terms:L/C, Western Union, T/Taspect:520*240*720mm
model:HR-45 150Dplace of origin; place of origin:Shandong China
Data output:Internal printer, RS-232product name:Hardness Tester
duration:0-60sMaximum height of sample:175mm
Types of:Hardness TesterCustomization support:OEM,ODM,OBM
Warranty:1 yearConversion ratio:Rockwell, Brinell, Vickers
Package preview:Model:HR-45 150D
Supply capacity:300 sets per monthPackaging Details:Standard export packaging
brand:Kaisheng

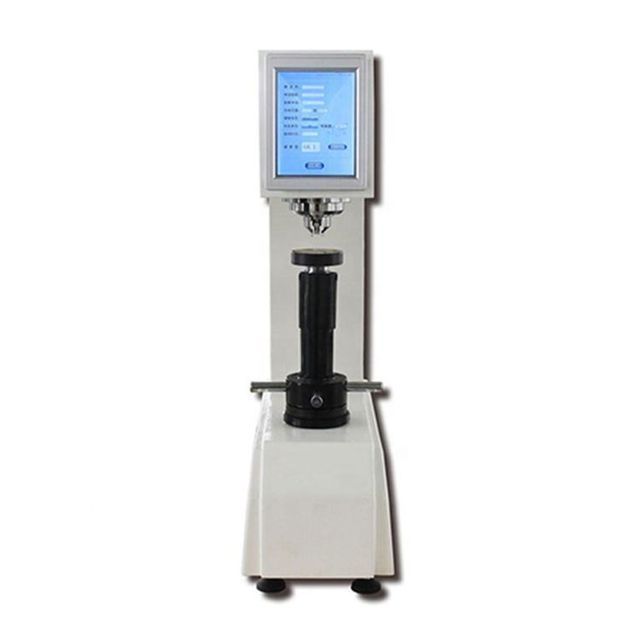

HR-45 150D Digital Rockwell and Surface Rockwell Hardness Tester /

Rockwell diamond indenter for hardness tester

HR-45 150D Digital Rockwell and Superficial Rockwell Hardness Tester/Rockwell Diamond Hardness Tester Indenter



Product Description

1. Main features:

HR-45 150D digital display Rockwell, surface Rockwell hardness tester is the use of sensors

Closed-loop control technology, novel appearance, complete functions,

Easy to operate, clear display, stable performance, is a collection of mechanical

High-tech products integrated with electrical appliances, Rockwell, surface Rockwell, plastic Rockwell

Hardness testing for all staff.




2. Technical specifications:

product name

HR-45 150D Digital Rockwell and Superficial Rockwell Hardness Tester/Rockwell Diamond Hardness Tester Indenter

Model

HR-45/150D

conversion ratio

Rockwell, Brinell, Vickers

Hardness value indicates

Large LCD display

sample height

175mm

data output

Internal printer, RS-232

duration

0-60s

Executive standard

GB/T230.1 GB/T23.2 Chinese standard,

JJG112 Inspection Regulations

The distance from the indenter to the outer wall

160mm

Preliminary Rockwell test force

10kgf (98N)

Total Rockwell force

60kgf(588.4N) 100kgf(980.7N) 150kgf(1471N)

Preliminary Surface Rockwell

Test force

3kgf (29.4N)

Total Surface Rockwell Test

strength

15kgf(147.1N) 30kgf(294.2N) 45kgf(441.3N)

ruler

HRA: 20-88 HRB: 20-100 HRC: 20-70 HRD: 40-77 HRE: 70-100 HRF: 60-100 HRG: 30-94 HRH: 80-100 HRK: 40-100 HRL: 50-115 Heart rate: 50-115 Heart rate: 50-115

power supply

AC220V+5%,50-60Hz

Dimensions (mm)

520*240*720mm

net weight

about 70kg

HR-45 150D Digital Rockwell and Superficial Rockwell Hardness Tester/Rockwell Diamond Hardness Tester Indenter
