Best Price Paint Thickness Gauge Auto Paint Tester Gauge Auto Tester F NF Range 1300 Micron Max Paint Coating Thickness Gauge

Click here to contact
Product details
Supply capacity:5000 pieces per monthproduct name:Coating Thickness Gauge
Customization support:OEM productionpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
port:Shenzhen or Hong Kong or Guangzhou or Shanghaibrand:research and development
Packaging Details:Box + carton.OEM/Design Manufacturer:welcome
model:100Warranty:1 year
accuracy:0.1umPackage preview:
place of origin; place of origin:Guangdong, Chinatheory:0 to 1300 microns

Best Price Paint Thickness Gauge Auto Paint Tester Gauge Auto Tester F NF Range 1300 Micron Max Paint Coating Thickness Gauge

Product Description

0~1300um Automotive Paint Thickness Gauge Tester Paint Measuring Detector Digital Display Paint Coating Thickness Gauge



Specification:





Probe F

Probe N

in principle

magnetic induction

vortex

scope

0~1300um

0~51.2 million

0~1300um

0~51.2 million

accuracy

±(3%+2um)

±(3%+0.08 million)

±(3%+2um)

±(3%+0.08 million)

resolution

0.1um/0.01 million

0.1um/0.01 million

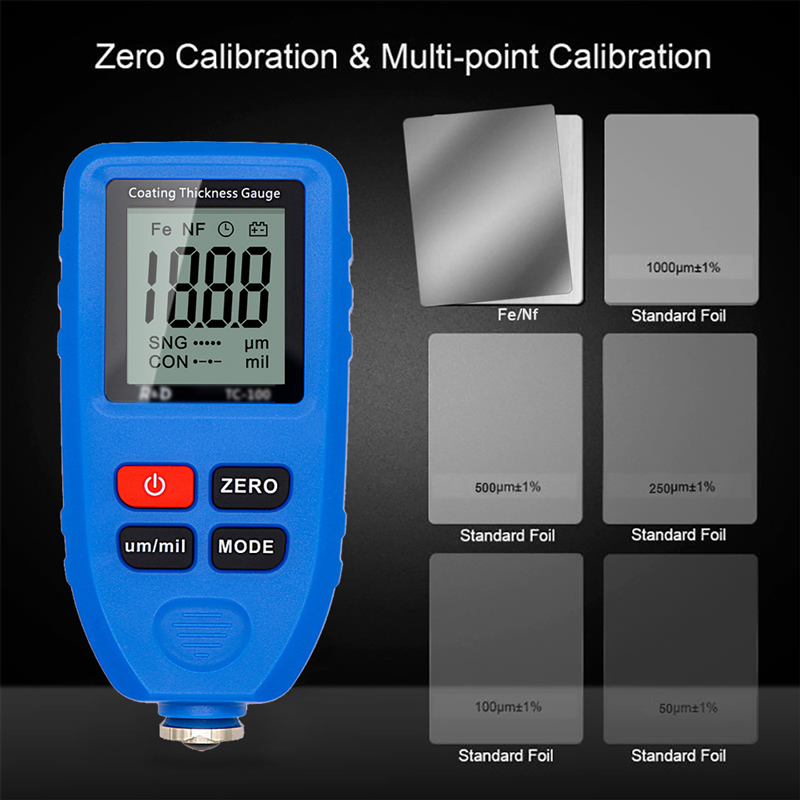

calibration

Points: Zero/50/100/250/500/1000um

unit

uh mil

Minimum curvature radius convex: 1.5mm

Concave minimum radius of curvature: 25mm

Minimum measurement area: diameter 6mm

Substrate minimum thickness

0.5 mm (0.02 in)

0.3 mm (0.012 in)

strength

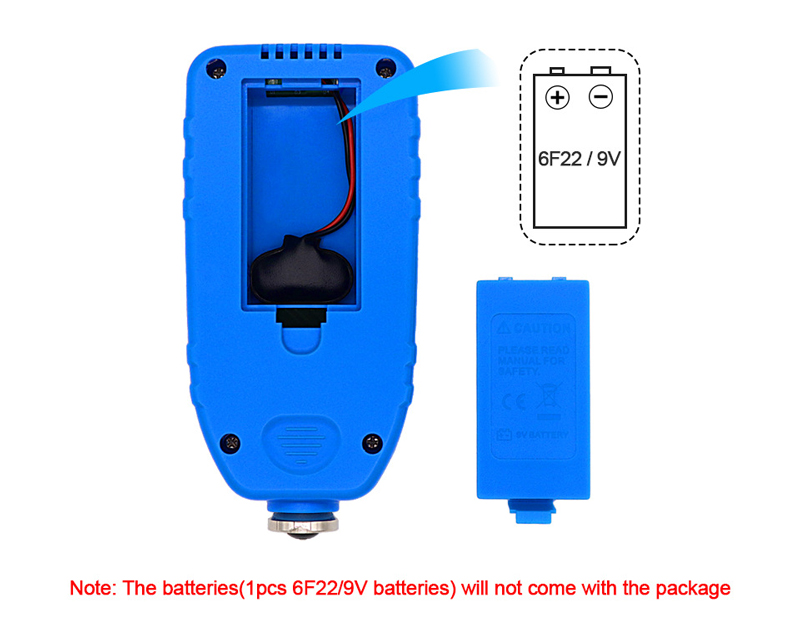

One 9V battery

operating environment

Temperature: 0~40℃(32~104℉) Humidity: 20%~90%RH

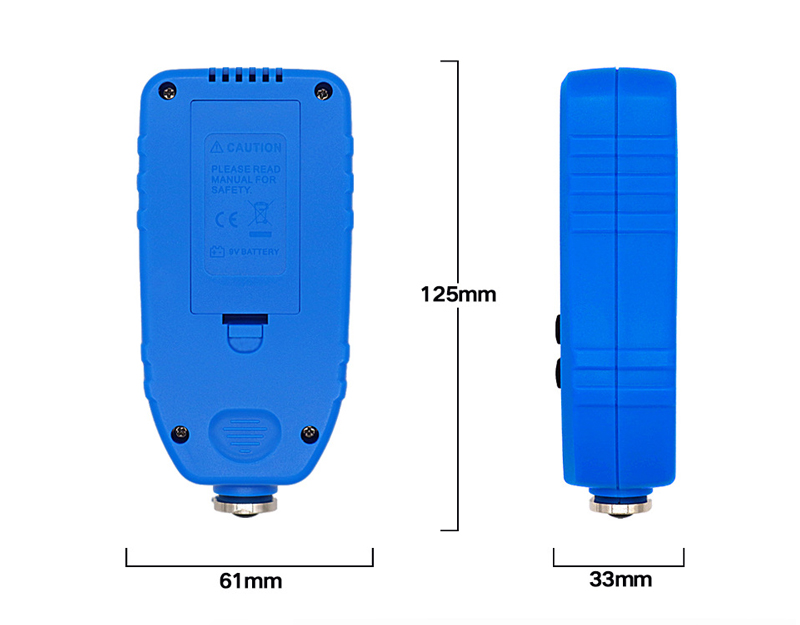

size

130mm x 62mm x 32mm

(4.88” x 2.44” x 1.26”)

weight

100 g (3.53 oz)

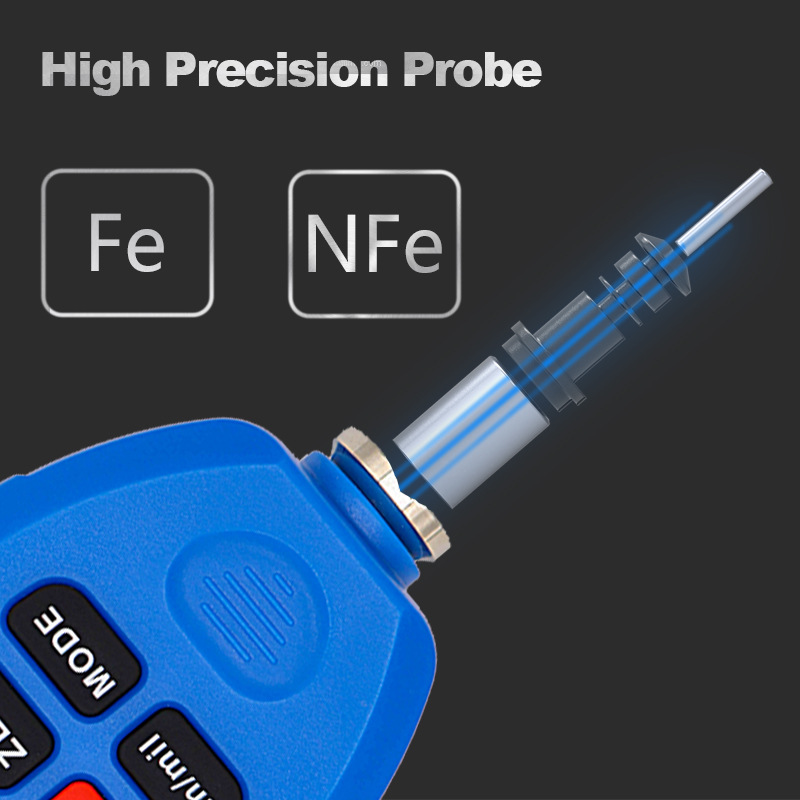

1. Measuring principle: magnetic induction (F-probe) and eddy current (N-probe);
2. Measuring range: 0~1300um
3. Accuracy: ±(2.5% of reading+1um);
±(3% of reading+0.078mils);
4. Resolution: 0um~900um (1um), 900um~1300um (0.01mm);
5. Calibration: one to four points calibration, zero calibration;
6. Data group: 1 direct group (readings are not stored in memory), 4 general groups (readings can be stored), each group has separate statistics, alarm settings and calibration;
7. Statistics: number of readings, average, minimum, maximum and standard deviation;
8. Unit: um, mm, mils;
9. Alarm: The user can set high/low alarm, and the LCD will display the alarm icon when the limit is exceeded;
10. Minimum radius of curvature: convex 1.5mm (59mils) concave 25mm (984mils);
11. Minimum measurement size: diameter 6mm (236mils);
12. Minimum substrate thickness: F-probe: 0.5mm (0.02"), N-probe: 0.3mm (0.012");
13. Computer interface: download data through USB interface;
14. Power supply: two 1.5v AAA batteries;
15. Operating temperature: 0°C to 40°C (32°F to 104°F);
16. Storage temperature: -20°C to 70°C (-4°F to 158°F);
17. Size: 110mm*53mm*24mm (4.33"*2.09"*0.94");
18. Weight: 100g;
NOTE: Batteries are not included.

 describe:

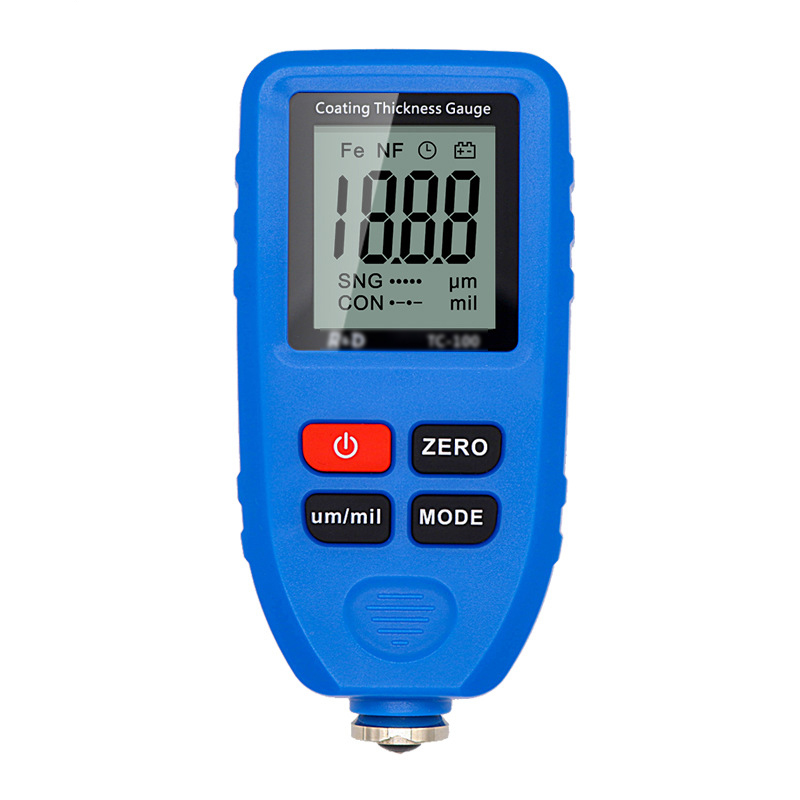

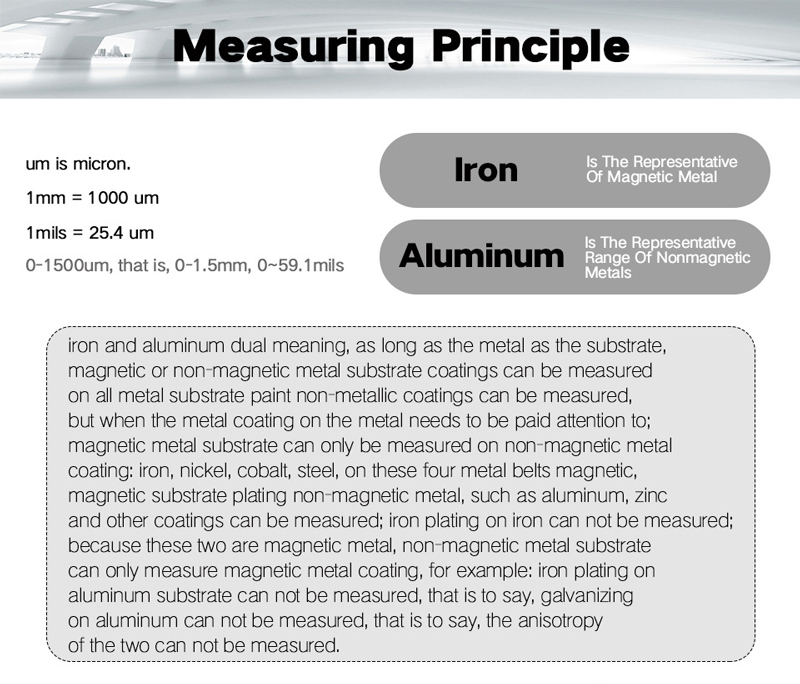

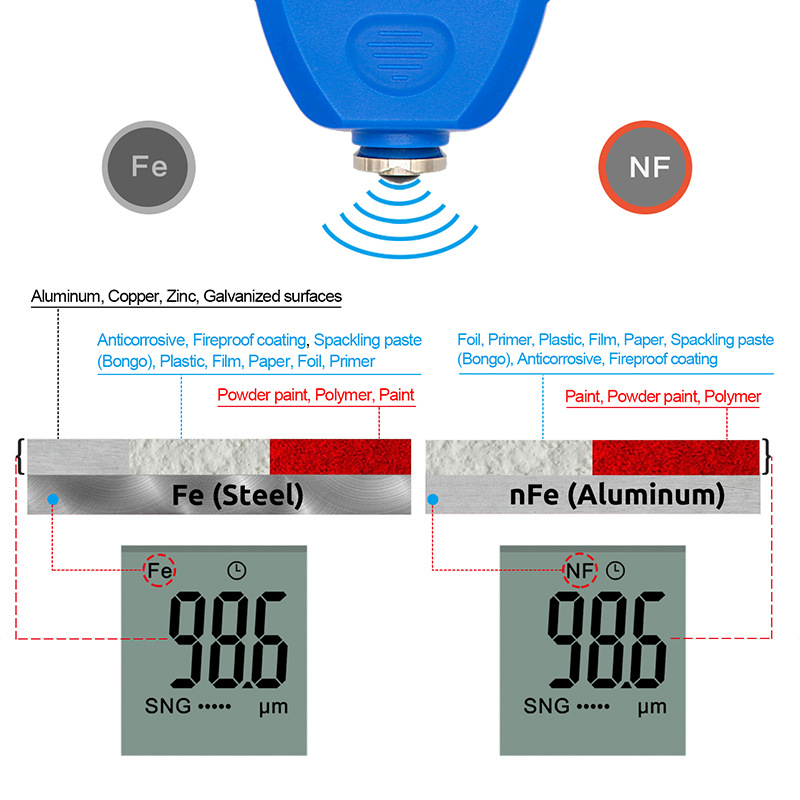

Coating Thickness Gauge is designed for non-destructive, fast and accurate coating thickness measurement. It works on the principle of magnetic induction or eddy current, depending on the type of probe used. The meter has internal F and N probes.
The F probe can be used on non-magnetic coatings on iron or steel substrates, such as aluminum, chrome, copper, zinc, paints and varnishes, enamel, rubber, etc.; it is also suitable for alloy hardened magnetic steel (but not for austenitic steel ).
The N probe can be used for insulating coatings on all non-ferrous metals (such as aluminium, copper, zinc die-casting, brass, etc.) and austenitic stainless steels, such as paint, anodizing, ceramics, etc.
It is ideal for manufacturers and their customers, offices and specialist consultants, paint shops and electroplating plants, the chemical, automotive, shipbuilding and aircraft industries as well as heavy engineering. Suitable for laboratory, workshop and outdoor use.

feature:

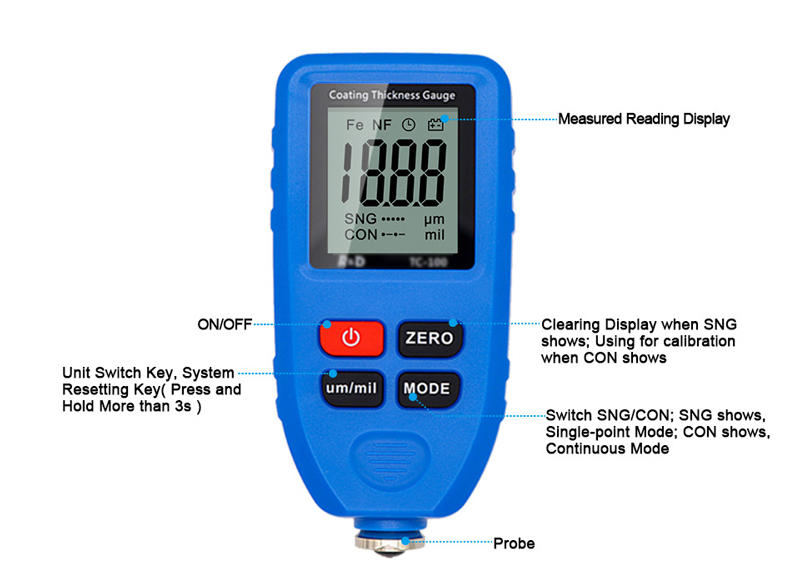

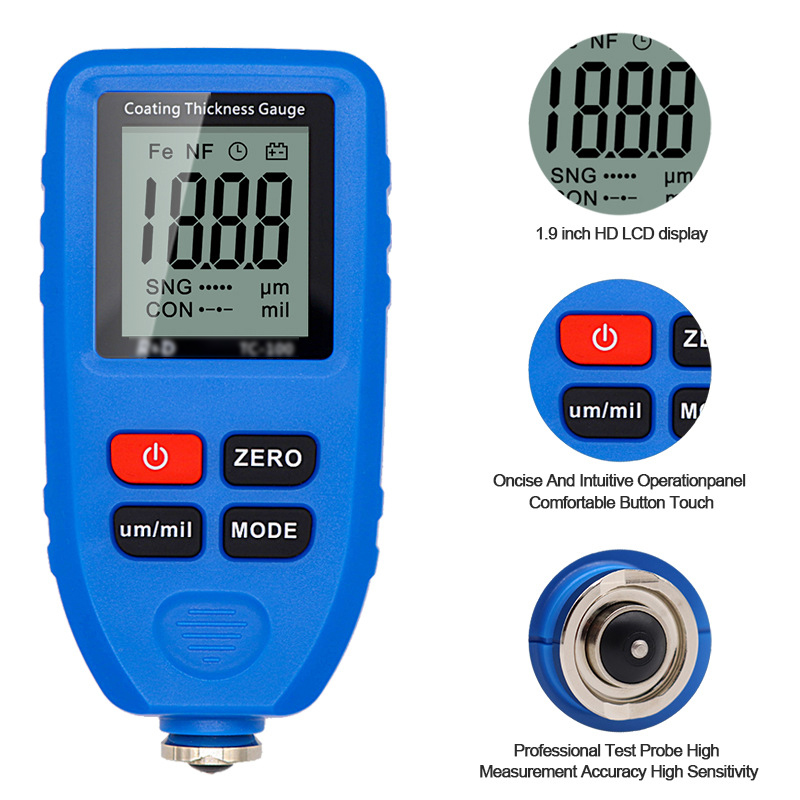

1. 128*128 dot matrix liquid crystal display, standard menu operation;
2. Two measurement methods: single and continuous;
3. Two groups of modes: direct (DIR) and general (GEN), the readings will be lost after power off in the direct mode, but will not be lost in the general mode. Each group can store 80 readings;
4. Each group of zero point calibration and multi-point calibration (up to 4 points);
5. Users can call and delete specified readings, or delete grouped readings;
6. Statistical display: average value, minimum value, maximum value and standard deviation;

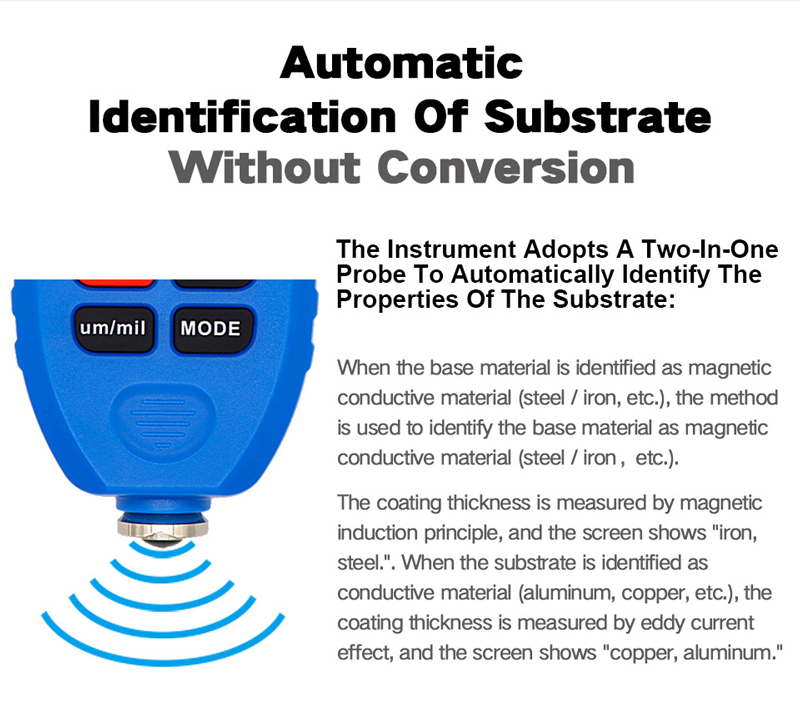

7. Three detection methods: automatic, magnetic, eddy current;
8. The user can set the upper limit or lower limit alarm for each group;
9. Automatic power off;
10. USB interface data transmission;
11. Low battery and error indication.

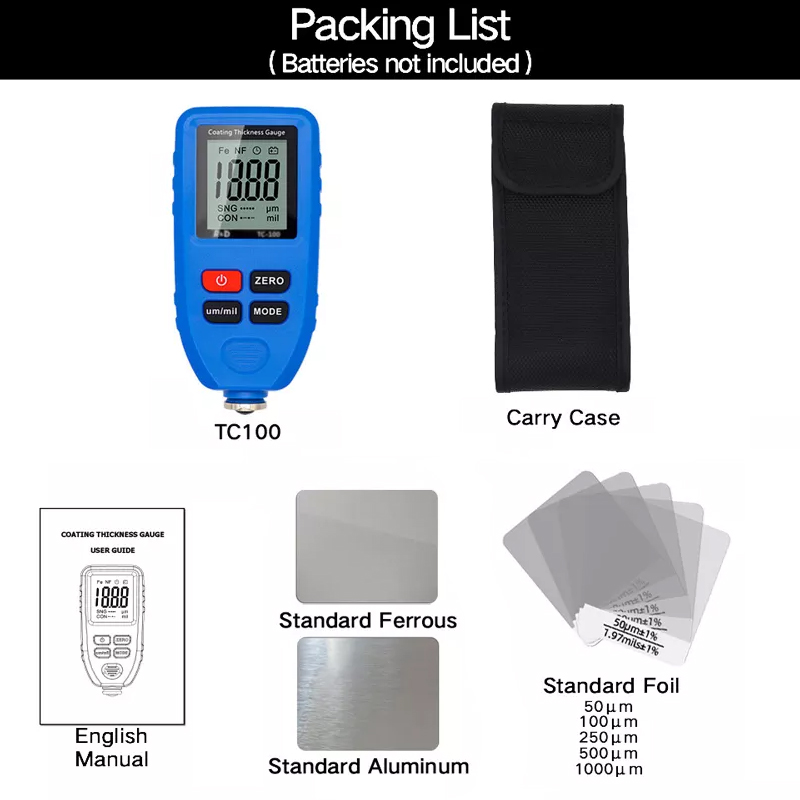

Package Included:

1 Coating Thickness Gauge
1 Aluminum plate
1 standard foil
