Battery Powered Crimping Tools, Hydraulic Battery Terminal Crimping Tools

Product details
Supply capacity:200 pieces per monthport:Ningbo
Crimp cycle: 3s-6s:3s-6s (depending on the size of the cable)Crimp force:60KN
payment terms:wire transferLarge crimping capacity:(max. 300mm).
Packaging Details:Standard export wooden boxNumbering:EBPE-300

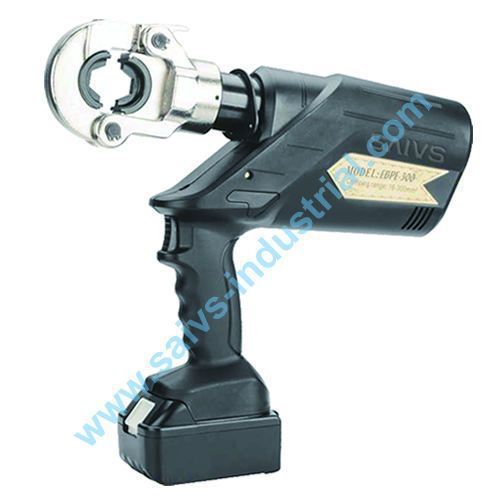

Battery crimping tool
Technical data:
Item No.: EBPE-300
Large crimping capacity (up to 300 mm).
Automatic pressure relief and reset.
Top-turning pressure connector, 360-degree rotation.


One-handed operation and compact compression fittings for working environments where space is tight.
Internal microsystem control.
Automatic pressure relief.
Li-ion battery powered.
Crimping force: 60KN
Travel: 17mm
Crimping/charging: 320 times (Cu 150mm2)
Crimp cycle: 3s-6s (depending on cable size)
Voltage: 18v
Capacity: 4.0Ah
Charging time: 2 hours
Packing: plastic box
Crimping die: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2
Batteries: 2
Charger: 1
Cylinder sealing ring: 1 set
Valve sealing ring: 1 set







EBPE-400
Hydraulic Battery Crimp Tool
Features:
Item No.: EBPE-400
Large crimping capacity (up to 400mm).


C-type pressure connector, an ideal tool for working at heights, can be rotated 360 degrees.
Wide crimp and light weight.
Automatic pressure relief.
Li-ion battery powered.
Crimping force: 120KN
Travel: 42mm
Crimp/charge: 120 times (Cu 150mm2)
Crimp cycle: 6s-18s (depending on cable size)
Voltage: 18v
Capacity: 4.0Ah
Charging time: 2 hours
Packing: plastic box
Crimping die: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm2







Battery Powered Connection Tools
Features:
Item No.: EBPB-240
Large crimping capacity (up to 300 mm).
Automatic pressure relief and reset.
Top-turning pressure connector, 360-degree rotation.
One-handed operation.
Compact crimp fittings for working environments where space is tight.
Internal microsystem control.
Automatic pressure relief.
Li-ion battery powered.
Crimping force: 50KN
Stroke: 12mm
Crimp/charge: 170 times (Cu 150mm2)
Crimp cycle: 3s-6s (depending on cable size)
Voltage: 18v
Capacity: 4.0Ah
Charging time: 2 hours
Packing: plastic box
Crimping die: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240mm2





battery connection tool
Item No.: EBPT-630
High crimping capacity (up to 630 mm for bronze ends and 500 mm for aluminum ends).
Top turning pressure fitting, the tool head can be rotated 360 degrees.
Compact crimp fittings for working environments where space is tight.
Automatic pressure relief.
Li-ion battery powered.
Crimping force: 137KN
Stroke: 50mm
Crimping/charging: 100 times (Cu 150mm2)
Crimp cycle: 15s-20s (depending on cable size)
Voltage: 18v
Capacity: 5.0Ah
Charging time: 2 hours
Packing: plastic box
Crimping die: 1 pair of conversion dies, 70, 95, 120, 150, 185, 240, 300, 400mm2
