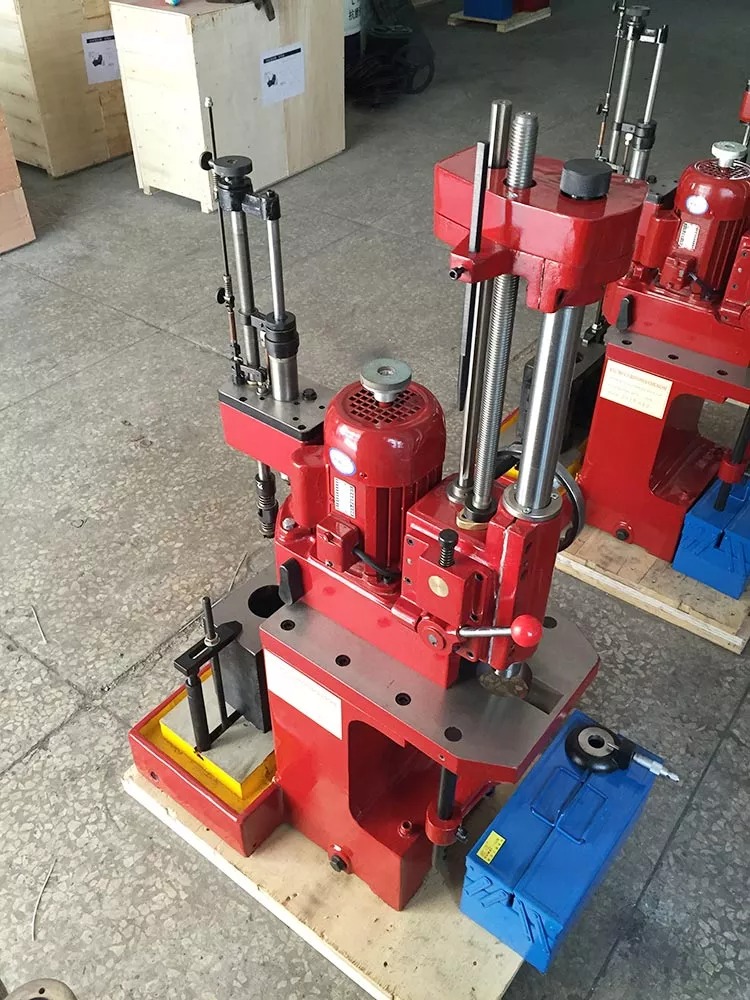

Motorcycle Boring Honing Machine TM807A Portable Cylinder Boring Honing Machine

Product details
After-sales service provided:Video Technical SupportVoltage:customer request
Showroom location:Indonesia, Mexico, Argentina, South AfricaMechanical test report:if
color:RedState of health:new, new
CNC or not:normalMain selling points:competitive price
Core component warranty:1 yearDimensions (L*W*H):820*600*1275mm
After warranty service:online supportWarranty:1 year
Boring and Honing Diameters:39-72Marketing Type:normal product
Core components:otherPower (kW):0
Video shipment inspection:ifplace of origin; place of origin:China
Boring and Honing Depth:160mmpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Local service location:Argentina Indonesiabrand:Upright
Packaging Details:export packingproduct name:Cylinder honing machine
Weight (kg):0Applicable industries:Mechanical repair shop, manufacturing plant
Functions:for maintenance cylinder
Product Description

This machine is mainly used for repairing motorcycle cylinders, etc.
Place the cylinder to be drilled under the base plate or on the machine base plane behind the center of the cylinder
The hole position is determined, the cylinder is fixed, and the boring and honing maintenance can be carried out.
Motorcycle cylinders with a diameter of 39-72mm and a depth of 160mm can be bored and honed, if there is a suitable fixture
After installation, other cylinder blocks with corresponding requirements can also be bored and honed.
Specification
TM807A
Bored and Honed Hole Diameters
39-72mm
boring and honing depth
160mm
Spindle speed
480 rpm
Boring shaft speed change steps
first step
Boring spindle feed
0.09mm/turn
Boring shaft pick-up mode
manual operation
Honing spindle speed
300 rpm
Honing spindle honing speed
6.5 m/min
electric motor
strength
0.75kw
Rotating speed
1440 rpm
Voltage
220 volt or 380 volt
frequency
50 Hz
Overall Dimensions (L x W x H)
680×480×1160mm
Host weight (approx.)
280 kg
