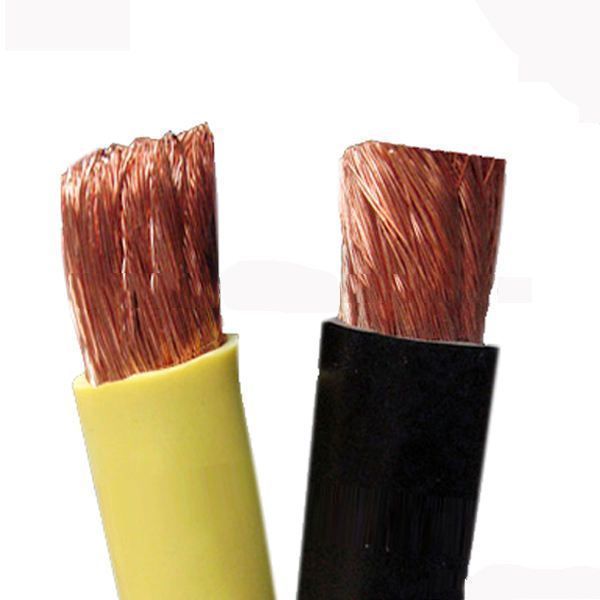

50mm 70mm 95mm 120mm 150mm copper rubber Welding cable

Supplier: Henan Huadong Cable Co., Ltd.
Region: Henan, China
Contact: Mr Allen Ma
Price: $0.50 / >=100 meters
Min. Order: 100 meters

Click here to contact

Product details

Conductor material:	copper	Material:	copper or aluminum
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	color:	red/white/blue/black/green/yellow (optional)
deliver goods:	By sea or according to customer's requirement.	application:	industrial
type:	low voltage	project name:	50mm 70mm 95mm 120mm 150mm copper rubber welding cable
jacket:	PVC/Rubber	Origin:	Henan, China
Processing:	Yes	sample:	free

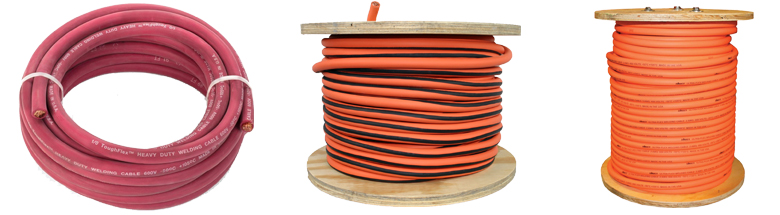

supplier:	direct factory	Packaging Details:	50mm 70mm 95mm 120mm 150mm copper rubber welding cable wooden barrel, steel wooden barrel, iron wooden barrel, also according to your requirements.
Insulation Materials:	PVC/Rubber	Supply capacity:	150000 km per month according to your order for copper rubber welding cables
standard:	GB/T 3956-2008 standard	model:	welding cable
Voltage:	250/440V ; 300/500V ; 450/750V	in stock:	stock available
brand:	East China Cable	port:	Qingdao, Tianjin, Shanghai and other rubber sheathed cables

Product Description

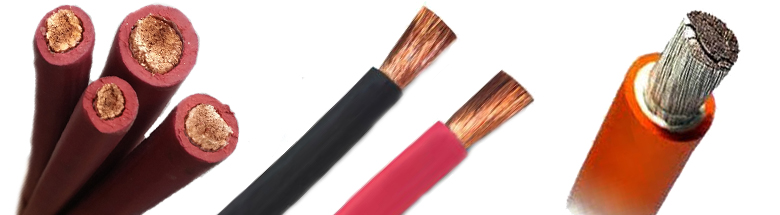

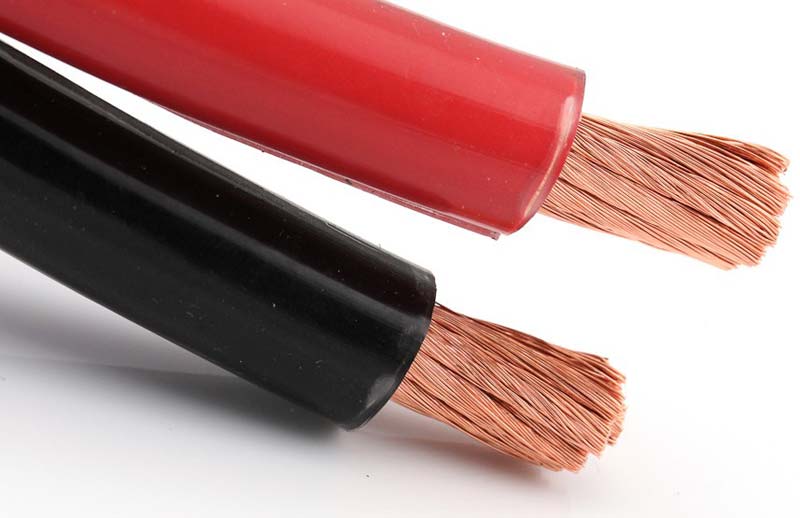

50mm 70mm 95mm 120mm 150mm copper rubber welding cable

application:

This cable is suitable for electric welding machines as the secondary grounding wire with the voltage of the secondary side to ground not exceeding 200V AC and the peak value of the impulse voltage 400V DC, or for connecting welding clamps

Continuous working temperature ≤60°C.

standard:

IEC 60245, GB5013.6-1997 Conductor Flexible annealed copper sheath Natural rubber (Type YH) Neoprene or other equivalent synthetic rubber Elastomer (Type YHF) Temperature rating 0oC-65oC Stock colors Black and red (others available)

Technical data and dimensions

Conductor nominal cross-sectional area (mm2)	conductor structure	Sheath nominal thickness (mm)	outer diameter		maximum. Conductor resistance at 20º C (Ω/km)	Approximate weight (kg/km)
Conductor nominal cross-sectional area (mm2)	Core number/diameter. (No./mm)	Sheath nominal thickness (mm)	minute	maximum.	maximum. Conductor resistance at 20º C (Ω/km)	YH	Yonghua
10	322/0.20	1.8	7.5	9.7	1.91	146	153.51
16	513/0.20	2.0	9.2	11.5	1.16	218.9	230.44
25	798/0.20	2.0	10.5	13.0	0.758	316.6	331.15
35	1121/0.20	2.0	11.5	14.5	0.536	426	439.87
50	1596/0.20	2.2	13.5	17.0	0.379	592.47	610.55
70	2214/0.20	2.4	15.0	19.5	0.268	790	817.52
95	2997/0.20	2.6	17.0	22.0	0.198	1066.17	1102.97
120	1702/0.30	2.8	19.0	24.0	0.161	1348.25	1392.55
150	2135/0.30	3.0	21.0	27.0	0.128	1648.5	1698.72
185	1443/0.40	3.2	22.0	29.0	0.106	1983.8	2020.74
