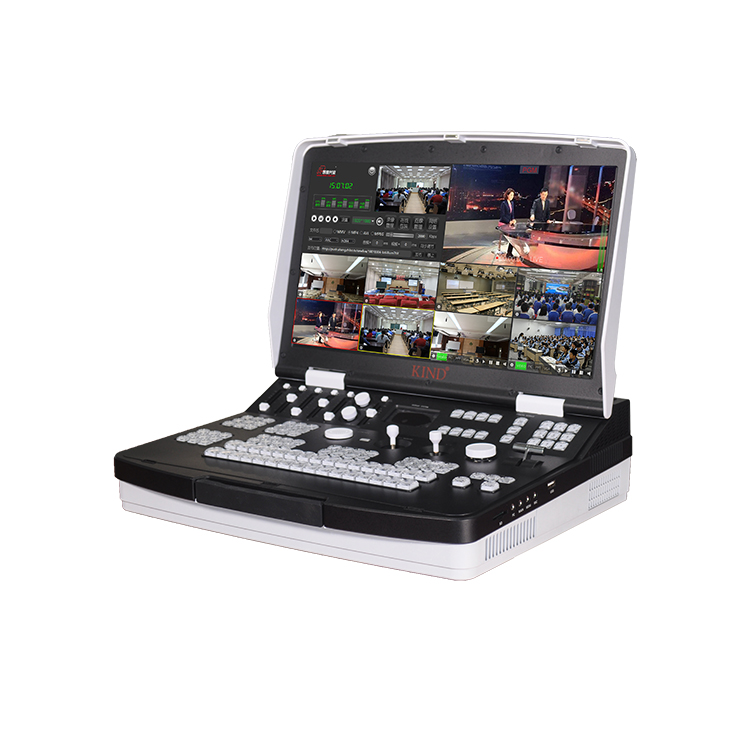

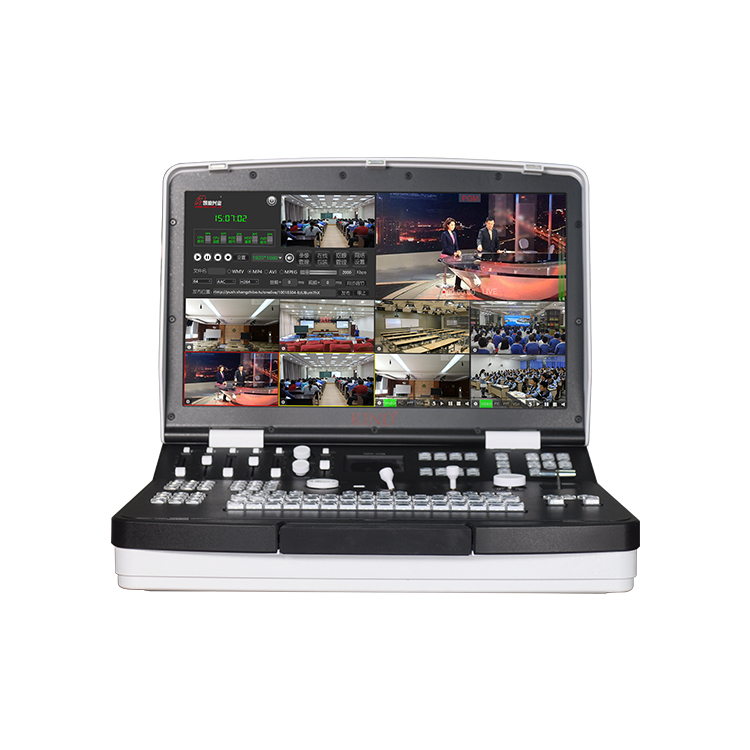

best selling casting video equipment stand camera live casting

Product details
Packaging Details:cartontype:video conferencing system, audio conferencing system
brand:typepayment terms:wire transfer
port:Tianjincolor:Black
size:160mmx155mmx230mmOrigin:Beijing China
Supply capacity:1000 pieces per monthmodel:KD-LC-8N

1. Video processing: SDI+NDI+Stream+DDR files, hybrid switcher;

2. Audio processing: digital mixer + analog mixer + audio hardware delayer;

3. Recording: HD video MPEG2-HL+MP4+ built-in hardware recording unit (backup);

4. Live streaming: HTTP, RTMP;

5. Support wireless NDI HX, Stream;

6. Guidance call and tally;

Alpha online packaging system, virtual keying system, audio and video editing system;

8. 64-bit kernel, 4K encoding;

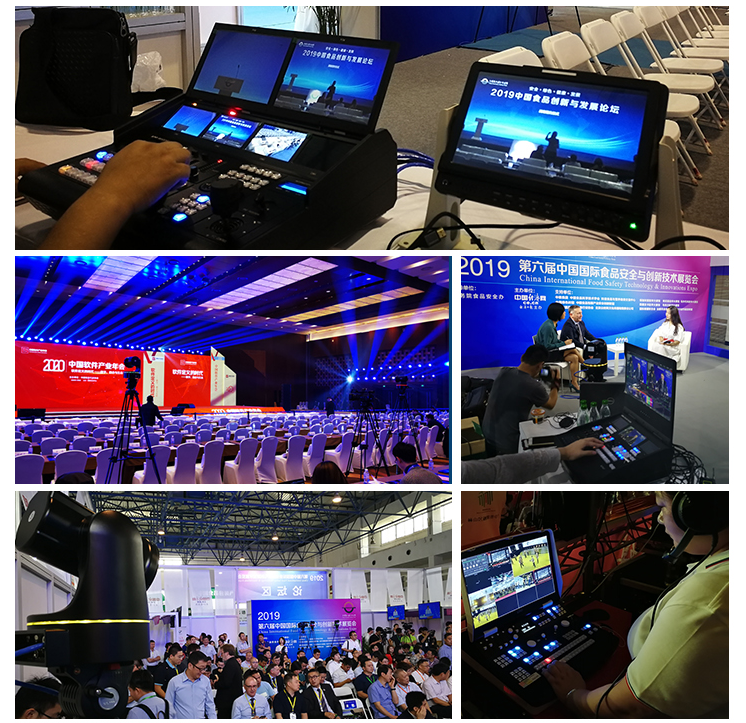

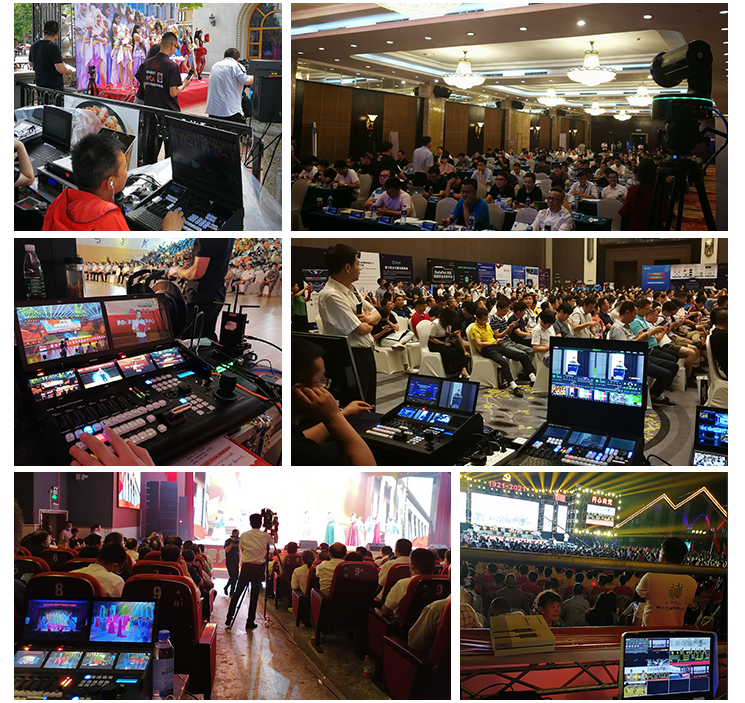

9. Application: studio, education recording, media live broadcast, various conference activities live broadcast;

10. Size: 425mm340mm×120mm, weight: about 5kg;

Product Specification Sheet

model

KD-LCC-8N

power supply

Input: AC110V-240V, 50-60Hz, 5A; Output: 12V 25A

Operating temperature

0-40℃

size

(L×W×H) 425mm×340mm×120mm

weight

5 kg

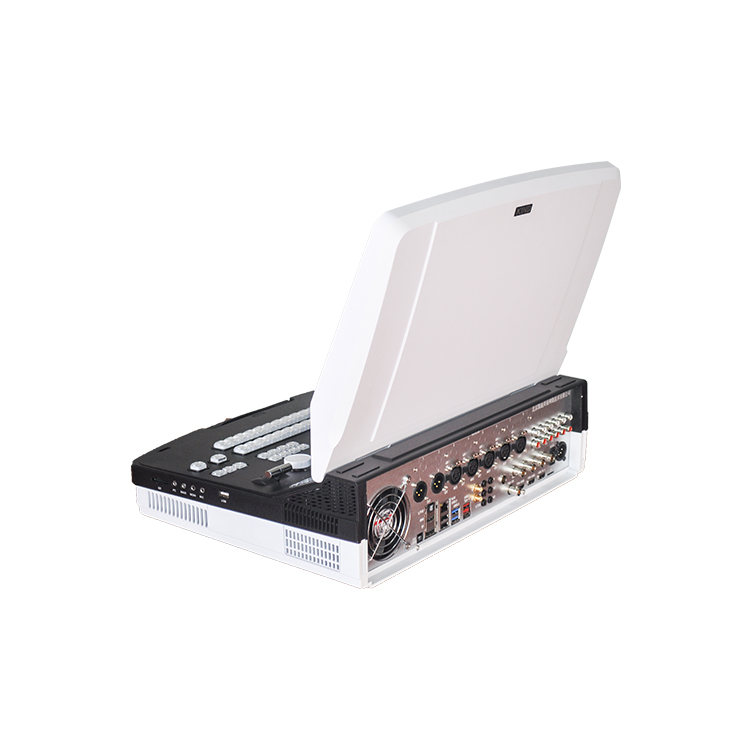

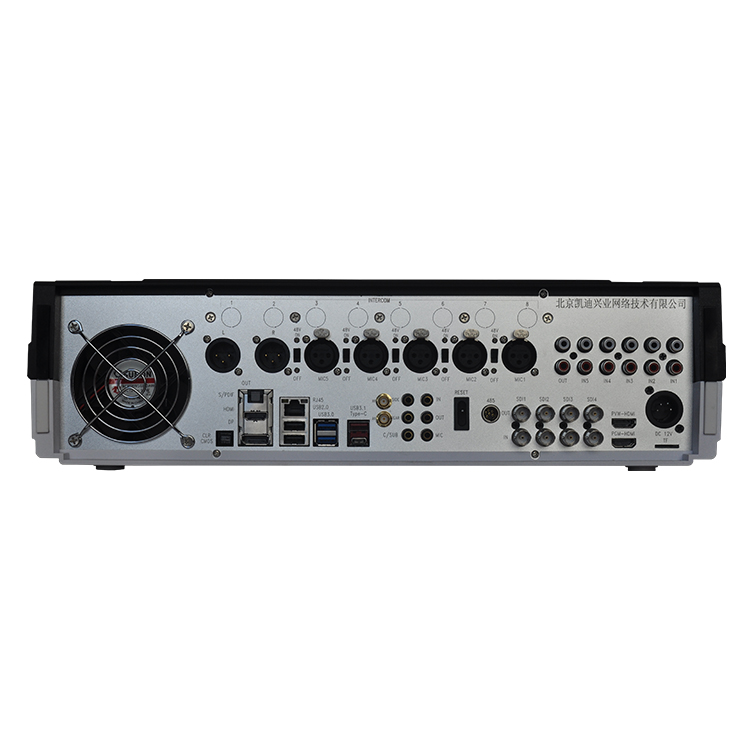

video input

3G-SDI×4, HDMI×1, NDI×6, code stream×6

video output

PGM: 3G-SDI×1, HDMI×1, NDI×1; PVW: HDMI×1

audio input

Stereo(L,R) IN RCA×5,MIC XLR×5

Audio output

Stereo (L, R) OUT RCA×1, balanced XLR OUT×2, monitor 3.5×1, playback monitor 3.5×1, director microphone MIC3.5×2

other interface

USB2.0×2, USB3.0×2, RJ451000M×1

Director of Communications

TALLY MINI XLR OUT×8, command phone

hybrid switch

SDI×4, HDMI×1, NDI×6, Stream×6, DDR×2, DVE×8

Mixer

Digital mixer × 5, analog mixer × 5, audio hardware delayer × 2

Record

MPEG, MP4

live

HTTP, Rtmp

delayed broadcast

Audio and video hardware delay broadcast system; (non-standard)

subtitle

CG-Alpha DVE, video playback, virtual keying system

configuration

Intel i9CPU 9900, RAM 16G, 1TB M.2, 4GGPU

system

Windows 10

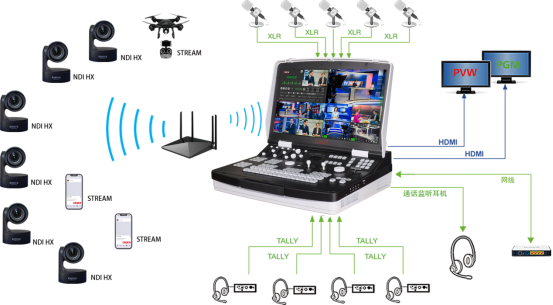

Connection Diagram

Product Specifications

1. Video input: SDI×4, HDMI×1, NDI×6, Stream×6, output: SDI×1, NDI×1, HDMI×2;

2. Built-in 16-channel high-definition hybrid stunt station, broadcast-level switching T-type fader;

3. 4K mixed core, full digital IP video processing, SDI, HDMI, NDI, Stream, local material DDR (picture, Video, PPT, playback, etc.) switching, hardware rotary encoder control DDR pause, player forward and backward selection point control Play, support broadcast wireless NDI and Stream access, support push and pull modes;

4. Audio input: Stereo (LEFT, RIGHT) IN x 5; Professional microphone (48V) XLR IN x 5; Stereo (left, right) output x 1; Balanced output XLR OUT x 2; Main output monitor 3.5 x 1; Monitor 3.5×1; Microphone 3.5×2;

5. Built-in digital mixer + analog mixer, as well as embedded audio and embedded solutions, realize the mixing of digital audio and analog audio, digital audio, analog stereo x5 x5, mike XLR x5 tuning external input audio mixing , Modulated audio plus HDMI output, and stereo output can be separated at the same time, built-in 48V phantom power supply, stereo x 1 output, broadcast monitor 3.5 x 1, broadcast monitor 3.5 x 1, guide earphone 3.5 x 1;

6. Built-in hardware audio delayer, audio processing through hardware encoder, accurate synchronization of audio and video;

7. Camera pan/tilt control, built-in hardware joystick controller and zoom controller for broadcast halls, control 8 cameras to push, pull, pan, tilt, tilt; 8 sets of camera selection keys, 9 sets of preset shortcut keys and camera menu Set shortcut keys;

TALLY: Built-in 8-channel call guidance system and 8-channel alarm system

9. The built-in CG-Alaph subtitle online packaging system realizes more than ten layers of 3D objects such as Alaph dynamic subtitles, angle markers, and platform markers, as well as light effects, dynamic materials, DVE direct recording video, video materials, etc. to realize the full integration of live programs Azimuth visual packaging;

10. Built-in image keying system, the virtual image keying effect can be adjusted through the hardware rotary encoder, and the virtual composite image can be used as a signal source to switch with other signals and files through the T-type damping switch push rod;

11. Built-in video encoding system, can record constant frame constant code MP4, MPEG2 to play high-definition video files, built-in streaming media WMV9, H.264 encoding system, built-in dual-stream recording and broadcasting system, built-in-provided in WMS and FMS publishing systems FMS audio and video synchronization adjustment;

12. Built-in broadcast-level non-linear editing system;

13. 64-bit encoding system, 4K encoding core, I9 or above CPU, 16G memory, 1TM.2 hard disk, 4G independent display, 17.3-inch display portable collection and recording all-in-one machine;

16. WIN10 operating system;

17. The size and weight of the equipment should meet the carry-on baggage standards of domestic airlines.

Beijing Kaide Network Technology Co., Ltd., formerly known as Beijing Kaidi Electronic Engineering Co., Ltd., was established in 1991 and its registered address is located in the core area of ​​Zhongguancun, Beijing. It is one of the earliest Zhongguancun technology companies. In 2000, it changed its name to Beijing Shan Network Technology. Ltd.

After more than 20 years of hard work, the company has its own market position. At the same time, we continue to develop new products and expand new markets. The quality, performance and technical content of the company's products are now at the forefront of the industry and have strong market competitiveness. The company currently has 14 software copyright registration certificates, 7 software product registration certificates, and 3 registered trademarks, and has obtained a number of utility model patent certificates, design patent certificates, software product enterprise certificates, and ISO9001 quality system certification. , ISO14001 Environmental Management System Certification, Occupational Health and Safety Management System Certification, National 3C Certification, Central Audio-visual Education Center "Digital Campus Comprehensive Solution" physical examination certificate and many other qualifications. arrive

Now holds the trademarks of "Kaidi Industrial", "KIND" and "KINIVE", and its leading products include "LIVECAST STATION", "LIVEVR STATION", "LIVECAM STATION", "BROADCAST STATION", and has formed many subsidiary products around the three major system products , a large number of supporting software products and complete application system solutions, the company's products have won bids for the central government procurement network government centralized procurement agreement supply projects for many times, and are listed as central government procurement agreement suppliers.

Product quality and after-sales service are regarded as the life of the enterprise.

We abide by the principle of "scientific and technological innovation, loyal service, and trustworthiness". With good technical advantages, standardized management, professional and meticulous service, and a vigorous team, it has won a good reputation in the industry, and its customers are all over the school. , media, government agencies, national enterprises and institutions, hospitals, military forces, electric power and other industries.



Q1: Are you trading company or manufacturer?
A1: We are a manufacturer.

Q2: Do you have your own R&D team?
A2: Yes, we can customize products according to your requirements.

Q3: Do you provide samples?
A3: No, we do not provide samples.

Q4: How about the quality?
A4: We have the best professional engineers and strict quality assurance and quality control system.

Q5: How about the package?
A5: Usually in cartons, but we can also pack according to your requirements.

Q6: How about the delivery time?
A6: It depends on the quantity you need, usually 1-25 days.
