China CK210 Mini CNC Lathe

Product details
Travel (X axis) (mm):80 mmport:Qingdao
Origin:Shandong Chinamodel:210
Bed width (mm):100 mmMechanical test report:if
Spindle bore diameter (mm):20 meterspayment terms:wire transfer
Bed width:100mmTool Station:4
Travel (Z axis) (mm):290mmDimensions (L*W*H):1080*784*1550mm
Warranty:1 yeartype:horizontal
maximum. Spindle speed (rpm):2000 rpmSupply capacity:10 sets per month
Weight (kg):200brand:prosper
Marketing Type:2019 Hot ProductsCore component warranty:1 year
Spindle speed:50-2250 rpmNumber of axes:2
Packaging Details:wooden packagingMain selling points:automatic
structure:Flat latheDistance between certificates:290mm
maximum. Work piece length (mm):290mmSwing in bed:210mm
Video shipment inspection:ifCore components:Bearings, motors, PLCs
Processing capacity:relaxing workNumber of spindles:single
Voltage:380VSpindle motor power (kW):0.6
Showroom location:not anyApplicable industries:Machinery repair shop, manufacturing plant
Health status:new

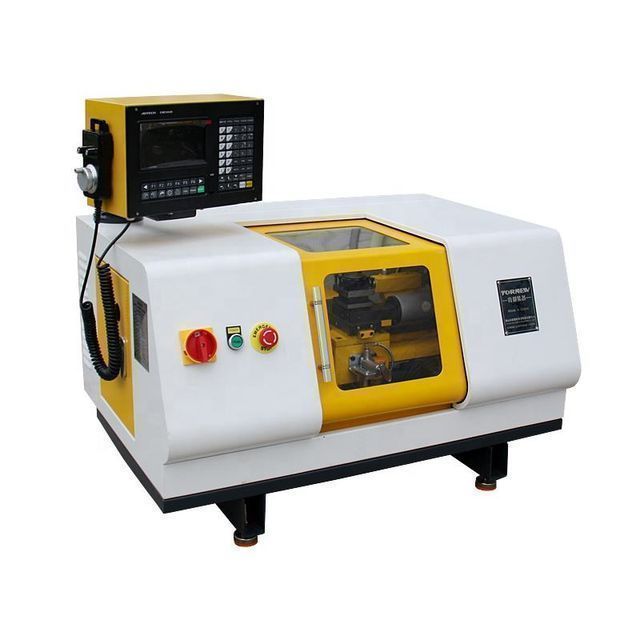

China Micro CNC Lathe

Product Description



model. 210 CNC
swinging on the bed 210mm
distance between certificates 400mm
bed width 100mm
Spindle speed 50-2250 rpm
Spindle taper MT3
Z axis movement 2000mm/min
X axis movement 1000mm/min
Z axis feed 500mm/min
X axis feed 250mm/min
Z axis torque 2 Nm
X-axis moment 2 Nm
Z axis travel 250mm
X-axis travel 80mm
Z axis motor 2N
X axis motor 2N
tool position 4
Turret Angle 360°
tailstock tape MT2
Tailstock travel 50mm
Z, X axis position accuracy 0.01mm
Tool positioning accuracy 0.005mm
main motor power 600W
Package size (length x width x height) 1080×784×1550mm
Weight (nw/gw) 115/160kg
