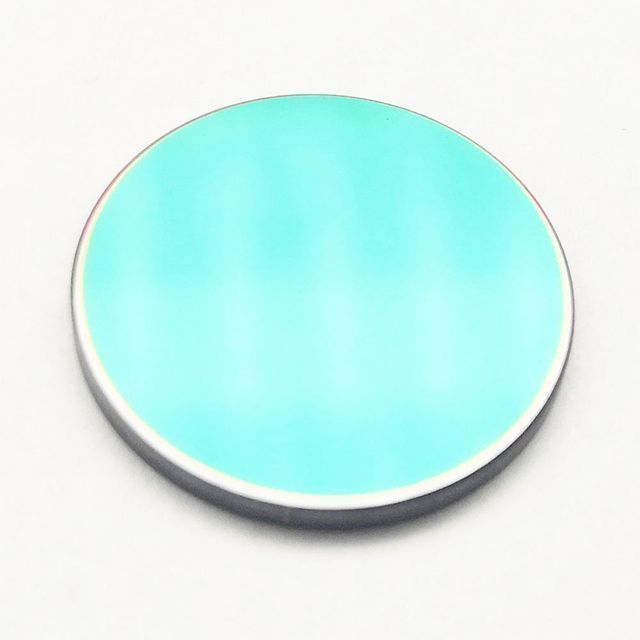

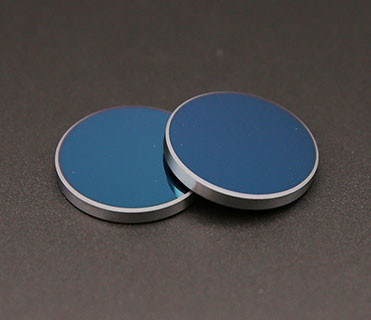

Best Price High Transmission AR Coated Optical Ge/Ge Window for Infrared Imaging

  • Supplier: Wuhan Especial Optic Inc.
  • Region: Hubei, China
  • Contact: Ms Minnie Song
  • Price: $50.00 / 10 - 99 pieces
    $25.00 / 100 - 999 pieces
    $10.00 / 1000 - 9999 pieces
    $5.00 / >=10000 pieces
  • Min. Order: 10 pieces
Product details
Package preview:payment terms:L/C, Western Union, D/P, D/A, T/T
brand:Wuhan Special OpticsSupply capacity:5000 pieces per month
Thickness Tolerance:±0.1 mmbevel:< 0.5mmX45°
product name:Optical Ge windowdiameter:5-500 mm
structure:flatClear Aperture:> 90%
Parallelism:< 3 arc minutesthickness:0.5-30 mm
Flatness:N<5, dN<0.5 @633nmWarranty:1 month
Packaging Details:First tissue paper, then plastic bubble wrap and cardboard box with shock paddingCustomization support:OEM,ODM,OBM
Diameter Tolerance:+0.0/-0.1mmSurface Quality:60-40, 40-20, 20-10
Origin:Hubei, Chinausage:infrared camera
shape:Circle, rectangle, wedge, polygon
Product Description

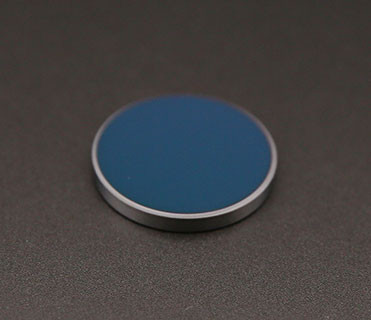

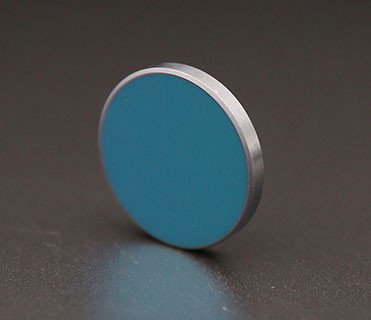

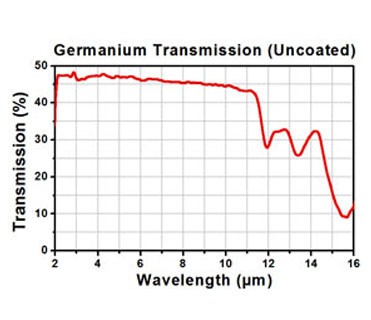

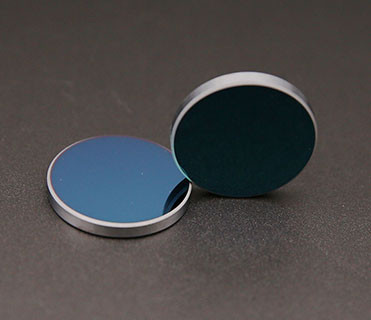

Germanium windows are optical windows that are opaque to ultraviolet and visible light, but have a wide range of transmission in the infrared. It has minimal chromatic aberration due to low dispersion and we recommend anti-reflective coating due to its high refractive index (4.0 from 2 – 14μm).


Germanium (Ge) is a heavy and hard substance with a Knoop hardness of 780, almost twice that of MgF. It is often a good choice for applications where rugged optics are critical. Its density is 5.33 g/cm3. Its transfer characteristics do drop dramatically with increasing temperature, a property known as thermal runaway, and we don't recommend it for applications where temperatures typically rise above 100C.


It is well suited for IR laser applications, especially where rugged optics are required. It can also be used as a longpass filter, transmitting only wavelengths greater than 2 µm. Germanium is non-reactive to air, water, alkalis, and many acids, and is highly scratch-resistant.

Germanium Window Specifications
standard precision
high precision
Dimensional tolerance
φ5-250mm+0/-0.2
φ3-350mm+0/-0.2
Thickness Tolerance
0.5-50mm+/-0.1
0.5-50mm+/-0.1
Parallelism
3 arc minutes
10 arc seconds
Surface Quality
60/40
40-20, 20/10
Flatness
N<λ/2@633nm(at 50mm)
N<λ/10@633nm(at 50mm)
Clear aperture
>90%
>95%
Chamfer
Protected<0.5mmx45deg
Protected<0.5mmx45deg
