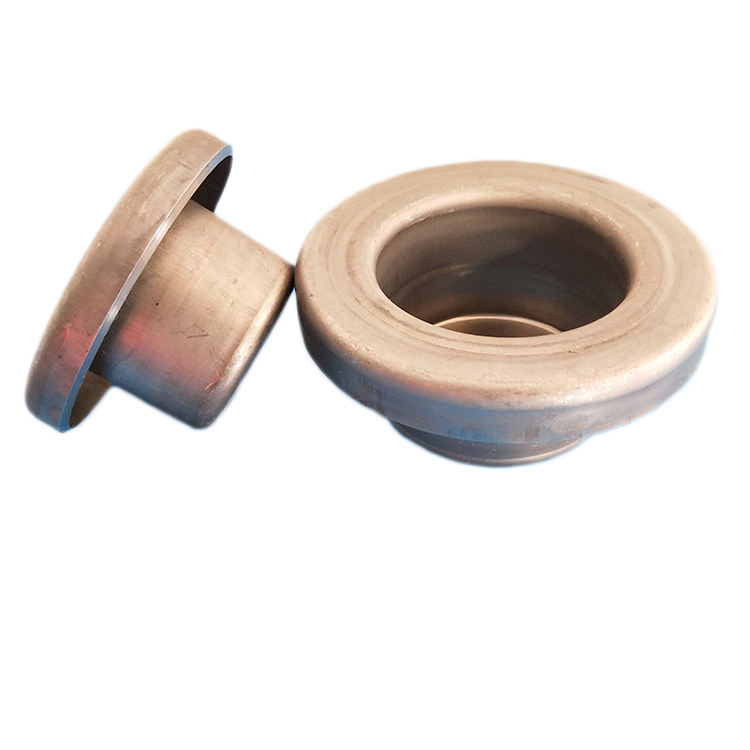

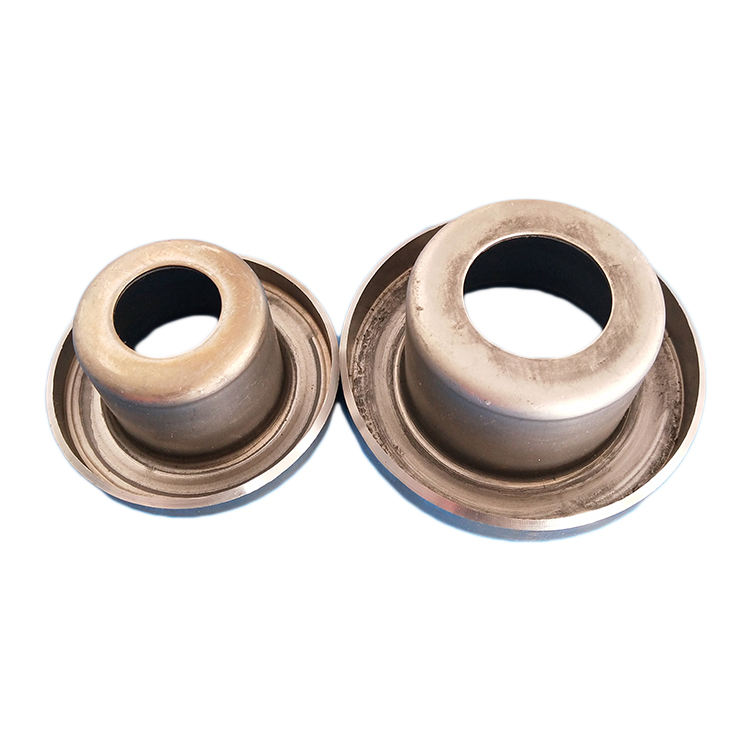

High quality conveyor roller bearing housings 6204 for conveying systems

Product details
structure:Housing + related sealstype:TK/TKII/DTII/TKIII/TD75
ID:customizablePackage preview:
model:60-6204 to 219-6312Serve:OEM ODM customization
feature:Long life dustproofSealing material:ABS resin/nylon
Origin:Hebei chinaquality:High precision, low tolerance
payment terms:L/C, Western Union, T/T, MoneyGrambrand:Control System
port:Xingang, ChinaPackaging Details:Wooden box/big bag (or according to your requirements) size: 1000*1000*1000mm / 1100*1100*1100mm / customized size
Applicable bearings:Deep groove ball bearing 6204-6312Name:bearing seat
Supply capacity:20000 sets per weekApplicable industries:Building materials stores, manufacturing plants, machinery repair shops, construction, energy and mining
Material:SPHC/SPCCusage:Making Conveyor Rollers
☛Contact us for free samples☚
Product Description
product name
Housings and Seals
bearing seat
Carbon steel SPHC
Inner seal
Nylon PA6
Male/female labyrinth seal
ABS resin
cap
Carbon steel SPCC
protecting mask
ABS resin
model
TK, TKII, DTII, TD75
bearing
6204,6205,6206,6305,6306,6307,6308,6309,6310.6312.6406
Drum diameter
60, 76, 89, 102, 108, 114, 127, 133, 152, 159, 165, 176, 194, 219, etc.
Products (housings and seals):
The punch bearing housings and related seals we produce have the advantages of high precision, good gloss, no stretch scars, and no burrs. The steel is SPHC, which is currently the best steel for building houses, and the quality is guaranteed.
detailed drawing
Enclosure testing with flags
