Port lifting container cranes, 40t rubber tyre gantry cranes, straddle carrier

Product details
Port:SHANGHAI;Rated Loading Capacity:30000-40000kg;
Max. Lifting Height:4660mm;Condition:New;
Place of Origin:Jiangsu China (Mainland);Application:Outdoor;
Feature:Gantry Crane;Brand Name:GP;
Span:18-35m;Packaging Detail:gantry cranes : The standard sea package;
Certification:ISO;After-sales Service Provided:Engineers available to service machinery overseas;
Supply Ability:50 Unit/Units per Month gantry cranes;Max. Lifting Load:40t;
Payment Terms:L/C,T/T;gantry cranes:any color that you want;
Warranty:One Year;Delivery Detail:15-20 days after receiving the payment;
Model Number:BSJD300-400;Rated Lifting Moment:Load Capacity;



Product Photo

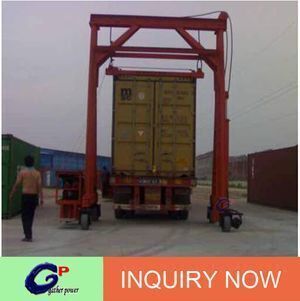

Port lifting container cranes, 40t rubber tyre gantry cranes, straddle carrier



 :













Product Advantage

Here is the specific informations about Container Crane :

BSJD300-400Container Crane

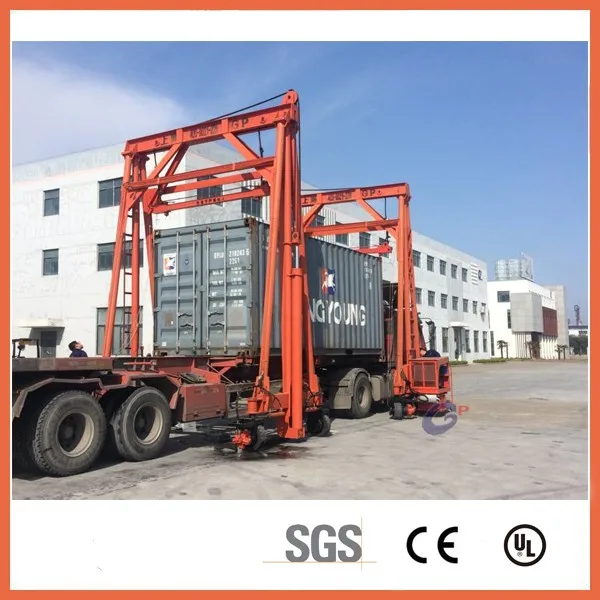

BSJD360-400 mobile container crane is designed for small and medium sized container yard, SMEs containerized production, the lowest operating costs of one Container crane (Container crane earth). The main functions are: the container and the container is unloaded at lifting containers onto flatbed implemented on the work site from the container flatbed truck, the operator can be loaded to the continuity of the container. At the same time, do transshipment containers, greatly reducing the waiting container trucks loading time, you can improve the efficiency of container trucks use 12 to 15 times.

The car with 490BPG diesel-powered, low noise, low vibration characteristics of the vehicle. Body by a steel frame, steel, hydraulic drive system of hydraulic motors, gear pumps, steering cylinder, lifting cylinder, double-acting balancing valve, walking solid tires and other components. Lifting with a diameter of 180 mm cylinder, lifting capacity, low pressure systems, hoisting fall stable, safe, efficient loading and unloading. Use two-wheel drive, four-wheel steering, the maximum angle of 110 degrees, to achieve any angle of the steering and panning, small turning radius. Control system consists of a complete set of body composition and the operating lever, flexible operation, simple and convenient. The car requires a flat, after the hardening, no potholes use of the site. Suitable for handling logistics companies, warehouses, docks, container yard, container yard and other places, it is a cheap, convenient and practical container lifting equipment.



Specification



specifications

1

model number



BSJD300

BSJD360

BSJD400

2

total weight

T

7

7.5

8

3

rated capacity

Kg

30000

36000

40000

4

max. steering speed(without load)

Km/h

3.5

3.5

3.5

5

min. passageway width

mm

3200

3200

3200

6

rated torque of hydraulic motor

Nm

1010

1010

1010

7

max.lifting speed

without load

mm/s

35

35

35

8

max.falling speed

mm/s

25

25

25

9

max.lifting speed

with load

mm/s

25

25

25

10

max.falling speed

mm/s

30

30

30

11

engine power

Kw

37

37

37

12

system pressure

Mpa

14

15

16

13

rotation angle of turning wheel

°

110

110

110

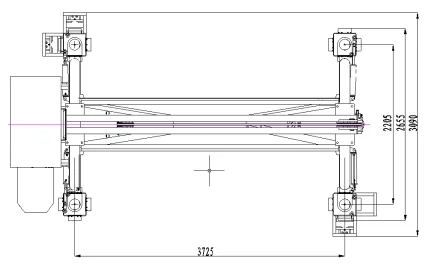

specifications of structure

14

L*W*H

mm

5055×2655×6320

15

max. height of lifting beam

mm

4660

4660

4660

16

lowest height of lifting beam

mm

2270

2270

2270

17

The minimum ground

clearance

mm

110

110

110

18

Longitudinal track

mm

2205

2205

2205

19

crosswise tread

mm

3725

3725

3725

20

inside width of crosswise

mm

3275/3380

3275/3380

3275/3380

21

Wire rope diameter

mm

28

28

28

22

Tire size

mm

450×180

450×180

450×180





Instructions for us

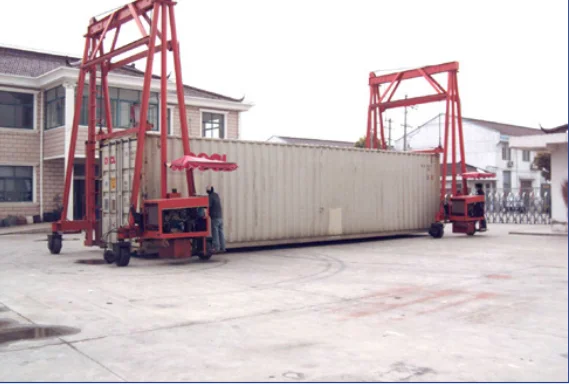

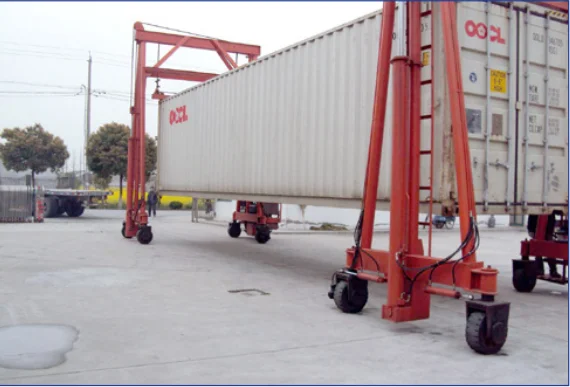

 The following is the working process of mast mobile container crane.

1.the truck with container is driven under crane

2.crane grip the container

3.the truck drive away

4.container reach in ground

5.container touch floor/ground, goods can be loaded into container by forklift.

6.after all goods are loaded into container, so do opposite process that the crane lift the container, and then put it on truck, all is ok
