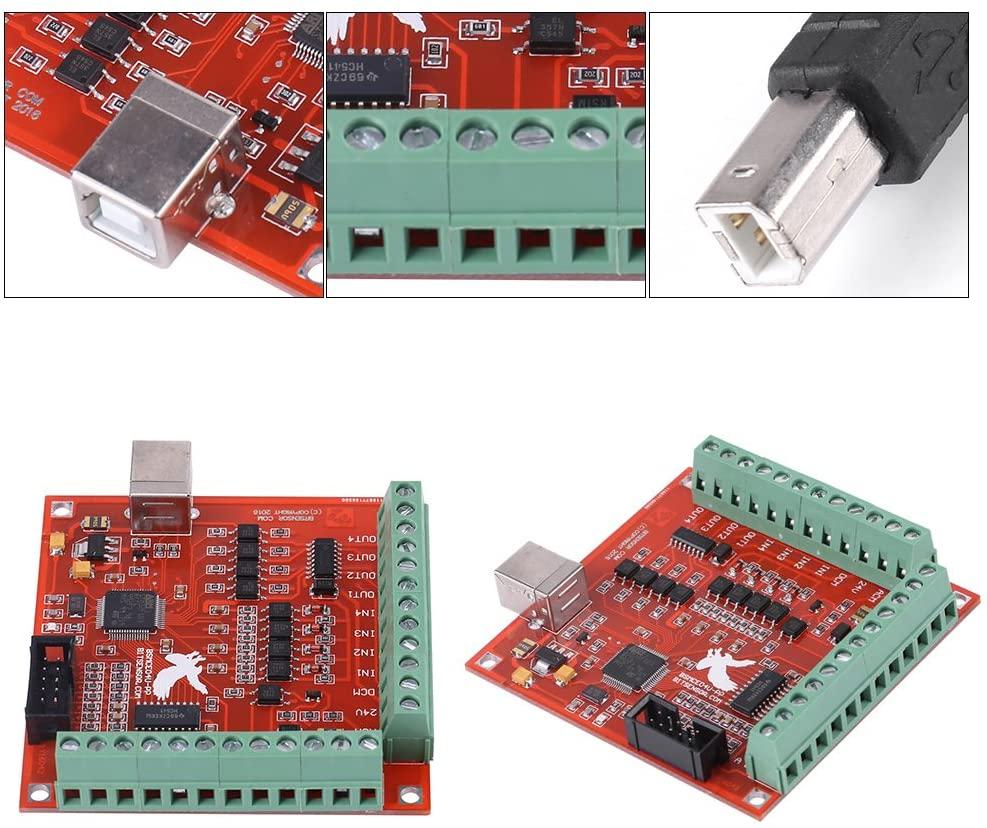

Dytrees Hot Sale CNC USB MACH3 100Khz Breakout Board 4 Axis Interface Driver Motion Controller

Supplier: Shenzhen Twotrees Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Angel Ma
Price: $8.42 /set
Min. Order: 1 set

Click here to contact

Product details

Dimensions (LWH):	8x7.7cm/3.15x3.03inch	brand:	double tree
Video shipment inspection:	if	speed:	60m/min
Core components:	other	Mechanical test report:	if
Supply capacity:	10000 pieces per month	Function:	PLC+Automated Teller Machine
CPU:	ARM(32-bit)+DSP+FPGA	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
product name:	CNC motion control card	axis:	4 axis
Health status:	new	port:	God
Origin:	China	Applicable industries:	Motion Controller
port:	usb port	Showroom location:	not any
Marketing Type:	normal product	Warranty:	1 year
weight:	0.3

Product Description

describe:
1. Support 4-axis linkage, can connect 4 stepper motor drivers or servo drivers;
2. The maximum stepping pulse frequency is 100KHz, suitable for servo or stepping motors;
3. Support automatic probe tool
4. Support emergency input
5. Support limit switch
6. Support the connection of electronic handwheel
7. An external 24V DC power supply is required to isolate the USB and external ports to make the system more stable
8. With 0-10V output port, you can use mach3 software to control the spindle motor speed.
9. 4 general-purpose inputs, which can be connected to limit switches, emergency stop switches, probe switches, zero return and other equipment
10. 4-way general-purpose isolation relay drive output interface, which can drive 4-way relays to control the spindle start and forward rotation
Rotary and counter-rotating, pumps and other devices
11. 1 status LED, indicating the connection status on the board
Size: 8x7.7cm/3.15x3.03inch

Quantity: 1 set

notes:
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

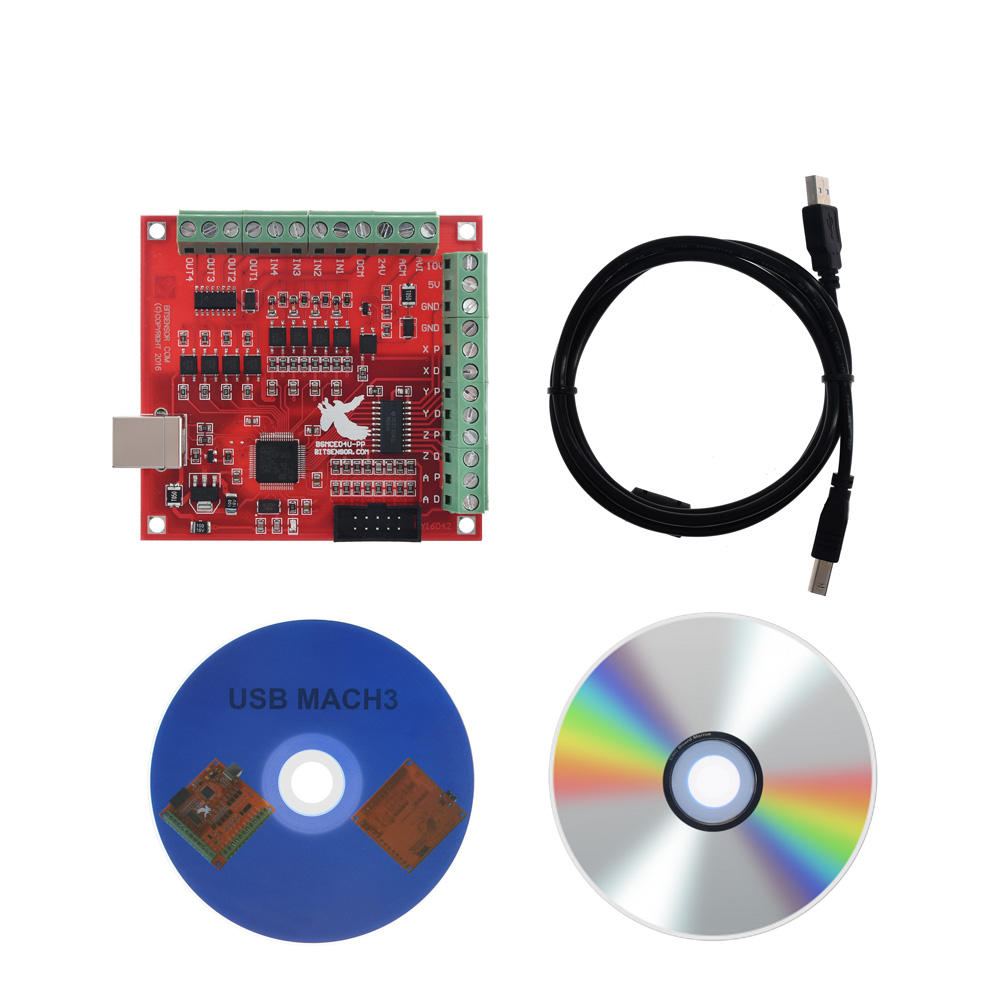

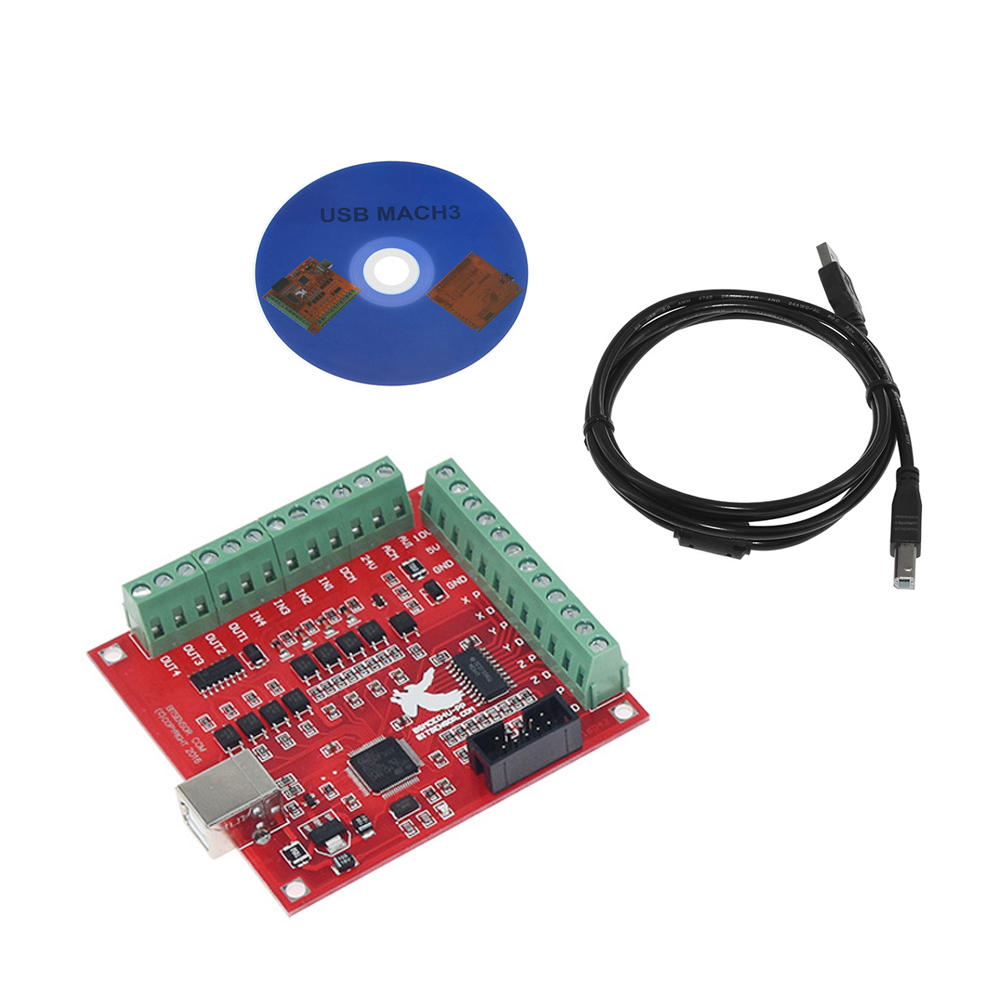

Package Contents:
1 x USB CNC controller card
1 USB data cable
1 disc
