HRC50 Tungsten Carbide End Mill 2 Flute Radius CNC Carbide High Feed Round Nose Milling Cutter For Iron Castings

Product details
Customization support:OEM productionpayment terms:wire transfer
port:Guangzhou or ShenzhenPackaging Details:1. Put the gun drill into the special plastic box for end mills 2. Add cushioning pads in the plastic box 3. Wrap sponge or other cushioning materials in the plastic box with end mills 4. Pack in carton or wooden box for delivery
Applies to:Copper, iron, castings, steel parts, etc.product name:HRC50 Carbide 2 Flute
Drilling type:Circular Slot Cutting Milling CutterWarranty:3 days
Full length range:L50-100mmflute:2 flutes
hardness:Chapter 93Blade Diameter Range:D1-16mm
Shank diameter range:L4-16mmHelix angle:35°
Material:Tungsten carbidePackage preview:
Ball Radius:R0.2mm, 0.3mm, 0.5mm, 1mm, 1.5mm, 2mm, 3mm,Surface treatment:Titanium nitride
Product Description

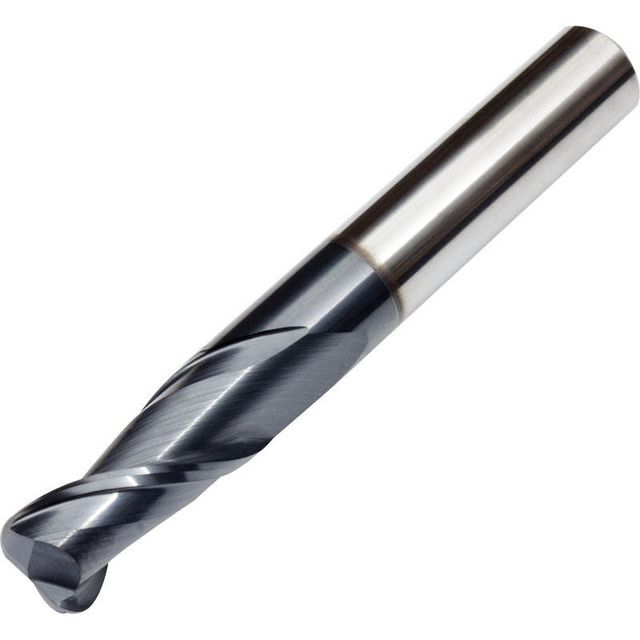

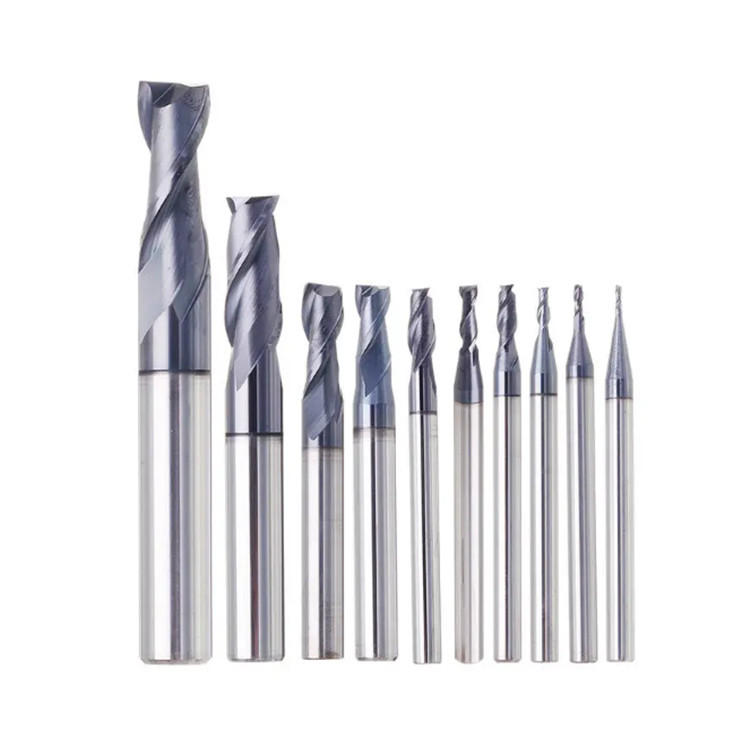

2 Flute Radius Tungsten Carbide End Mills

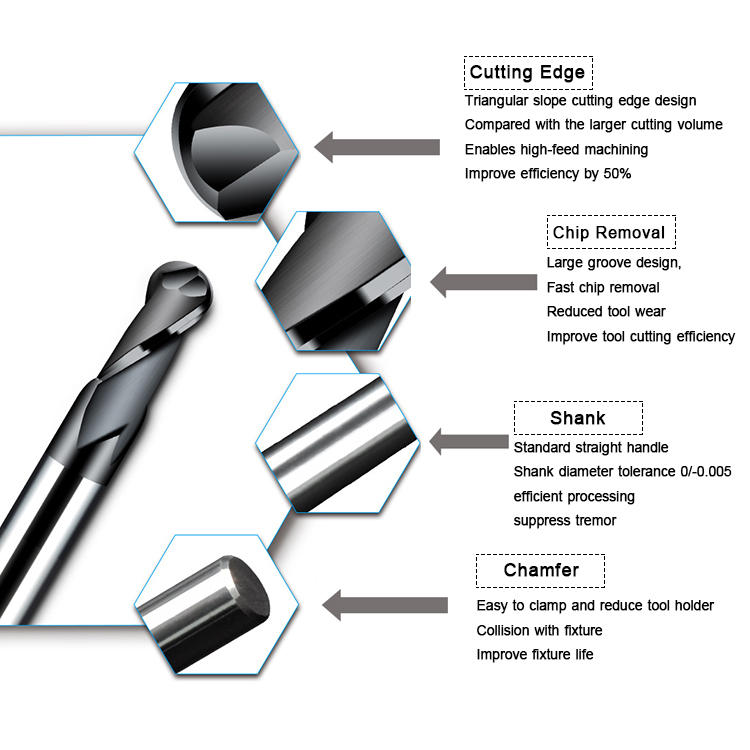

◎Shank diameter range: L4-16mm ◎Ball radius: R0.2mm, 0.3mm, 0.5mm, 1mm, 1.5mm, 2mm, 3mm, ◎Blade diameter range: D1-16mm ◎Total length range: L50-100mm ◎Material : Imported wear-resistant hard alloy, fine-grained tungsten steel ◎ Coating: Titanium-containing nanocomposite coating (TiAlN) ◎ Applicable processing hardness: HRC30-HRC50 ◎ Applicable processing materials: copper, iron, castings, steel within HRC30-HRC50 ◎Machining cooling conditions: air cooling, liquid cooling, water cooling ◎Product features: good rigidity, easy chip removal, sharp and non-stick knife, high gloss, high machining accuracy, suitable for forming milling, U milling, ◎Axis type: Round handle ◎Helix angle: 35°◎Applicable machine tools: CNC machining centers, engraving machines, etc. ◎Hardness: 93 HRA

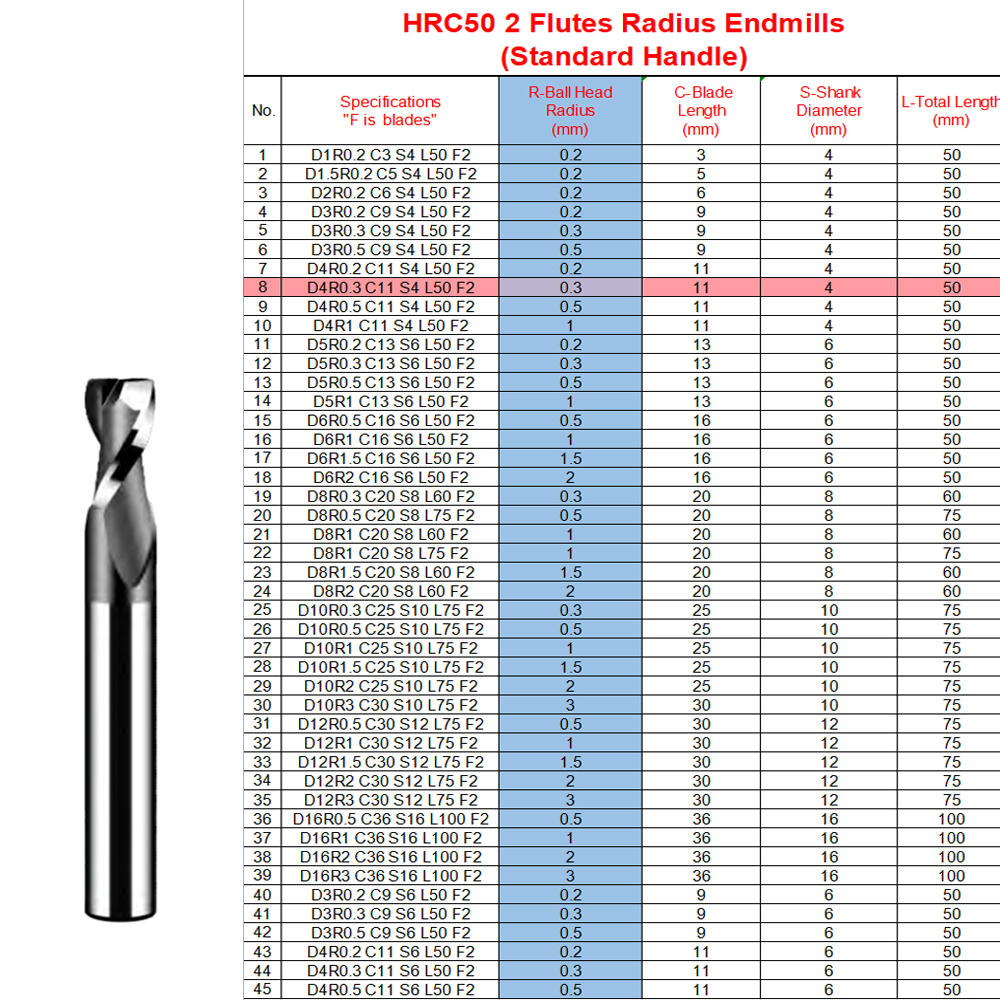

Specification
thing
value
Drilling type
Circular Slot Cutting Milling Cutter
surface treatment
Titanium nitride
Custom support
OEM production
product name
HRC50 Carbide 2 Flute
apply to
Copper, iron, castings, steel parts, etc.
Material
Tungsten carbide
flute
2 flutes
Shank diameter range
L4-16mm
ball radius
R0.2mm, 0.3mm, 0.5mm, 1mm, 1.5mm, 2mm, 3mm,
Blade Diameter Range
D1-16mm
full length range
L50-100mm
Helix angle
35°
hardness
Chapter 93

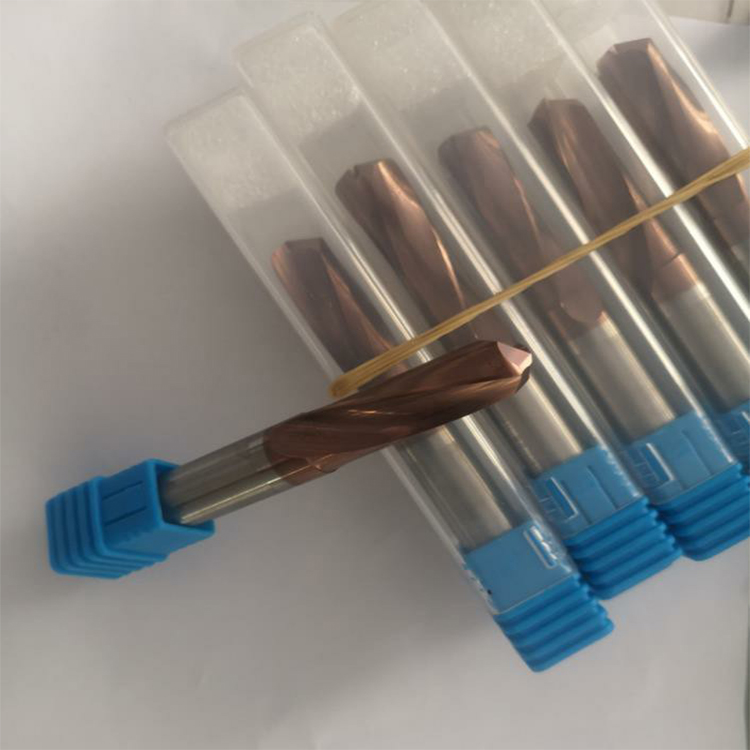

Product packaging
1. Put the gun drill into the special plastic box for end mills 2. Add cushioning pads in the plastic box 3. Wrap sponge or other cushioning materials in the plastic box with end mills 4. Pack in carton or wooden box for delivery
