Manual aerial photography CRaphy helicopter drone accessories noise reduction and shock absorption GR2 camera wire rope isolator

Product details
port:Xi'an, Shanghai, BeijingLocal service location:not any
brand:GXModel:Jiang Guangxing
Shock resistance:20g/11msAfter warranty service:online support
Supply capacity:10000 pieces per monthOperating temperature:-55~120
type:shock absorberbrand:GX
Material:aluminum and stainless steel, stainless steelWarranty:over 5 years
feature:durableRelated Products:Backflow damper
Showroom location:not anyApplicable industries:Energy & Mining, Marine & Industrial Engine Mounts
After-sales service provided:online supportHealth status:new
Packaging Details:The vibration isolator is packed in a carton lined with shockproof cardboard.Function:Return air
payment terms:T/T, MoneyGram

Manual aerial photography CRaphy helicopter drone accessories noise reduction and shock absorption GR2 camera wire rope isolator

Product Description

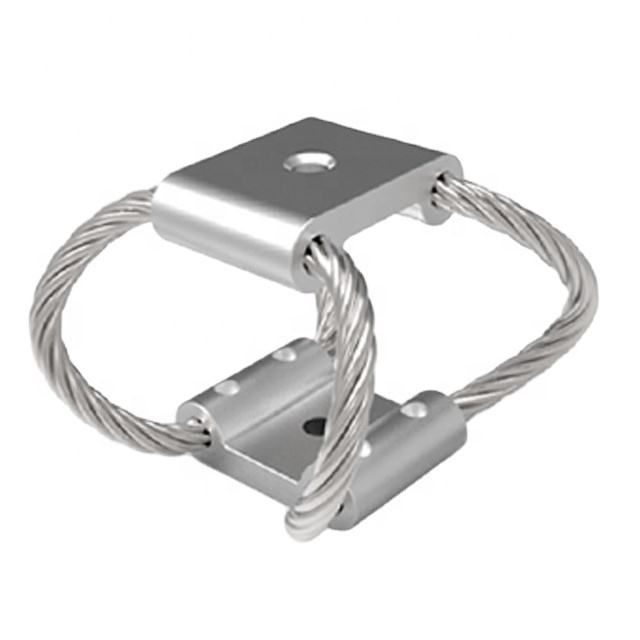

Wire Rope Isolators are stable mounting components of high quality wire rope secured with strong metal anchors. Each isolating element has specific response characteristics depending on the diameter of the wire rope, the number of strands, the length of the cable, the twist or stranding of the cable, and the number of cables per section.

Intrinsic damping is provided by flex hysteresis, the friction and sliding friction between strands of the wire rope.

Wire Rope Isolators provide a higher level of isolation than any other media or design, with excellent shock absorption. Cable supports are truly unique and are suitable for a wide range of physical and engineering requirements, including virtually all isolation needs. They shatter the notion that a single mount cannot handle both shock and vibration.



options
  • Chrome-plated aluminum bars are standard; however, other materials and finishes are also available.
  • If the standard is not suitable, a different cable configuration can be used.

size chart







application:



Spiral isolators protect a wide range of loads:

  • Very fragile (electronic devices, computer hardware, optical devices).
  • Very robust (heavy engines, machinery - during transport or while in operation, even in moving vehicles).

See the table below for more details.



application

typical equipment

protect from

Business advantage

on board

Electronics, Computers, MachineryExplosive shock wave, natural vibration, stormLong life, maintenance free, extreme temperature, corrosion resistance, full shaft protection

SUV

Instruments, generators, electronic productsrough terrain, bad road conditions, collisionsLong life, maintenance free, temperature extremes, ozone, radioactivity, UV radiation

airplane

electronics, computerHigh G maneuvers, hard landings, turbulent airextreme temperature and altitude, lightweight

shipping container

Optics, Instruments, Missiles, ElectronicsTransport, handling drop, loading/unloadingLong life, maintenance-free, moisture-proof, repeated use

industrial equipment

Centrifuges, Dryers, PumpsUnbalanced dynamic loads, fluid hammer, natural vibrations, weak foundationsLong life, maintenance-free, corrosive environments

Ordnance equipment

Missile launchers, tank artillery, computer control, electronicsRough terrain, rail humps, border crossingsMaintenance free, extreme temperature, explosion nearby

medical equipment

Mechanical equipment needed for patient careVibration from moving parts, moving cart - transport shockMaintenance-free, non-outgassing, sterilizable

chimney

Chimneys, scrubbers, measuring equipmentWind causes resonant frequencies, flue gas causes turbulence near the scrubber, etc.Maintenance-free, extreme temperatures, corrosive environments









our service



1: Customized according to your special needs.

2: Each product has a variety of styles and a complete series of products.

3: Large inventory, fast delivery.
4: High quality, competitive price
5: Sample order and small quantity order can

6: Provide product information for free.
7: Reliable quality assurance and positive after-sales service

8: A small amount of samples are available
