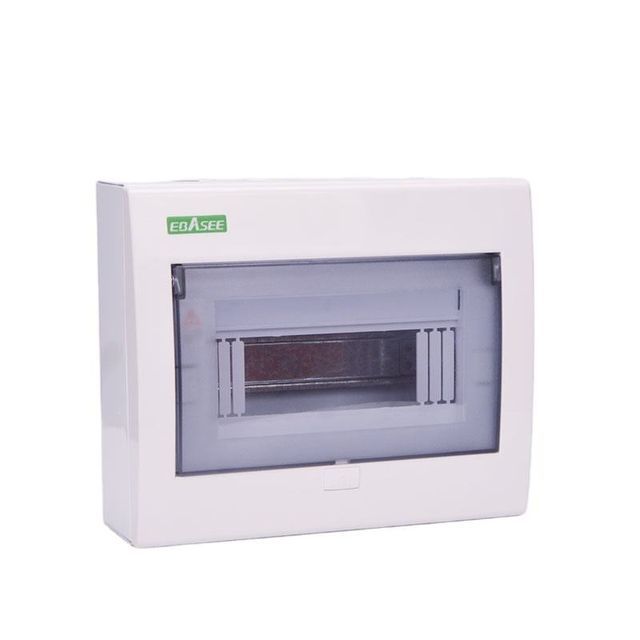

Panel Mount 18 Way Distribution Box Electric Plastic Circuit Breaker Enclosure, Household Switch/Control Box

Product details
Supply capacity:2,000,000 pieces of 24 circuit breaker boxes per monthInstallation type:surface/flush
type:Distribution box electrical appliancesbrand:Ebasee or OEM, EBASEE
product name:distribution boxcolor:white, transparent, blue
Product number:EBS7D/S seriesOrigin:China Shanghai
country of origin:Shanghai, China (Mainland)model:EBS7D
Packaging Details:EBS7D: 20/carton Carton size: 47.5*36.2*30cm3 Gross/net weight: 15.2/13KgsWay:Road 4~36
Material:Material/Plasticpayment terms:L/C, T/T, Western Union
Number of poles:1Rated current:Road 4 50A, Road 6-36 63A
port:Shanghai/NingboInstallation location:A place not eroded by rain and snow
Related Products

Product Description

 application

EBS7D series light boxes are divided into two types: embedded type and surface mounted type

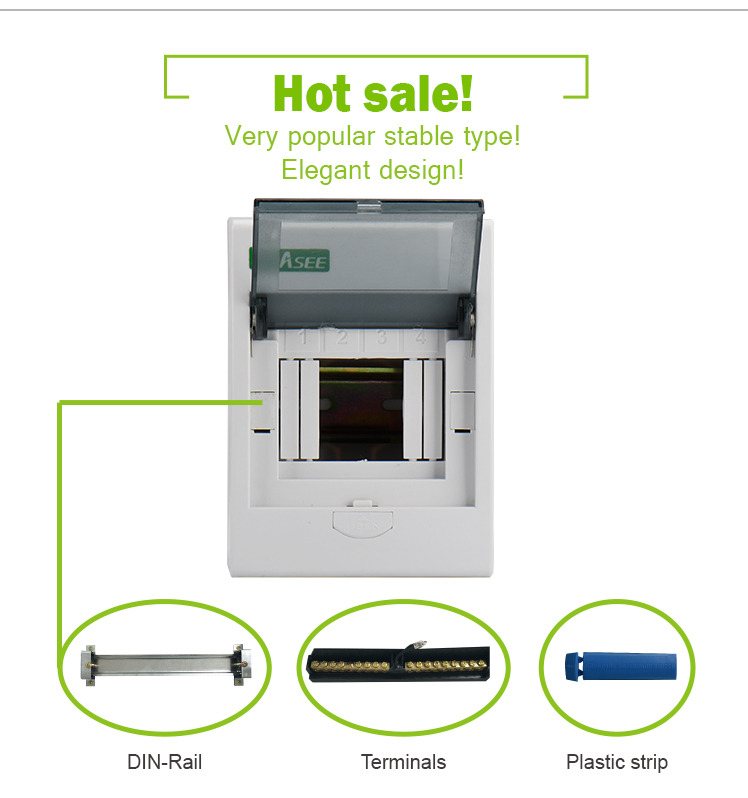

The distribution box is a plastic panel with an iron bottom, and the up and down buttons are self-opening. The DIN rail can be adjusted. There are two wiring terminals (grounding and zeroing) in the box, which is convenient for users to connect and wire. This product is suitable for modular terminal circuits with AC 50Hz and rated voltages of 220V and 380V.



Structure and Features

1. Super large and clear luminous strip design, soft and elegant outline
2. Humanized circuit symbols, printed and displayed control circuit breakers, clear and generous



Technical Parameters

Model

Dimensions (mm)

straight flush

surface

4 ways

130*140*​​80

140*160*80

7 ways

195*190*80

210*210*80

10 ways

248*190*80

255*210*80

13 ways

305*190*80

322*210*80

15 ways

340*190*80

360*210*80

18 ways

393*190*80

416*210*80

20 ways

430*210*80

450*230*80

26 ways

298*350*80

325*375*80

30 ways

340*350*80

360*375*80

36 ways

390*350*80

415*375*80

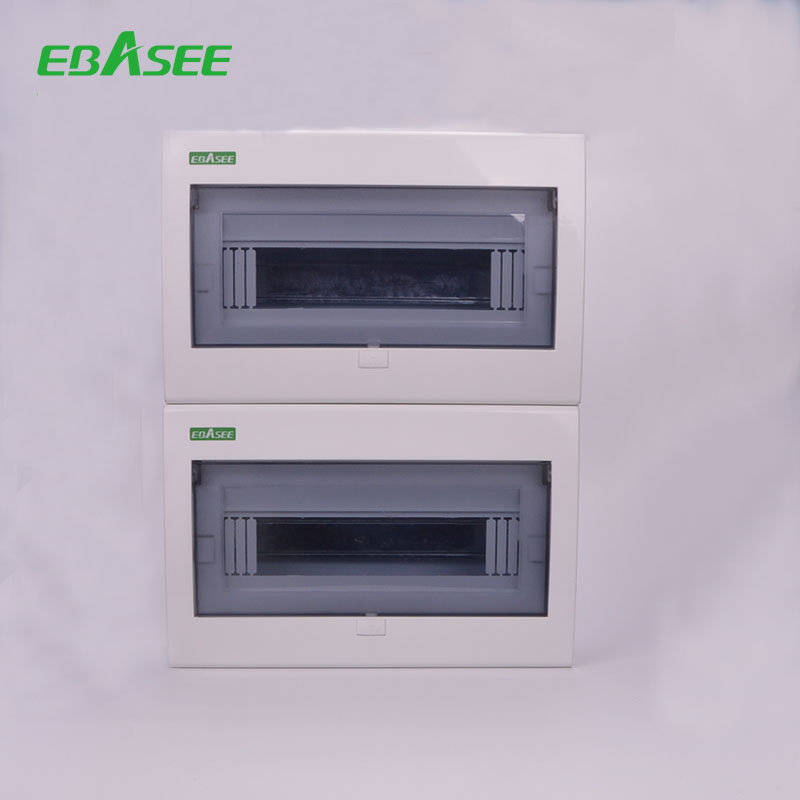

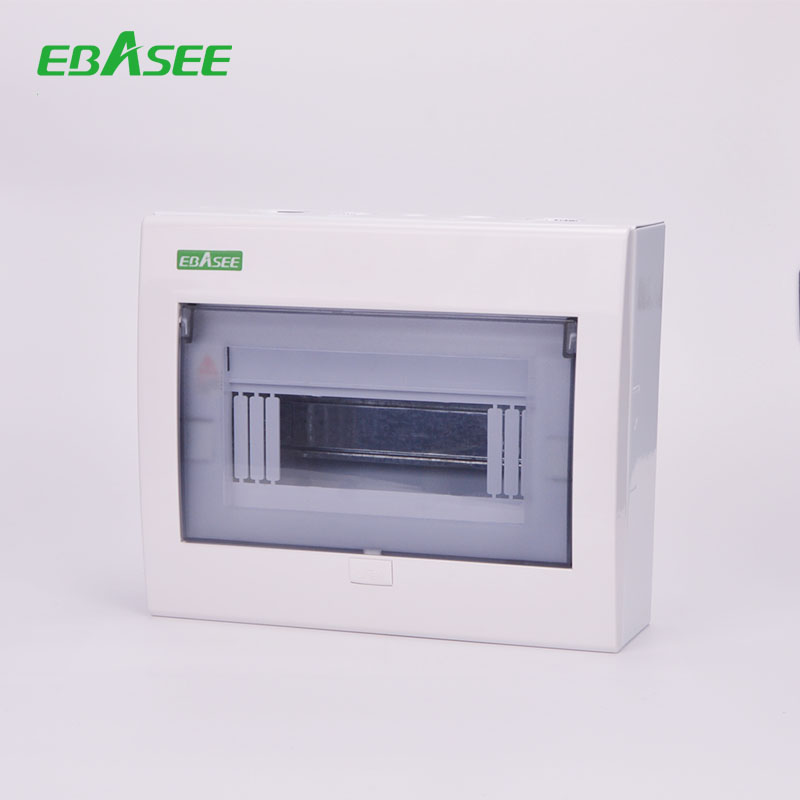

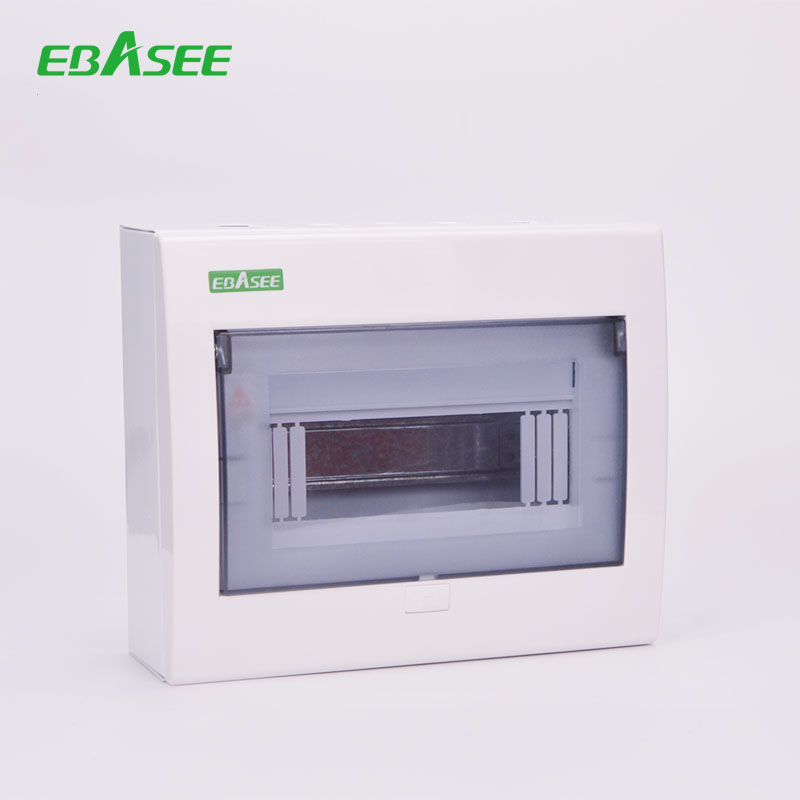

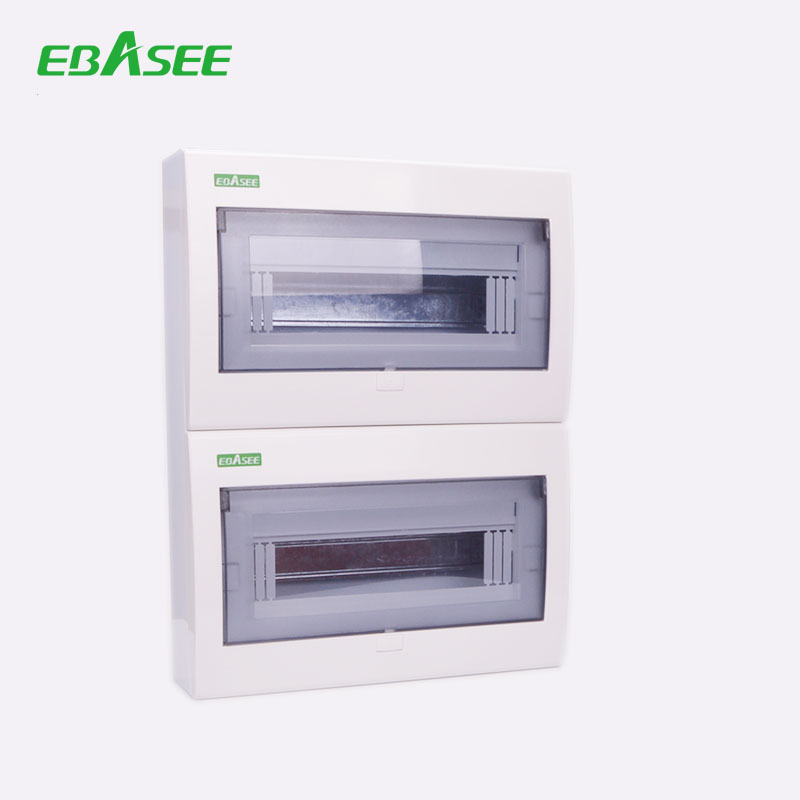

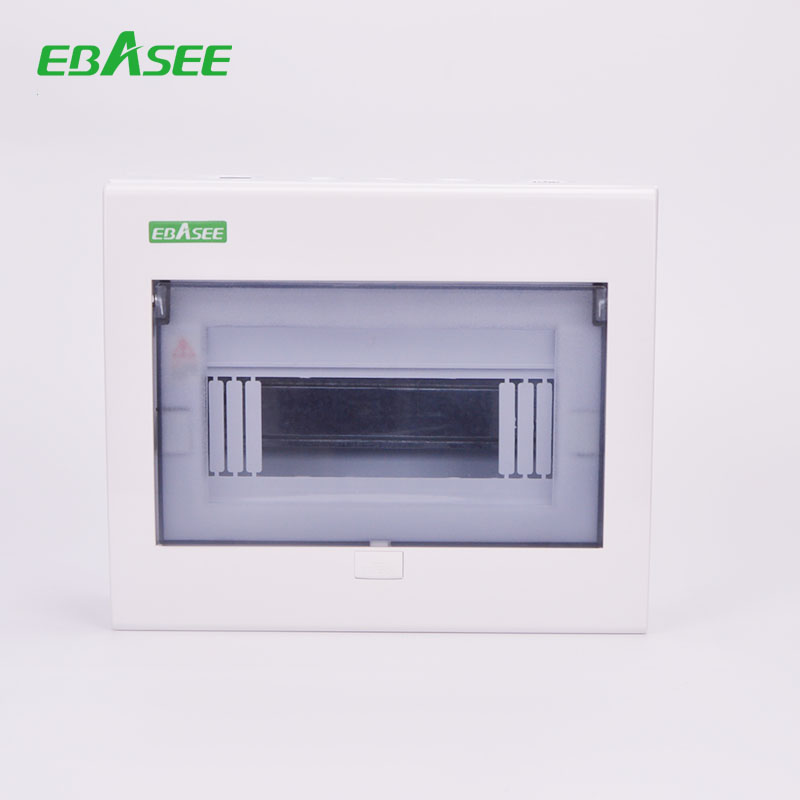

detailed image

Packaging and Shipping
